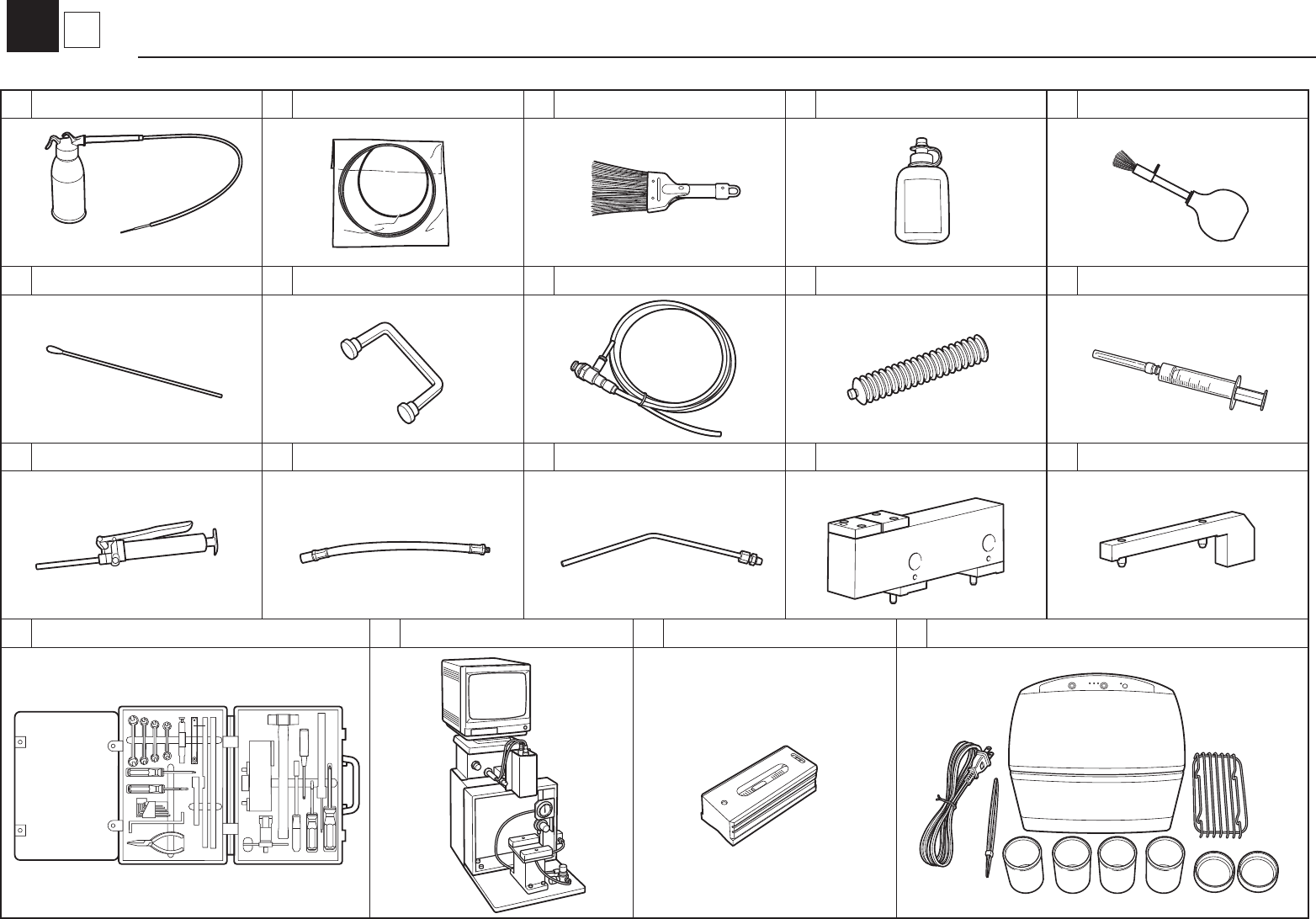

1 2 3 4 5
6 7 8 9 10
11 12 13 14 15
16 17 18 19
KHN-M8860-00X KV8-M8883-A0X KV7-M8880-20X KGA-M3801-00X KGA-M3803-00X
KV8-M8881-A0X KU4-M8590-00X K48-M3856-00X KV8-M8870-00X
K48-M3852-01X K48-M3857-00X K48-M3854-00X KM8-M34E0-B1X KJ3-MY010-00X
KJ3-MJA00-00X KJ3-M34E0-01X KV7-M3823-00X KV7-M8890-00X
KGA-M3802-00X
KHM-0910
11
1
Tools
Tools
No. Part No. Part Name Uses No. Part No. Part Name Uses
1 KHM-M8860-00X CLEANING KIT Spline shaft cleaner kit
2 KV8-M8883-A0X NEEDLE ASSY Nozzle cleaning wire
3 KV7-M8880-20X BRUSH, FEEDER Feeder plate cleaning brush
4 KGA-M3801-00X CLEANER, LENS Lens cleaner
5 KGA-M3803-00X BLOWER Lens blow brush
6 KVA-M3802-00X SWAB Cotton swab sticks
7
KV8-M8881-A0X NEEDLE CLEANER ASSY Nozzle cleaning wire handle
8
KU4-M8590-00 AIR BLOW TOOL Air blow gun
9
K48-M3856-00 GREASE PACK Lithium-based grease (NSL 80g)
10 KV8-M8870-00
SYRYNGE OIL
Oil syringe applicator for nozzle
holder
11
K48-M3852-01
GREASE GUN Grease gun (for Cartlidge )
12
K48-M3857-00X GREASE NOZZLE Grease gun nozzle
13 K48-M3854-00X GREASE NOZZLE Grease gun nozzle
14 KM8-M34E0-B1X FEEDER JIG ASSY Check and adjust pickup position
15 KJ3-MY010-00X MASTER JIG
Adjust the feeder oating detect
sensor
16 KJ3-MJA00-00X TOOL CASE ASSY
Tool set for exchanging and adjusting
tape feeders
17
KJ3-M34E0-01X
JIG FEEDER PICK POS
Check and adjust the pickup position
on tape feeders with monitor
18 KV7-M3823-00X FLAT LEVEL 0.1mm/m
Adjust the machine in the horizontal
position
19 KV7-M8890-00X ULTRAS. CLEANER SET For nozzle cleaning
20
21
22
23
24
25
26
27
28
29
30
31
32
33
