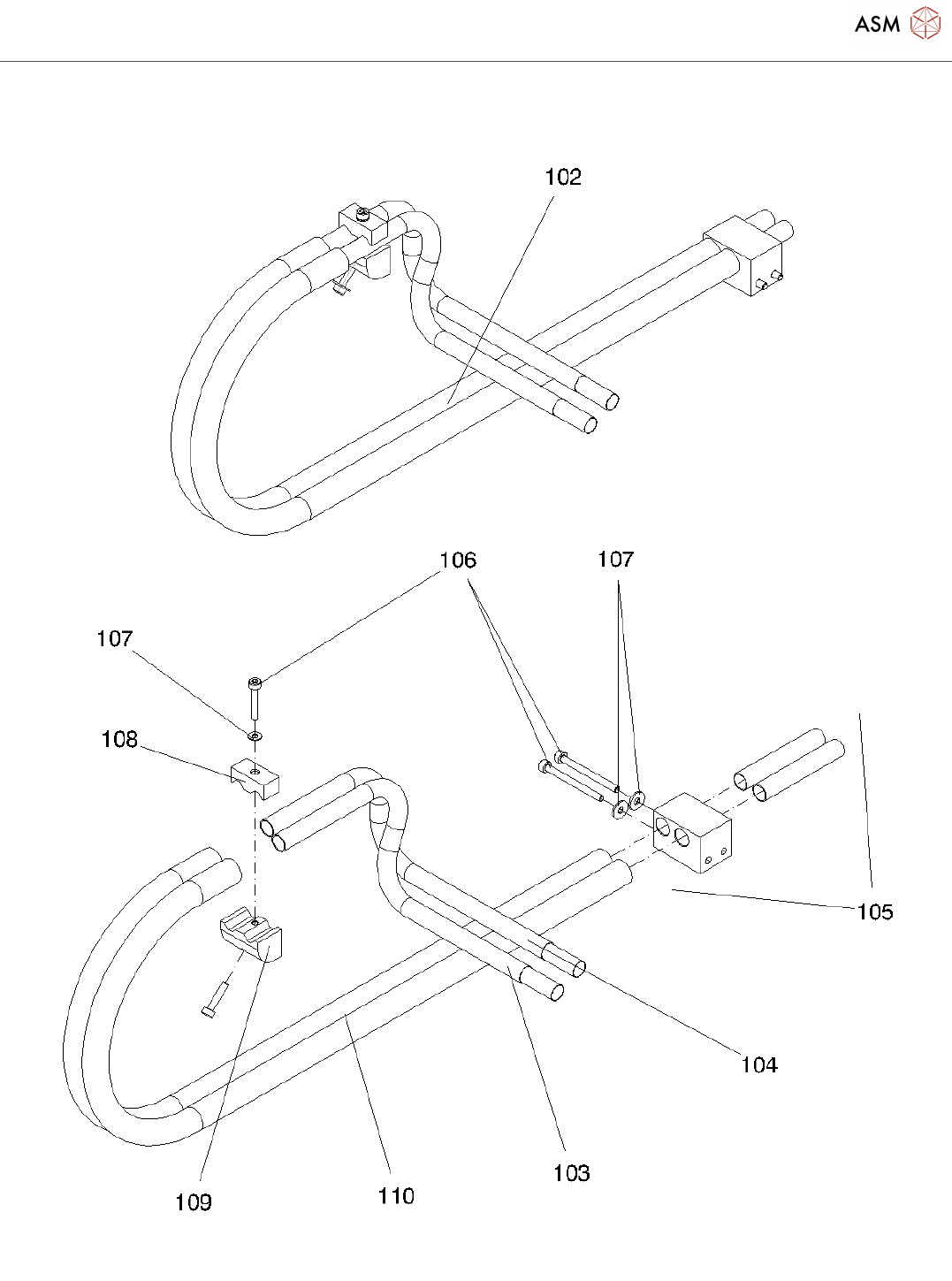

Config vacuum pump Page 16 / 21 22.11.2021

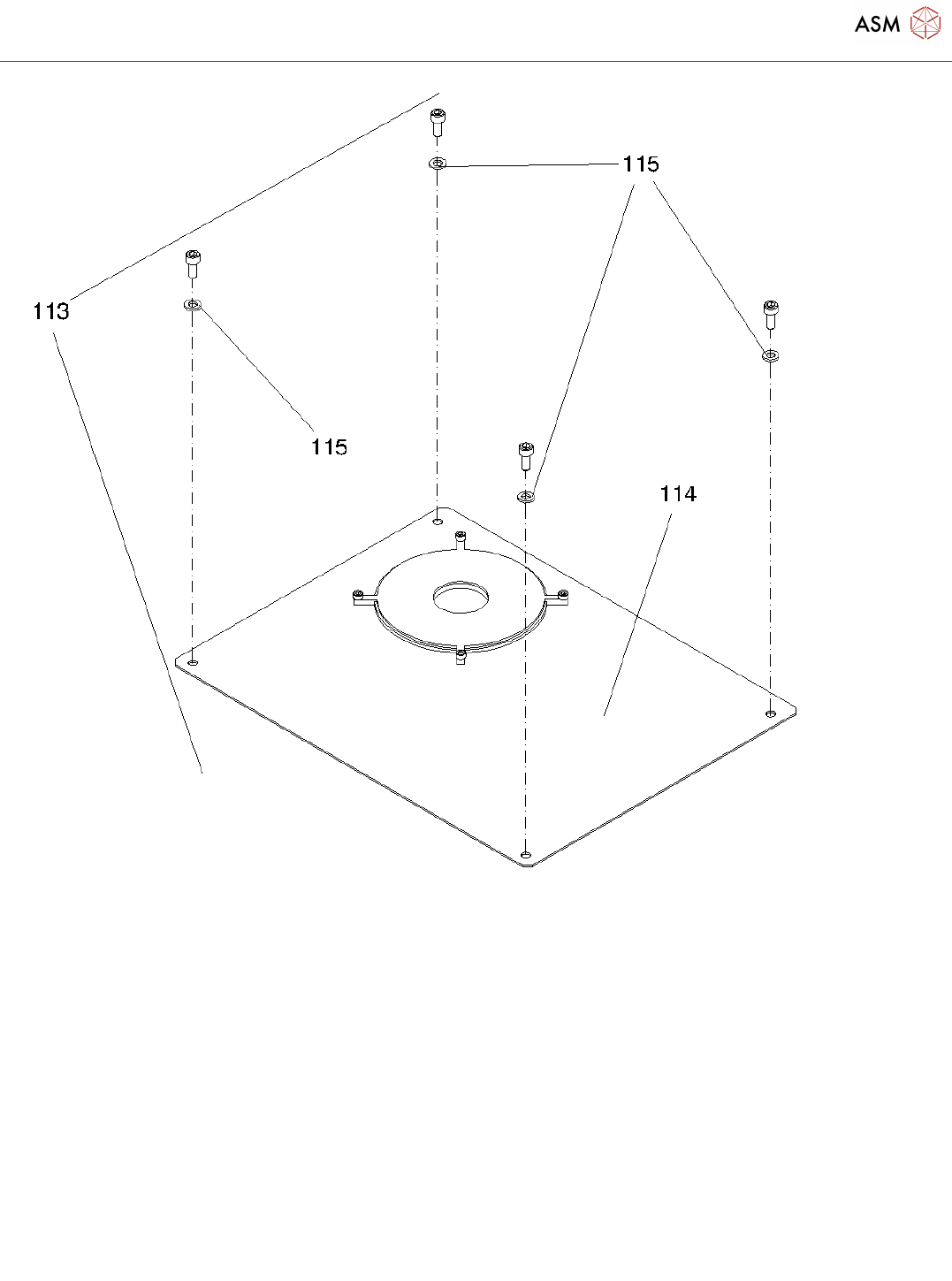

Config vacuum pump
Page 15 / 21 22.11.2021
Config vacuum pump
Page 16 / 21 22.11.2021
Config vacuum pump
Page 17 / 21 22.11.2021
Pos. Item no. Description Part marking
03100968-01 CONFIG VACUUM PUMP X-SERIES S
(110)
2 00519832-01 RETROFITKIT FOR VACUUMPUMP
SX4/X-S HXXX
*
3 03084215-03 RETROFIT KIT VACUUM PUMP SX4
MECH
4 03052317-02 FAN HOOD 1-PIECE SPARE PART
5 03091773-01 AXIAL FAN 24 V DC
6 03084216-02 FANSHEET
7 03084232-01 FLANSCH SHEET COMPL.
8 03084244-02 AIR OUTLET CONDUIT VACUUM
PUMP SX4
9 03056913-01 ISO 4762 - M 4 X 5-A2-70 STANDARD PARTS
10 03064989-01 SAFETY GARD FOR FAN
11 03042558-01 ISO 4762 - M 4 X 40-A2-70 STANDARD PARTS
12 03086345-03 INSTALLATION KIT VACUUM PUMP
13 03086336-01 DISTRIBUTING CABINET
14 03070370-01 VACUUM FILTER F10 SPARE PART
15 03038435-01 DOUBLE NIPPLE DETACHABLE G3/4
MS
03087279-01 SLIDING FILM
03090043-01 SPANNER WRENCH SW36 TOOL
03079997-02 CABLE: POWER VACUUM PUMP SPARE PART
16 03075643-01 ASSY CARRIAGE F. VACUUM PUMP
CPL.
17 03079501-02 SUPPORT SHEET VACUUM PUMP
18 03042574-01 ISO 4762 - M 6 X 20-A2-70
20 03069679-01 VACUUM PUMP BECKER VT4 25
03071727-01 CONNECTOR HOUSING ILME
CK03VS
03092492S01 THREAD SEALANT LOCTITE 55
150M
CONSUMABLE
03087599-01 EXHAUST TUBE ID100
26 03100629-01 INSTALLATION KIT VACUUM PUMP
EXHAUST
27 03038435-01 DOUBLE NIPPLE DETACHABLE G3/4
MS
28 03101001-01 BOW, SHORT, THREAD I/A, 3/4
