SOKO 2 Assembly instruc tions SOKO Sonic Buzzer SIPLACE D4 10/2007 Edition 21 2.3.1 Definitions 2 Note 2 2 2 2 Ti p 2 2 2 2.4 Scope of delivery The retrofit kit SOKO Sonic Buzzer D4 consists of: 2 – Contr ol unit – Sonic…
2 Assembly instructions SOKO Sonic Buzzer SIPLACE D4 SOKO
10/2007 Edition
20
2.3 Safety instructions
WARNING
The safety instructions from the “Operational safety” chapter of the user manual and servicing in-
structions take precedence over these instructions. 2
The SIPLACE placement machines are supplied with mains voltage.
Consequently parts of these systems carry dangerous voltages! This voltage is present at certain
modules inside the machine base, even when the machine is switched off at the main power
switch.
Incorrect handling of the placement machine or touching live parts of the machine can result in
death or severe injury, and considerable damage to equipment.
BEFORE starting any work, shut down the operating system correctly, then switch the machine
OFF at the main power switch and disconnect from the main power supply. In addition, the com-
pressed air supply must be switched off at the compressed air unit's main valve in the machine
base and vented by actuating the needle valve on the compressed air unit.
There is DANGER for heart pacemaker wearers in the vicinity of the linear motors, as described
in detail in the "Special safety instructions for working in the vicinity of strong magnetic fields"
section of the user manual and service manual.
Always follow the accident prevention regulations, DIN or other standards and special safety
rules applicable in your country.
Pay attention to the information concerning residual voltages in the Operational Safety chapter.
Follow the ESD regulations as described in the operational safety section of the operating
instructions.
During the assembly, always secure the machine to prevent access by other people and to pre-
vent it being switched on again. The procedure is described in the “Locking the machine…” sec-
tion of the user manual.
Working with the SITEST program further increases the risk of accident.
The SITEST program must only be used by authorized and trained personnel.
2
2
2
2
2
SOKO 2 Assembly instructions SOKO Sonic Buzzer SIPLACE D4
10/2007 Edition
21
2.3.1 Definitions
2
Note 2
2
2
2
Tip 2
2
2
2.4 Scope of delivery
The retrofit kit SOKO Sonic Buzzer D4 consists of: 2
– Control unit
– Sonic buzzer with knob
–Cable ties
– Self-adhesive cable clamps
– Adapter for D4
– Assembly instructions SOKO Sonic Buzzer SIPLACE D4 (item no: 00196045-xx).
2.5 Necessary tools
– Set of hexagonal socket spanners
– Set of screw drivers
– Side cutters.
2 Assembly instructions SOKO Sonic Buzzer SIPLACE D4 SOKO
10/2007 Edition
22
2.6 Installation
2.6.1 SIPLACE D4
: Shut down the placement system and switch it off at the main switch.
: Open the side covers at location 2 and 4.
2

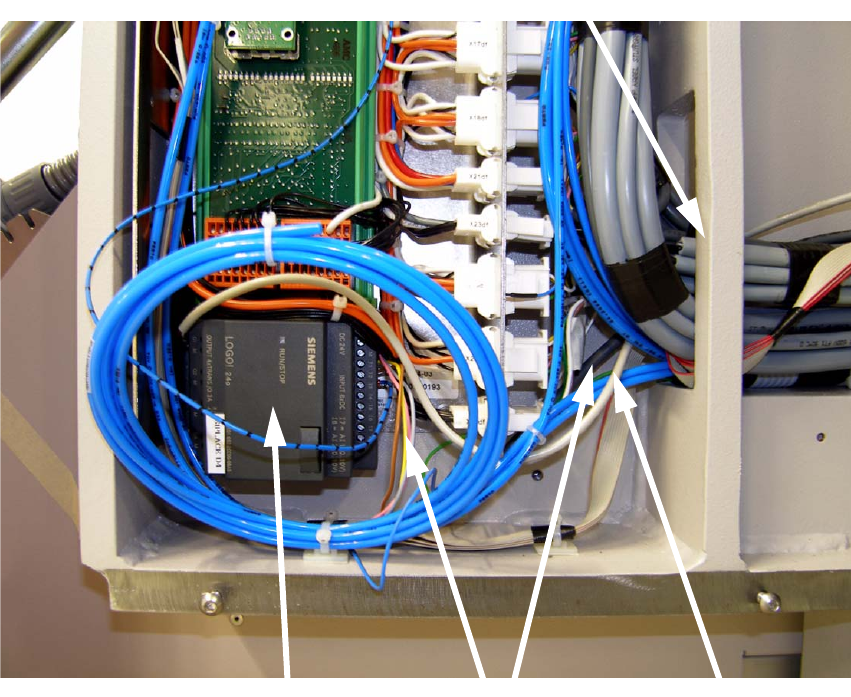

Work at location 4 2
: Mount the Logo control unit to the hat rail on the bottom.
2
2
2
Logo controller
7-wire cable
Breakout
2-wire cable
