2 Assembly instructi ons SOKO Sonic Buzzer SIPLACE D4 SOKO 10/2007 Edition 22 2.6 Inst allation 2.6.1 SIPLACE D4 : Shut down the placement system and s witch it off at the main switch. : Open the side covers at location …
SOKO 2 Assembly instructions SOKO Sonic Buzzer SIPLACE D4
10/2007 Edition
21
2.3.1 Definitions
2
Note 2
2
2
2
Tip 2
2
2
2.4 Scope of delivery
The retrofit kit SOKO Sonic Buzzer D4 consists of: 2
– Control unit
– Sonic buzzer with knob
–Cable ties
– Self-adhesive cable clamps
– Adapter for D4
– Assembly instructions SOKO Sonic Buzzer SIPLACE D4 (item no: 00196045-xx).
2.5 Necessary tools
– Set of hexagonal socket spanners
– Set of screw drivers
– Side cutters.
2 Assembly instructions SOKO Sonic Buzzer SIPLACE D4 SOKO
10/2007 Edition
22
2.6 Installation
2.6.1 SIPLACE D4
: Shut down the placement system and switch it off at the main switch.
: Open the side covers at location 2 and 4.
2
Work at location 4 2
: Mount the Logo control unit to the hat rail on the bottom.
2
2
2
Logo controller
7-wire cable
Breakout
2-wire cable
SOKO 2 Assembly instructions SOKO Sonic Buzzer SIPLACE D4
10/2007 Edition
23
: Run the 2-wire cable and the 7-wire cable behind the other cables through the breakout in the
machine base to the machine middle.
: Run the blue/black cable from the Logo control unit to the upper terminal block X400.
2

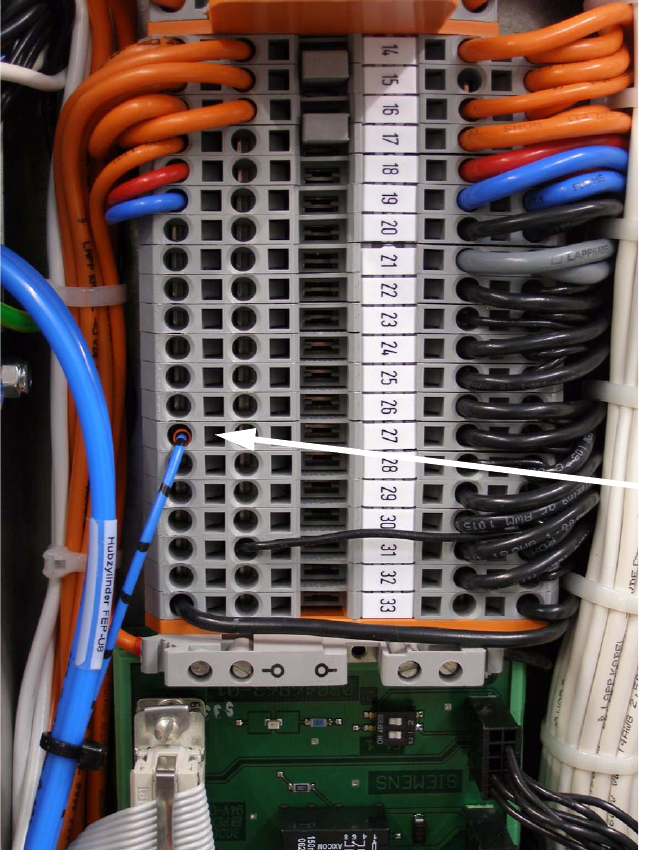

: Connect the blue/black cable to X400:27.
2
2
2
2
2
Term inal X400:27
