SOKO 2 Assembly instruc tions SOKO Sonic Buzzer SIPLACE D4 10/2007 Edition 25 : Run the 7-wire cable through the ma chine base to location 2. 2 Use a pneumatic hose or similar an d fix the cable to it so that you can pu …
2 Assembly instructions SOKO Sonic Buzzer SIPLACE D4 SOKO
10/2007 Edition
24
: Fix the blue /black cable with cable ties to the pneumatic hoses.
2
2
2
2
2
2
2
Fixing of the
blue/black wire
SOKO 2 Assembly instructions SOKO Sonic Buzzer SIPLACE D4
10/2007 Edition
25
: Run the 7-wire cable through the machine base to location 2.
2
Use a pneumatic hose or similar and fix the cable to it so that you can push the hose with cable
through the machine. 2
2
2
2
2
2
2
2
2
2
2
Running of the cable
2 Assembly instructions SOKO Sonic Buzzer SIPLACE D4 SOKO
10/2007 Edition
26
Work at location 2 2

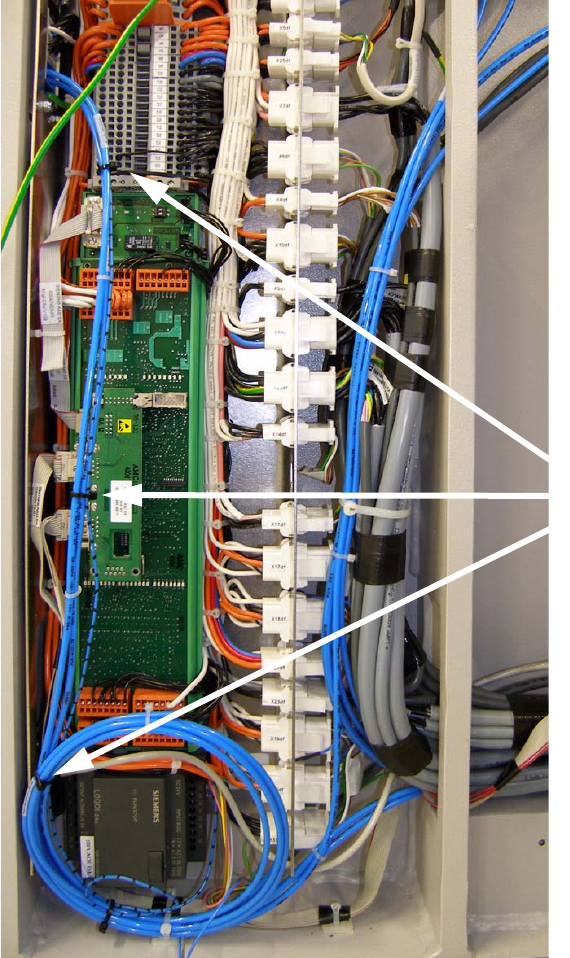

: Run the 7-wire cable behind the existing cables and through the breakout to the terminal block
X200.
2
Running of the cable
Running of the cable
