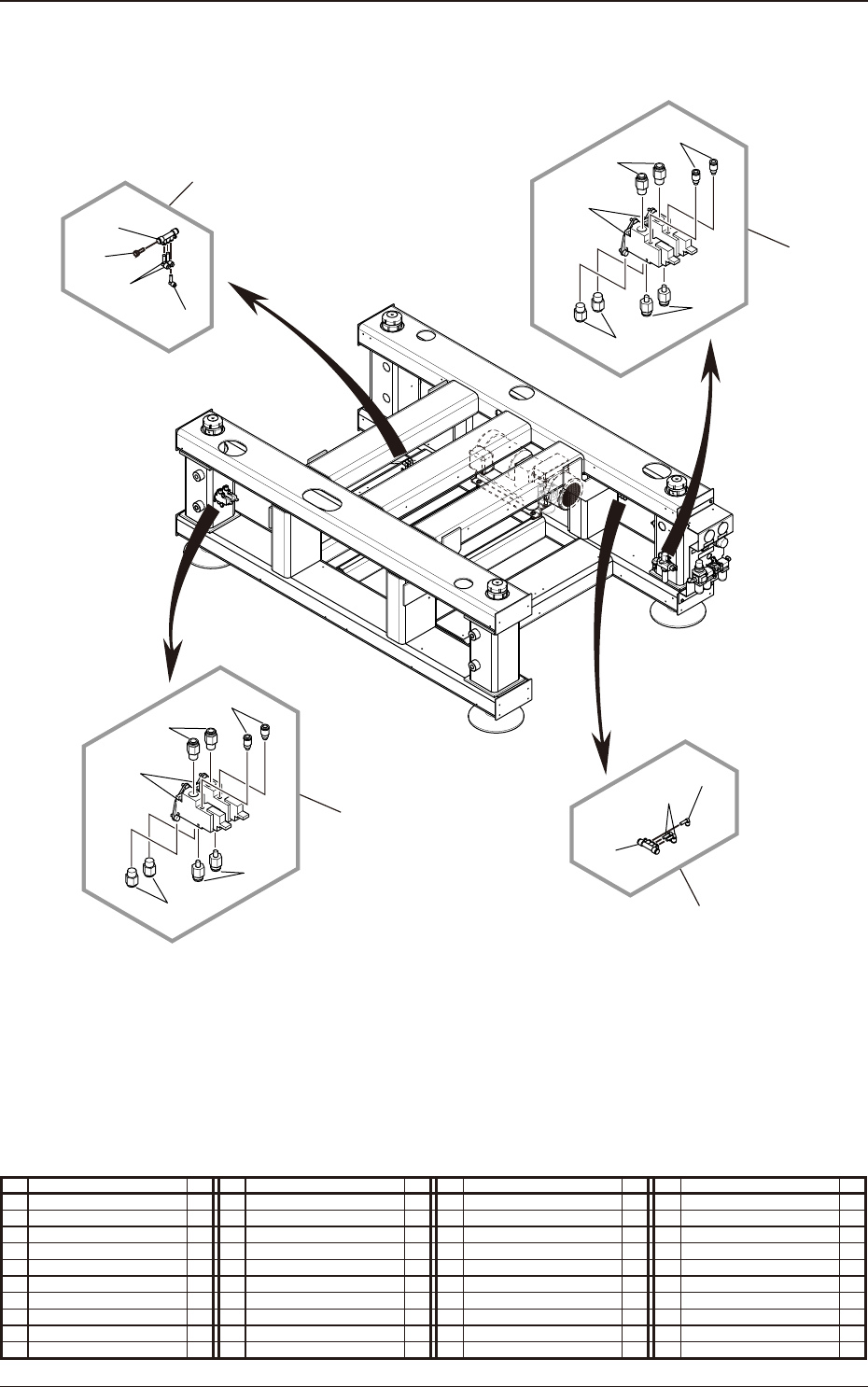

5OM-1841 气路图及实际贴装图 1-1-5 1605-001 6 7 7-1 6-1 7-2 6-2 7-3 6-3 7-4 4 4-1 4-2 4-3 4-5 4-4 4 4-1 4-2 4-3 4-5 4-4 No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty 4 Solenoid V alve Unit 1 7 Manifold Unit …
5OM-1841
气路图及实际贴装图
1-1-4
1605-001
1
1-4
1-1
1-3
1-2
3-1
3-5
3-4
3-3
3-6
2-4
2-9
2-6
2-5
2-1
2-8
2-3
2-11
2-9
2-2
2-10
2-7
3-2
3-1
3
2
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
1 Air Supply Unit 1 2-5 Regulator 1 3-3 Universal Quick 3
1-1 Combination Unit 1 2-6 Elbow Union 1 3-4 Plug 1
1-2 Female/Male Elbow 1 2-7 Half Union 2 3-5 Elbow Union 1
1-3 Single-Ended Hose Nipple 1 2-8 Half Union 1 3-6 Reducer 1
1-4 Half Union 1 2-9 Elbow Union 1
2 Air Supply Unit 1
2-10
Elbow Union 1
2-1 Vacuum Gauge 1
2-11
Elbow Union 2
2-2 Combination Unit 1 3 Vacuum Pump Unit 1
2-3 Pressure Switch 1 3-1 Vacuum Pump 1
2-4 Pressure Gauge 1 3-2 Bush 1
5OM-1841
气路图及实际贴装图
1-1-5
1605-001
6
7
7-1
6-1
7-2
6-2
7-3
6-3
7-4
4
4-1
4-2
4-3
4-5
4-4
4
4-1
4-2
4-3
4-5
4-4
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
4 Solenoid Valve Unit 1 7 Manifold Unit 1
4-1 Solenoid Valve 2 7-1 Manifold 1
4-2 Half Union 2 7-2 Straight Elbow 2
4-3 Half Union 2 7-3 Reducer Elbow 1
4-4 Half Union 2 7-4 Plug 1
4-5 Half Union 2
6 Manifold Unit 1
6-1 Manifold 1
6-2 Straight Elbow 2
6-3 Reducer Elbow 1
5OM-1841
气路图及实际贴装图
1-1-6
1605-001
φ6L1300
φ4Ｌ520
ZLMD
Movable Side Z-Clamp L
Fixed Side Z-Clamp L
Movable Side Z-Clamp R
Fixed Side Z-Clamp R
SLLD
SLLU
φ3.2L850
φ3.2L850
ZLFD
φ3.2L850
φ3.2L1650
ZLMU
ZLMU
φ3.2L1650
φ3.2L1650
φ3.2L1650
φ3.2L1650
φ3.2L800
φ3.2L800
φ3.2L800
φ4Ｌ590
φ4Ｌ580
φ4Ｌ600
φ4Ｌ650
VZRU
VZRD
SRRU
SRRD
φ4Ｌ680 φ4Ｌ705
φ4Ｌ600
φ4Ｌ550
φ4Ｌ735 φ4Ｌ750
φ4Ｌ900
φ4Ｌ860
From Main Body
PCB Stopper R-R
φ4Ｌ510
φ4Ｌ770
φ4Ｌ750
PCB Stopper L-RPCB Stopper L-L
2
3
3
3
3
1111
SLLD
SLLU
11
11
11
11
3
3
3
3
3
3
3 3
3 3 3 3
3 3
3
3
9
8
8
9
9
7 7
1
1 1
1
1
1 1
1 1
1
1
3
5
5
55
3
1
1
6
1 1 1
VSLLD
VSLLU
VSLRDVSLRU
VZLD
VZLU
VSRRD
VSRRU
VZLD
VZLU
VZRD
VZRU
ZRMD
φ3.2L1650
ZRMU
ZRFD
ZRMU
φ4L40
φ4L40
11
11
φ4L40
11
11 11
11
3 3
3
3
φ4L40
φ4L40
φ4L40
φ4L40
φ4L40
φ4L40
3
3
11
11
φ4L40
φ4L40
φ4L40
φ4L40
B
A
B
A
B
A
B
A
B
A
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
1 Tube φ 3.2 1
2 Tube φ 6 1
3 Half Nipple 28
5 Union Y 8
6 Solenoid Valve 5
7 Fixed Chute Unit 2
8 Movable Chute Unit 2
9 PCB Stopper 3
11 Speed Controller 14
