5OM-1841-001w_F8S - 第87页
5OM-1841 3-1-7 元件配置图 1605-001 A21_21 A22_21 A21_22 A22_22 Symbol Block Parts Name Model Qt Main Applications A21-21 BA UNIT -DRIVER #MR-J3-60B-RJ1 15 1 ST AGE 2 X1 axis driver A22-21 BA UNIT -DRIVER #MR-J3-350B-…
5OM-1841
3-1-6
元件配置图
1605-001
CON1
CON2
CON3
CON4
CON5
CON6
CON7
CON8
CN5
CON1
CN8
CN7
CN3
CN2
CN6
UC19
CON1-8
CN5
CN1
CN8
CN7
CN3
CN2
CN6
A21
STAGE 2
21-
A22
21-
A21
22-
A22
22-
Y(B) Y(F)X(F)X(B)
CN10
CN11
CON11
CN13
CN12
CN9
UC19AUC19
Lighting Control PCB UC19
Servo Amplitier (Front)
Symbol Block Parts Name Model Qt Main Applications
U95 BA P.C.B Mount UC19 1 Lighting Control PCB
U95 BA P.C.B Mount UC19A 1 Lighting Control PCB (Expansion)
5OM-1841
3-1-7
元件配置图
1605-001
A21_21 A22_21 A21_22 A22_22
Symbol Block Parts Name Model Qt Main Applications
A21-21 BA UNIT-DRIVER #MR-J3-60B-RJ115 1 STAGE 2 X1 axis driver
A22-21 BA UNIT-DRIVER #MR-J3-350B-RJ115 1 STAGE 2 Y1 axis driver
A21-22 BA UNIT-DRIVER #MR-J3-60B-RJ115 1 STAGE 2 X2 axis driver
A22-22 BA UNIT-DRIVER #MR-J3-350B-RJ115 1 STAGE 2 Y2 axis driver

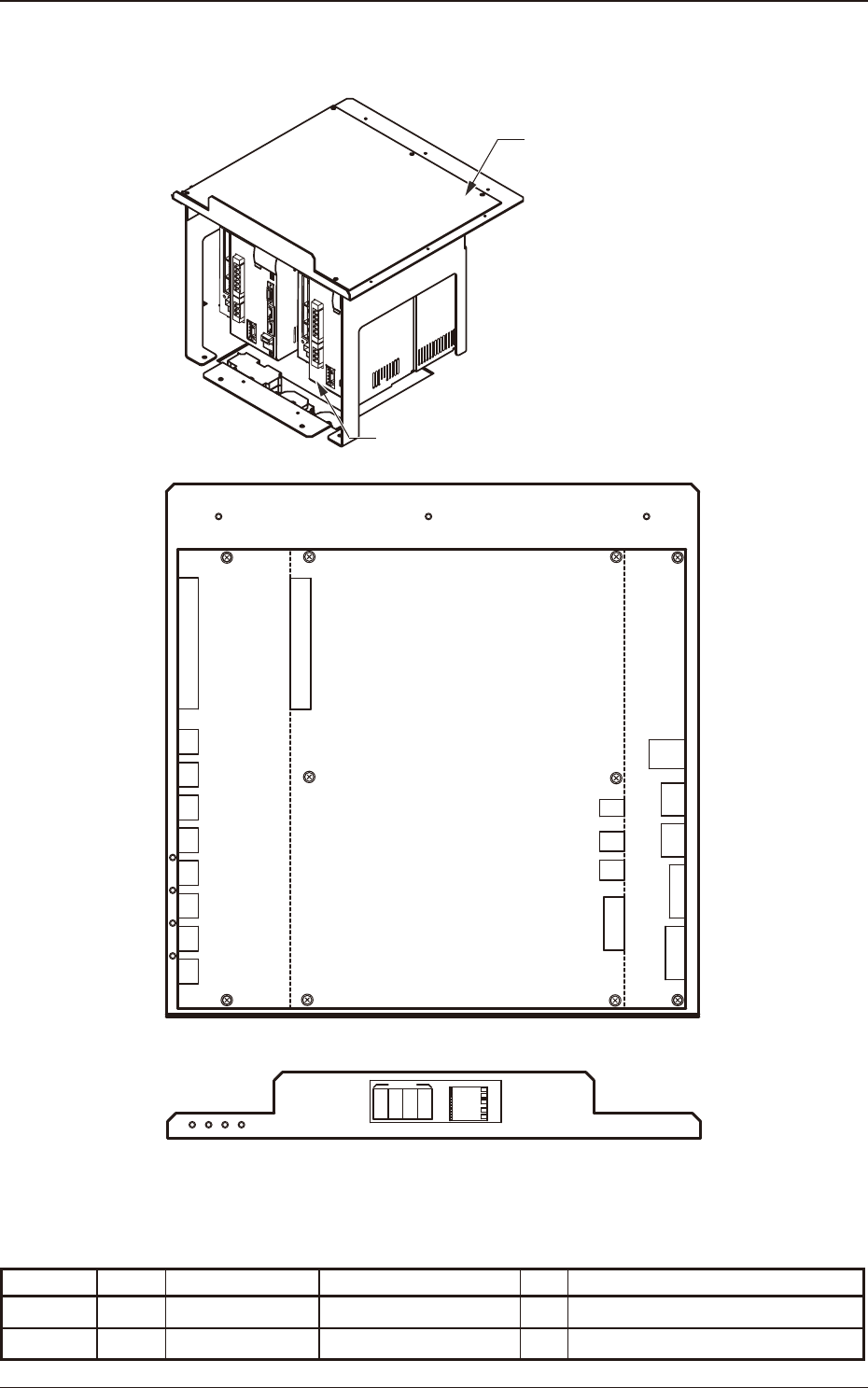

5OM-1841
3-1-8
元件配置图
1605-001
Symbol Block Parts Name Model Qt Main Applications
D89 BA SSD
D2ST2-08GJ20AC2 QT-D95
1
BA CORD SAT-3103BL 1 SSD Communication Cable
BA CORD WA-185 1 SSD Power Cable
U91 BA P.C.B Mount FM17M-L2S-C18-2GME 1 CPU Board
U92 BA P.C.B Mount ASP-8514Q-SMD4 1 Recognition Board (COGNEX)
U93,94 BA P.C.B Mount PLE-8603-00 2 Recognition Board (HST Vision)
