5OM-1841 3-1-8 元件配置图 1605-001 Symbol Block Parts Name Model Qt Main Applications D89 BA SSD D2ST2-08GJ20AC2 QT -D95 1 BA CORD SA T -3103BL 1 SSD Communication Cable BA CORD WA-185 1 SSD Power Cable U91 BA P .C.B Mou…

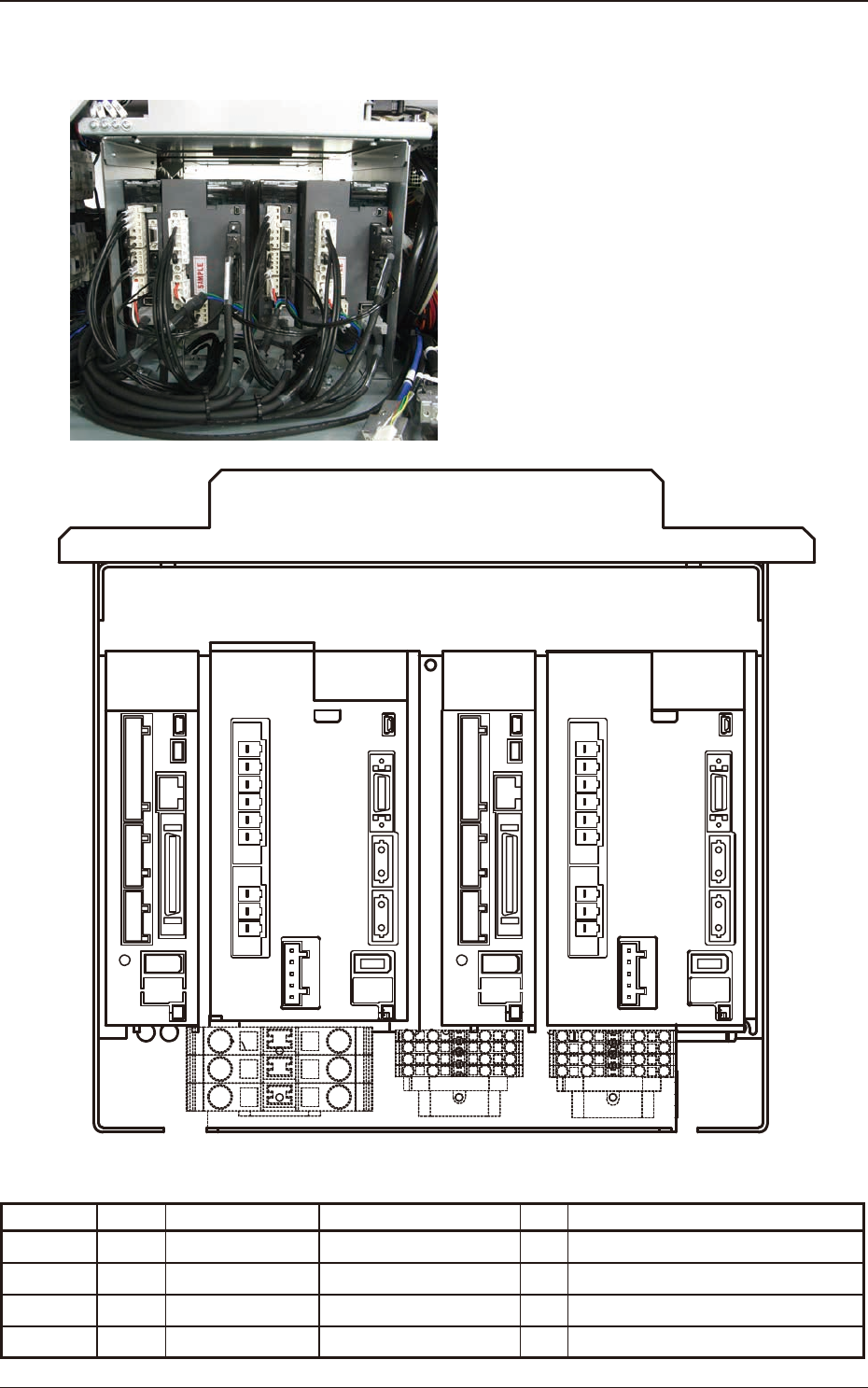

5OM-1841
3-1-7
元件配置图
1605-001
A21_21 A22_21 A21_22 A22_22
Symbol Block Parts Name Model Qt Main Applications
A21-21 BA UNIT-DRIVER #MR-J3-60B-RJ115 1 STAGE 2 X1 axis driver
A22-21 BA UNIT-DRIVER #MR-J3-350B-RJ115 1 STAGE 2 Y1 axis driver
A21-22 BA UNIT-DRIVER #MR-J3-60B-RJ115 1 STAGE 2 X2 axis driver
A22-22 BA UNIT-DRIVER #MR-J3-350B-RJ115 1 STAGE 2 Y2 axis driver

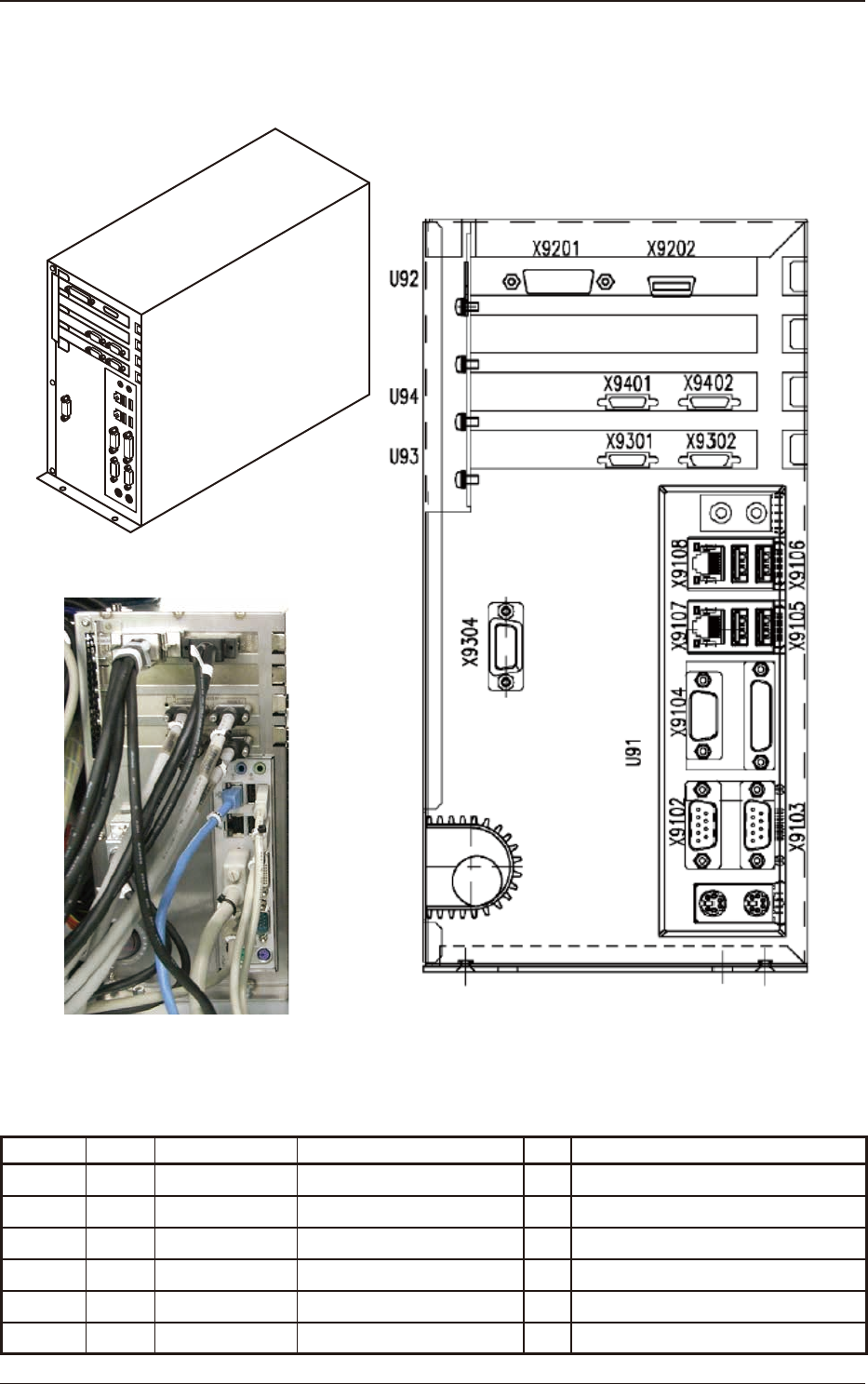

5OM-1841
3-1-8
元件配置图
1605-001
Symbol Block Parts Name Model Qt Main Applications
D89 BA SSD
D2ST2-08GJ20AC2 QT-D95
1
BA CORD SAT-3103BL 1 SSD Communication Cable
BA CORD WA-185 1 SSD Power Cable
U91 BA P.C.B Mount FM17M-L2S-C18-2GME 1 CPU Board
U92 BA P.C.B Mount ASP-8514Q-SMD4 1 Recognition Board (COGNEX)
U93,94 BA P.C.B Mount PLE-8603-00 2 Recognition Board (HST Vision)

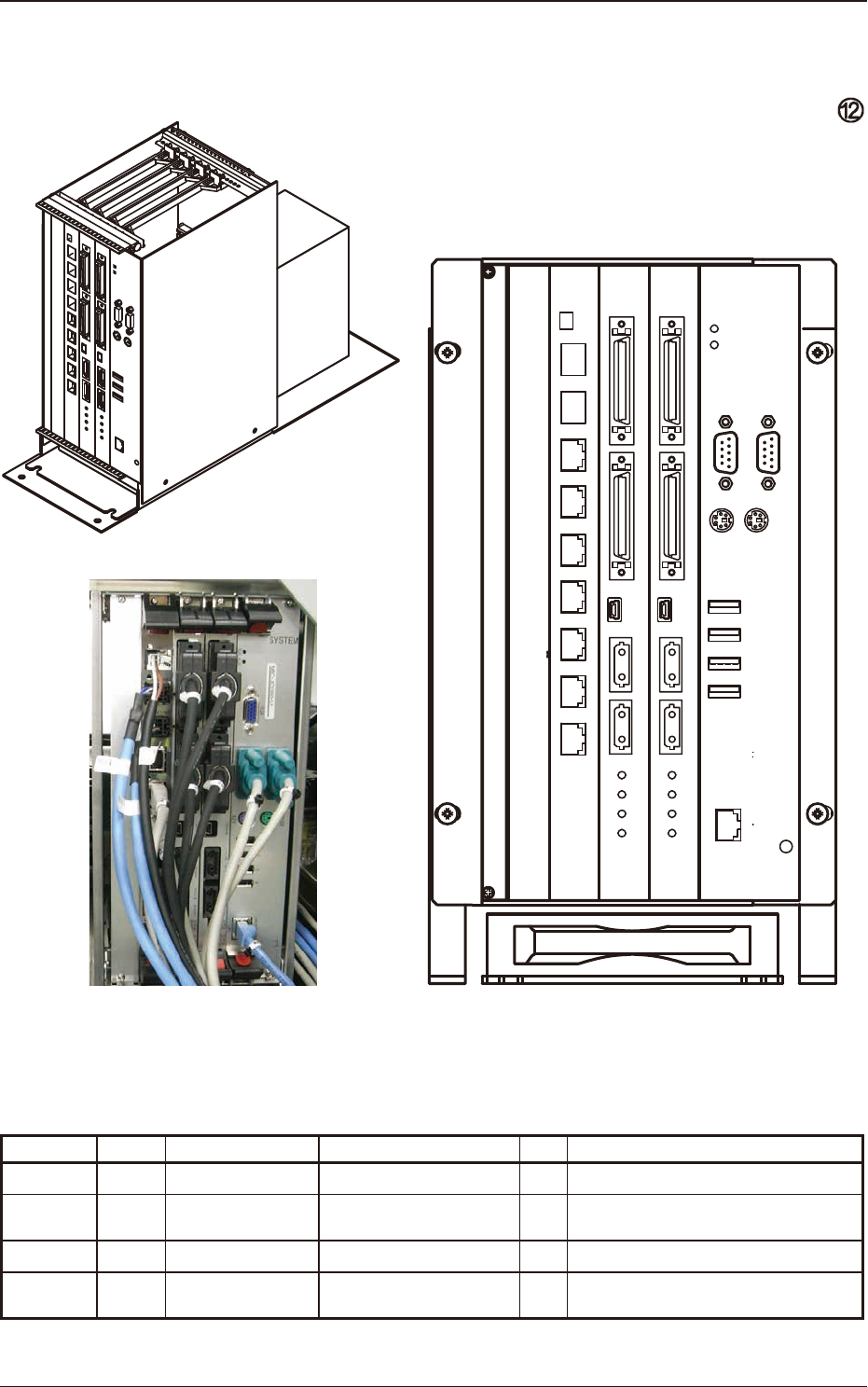

5OM-1841
3-1-9
元件配置图
1605-001
U85 U83 U82 U81
Ｍ177
X8505 X8504 X8503 X8502 X8501 X85X01
X8302 X8301 X8304 X8303
X8202 X8201 X8204 X8203
X8102
X8104
X8109
Symbol Block Parts Name Model Qt Main Applications
D81 BA CF TS512MCFX834014 1 Flash Memory inside of U81
U81 BA P.C.B Mount
CPCI-6965DZ-HT/550/
M1G(EP)
1 CPU2 (ADLINK)
U82,83 BA P.C.B Mount MR-MC121-S12 2 Motion Control (SSCNET)
U85 BA P.C.B Mount
UC16 High-Speed IO
Host
1
High-Speed I/O and Pulse Motor
Control
