5OM-1841 3-1-15 元件配置图 1605-001 Side Panel Front Side Panel Rear Side Panel Center
5OM-1841
3-1-14
元件配置图
1605-001
G7 HWS300-48 G2
G1 G3
Symbol Block Parts Name Model Qt Main Applications
G1 BA UNIT-POWER S8JX-P600 24N 1 G1(24V)
G2 BA UNIT-POWER ADA750F-48 1 G2
G3 BA UNIT-POWER S8JX-P600 24N 1 G3(24V)
G7 BA UNIT-POWER HWS300-48 1 G7(48V)
5OM-1841
3-1-15
元件配置图
1605-001
Side Panel Front
Side Panel Rear
Side Panel Center

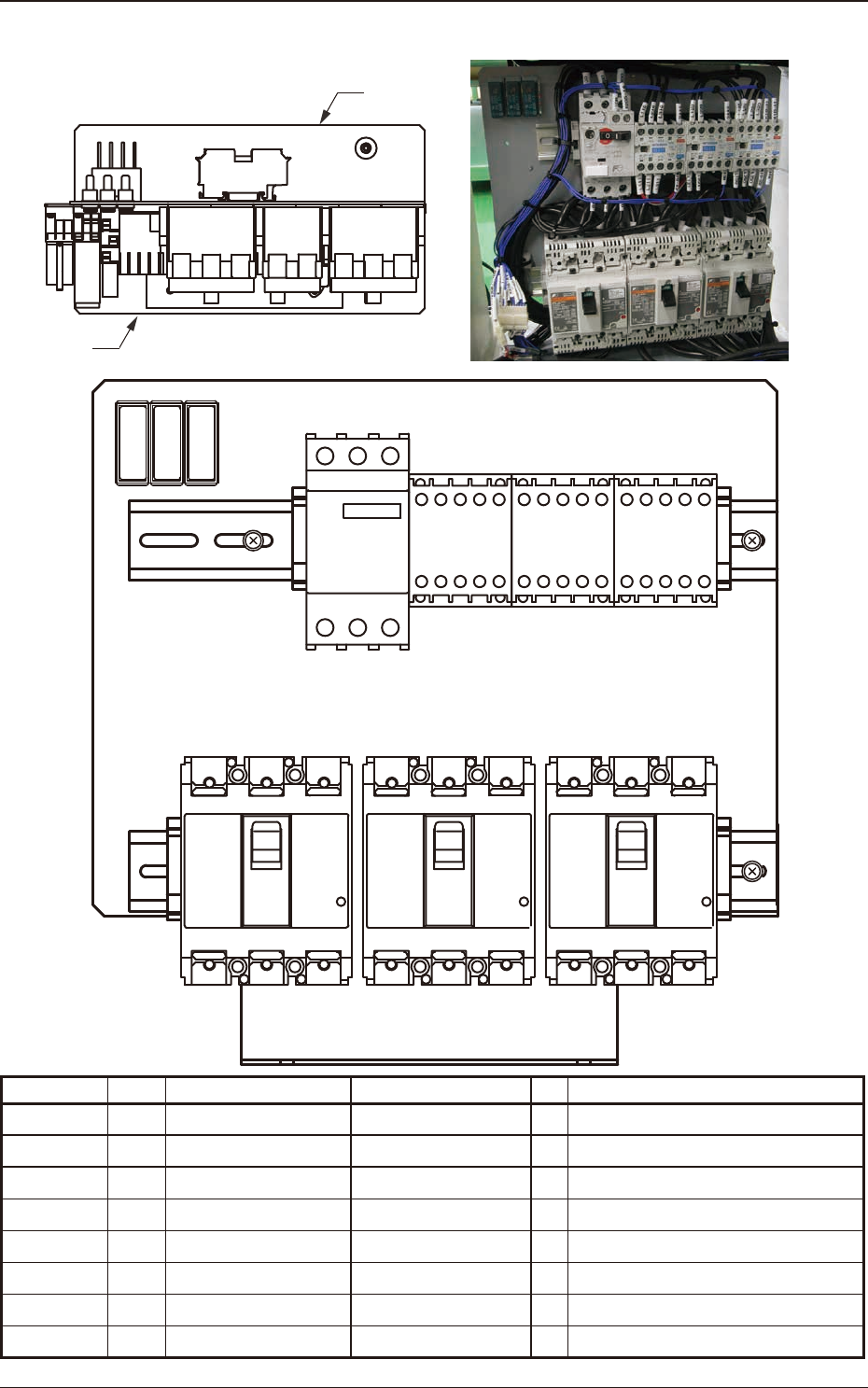

5OM-1841
3-1-16
元件配置图
1605-001
Outside
Inside
F201-203
Q205
K29 K28 K10
Q221A Q221B
Q206
Symbol Block Parts Name Model Qt Main Applications
Q205 BA
CIRCUIT-PROTECTOR
BM3RSB-004 1 Vacuum Pump
Q206 BA BREAKER BW50RAGU-3P030 1 CPU, Control Power, Power
Q221F BA BREAKER BW50RAGU-3P050 1 STAGE1 Servo
Q221R BA BREAKER BW50RAGU-3P050 1 STAGE2 Servo
K29 BA EM-CONTACTOR SD-Q11D 1 Vacuum Pump Power Control
K28 BA EM-CONTACTOR SD-Q11D 1 CPU Power-up
K10 BA EM-CONTACTOR SD-Q11D 1 Head, Conveyor, Main Power-up
F201 to 203
BA FUSE_SPECIAL GP50 3 Fuse for Lightning Surge
