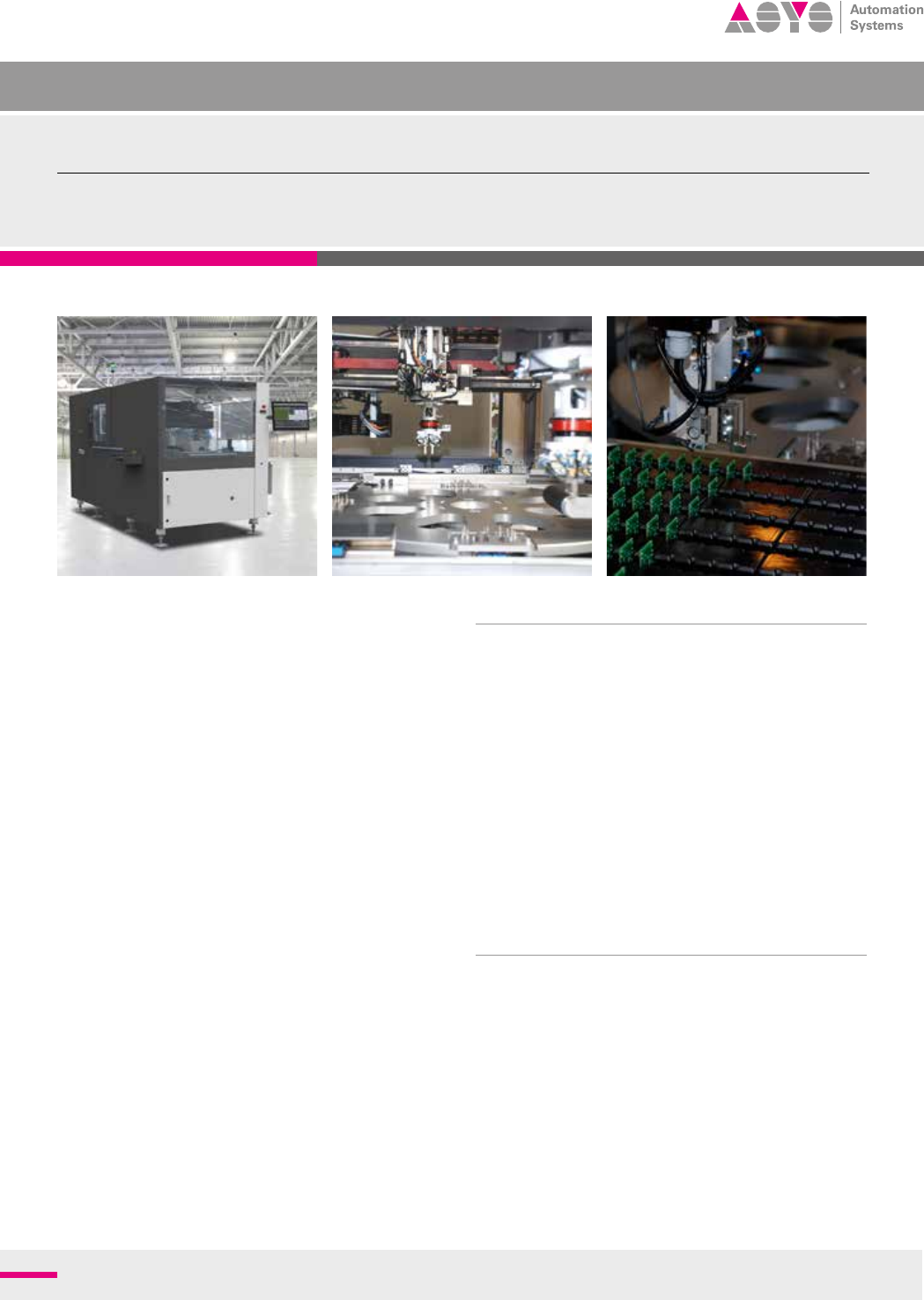

DIVISIO 6000
Automatic Rotary Table Depaneling System
DIVISIO 6000 Series
Options
_ Unloading system with servo rotating module (C-axis)
_ Automatic gripper finger changeover
_ Camerasystem
+ Fiducial recognition
+ Cut inspection
+ Teach function
+ Correction function
+ Bad mark recognition
+ Code read
_ Dust extraction
_ Manual suction unit
_ Low pressure control
_ Automatic product changing
_ ASYCAM CAD data conversion
_ Customized transport modules
_ Customized data interface
_ Global remote control
Description
The DIVISIO 6000 is a high dynamic depaneling system for
maximum output. The module units are split in the following
processes: “depaneling“, “final assembly“ and “feeding next
process“. By this it is possible to adapt to speed or process-
applications.
The cut curcuits will be laid down on the centrally placed
turntable by the carbon-fibre-axis in the front. The “final
assembly“ is carried out on the turntable. At the same time
the second carbon-fibre-axis takes the finished circuits at the
other side of the table and sorts them into a freely choosable
outlet.
By using parallel processes the DIVISIO 6000 can run opti-
mum cycle times.
Features
_ 2 carbon-fibre handling axis
_ Linear motors for highest dynamics and accuracy
_ Ionisation unit
_ Segmental inlet
_ Quick exchange of gripper finger
_ Automatic tool change
_ Complete tool management
+ Breakage control
+ Length verification
+ Diameter check
+ Life span monitoring
+ Dynamic utilization of full router bit
_ Automatic maintenance schedule

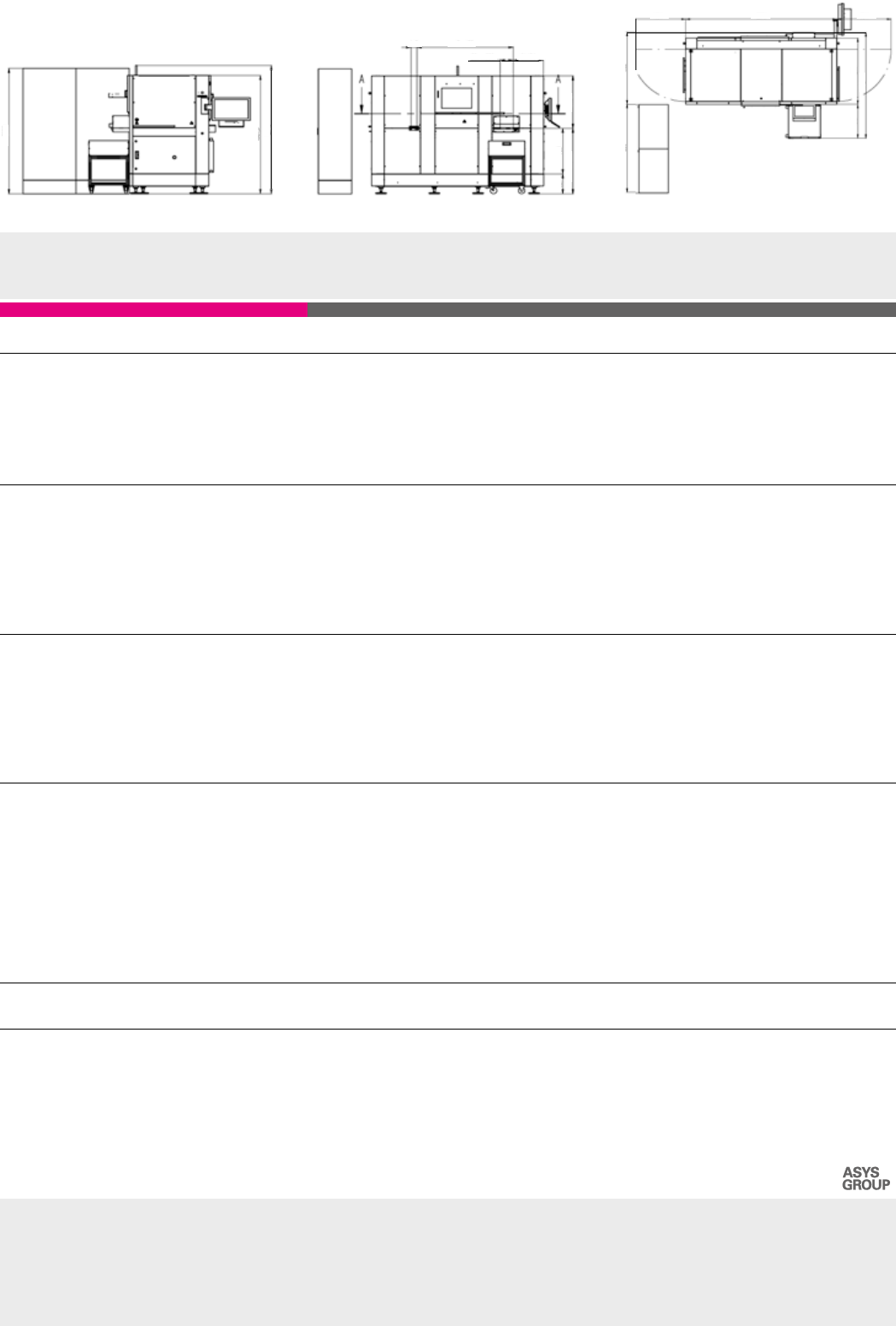

2000
1887,5
2046
915 FA 1455
50-250
FA 456
837,5TH 1050
730320
160 0 1302
934 2596 934
120 0
1912
615
Subject to change without notice.
Some general descriptions and performance characteristics may
not be applicable to all products. Technical specifications are
subject to change without notice. Only features and technical
data provided in purchasing contract are legally binding.
Printed in Germany
ASYS Automatisierungssysteme GmbH
Benzstrasse 10
89160 Dornstadt, Germany
Tel (+49) 7348 9855 0
Fax (+49) 7348 9855 91
info@asys.de
For more information visit
www.asys-group.com
DIVISIO 6000
Machine Configuration
Transport height
Max. transport width
Interface
Transfer direction
Operating side
Fixed rail
850mm ±50mm
460mm
Siemens, SMEMA
From left to right
Front of the machine
Front of the machine
Panel Dimensions
Panel length
Panel width
Panel thickness
Panel weight max.
PCB weight max.
Component height, spindle-side
Component height, gripper-side
20 to 460mm (
others on request)
20 to 460mm (others on request)
0.8 to 5mm
4kg
1.5kg
8mm; partial 18mm (other height on request)
40mm
Installation Requirements
Power supply
Power supply system
Fuse protection
Connection type
Power consumption (without suction)
Air supply
Air consumption
400V, 208V 50/60Hz, ±10%
3L + N + PE
3x C32 A
Fixed connection
min. 0.7kW (depending on the additive processes)
6bar
120Nl/min
Machine Description
Length x Width x Height
Weight
Axis speed max.
Axis acceleration max.
Positioning
Repeatability
Cut accuracy
Noise Level
1200 x 2960 x 1688mm
2800kg (standard equipped)
X,Y= 2000mm/s, Z= 1000mm/s
X,Y= 20m/s², Z= 15m/s²
±0.02mm (20°C ±1°C)
±0.005mm (20°C ±1°C)
±0.08mm with Vision System (20°C ±1°C)
±0.12mm without Vision System (20°C ±1°C)
< 75dB(A) (possible deviations due to
material mix of the panel)
Upgrades
Machine networking via IC Net
