54-D ツイントレイフィーダ本体部:NPM-W Tw in Tray Feeder M ain Body :NPM-W パーツレイアウト Kit No. キット 品番 Kit Name キット名称 N610121083AA セクションNo. PARTS LAYOUT Section No. - - O187 ( KN610121083AA-27-4 )
Ref
No.
Remarks R
1
Q'ty
54-C

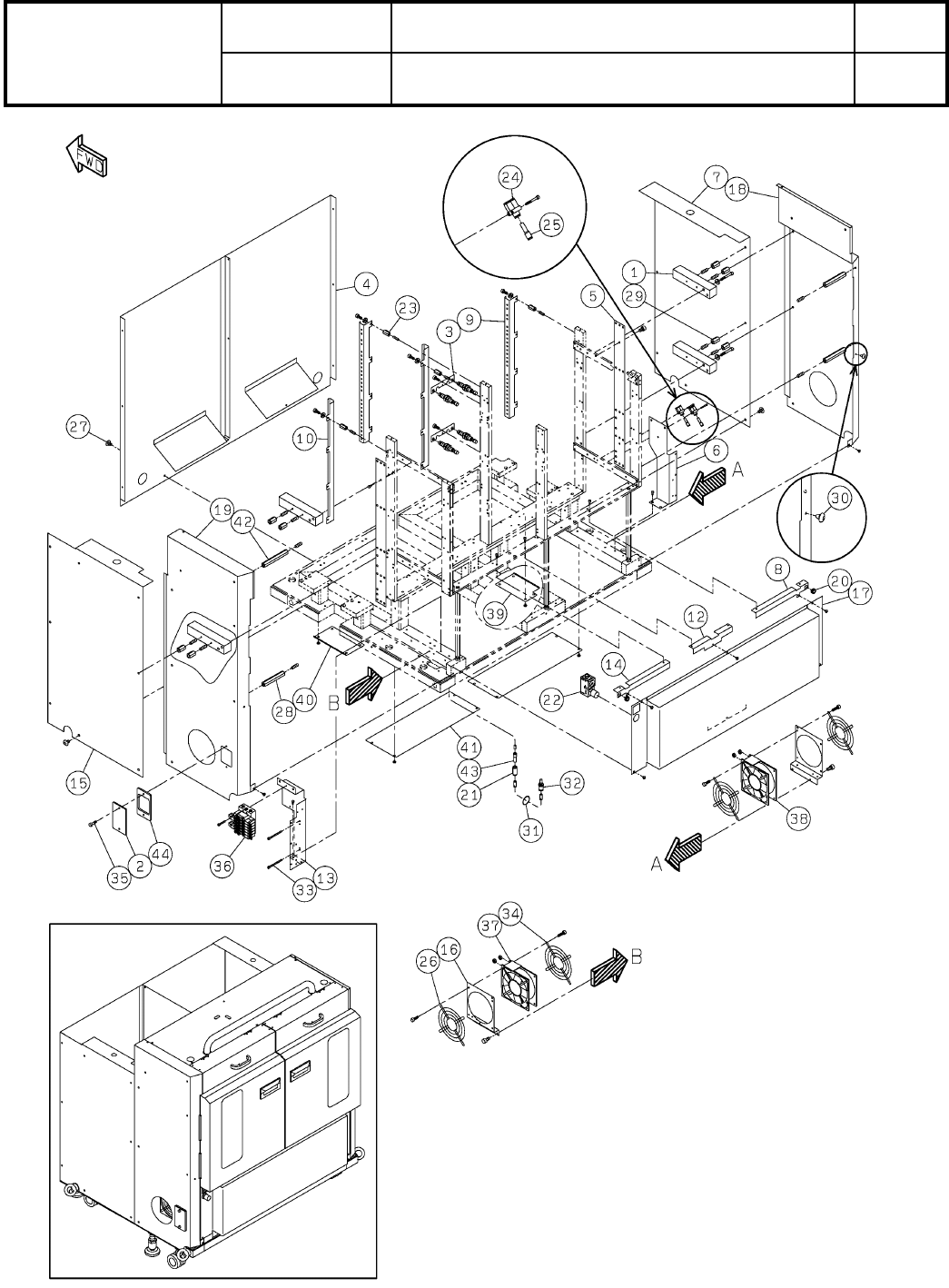

ツイントレイフィーダ本体部:NPM-W
Twin Tray Feeder Main Body :NPM-W
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610121083AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
COVER
2
1 N210143489AA
COVER
2
2 N210143490AA
COLLAR
2
3 KXFB01M0A00
BLOCK
2
4 N210146748AB
PIN
4
5 N210146747AA
BRACKET
2
6 N210028833AB
STOPPER
2
7 N210028834AB
BRACKET
2
8 N210146744AB
BRACKET
1
9 N210143510AD
BRACKET
1
10 N210143511AD
BRACKET
2
11 N210143512AC
BRACKET
2
12 N210028968AB
PLATE
2
13 N210146746AA
BRACKET
1
14 N210143520AC
PLATE
1
15 N210143527AB
BRACKET
2
16 N210146743AB
BRACKET
1
17 N210147160AB
BRACKET
1
18 N210147161AB
SHOCK-ABSORBER
6
19 KXF08Z5AA00 RBC0805
PULL
2
20 KXF08CUAA00 AP-2-black
MAGNET
10
21 KXF0CS8AA00 C-54-2-black
PULL
1
22 KXF09SKAA00 A-1524-25-600A
HINGE
4
23 N980B102712 B-1027-12
SCREW
8
24 N510018233AA
Cross recessed Truss head machine screw M3X10-4.8 A2S (Trivalent)
SCREW
18
25 N510018256AA
Cross recessed Truss head machine screw M3X8-4.8 A2S (Trivalent)
SPRING
2
26 N510057850AA DE630
WASHER
2
27 N510064540AA WASB12-3-2
SPACER
2
28 N510017062AA ASF-408E
BOLT
1
29 N510017320AA
Hexagon socket head cap screw M3X22-10.9 A2J (Trivalent)
BOLT
2
30 N510057860AA
Hexagon socket Flat head bolt M3X16-10.9 A2J (Trivalent)
BEARING
4
31 KXF0DYMMA00 604ZZ
SW
1
32 N610134066AB
S
AZ7141
SW
1
33 N610136627AB AZ7141
O186
--
( KN610121083AA-27-3 )
54-D
ツイントレイフィーダ本体部:NPM-W
Twin Tray Feeder Main Body :NPM-W
パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
N610121083AA
セクションNo.
PARTS LAYOUT
Section No.
--
O187
( KN610121083AA-27-4 )
Ref
No.
Remarks R
1
Q'ty
54-D
ツイントレイフィーダ本体部:NPM-W
Twin Tray Feeder Main Body :NPM-W
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610121083AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
FRAME
4
1 N210086707AB
COVER
1
2 N210101303AC
PLATE
2
3 N210143498AA
COVER
1
4 N210143500AB
PLATE
2
5 N210041128AB
BRACKET
1
6 N210143502AA
COVER
1
7 N210143503AC
BRACKET
1
8 N210143507AC
GUIDE
2
9 N210143508AB
GUIDE
2
10 N210143509AB
BRACKET
1
12 N210143514AA
BRACKET
1
13 N210143516AC
BRACKET
1
14 N210143517AC
COVER
1
15 N210143528AC
BRACKET
2
16 N210150994AB
COVER
1
17 N610121084AB
COVER
1
18 N610121085AC
COVER
1
19 N610121087AE
GROMMET
2
20 N510055841AA C-30-NG-79-F-EP-UL
JOINT
1
21 N510066700AA KQ2H08-00A
REGULATOR
1
22 N510041163AA ARM10F2-20G
SPACER
16
23 N510028624AA ASF-311E
JOINT
4
24 N510066636AA KQ2UD04-06A
JOINT
4
25 N510066671AA KQ2R04-06A
FAN-GUARD
2
26 KXF0037AA00
S
109-019C
SCREW
18
27 MTNK000943AA
Cross recessed Truss head machine screw M4X6-4.8 A2S(Trivalent)(MEC t
SPACER
5
28 N510029498AA ASF-444E
SPACER
8
29 N510019892AA ASF-412E
RUBBER-CUSHION
2
30 KXF08D5AA00 C-30-CS-7
RING
1
31 N510021575AA RIN-227B
JOINT
1
32 KXF0DWLVA00 KK3P-08H
BOLT
2
33 N510017374AA
Hexagon socket head cap screw M4X55-10.9 A2J (Trivalent)
FAN-GUARD
2
34 KXF077MAA00 109-019E
BOLT
2
35 N610164309AA
MANIFOLD
1
36 N510057040AA M4GA180-E2NS-6-FL438449-3-ST
FAN
1
37 N610095898AA
S
FAN
1
38 N610121223AA
COVER
1
39 N210153791AA
COVER
1
40 N210153792AA
COVER
2
41 N210153793AB
SPACER
1
42 N510015195AA ASF-452E
JOINT
1
43 N510066658AA KQ2R06-08A
COVER
1
44 N210193067AA
