ETF8-24SR-Rev01 - 第16页
- - 7. EF12F S R/16F SR/24 FS R (3) 2 3 4 6 8 1 0 5 9 1 1 1 7 1 8 2 1 2 2 2 4 2 6 2 8 1 4 2 3 1 5 2 7 2 5 1 6 2 9 3 0 3 1 3 2 3 3 3 5 3 4 3 6 4 5 4 6 4 3 4 9 4 8 2 0 1 3 1 4 2 1 9 4 4 1 2 7 3 7 4 7 3 8 A 4 1 4 0 3 9 A
- -

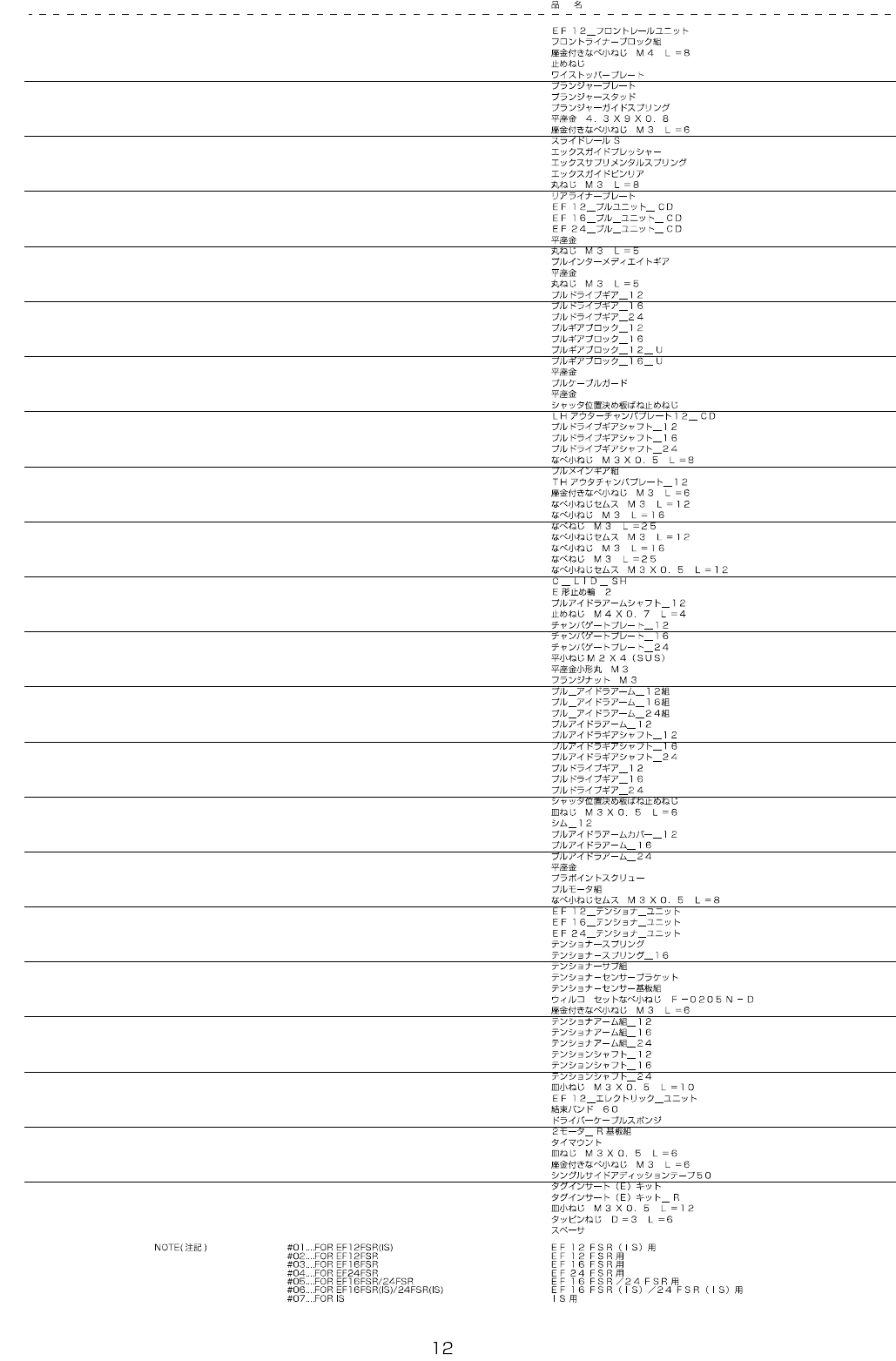

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-45641 EF12_FRONT_RAIL_UNIT 1
2 400-82693 FRONT_LINER_BLOCK_ASSY (1)
3 SL-4040881-SC SCREW M4 L=8 (2)
4 SM-8040412-TP SET SCREW M4 L=4 (2)
5 400-77520 Y_STOPPER_PLATE (1)
6 400-77519 PLUNGER_PLATE (1)
7 400-77516 PLUNGER_STUD (2)
8 400-68180 PLUNGER_GUIDE_SPRING (1)
9 WP-0430801-SC WASHER 4.3X9X0.8 (1)
10 SL-4030691-SC SCREW M3 L=6 (1)
11 401-43546 SLIDE_RAIL_S (1)
12 400-77521 X_GUIDE_PRESSURE (1)
13 400-77522 X_SUPPLEMENTAL_SP (1)
14 400-68191 X_GUIDE_PIN_REAR (1)
15 SM-3030852-TN SCREW M3 L=8 (8)
16 400-68255 REAR_LINER_PLATE (1)
17
#02
401-36036 EF12_PULL_UNIT_CD 1
18
#03
401-36039 EF16_PULL_UNIT_CD 1
19
#04
401-36042 EF24_PULL_UNIT_CD 1
20 WP-0320501-UZ WASHER (1)
21 SM-3030552-TN SCREW M3 L=5 (1)
22 400-68671 PULL_INTERMEDIATE_GEAR (1)
23 WP-0320501-UZ WASHER (1)
24 SM-3030552-TN SCREW M3 L=5 (1)
25
#02
400-85362 PULL_DRIVE_GEAR_12 (1)
26
#03
400-85367 PULL_DRIVE_GEAR_16 (1)
27
#04
400-85373 PULL_DRIVE_GEAR_24 (1)
28
#02
400-85363 PULL_GEAR_BLOCK_12 (1)
29
#05
400-85368 PULL_GEAR_BLOCK_16 (2)
30
#02
400-93037 PULL_GEAR_BLOCK_12_U (1)
31
#05
400-93040 PULL_GEAR_BLOCK_16_U (2)
32 WP-0220300-SC WASHER (2)
33 400-85416 PULL_CABLE_GUARD (1)
34 WP-0320501-UZ WASHER (1)
35 E8226-706-000 SCREW (1)
36 401-34588 LH_OUTER_CHAMBER_PLATE_12_CD (1)
37
#02
400-85361 PULL_DRIVE_GEAR_SH_12 (1)
38
#03
400-85366 PULL_DRIVE_GEAR_SH_16 (1)
39
#04
400-85372 PULL_DRIVE_GEAR_SH_24 (1)
40 SM-4030801-SC SCREW M3 X 8 (1)
41 400-82695 PULL_MAIN_GEAR_ASSY (1)
42 400-85360 TH_OUTER_CHAMBER_PLATE_12 (1)
43 SL-4030691-SC SCREW M3 L=6 (2)
44
#02
SL-4031281-SC SCREW M3 L=12 (2)
45
#03
SM-4031601-SC SCREW M3 L=16 (2)
46
#04
SM-4032501-SC SCREW M3 L=25 (2)
47
#02
SL-4031281-SC SCREW M3 L=12 (2)
48
#03
SM-4031601-SC SCREW M3 L=16 (2)
49
#04
SM-4032501-SC SCREW M3 L=25 (2)
50 SL-4031291-SC SCREW M3X12 (2)
51 400-81633 C_LID_SH (1)
52 RE-0200000-K0 E-RING (2)
53 400-85358 PULL_IDLER_ARM_SH_12 (1)
54 SM-8040402-TP SCREW M4X0.7 L=4 (1)
55
#02
400-85364 CHAMBER_GATE_PLATE_12 (1)
56
#03
400-85369 CHAMBER_GATE_PLATE_16 (1)
57
#04
400-85374 CHAMBER_GATE_PLATE_24 (1)
58 400-85419 SCREW M2X4 (2)
59
#05
WP-0320500-SC WASHER M3 (4)
60 NM-3034000-SF FLANGE NUT (2)
61
#02
400-85465 PULL_IDLER_ARM_12_ASSY (1)
62
#03
400-85466 PULL_IDLER_ARM_16_ASSY (1)
63
#04
400-85467 PULL_IDLER_ARM_24_ASSY (1)
64 400-85357 PULL_IDLER_ARM_12 (1)
65
#02
400-85365 PULL_IDLER_GEAR_SH_12 (1)
66
#03
400-85370 PULL_IDLER_GEAR_SH_16 (1)
67
#04
400-85375 PULL_IDLER_GEAR_SH_24 (1)
68
#02
400-85362 PULL_DRIVE_GEAR_12 (1)
69
#03
400-85367 PULL_DRIVE_GEAR_16 (1)
70
#04
400-85373 PULL_DRIVE_GEAR_24 (1)
71 E8226-706-000 SCREW (1)
72 SM-1030601-SC SCREW M3 L=6 (1)
73 400-85417 SHIM_12 (1)
74
#02
400-85418 PULL_IDLER_ARM_COVER_12 (1)
75
#03
400-85371 PULL_IDLER_ARM_16 (1)
76
#04
400-85376 PULL_IDLER_ARM_24 (1)
77 WP-0320501-UZ WASHER (1)
78 401-34641 PLAPOINT_SCREW_B02PW_M3X8 (1)
79 400-68902 PULL MOTOR ASM (1)
80 SL-4030881-SC SCREW M3X8 (1)
81
#02
400-85439 EF12_TENSIONER_UNIT 1
82
#03
400-85445 EF16_TENSIONER_UNIT 1
83
#04
400-85451 EF24_TENSIONER_UNIT 1
84
#02
400-77535 TENSIONER_SPRING (1)
85
#05
400-85377 TENSIONER_SPRING_16 (1)
86 400-82698 TENSIONESENOR_SUB_ASSY (1)
87 400-77532 TENSIONER_SENSOR_BRKT (1)
88 400-55018 TENSIONER SENS PCB ASM (1)
89 401-02832 WILCO_F_0205N_D (2)
90 SL-4030691-SC SCREW M3 L=6 (1)
91
#02
400-85462 TENSIONER_ARM_ASSY_12 (1)
92
#03
400-85463 TENSIONER_ARM_ASSY_16 (1)
93
#04
400-85464 TENSIONER_ARM_ASSY_24 (1)
94
#02
400-85378 TENSIONER_SH_12 (1)
95
#03
400-85381 TENSIONER_SH_16 (1)
96
#04
400-85384 TENSIONER_SH_24 (1)
97 SM-1031001-SN SCREW M3X0.5 L=10 (1)
98 401-45642 EF12_ELECTRIC_UNIT_CD 1
99 EA-9500B00-00 CLIP CV-70S (7)
100 400-69656 DRIVER_CABLE_SPONGE (1)
101 401-44088 2 MOTORS_R PCB ASM (1)
102 HX-0056700-00 TIE MOUNT (1)
103 SM-1030601-SC SCREW M3 L=6 (1)
104 SL-4030691-SC SCREW M3 L=6 (3)
105 400-95428 SINGLE SIDE ADHESION TAPE50 (0.06)
106
#01
400-73828 TAG INSERT(E) KIT 1
107
#06
401-45648 TAG_INSERT_E_KIT_R 1
108
#07
SM-1031201-SC SCREW M3X0.5 L=12 1
109
#07
ST-1030651-SN TAPPING SCREW D=3 L=6 1
110
#06
HX-0033500-0F SPACER 1
- -
7. EF12FSR/16FSR/24FSR (3)
2
3
4
6
8
1 0
5
9
1 1
1 7
1 8
2 1
2 2
2 4
2 6
2 8
1 4
2 3
1 5
2 7
2 5
1 6
2 9
3 0
3 1
3 2
3 3
3 5
3 4
3 6
4 5
4 6
4 3
4 9
4 8
2 0
1 3
1
4 2
1 9
4 4
1 2
7
3 7
4 7
3 8
A
4 1
4 0
3 9
A
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-45647 EF12_GRIP_UNIT 1
2 401-43549 GRIP_BK (1)
3 400-96859 LATCH_SPRING_12 (1)
4 400-68237 LATCH_PLATE (1)
5 400-72388 SW PANEL (1)
6 400-74123 FFC (1)
7 400-85356 PULL_IDLER_ARM_SPRING_12 (1)
8 401-43548 PANEL_COVER_BK (1)
9 NM-6030002-SC NUT M3X0.5 TYPE2 (5)
10 SM-4031201-SC SCREW M3 X 12 (5)
11 400-68223 COVER_STUD_M (3)
12 401-57536 EF12FSR_CLAMP_UNIT 1
13 400-85457 EF12_CLAMP_LEVER_ASSY (1)
14 400-68203 CLAMP_SH_F (1)
15 400-77492 CLAMP_SH_M (1)
16 400-77497 ARM_LINK_PIVOT_SH_F (1)
17 400-69663 LOCK_BUSHING (1)
18 400-77500 LOCK_STOPPER_BOLT (1)
19 400-77496 ARM_LINK_PIVOT_SH_M (1)
20 400-69662 LOCK_SPRING (1)
21 400-77500 LOCK_STOPPER_BOLT (1)
22 400-69659 LOCK_SP_STOPPER (1)
23 400-77500 LOCK_STOPPER_BOLT (1)
24 SM-1040601-SC SCREW M4X0.7 L=6 (1)
25 400-68667 LOCK_LEVER_FLANGE (1)
26 400-84401 LOCK_PLATE_R_ASSY (1)
27 SM-1040601-SC SCREW M4X0.7 L=6 (1)
28 400-85458 LOCK_RELEASE_LEVER_ASSY_12 (1)
29 401-43547 LEVER_CAP_BK (1)
30 SM-1030801-SC SCREW M3 L=8 (1)
31 NM-6030002-SC NUT M3X0.5 TYPE2 (1)
32 400-77499 ARM_LINK_GUIDE_SH (1)
33 PS-0400122-KP SPRING PIN (1)
34 400-85411 CLAMP_SENSOR_BRKT_12 (1)
35 HD-0027700-00 SENSOR (1)
36 SL-4030691-SC SCREW M3 L=6 (2)
37 400-68992 LOCK SENS WIRE ASM (1)
38 401-57537 BASE_HOLE_COVER_UNIT 1
39 401-25826 PLUNGER_BLOCK_ADC (1)
40 SM-8050502-TP SCREW M5 L=5 (1)
41 SL-4031081-SC SCREW M3 X 10 (1)
42 400-85434 EF12_RIAR_RAIL_UNIT 1
43 400-68251 COVER_STUD_S (1)
44 400-77517 MAIN_CONNECTOR_BRKT (1)
45 SM-1040601-SC SCREW M4X0.7 L=6 (2)
46 400-68993 INPUT WIRE ASM (1)
47 SL-4020691-SC SCREW M2 L=6 (2)
48 400-68223 COVER_STUD_M (1)
49 400-68195 BOTTOM_GUIDE_BLOCK (1)
