- - 2. EF02H SR/ E F08HS R (2) 2 3 5 6 7 8 1 1 1 2 1 3 1 7 1 4 1 5 1 6 1 2 1 1 9 4 4 2 5 2 6 2 7 2 8 2 9 3 0 3 2 3 1 3 4 3 5 3 3 3 6 3 8 3 9 4 0 4 1 4 2 4 3 4 5 4 6 4 7 4 8 3 7 4 9 5 0 5 1 5 3 5 5 5 4 5 6 5 2 5 7 5 8 …
- -

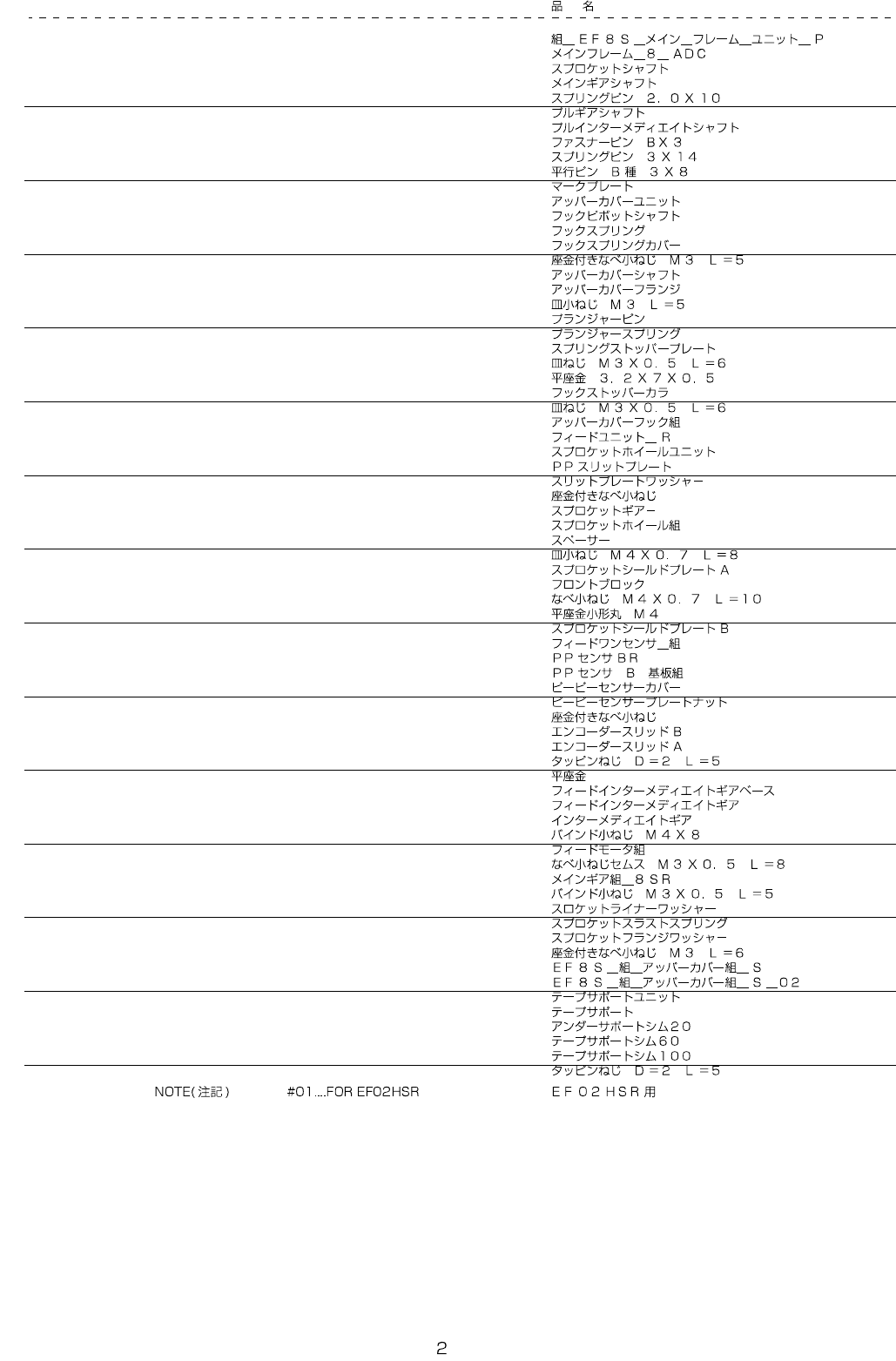

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-43653 ASM_EF8S_MAIN_FRAME_UNIT_P 1
2 401-43545 MAIN_FRAME_8S_ADC (1)
3 401-44749 SPROCKET_SH (1)
4 401-44753 MAIN_GEAR_SH (1)
5 PS-0200102-KH SPRING PIN 2.0 X 10 (2)
6 401-44755 PULL_GEAR_SH (2)
7 401-44756 PULL_INTERMADIATE_SH (1)
8 E6347-705-000 FASTENER PIN BX3 (1)
9 PS-0300142-KH SPRING PIN 0.3 X 14 (1)
10 PH-0300080-U0 PARALLEL PIN TYPE B 3X8 (1)
11 401-43564 MARK_PLATE (1)
12 400-82685 UPPER_COVER_UNIT 1
13 400-77527 HOOK_PIVOT_SH (1)
14 400-68256 HOOK_SPRING (1)
15 400-68184 HOOK_SP_COVER (1)
16 SL-4030591-SC SCREW M3 L=5 (1)
17 400-77524 UPPER_COVER_SH (1)
18 400-68673 UPPER_COVER_FLANGE (1)
19 SM-1030501-SC SCREW M3 L=5 (1)
20 400-77530 PLUNGER_PIN (1)
21 400-77529 PLUNGER_SP (1)
22 400-68668 SPRING_STOPPER_PLATE (1)
23 SM-1030601-SC SCREW M3 L=6 (2)
24 WP-0320501-SC WASHER M3 (1)
25 400-68185 HOOK_STOPPER_COLLAR (1)
26 SM-1030601-SC SCREW M3 L=6 (1)
27 400-84398 UPPER_COVER_HOOK_ASSY (1)
28 401-44759 FEED_UNIT_R 1
29 400-82688 SPROCKET_WHEEL_UNIT (1)
30 400-82597 PP_SLIT_PLATE (1)
31 400-77510 SLIT_PLATE_WP (1)
32 SL-4020581-SC WASHER SCREW (3)
33 401-12487 SPROCKET_GEAR (1)
34 400-69643 SPROCKET_WHEEL_ASSY (1)
35 400-77509 SPACER (1)
36 SM-1040801-SC SCREW M4X0.7 L=8 (1)
37 400-77502 SPROCKET_SHIELD_PLATE_A (1)
38 400-82636 FRONT_BLOCK (1)
39 SM-4041001-SC SCREW M4X0.7 L=10 (2)
40 WP-0430800-SC WASHER M4 (2)
41 400-57828 SPROCKET_SHIELD_PLATE_B (1)
42 400-82690 FEED_ONE_SENSOR_ASSY (1)
43 400-81301 PP_SENSOR_BR (1)
44 400-74097 PP SENS B PCB ASM (1)
45 400-77513 PP_SENSOR_COVER (1)
46 400-77512 PP_SENSOR_PLATE_NUT (1)
47 SL-4020581-SC WASHER SCREW (2)
48 400-81302 ENCODER_SHIELD_B (1)
49 400-81299 ENCODER_SHIELD_A (1)
50 ST-4020521-SN TAPPING SCREW D=2 L=5 (2)
51 WP-0220300-SC WASHER (2)
52 400-77511 FEED_INTERMEDIATE_GEAR_BASE (1)
53 401-44750 FEED_INTERMEDIATE_GEAR (1)
54 401-44751 INTERMEDIATE_SH (1)
55 SM-5040801-SC SCREW M4X8 (1)
56 400-68901 FEED MOTOR ASM (1)
57 SL-4030881-SC SCREW M3X8 (2)
58 401-44760 FEED_MAIN_GEAR_ASSY_8SR (1)
59 SM-5030501-SC SCREW M3 L=5 (1)
60 400-77507 SPROCKET_LINER_WP (1)
61 400-68679 SPROKET_THRUST_SPRING (1)
62 400-77504 SPROCKET_FLANGE_WP (1)
63 SL-4030691-SC SCREW M3 L=6 (4)
64 401-43541 UPPER_COVER_ASSY_S 1
65
#01
401-43554 UPPER_COVER_ASSY_S_02 1
66
#01
400-85503 TAPE_SUPPORT_UNIT 1
67 400-85299 TAPE SUPPORT (1)
68 400-42430 UNDER SUPPORT SHIM 20 (2)
69 400-85300 TAPE SUPPORT SHIM 60 (1)
70 400-85301 TAPE SUPPORT SHIM 100 (1)
71 ST-4020521-SN TAPPING SCREW D=2 L=5 (1)
- -

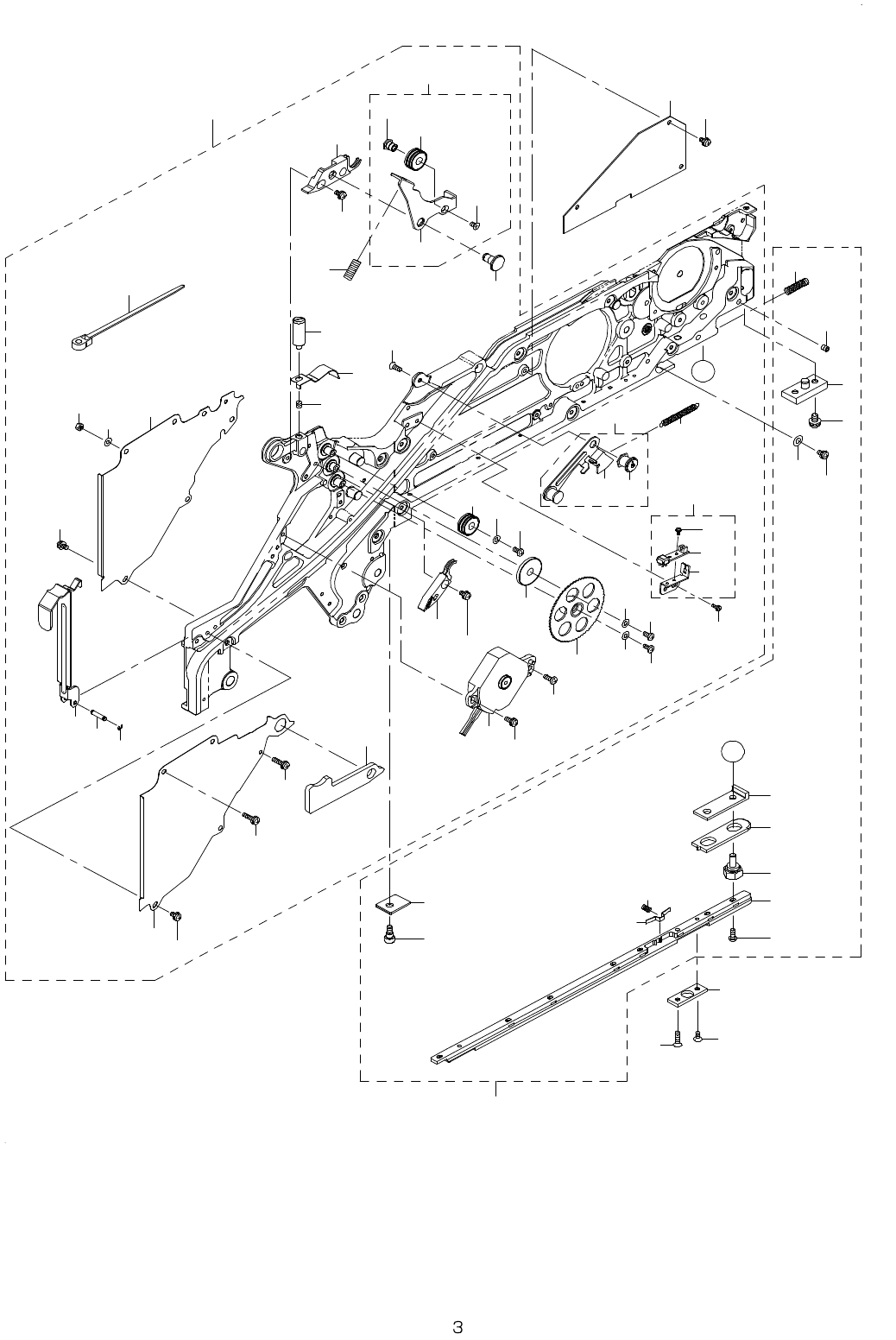

2. EF02HSR/EF08HSR (2)
2
3
5
6
7
8
1 1
1 2
1 3
1 7
1 4
1 5
1 6
1
2 1
1 9
4 4
2 5
2 6
2 7
2 8
2 9
3 0
3 2
3 1
3 4
3 5
3 3
3 6
3 8
3 9
4 0
4 1
4 2
4 3
4 5
4 6
4 7
4 8
3 7
4 9
5 0
5 1
5 3
5 5
5 4
5 6
5 2
5 7
5 8
5 9
6 0
6 1
6 3
6 5
6 4
2 3
6 6
6 8
6 9
7 0
6 7
2 4
A
2 2
A
1 0
9
4
6 2
1 8
4 5
2 0
- -

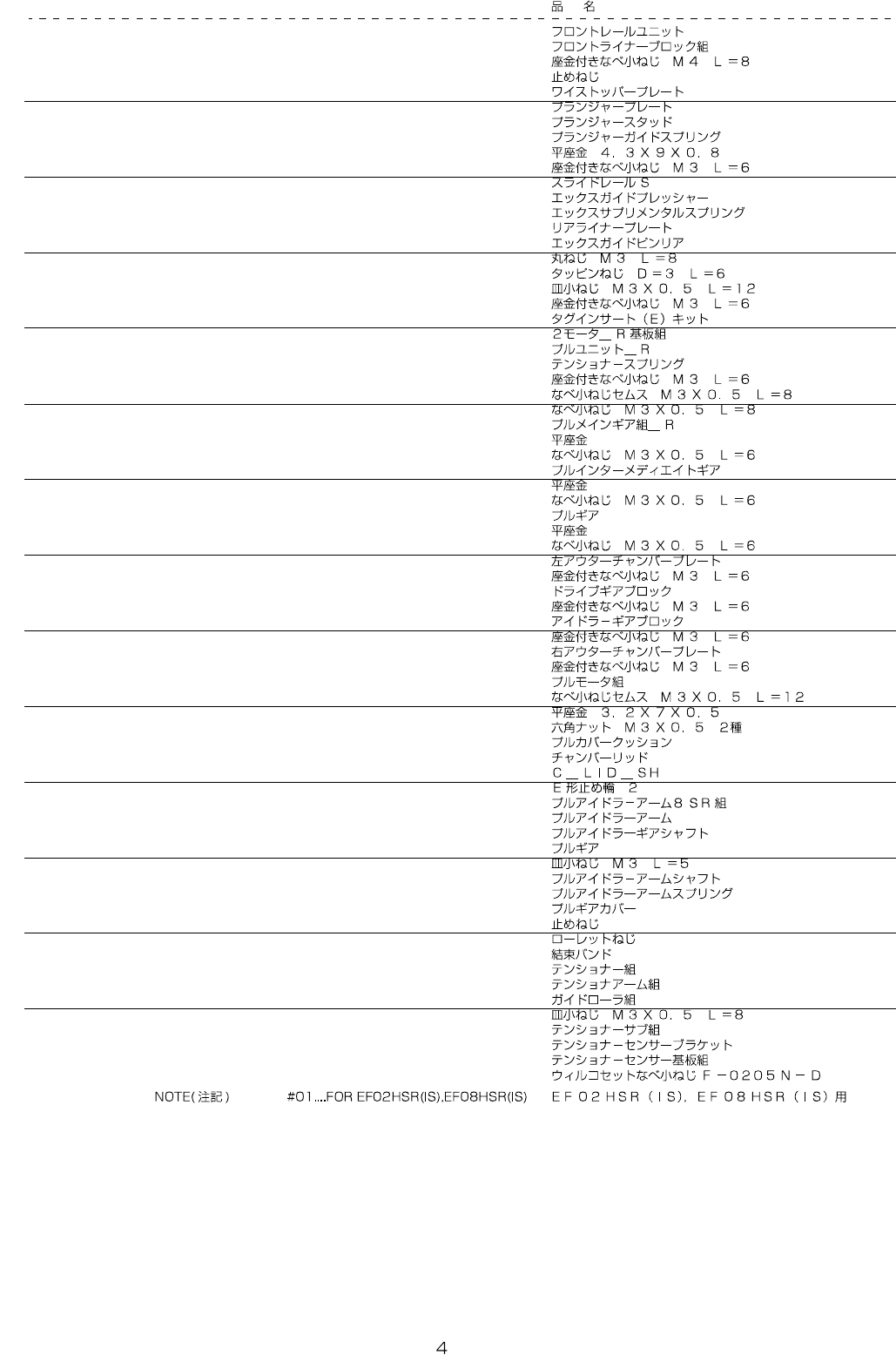

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-43654 FRONT_RAIL_UNIT 1
2 400-82693 FRONT_LINER_BLOCK_ASSY (1)
3 SL-4040881-SC SCREW M4 L=8 (2)
4 SM-8040412-TP SET SCREW M4 L=4 (2)
5 400-77520 Y_STOPPER_PLATE (1)
6 400-77519 PLUNGER_PLATE (1)
7 400-77516 PLUNGER_STUD (2)
8 400-68180 PLUNGER_GUIDE_SPRING (1)
9 WP-0430801-SC WASHER 4.3X9X0.8 (1)
10 SL-4030691-SC SCREW M3 L=6 (1)
11 401-43546 SLIDE_RAIL_S (1)
12 400-77521 X_GUIDE_PRESSURE (1)
13 400-77522 X_SUPPLEMENTAL_SP (1)
14 400-68255 REAR_LINER_PLATE (1)
15 400-68191 X_GUIDE_PIN_REAR (1)
16 SM-3030852-TN SCREW M3 L=8 (8)
17
#01
ST-1030651-SN TAPPING SCREW D=3 L=6 1
18
#01
SM-1031201-SC SCREW M3X0.5 L=12 1
19 SL-4030691-SC SCREW M3 L=6 3
20
#01
400-73828 TAG INSERT(E) KIT 1
21 401-44088 2 MOTORS_R PCB ASM 1
22 401-44761 PULL_UNIT_R 1
23 400-77535 TENSIONER_SPRING (1)
24 SL-4030691-SC SCREW M3 L=6 (1)
25 SL-4030881-SC SCREW M3X8 (1)
26 SM-4030801-SC SCREW M3 X 8 (1)
27 401-44762 PULL_MAIN_GEAR_ASSY_R (1)
28 WP-0320501-UZ WASHER (1)
29 SM-4030601-SC SCREW M3 X 6 (1)
30 400-68671 PULL_INTERMEDIATE_GEAR (1)
31 WP-0320501-UZ WASHER (1)
32 SM-4030601-SC SCREW M3 X 6 (1)
33 401-44757 PULL_GEAR (1)
34 WP-0320501-UZ WASHER (1)
35 SM-4030601-SC SCREW M3 X 6 (1)
36 401-23085 LH_OUTER_CHAMBER_PLATE (1)
37 SL-4030691-SC SCREW M3 L=6 (2)
38 400-68235 DRIVE_GEAR_BLOCK (1)
39 SL-4030681-SC SCREW M3 L=6 (1)
40 400-68233 IDLER_GEAR_BLOCK (1)
41 SL-4030681-SC SCREW M3 L=6 (2)
42 401-23084 RH_OUTER_CHAMBER_PLATE (1)
43 SL-4030691-SC SCREW M3 L=6 (2)
44 400-68902 PULL MOTOR ASM (1)
45 SL-4031291-SC SCREW M3X12 (3)
46 WP-0320501-SC WASHER M3 (2)
47 NM-6030002-SC NUT M3X0.5 TYPE2 (2)
48 400-77543 PULL_COVER_CUSHION (1)
49 400-77540 CHAMBER_LID (1)
50 400-81633 C_LID_SH (1)
51 RE-0200000-K0 E-RING (2)
52 401-44763 PULL_IDLER_ARM_8SR_ASSY (1)
53 400-77539 PULL_IDLER_ARM (1)
54 401-44758 PULL_IDLER_GEAR_SH (1)
55 401-44757 PULL_GEAR (1)
56 SM-1030501-SC SCREW M3 L=5 (1)
57 400-68232 PULL_IDLER_ARM_SH (1)
58 400-77541 PULL_IDLER_ARM_SPRING (1)
59 400-77545 PULL_GEAR_COVER (1)
60 SM-8040412-TP SET SCREW M4 L=4 (1)
61 400-91177 LONG_KNURLED_HEAD_SCREW (1)
62 HX-0015100-00 CLIP WITH CLAMP (2)
63 400-82697 TENSIONER_ASSY (1)
64 400-84399 TENSIONER_ARM_ASSY (1)
65 400-84400 GUIDE_ROLLER_ASSY (1)
66 SM-1030801-SC SCREW M3 L=8 (1)
67 400-82698 TENSIONESENOR_SUB_ASSY (1)
68 400-77532 TENSIONER_SENSOR_BRKT (1)
69 400-55018 TENSIONER SENS PCB ASM (1)
70 401-02832 WILCO_F_0205N_D (2)
