E-by SIPLACE Smart Feeder 32 mm E Fitting the Roller Axle Part Exchange 7/12 CAUTION! Refer to safety inst ructions in user manual before working on the machine. ESD guidelines are to be followed Tool: T6 Part No.: 03117…

E-by SIPLACE Smart Feeder

32 mm E

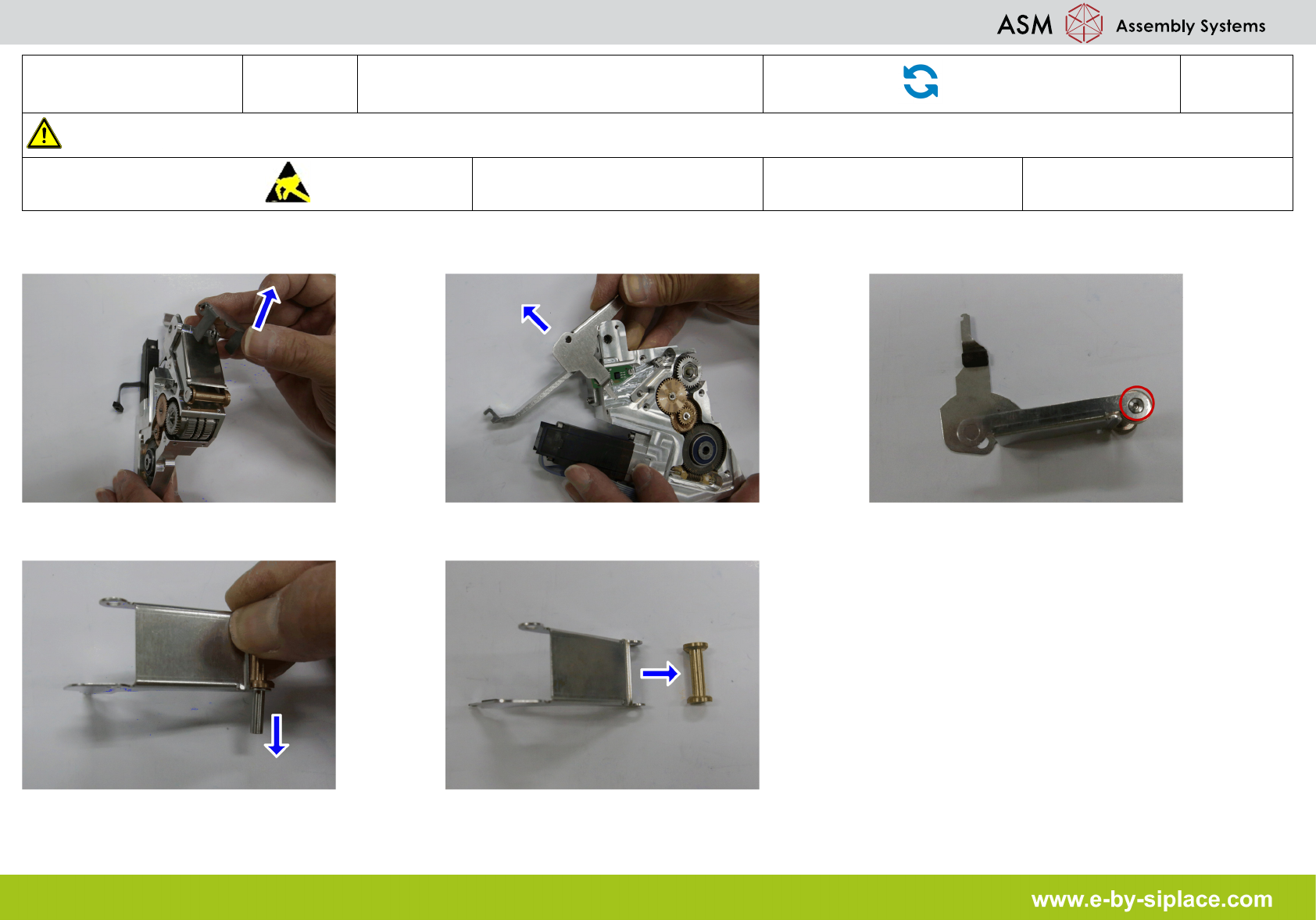

Removing the Roller Axle

Part Exchange

6/12

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool:

Wear Part: Consumables:

31. Remove the cover. 32. Remove the Foil Disposal.

33. Remove the shaft with T6.

34. Pull out the shaft. 35. Pull out the Roller Axle.

E-by SIPLACE Smart Feeder

32 mm E

Fitting the Roller Axle

Part Exchange

7/12

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool:

Part No.: 03117227-xx

1. Fit in the roller axle. 2. Fit in the shaft. 3. Tighten with T6.

4. Fit in the Foil Disposal. 5. Fit in the cover. 6. Insert the bearing shaft.

E-by SIPLACE Smart Feeder

32 mm E

Fitting the Roller Axle

Part Exchange

8/12

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool:

T1,T5

Part No.: 03117227-xx

7. Tighten the shaft with T1. 8. Insert the spring. 9. Fit in the Ratchet.

10. Connect the connector. 11. Insert the washer with T5. 12. Insert the washer with T5.
