Trailing cable 1_3_20211124_022849 - 第3页
Trailing cable 1/3 Page 3 / 5 24.11.2021
Trailing cable 1/3
Page 2 / 5 24.11.2021
Trailing cable 1/3
Page 3 / 5 24.11.2021
Trailing cable 1/3
Page 4 / 5 24.11.2021

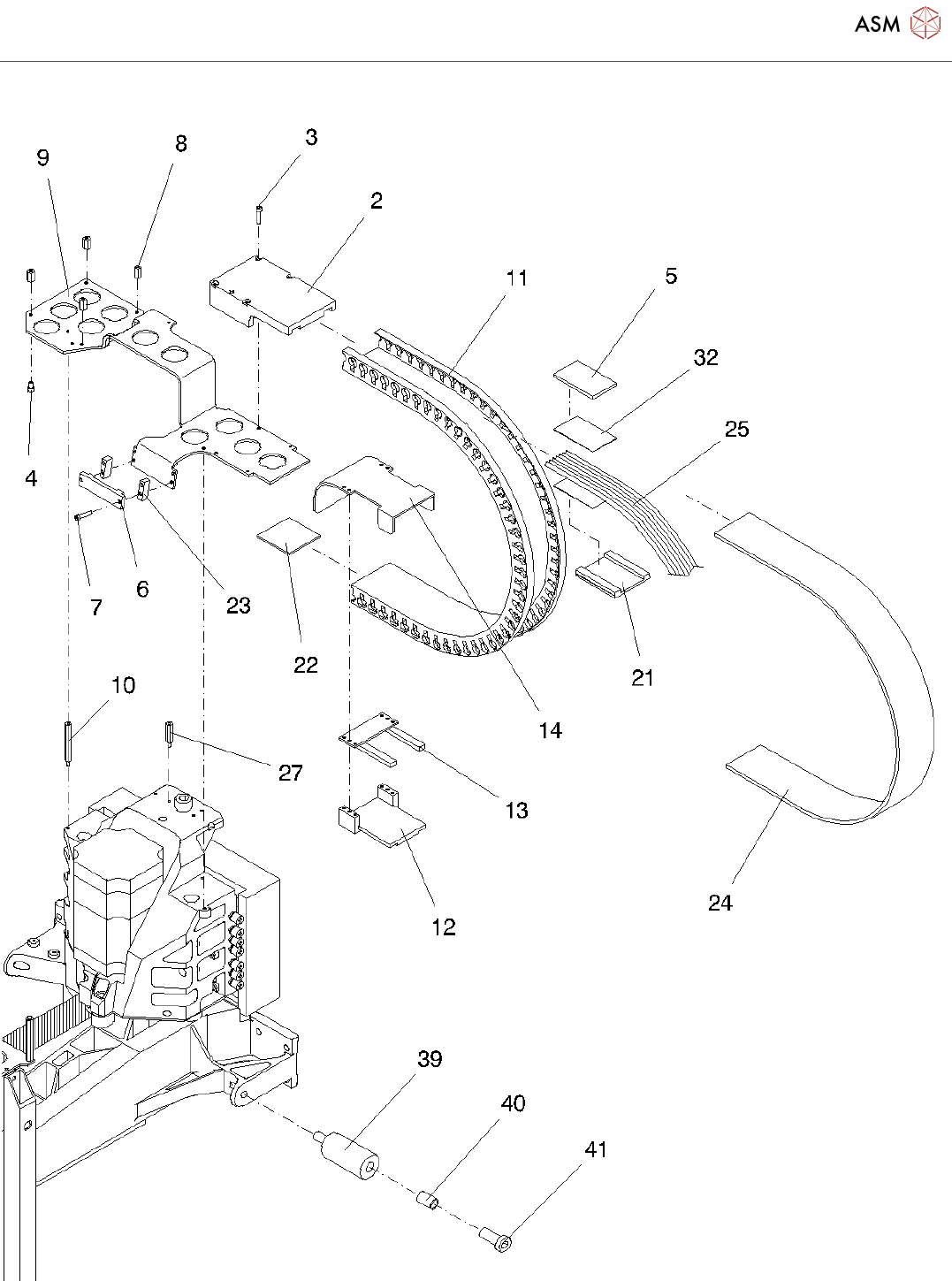

Pos. Item no. Description Part marking
00337850-07 CABLE SET, GANTRY 1 AND 3 SPARE PART
2 03017774-01 CABLE SUPPORT SPARE PART
3 00845019-01 HEXAGON SOCKET HEAD CAP
SCREW
4 00845013-01 HEXAGON SOCKET HEAD CAP
SCREW M3 X 6-8.8
5 00345017-01 INTERMEDIATE PLATE
6 00318601-03 COVER X-CABLE TRAIL.UNIT FOR
7-FOLD TUBE
SPARE PART
7 00845017-01 HEXAGON SOCKET HEAD CAP
SCREW
8 00322964-01 DISTANCE BOLT M3*10 I/I 6KT5.5
ST ZINC-C.
9 00342936-02 C4-BOARD HOLDER LEFT
10 00337345-01 SPACER BOLT M3*40 I/A 6KT5.5 ST
ZINC-PL.
STANDARD PARTS
11 00329094-01 CABLE GUIDE LI45 HI16,5
12 00330201-01 Y-TRAILING UNIT HOLDER
13 00329717-01 HOSE STRAP GUIDE - Y
14 00330200-01 Y-CABLE CLAMPING
15 00325198-03 X-CABLE CLAMP SPARE PART
16 00329831-01 HOSE STRAP GUIDE - X
17 00845015-01 HEXAGON SOCKET HEAD CAP
SCREW M3 X 10-8.8
18 00329195-02 TERMINAL STRIP
19 00329932-02 CABLE SHEET
20 00329936-01 CLAMPING PIECE
21 00333666-01 HOSE STRAP GUIDE - Y
22 00333855-01 INTERMEDIATE LAYER
23 00333144-01 SPACER
24 00337343-01 COVER TAPE SPARE PART
25 00318551S03 SEVENFOLD TUBE PK-3, BLACK 4
METER
SPARE PART
26 00318551S03 SEVENFOLD TUBE PK-3, BLACK 4
METER
SPARE PART
27 00308279-01 DISTANCE BOLT M3X20 I/O HEX5,5
ST ZC
STANDARD PARTS
28 00335112-01 PORTAL CABLE S50:TRACK Y1 /
MOTOR X1
