Board conveyor

Single and dual conveyor

Single conveyor

When using a single con-

veyor, boards are moved

behind one another, along a

conveyor lane and into the

placement machine, where

they are placed. This con-

veyor variant is particularly

suitable for very wide boards.

Flexible dual conveyor

The flexible dual conveyor

has two conveyor tracks that

are electrically and mechani-

cally independent of one

another. The fixed conveyor

sides are both "outside" as a

default. As an option, the

fixed conveyor sides can be

selected as right/right or left/

left. The PCB dual conveyor

can also be operated as a

single conveyor, as an

option. In dual conveyor

mode, two boards are moved

into the placement machine

and placed either at the

same time (synchronous

mode) or alternatively (asyn-

chronous mode). This makes

it possible to process the top

and bottom sides of a board

in one line.

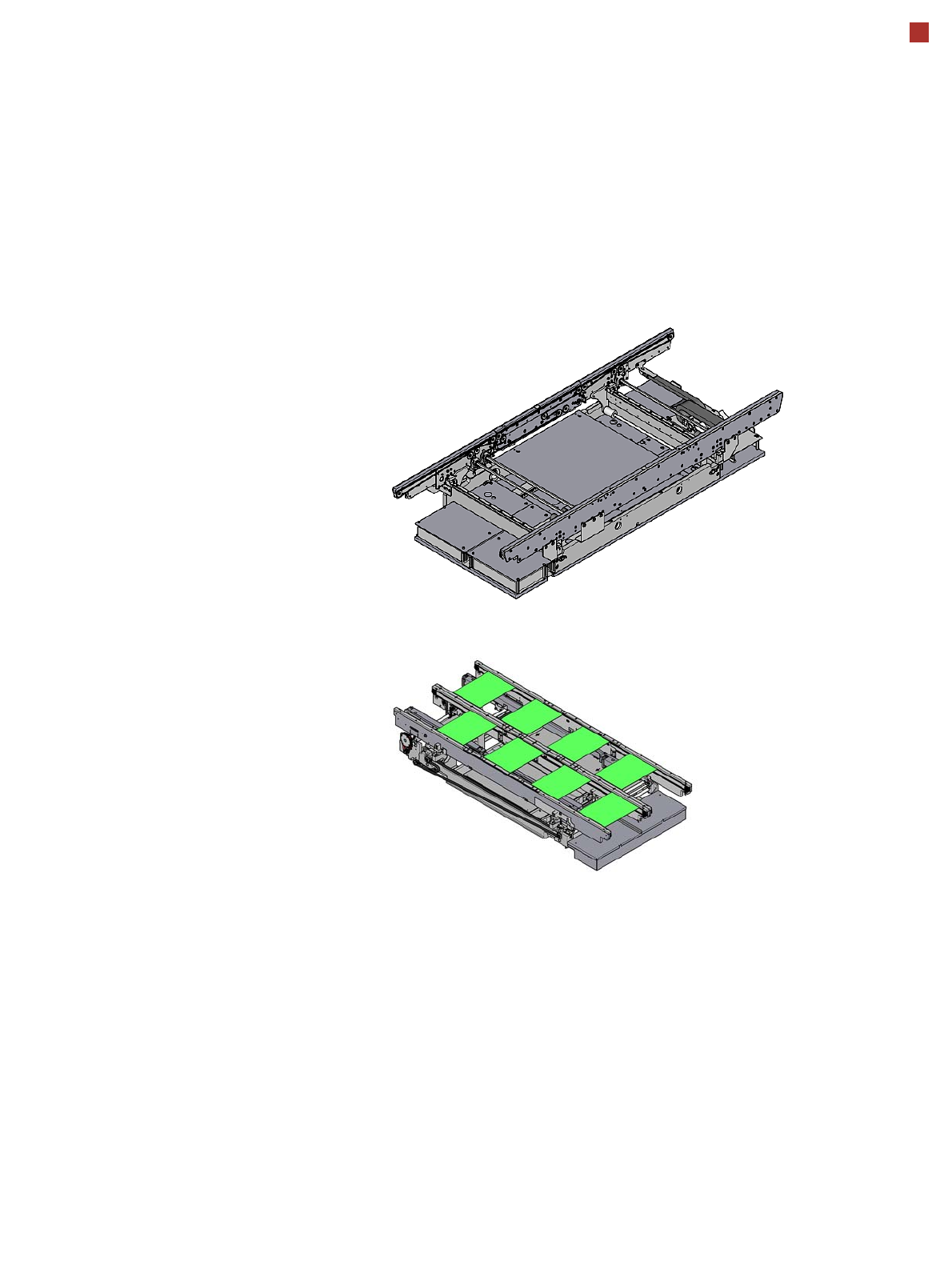

Single conveyor

Flexible dual conveyor

Board conveyor

Technical data

Single conveyor Flexible dual con-

veyor

Dual conveyor in single

conveyor mode

Standard dimensions

(length x width)

50 mm x 50 mm to

450 mm x 560 mm

50 mm x 50 mm to

450 mm x 265 mm

50 mm x 50 mm to

450 mm x 460 mm

Dimensions with “Long

Board”option

(length x width)

50 mm x 50 mm to

1525 mm

x 560 mm

a) With input/output conveyor only

50 mm x 50 mm to

850 mm x 265 mm

50 mm x 50 mm to

850 mm x 460 mm

Stationary conveyor side Right, left or outer

Automatic electrical width

adjustment

Standard

PCB thickness

Standard

"Thick board" option

0.3 mm to 4.5 mm

2.0 mm to 6.5 mm

Clamping length of board 450 mm

Space for positioning

support pins

440 mm

PCB warpage See page 23

PCB weight

b) The board weight value refers to the weight of the board plus the weight of the components.

Max. 3.0 kg Max. 2.0 kg Max. 2.0 kg

Clearance on PCB

underside

25 mm

PCB conveyor height

Option

Standard

Option SMEMA

900 mm

930 mm

950 mm

Type of interface SMEMA or IPC-HERMES-9852

Component-free PCB

handling edge

3 mm

PCB changeover time

Single conveyor

Dual conveyor

c) 0 seconds in asynchronous mode, otherwise 1.5 seconds.

< 1.5 seconds

0 seconds

IPC-Hermes-9852

A protocol for advanced development of Industry 4.0 in electronics production

The Hermes Standard, also published as IPC-HERMES-9852, is a non-proprietary open protocol,

based on TCP / IP and XML. This boosts the exchange of PCB-relevant data between the various

machines in the electronics production lines. The Hermes Standard was initiated, developed and

established and is still managed by a group of leading equipment manufacturers, who share their

know-how to achieve a significant step towards advanced process integration. It has been recognized

by IPC as the next generation solution for IPC-SMEMA-9851, normally known as "SMEMA standard".

The founding and defining body The Hermes Standard Initiative is available to all equipment providers

wanting to actively participate in using the benefits of Industry 4.0 for their customers.

Board conveyor

Placement modes

Synchronous mode

In synchronous mode, two

PCBs of the same size are

transported into the place-

ment position at the same

time. They are processed as

a common panel. When

using products with greatly

differing placement content,

common optimization

increases the performance of

the whole content on both

boards.

Asynchronous mode

In asynchronous mode, only

one PCB on a conveyor lane

is processed. At the same

time, another PCB on the

second conveyor lane is

moved into the placement

position. This saves the full

conveying time of one PCB,

thus considerably increasing

performance, particularly for

PCBs with a short cycle time.

I-Placement

The SIPLACE line achieves

top placement performance

with the use of I-Placement.

In this mode, the two heads

work simultaneously and

populate the PCB on the cor-

responding conveyor side,

totally independently of one

another. Short distances fur-

ther increase the output.

Borrow Performance

By facilitating simultaneous

production of two boards with

different contents in one line,

Borrow Performance is the

ideal addition to I-Placement.

In placement machines with

Borrow Performance, both

heads place the same board

in alternation The board in

the other conveyor lane is

simply transported through

the system. This makes it

possible to achieve the same

cycle time for both boards,

despite the different place-

ment contents.
