44 Technical data Compressed air supply Compressed a ir supply Compressed air pres- sure values p min p max 0.5 MPa = 5.0 bar 1.0 MPa = 10 bar Operating pressure 0.48 MPa ± 0 .025 MPa (4.8 bar ± 0.25 bar) Compressed air …

Technical data

Electrical ratings

Supply voltage

Main power supply 3/N/PE ~ 380 V / 220 V to 415 V / 240 V ± 10 %; 50/60 Hz

3/N/PE ~ 200 V / 115 V to 220 V / 127 V ± 10 %; 50/60 Hz

3/PE ~ 200 V to 220 V ± 10 %; 50/60 Hz

a) With options package

Fuse

Full load current 3.5 A - 2.2 A / phase

6.3 A - 4.4 A / phase

b) Selection of customer's supply voltage range.

3 x 16A characteristic C

3 x 15 A characteristic C

c) For example: Siemens circuit breakers in accordance with UL 489 and IEC (order no.: 5SJ4 316-7HG42)

EATON Industries circuit breaker FAZ-C16/3-NA 16A 3p (UL 489, CSA C22.2 no. 5, IEC 60947-2)

Mains power connec-

tion

Without cable

Cable 5 x 4,0 mm² WITH CEE plug, red 16 A (in accordance with IEC 60309) (3 x 380 V~ to

3 x 415 V~)

Cable 5 x 4.0 mm² WITHOUT plug (3 x 200 V~ to 3 x 220 V) or

(3 x 380 V~ to 3 x 415 V~)

Short circuit classification of machine (SCCR)

d) With the original mains connection cable. The marked short circuit rating (SCCR) relates to the beginning of the original

mains cable. In the case of customer modifications, the factory-set length of the mains cable to the machine may not be

shortened nor the factory-set conductor cross-section increased, as this would have a negative impact on the short cir-

cuit rating (SCCR).

10 kA

Energy consumption

with vacuum pump

e) Vacuum pump for C&P20 P2 P head only (optional).

Energy consumption

without vacuum pump

f) Standard

Average apparent power

SIPLACE SX1

SIPLACE SX2

3.2 kVA

3.8 kVA

2.0 kVA

2.6 kVA

Average effective power

SIPLACE SX1

SIPLACE SX2

2.0 kW

2.4 kW

1.2 kW

1.6 kW

Technical data

Compressed air supply

Compressed air pres-

sure values

min

max

0.5 MPa = 5.0 bar

1.0 MPa = 10 bar

Operating pressure 0.48 MPa ± 0.025 MPa (4.8 bar ± 0.25 bar)

Compressed air con-

nection

1/2" hose connection

Compressed air consumption

a) Average consumption values. Under normal atmospheric conditions at 20°C and 1013 hPa.

Placement head con-

figuration

Compressed air

consumption

with vacuum pumpd

b) Vacuum pump for C&P20 P2 P head only (optional).

Compressed air consumption

without vacuum pump

c) Standard

SIPLACE SX2 C&P20 P2 /C&P20 P2

CPP / CPP

CPP / TH

TH / TH

200 Nl/min

490 Nl/min

240 Nl/min

200 Nl/min

SIPLACE SX1 C&P20 P2

CPP

100 Nl/min

280 Nl/min

140 Nl/min

100 Nl/min

Compressed air specification according to ISO 8573

Particle size (ISO class 3) 5 µm

Particle density (ISO class 3) 5 mg/m³

Maximum oil content

(ISO class 1)

Particle density 0.01 mg/m³

Pressure dewpoint (ISO class 4) Dewpoint + 3°

Technical data

Electrical connection and compressed air

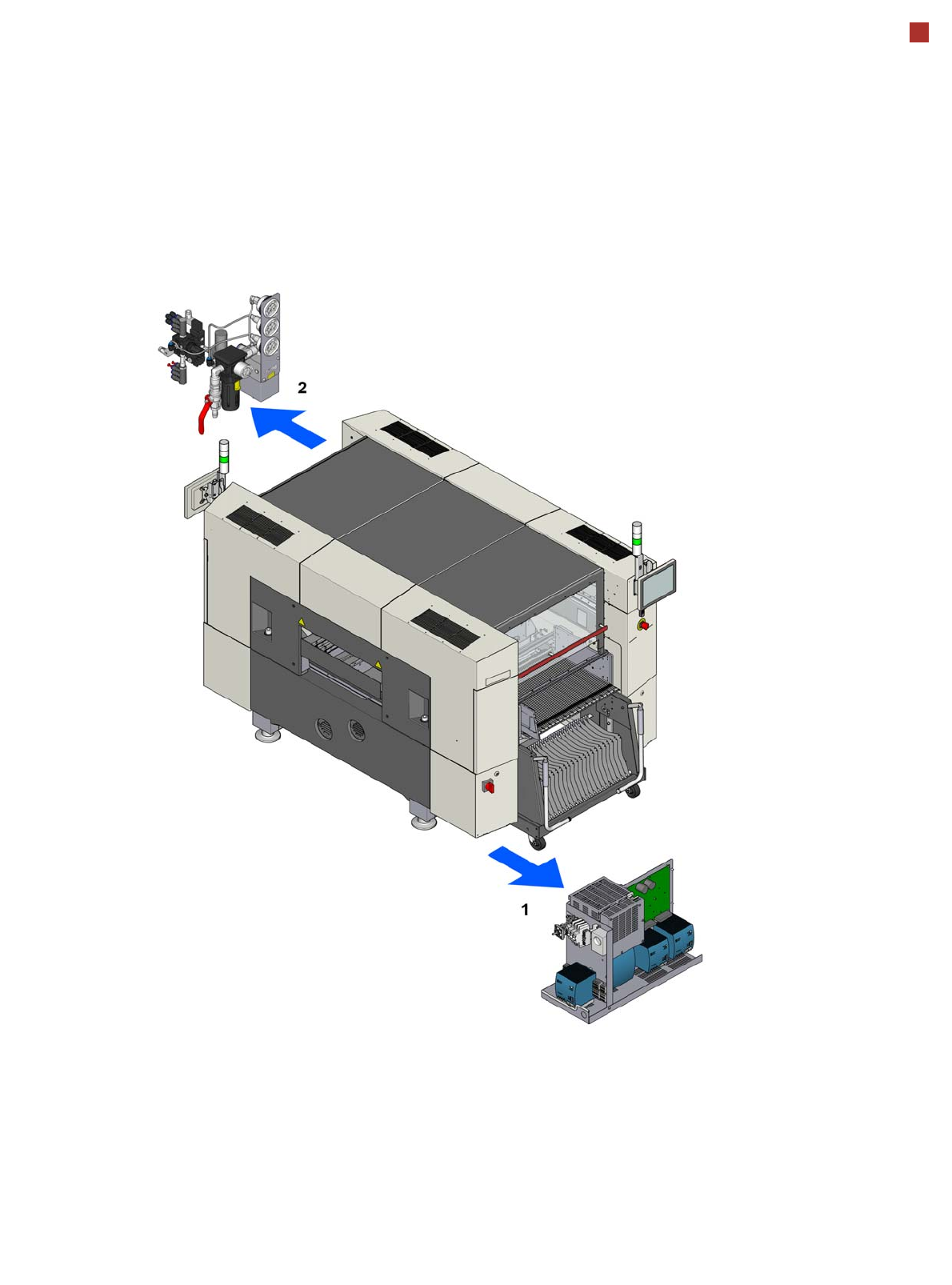

1 = Electrical connection

2 = Compressed air connection

The connections are run into the machine from below and then connected to the power

supply of pneumatic unit.

PLEASE NOTE:

Also observe the document "Network and compressed air configuration for SMD systems" (Ger-

man+English, item no. 00197548-xx), which is provided with delivery of SIPLACE machines.
