47 Technical data Machine dimensions Machine center of gravity X = 0 mm Y = 0 mm Z = 738.5 mm
46
Technical data
Dimensions and setup conditions
Machine length
With input conveyor extension
1500 mm
1760 mm
Machine width
a
Over the two docked component trolleys and bottom handles
With monitor and keyboard
b
a) 1 component trolley inside and 1 component trolley outside with handles folded down.
b) Optional
2475 mm
2854 mm
Height of the machine
with indicator lamp
with folded-up protective covers
(for PCB conveyor height 900 mm)
(for PCB conveyor height 930 mm)
(for PCB conveyor height 950 mm)
max. 1765 mm
1980 mm
2010 mm
2030 mm
Machine ground clearance
(for PCB conveyor height 900 mm)
(for PCB conveyor height 930 mm)
(for PCB conveyor height 950 mm)
120 mm ± 15 mm
150 mm ± 15 mm
170 mm ± 15 mm
Weight
c
SX1 with 2x component trolley 60
SX1 with 2x component trolley 60 (fully configured)
SX2 with 2x component trolley 60
SX2 with 2x component trolley 60 (fully configured)
c) 1 component trolley inside, 1 component trolley outside and single conveyor.
2482 kg
2806 kg
2532 kg
2856 kg
Location
a
SIPLACE SX1/SX2 with 2x component trolley 60 3.71 m²
Load per unit area
b
The load per unit area calculation included an additional working
space of 0.5 m on each side of the machine.
SIPLACE SX1
SIPLACE SX2
6.1 kN/m²
6.2 kN/m²
Load per unit area
b
The load per unit area calculation includes an additional working
space of 1.0 m on each side of the machine.
SIPLACE SX1
SIPLACE SX2
4.7 kN/m²
4.8 kN/m²
Number of machine feet 4
Max. noise emissions 75 dB (A)
Room temperature Between 15°C and 35°C
Atmospheric humidity 30% to 75% (no higher than 45% on average
to prevent any possibility of condensation on
the machine)
47
Technical data

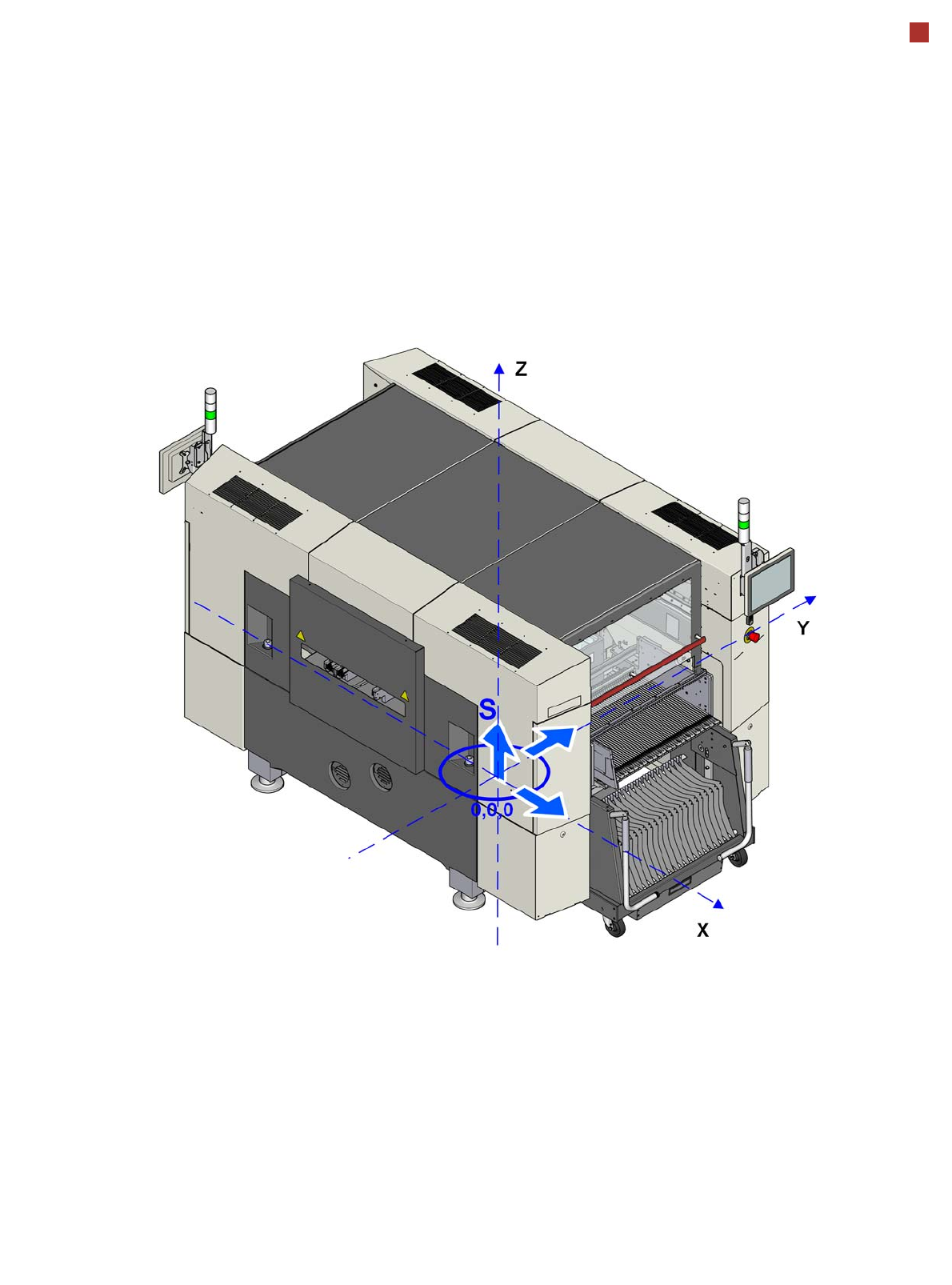

Machine dimensions
Machine center of gravity
X = 0 mm
Y = 0 mm
Z = 738.5 mm
48
Technical data
Maneuvering distances for the component trolleys
Pos. Description Location 1/2
(outside)
Location 1/2
(inside)
D1 Minimum required maneuvering distance for
moving the component trolley out.
760 mm 760 mm
D2 Recommended maneuvering distance for mov-
ing the component trolley out.Distance to adja-
cent machine/line or the building wall.
1200 mm 1200 mm
L1 Distance from machine center to outer edge of
component trolley.
1300 mm 1175 mm
