49
Technical data

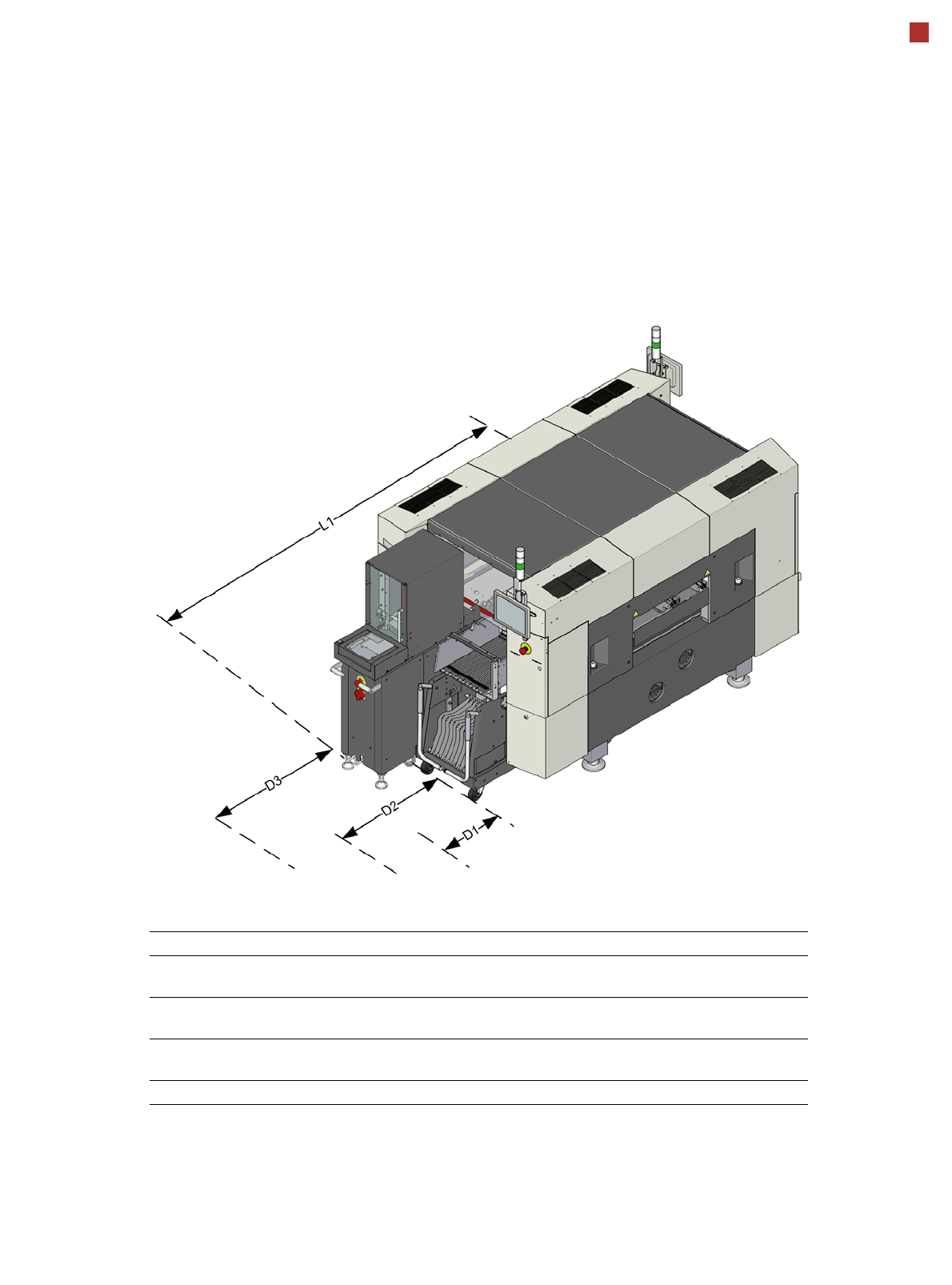

Maneuvering distances for WPC5/WPC6
Pos. Description Location 1/2
D1 Minimum required maneuvering distance for moving the component
trolley out.
760 mm
D2 Recommended maneuvering distance for moving component trolley
out.
950 mm
D3 Recommended maneuvering distance for moving WPC out.Distance
to adjacent machine/line or the building wall.
1000 mm
L1 Distance from machine center to outer edge of WPC. 1860 mm
50
Technical data

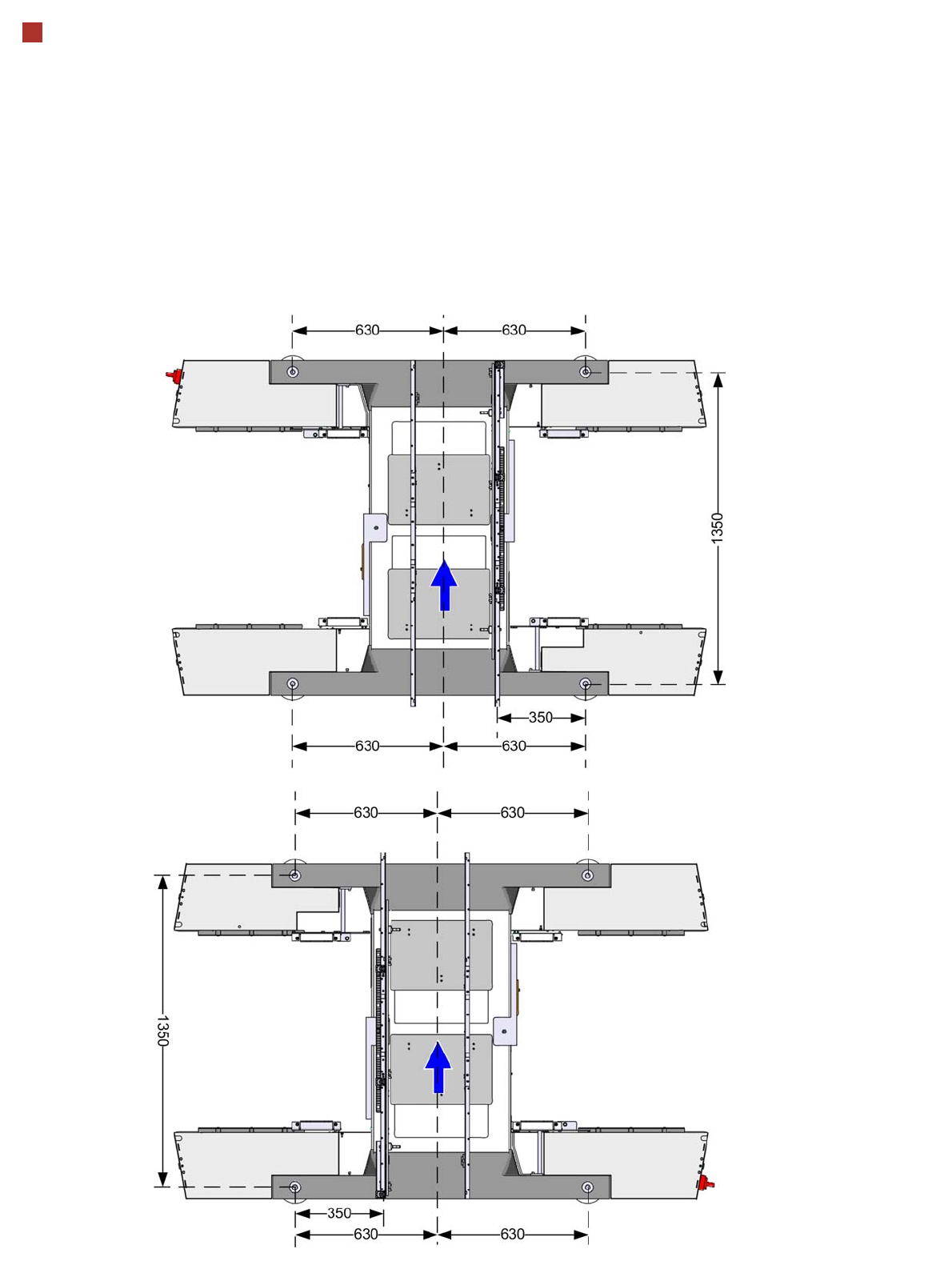

Spacing distances for single conveyor
Fixed conveyor side at maxi-
mum right position
a
.
Fixed conveyor side
at maximum left position
a
.
a) The value depends on the position of the fixed side. See table of adjustable side positions on
page 22. All dimensions in millimeters.
51
Technical data

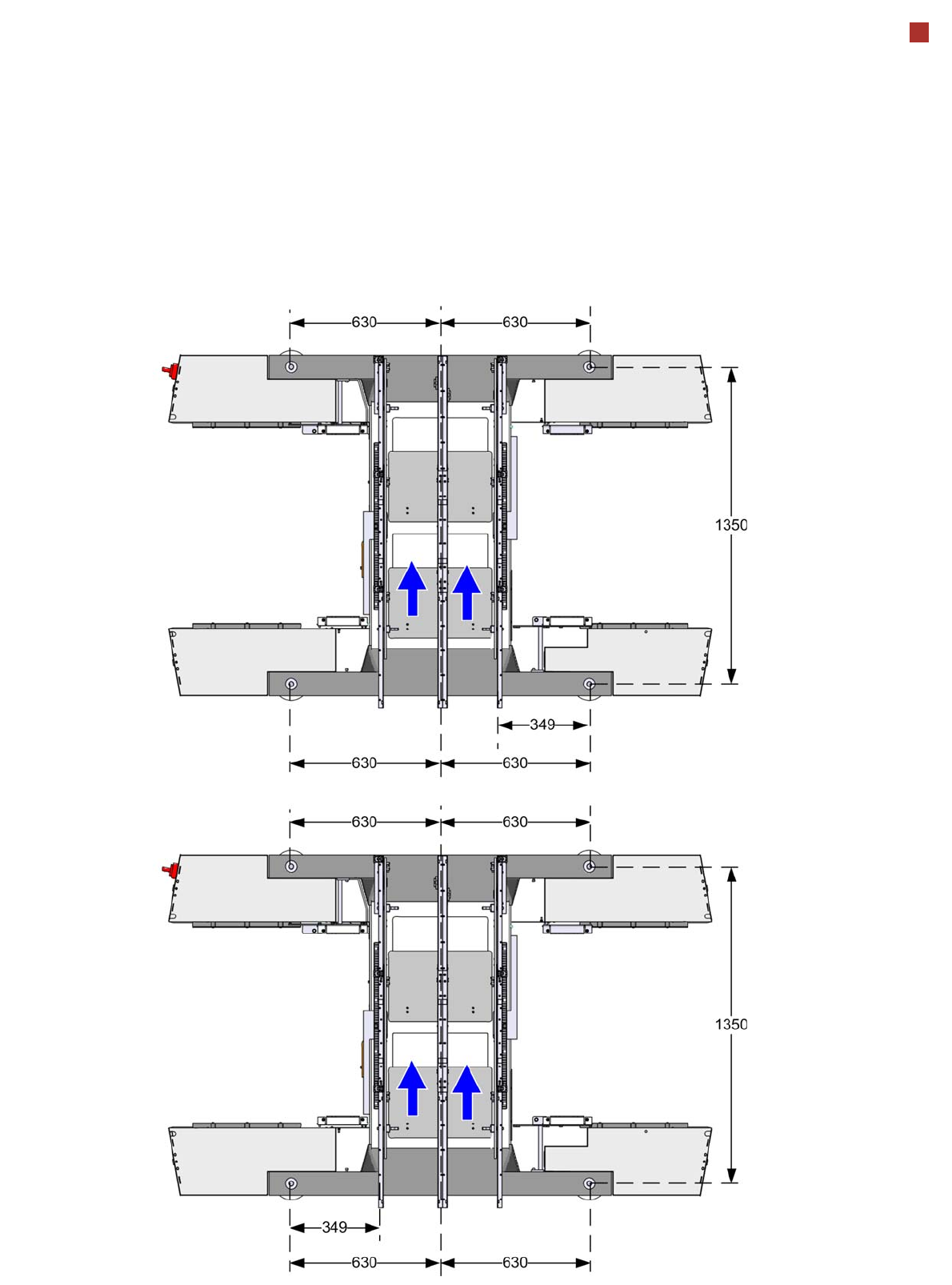

Spacing distances for the flexible dual conveyor
Fixed conveyor side at maxi-
mum right position
a
.
Fixed conveyor side at maxi-
mum left position
a
.
a) The value depends on the position of the fixed side. See table of adjustable side positions on page 22.
All dimensions in millimeters.
