54 Technical data Clearance dimensions with JTF-M All dimensions in mm.

100%1 / 62
53
Technical data

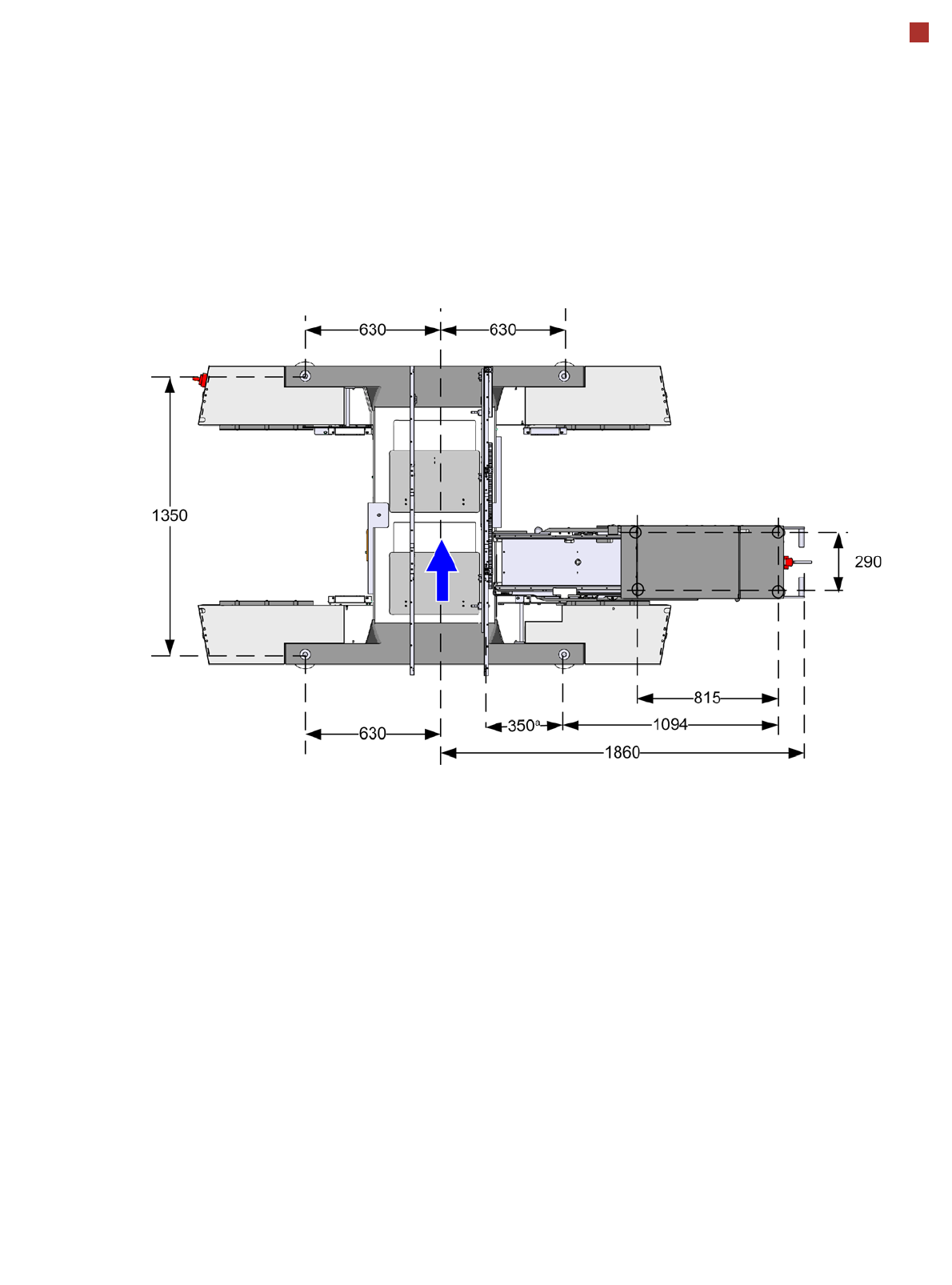

Distances for machine with WPC5/WPC6
a) The value depends on the position of the fixed side. See table of adjustable side positions on page 22. All dimensions in
millimeters.
54
Technical data

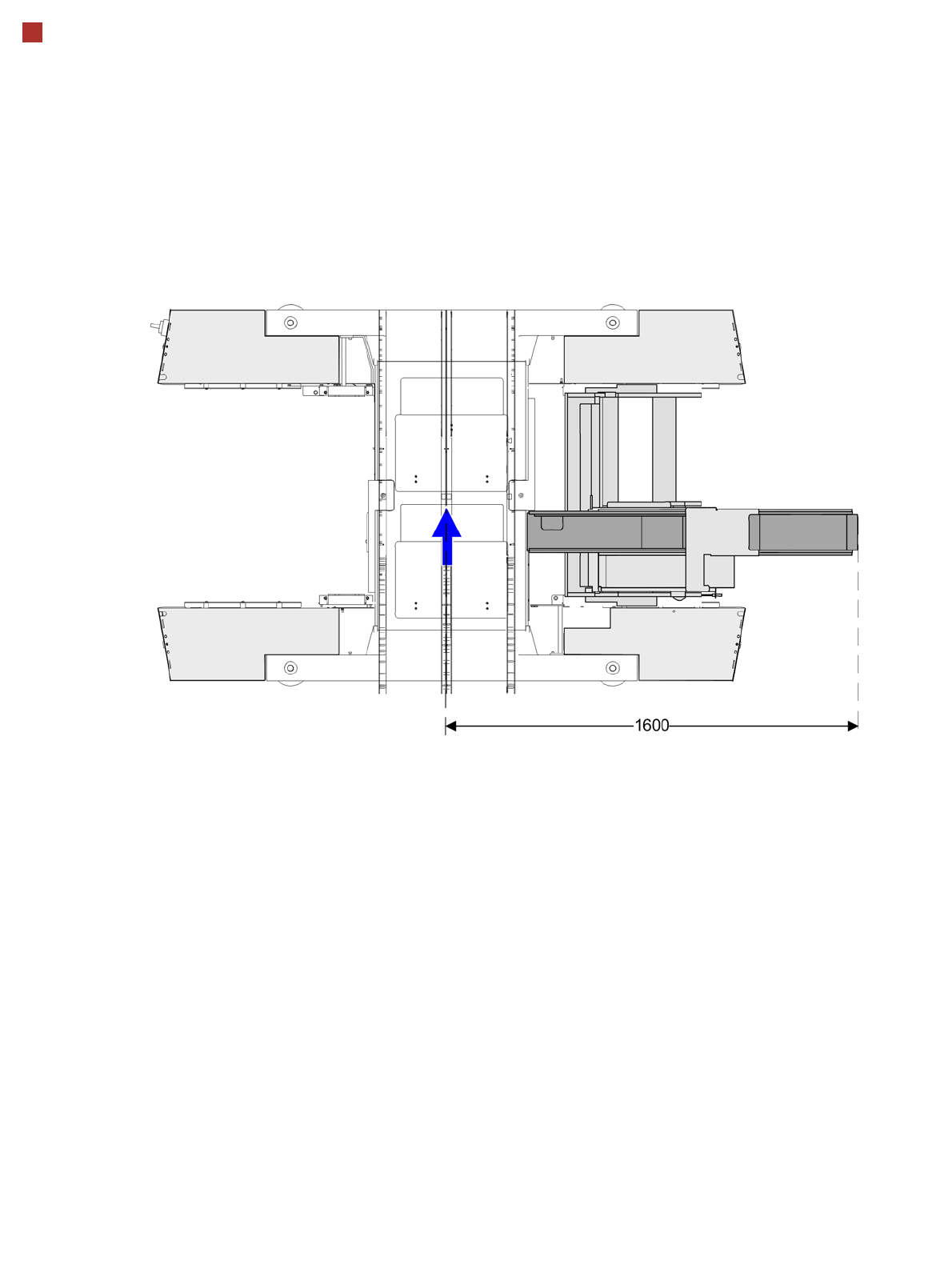

Clearance dimensions with JTF-M
All dimensions in mm.
55
Technical data
Transportation and delivery configuration
Description
Within Europe, the machine
is delivered on a robust
wooden pallet. If sent over-
seas, the machine is pack-
aged in a wooden crate.
Configuration when deliv-
ered
• The lane on the single con-
veyor is set to a width of
210 mm. On the dual con-
veyor, the preset width of
lane 1 is 100mm, of lane 2
is 210mm.
• The monitors have been
dismantled.
• The indicator lamp is dis-
mantled.

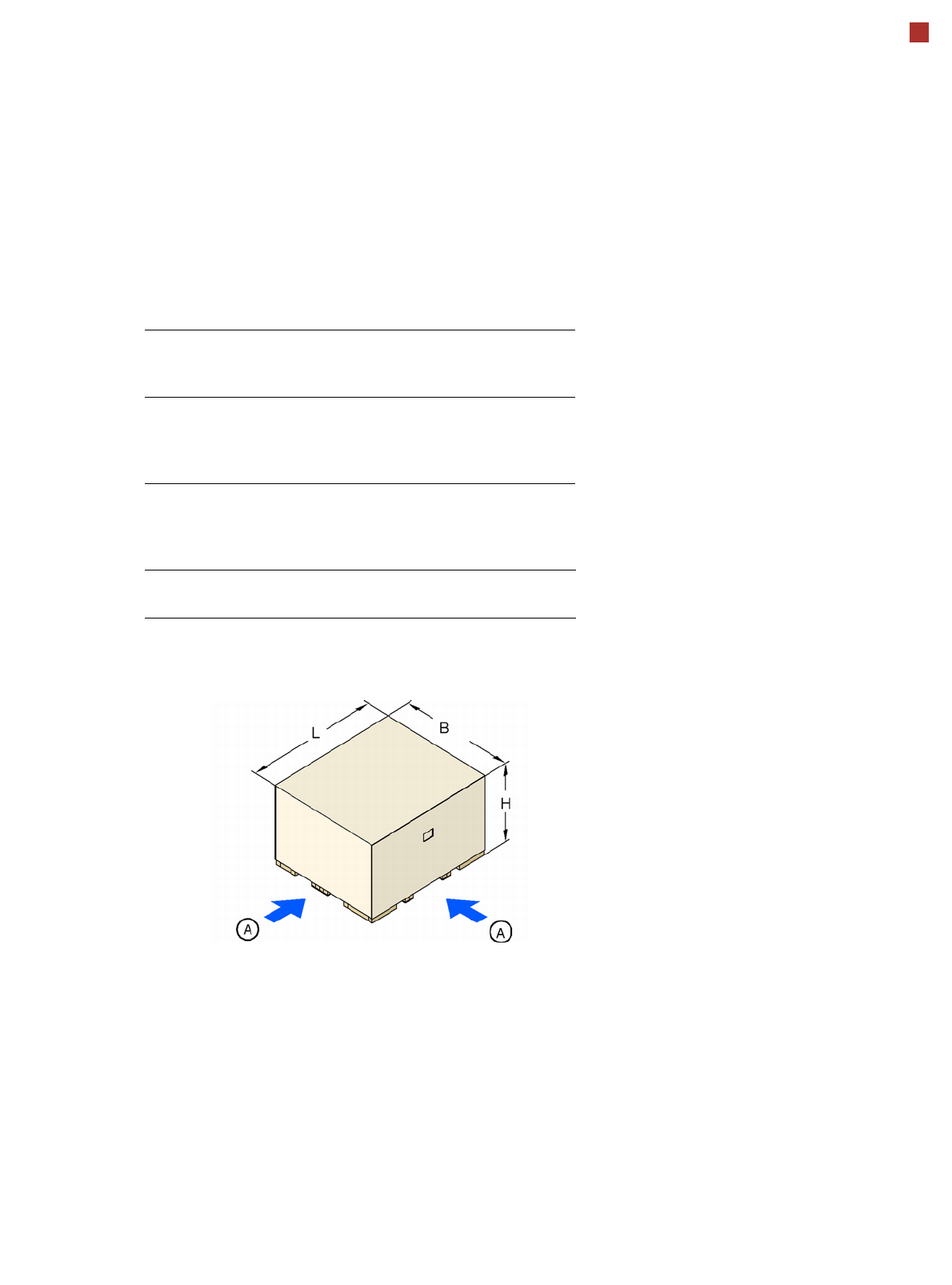

Transport dimensions and weight
Means of transport
A fork-lift with the following specification will be needed to carry
the machine in its crate:
Length
Width
Height
2630 mm
1840 mm
1880 mm
Weight
SX1/SX2
Dispatch Dispatch
within Europe overseas
2500 kg 2800 kg
Fork length
Lifting power
Min. 1800 mm
Min. 6000 kg
Attachment point
for the fork-lift
Attachment point
for the fork-lift
