Service Manua l WPC5 / WPC6 Page 3-102 ➢ Fix the load axis drive motor (see "3.5.2 Replaci ng the Load Axis Drive M otor" [ ➙ 3- 34 ]). ➢ Fit the cover back on th e loading unit . ➢ Loosen the counternut fast…
Service Manual WPC5 / WPC6
Page 3-101
3.7.13 Sensor 18 NSM module (WPC6) - Tray correctly inserted
Spare Parts
• Sensor tray correctly inserted [03056959-xx]
Removal / Installation
➢
Remove the cover on the load unit (see "3.5.1.1 Removing the Cover on the Load Unit"
[➙
3-32]).
➢
Remove the load axis drive motor (see "3.5.2 Replacing the Load Axis Drive Motor"
[➙
3-34]), to gain access to the sensor from below.

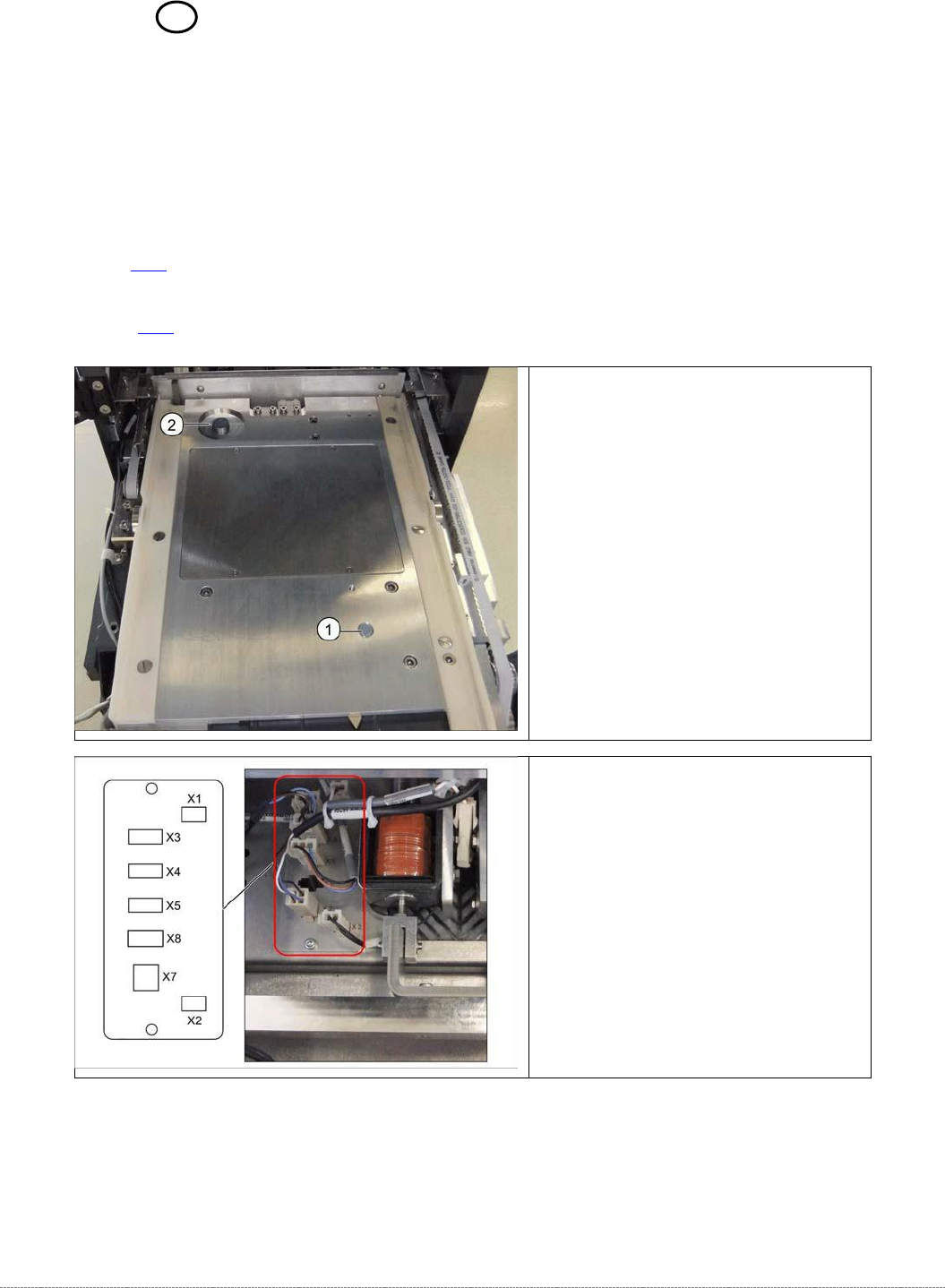

Legend
7. Sensor tray correctly inserted.
8. Sensor tray detection load axis.
➢ Disconnect connector X4 from the
circuit board.
Service Manual WPC5 / WPC6
Page 3-102
➢ Fix the load axis drive motor (see "3.5.2 Replacing the Load Axis Drive Motor" [➙
3-34]).
➢ Fit the cover back on the loading unit.

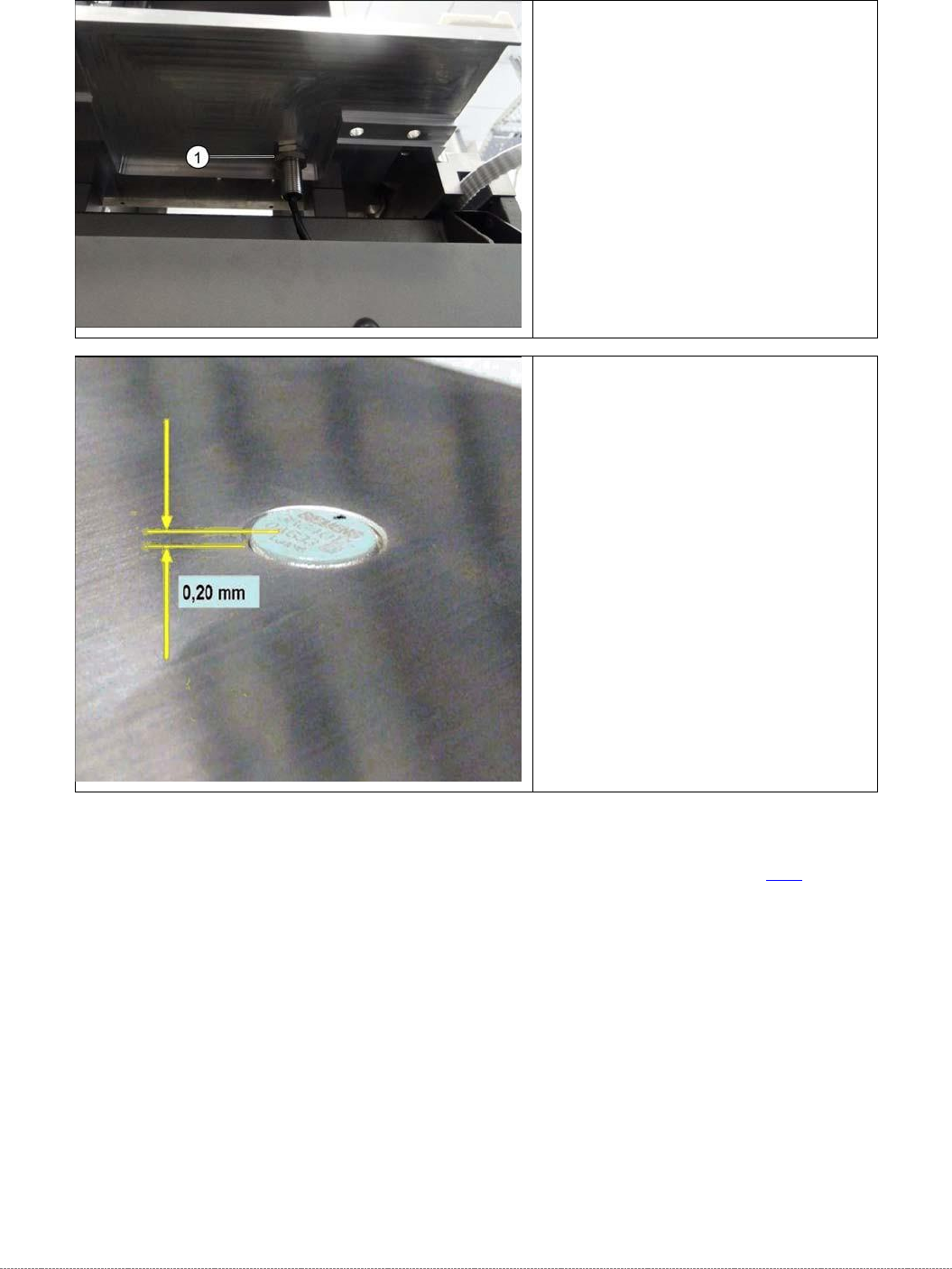

➢ Loosen the counternut fastening
the sensor on the underside of the
base plate and unscrew the sensor
(1).
➢ Screw the new sensor into place.
➢ The sensor should protrude at least
0.2 mm above the table plate.
➢ Use a counternut to fix the sensor
on the underside
(1).
➢ Reconnect connector X4 to the
circuit board.
Service Manual WPC5 / WPC6
Page 3-103
3.7.14 Sensor 15 NSM-Modul (WPC6) – Safety flap open
Spare Part
• Sensor safety flap open [03056958-xx]
Removal / Installation
➢ Remove the cover on the load unit (see "3.5.1.1 Remove the Cover on the Load Unit" [➙
3-
32]).
➢

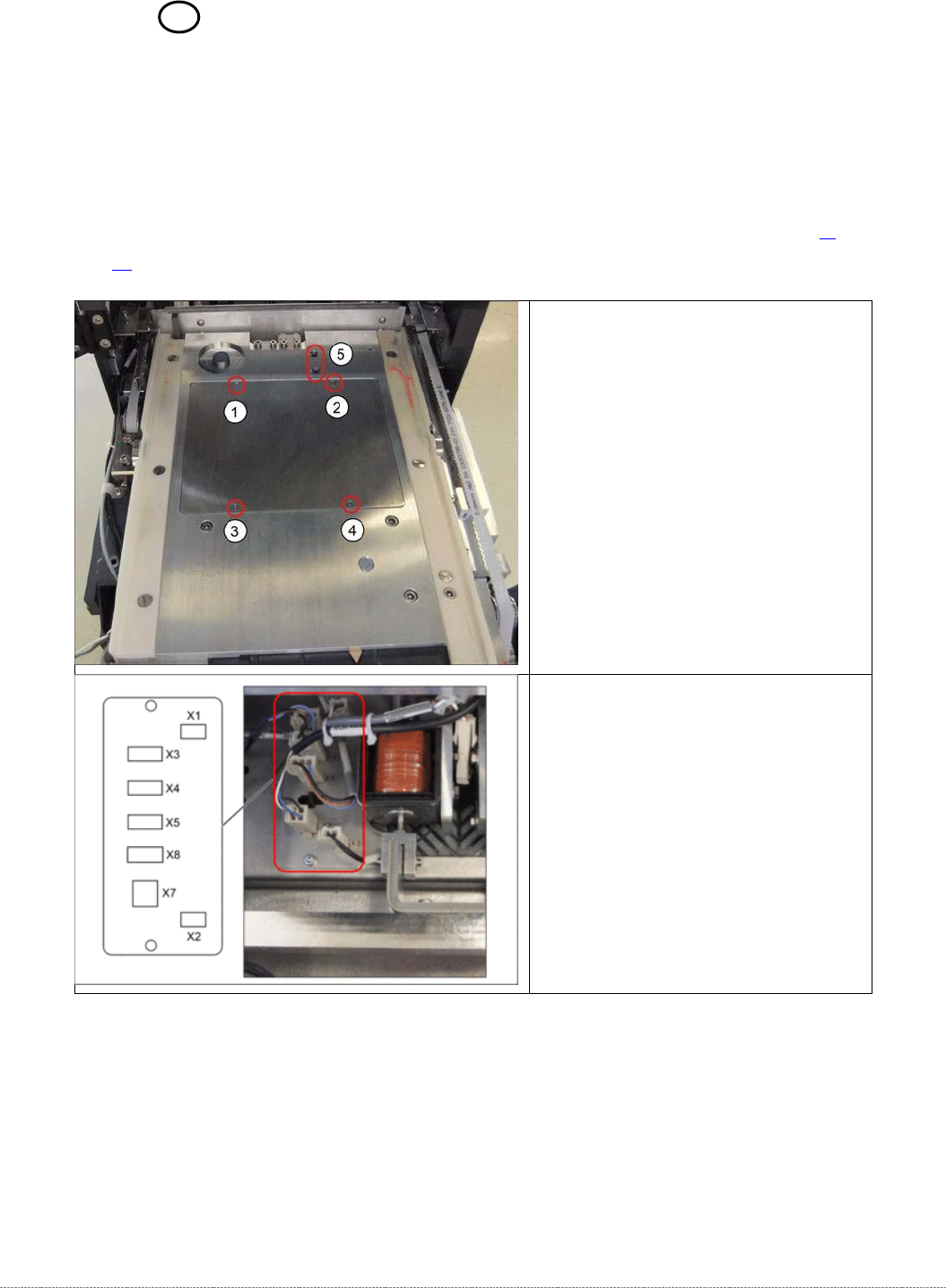

Loosen the screws marked at 1 to 4
and lift off the cover.
➢ Disconnect connector X3 for the
safety flap when open from the
circuit board.
