Service Manua l WPC5 / WPC6 Page 4-134 ➢ Confirm the new zero point position with Finish (1).
Service Manual WPC5 / WPC6
Page 4-133
4.3.1 Teaching the Zero Point Position
➢ Select the load axis (1).
➢ Select the function
Teach zero position
(2).
➢ Select
Next
(3).
➢ Follow the instruction shown and continue with
Commit
(1).
Service Manual WPC5 / WPC6
Page 4-134

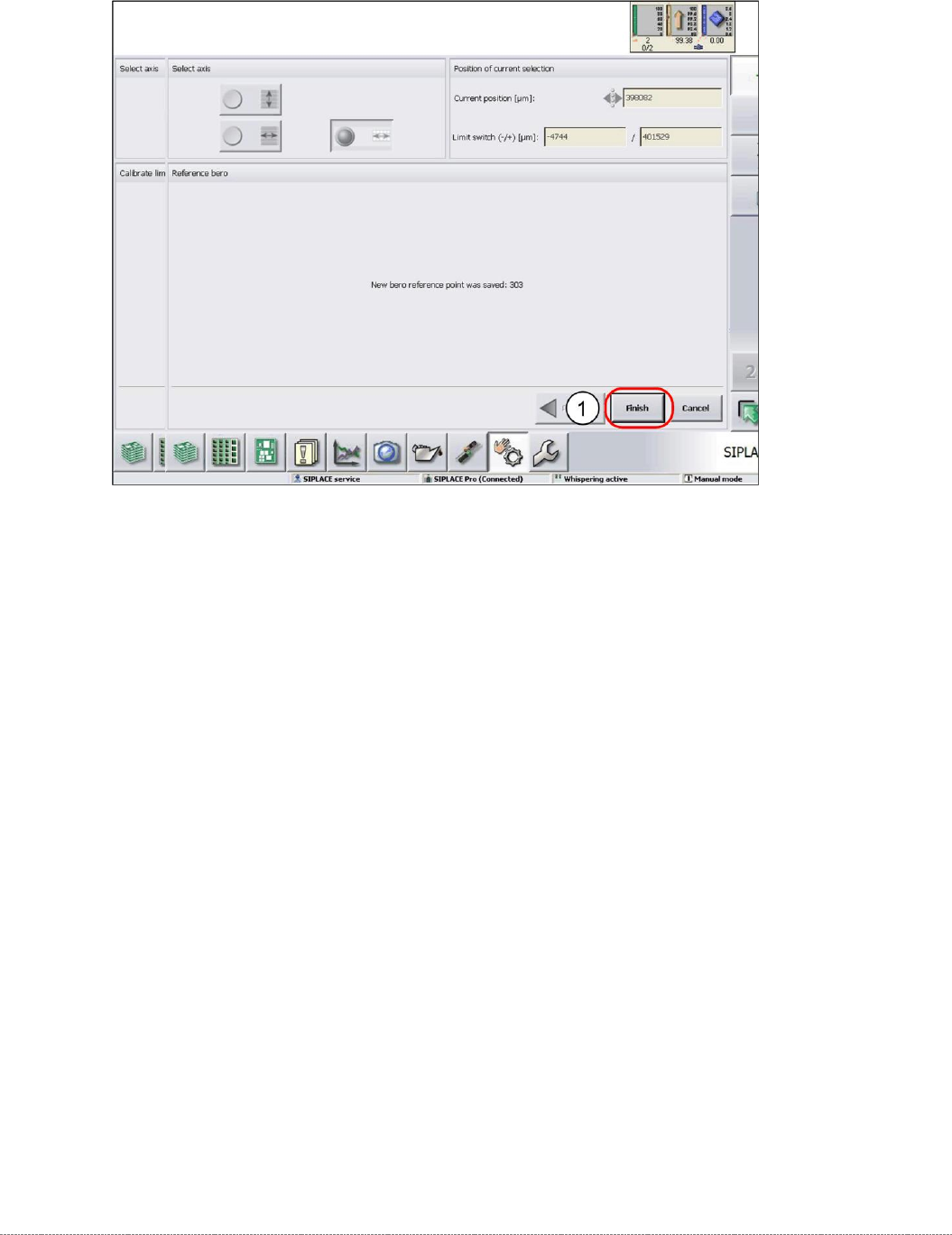

➢ Confirm the new zero point position with
Finish
(1).
Service Manual WPC5 / WPC6
Page 4-135

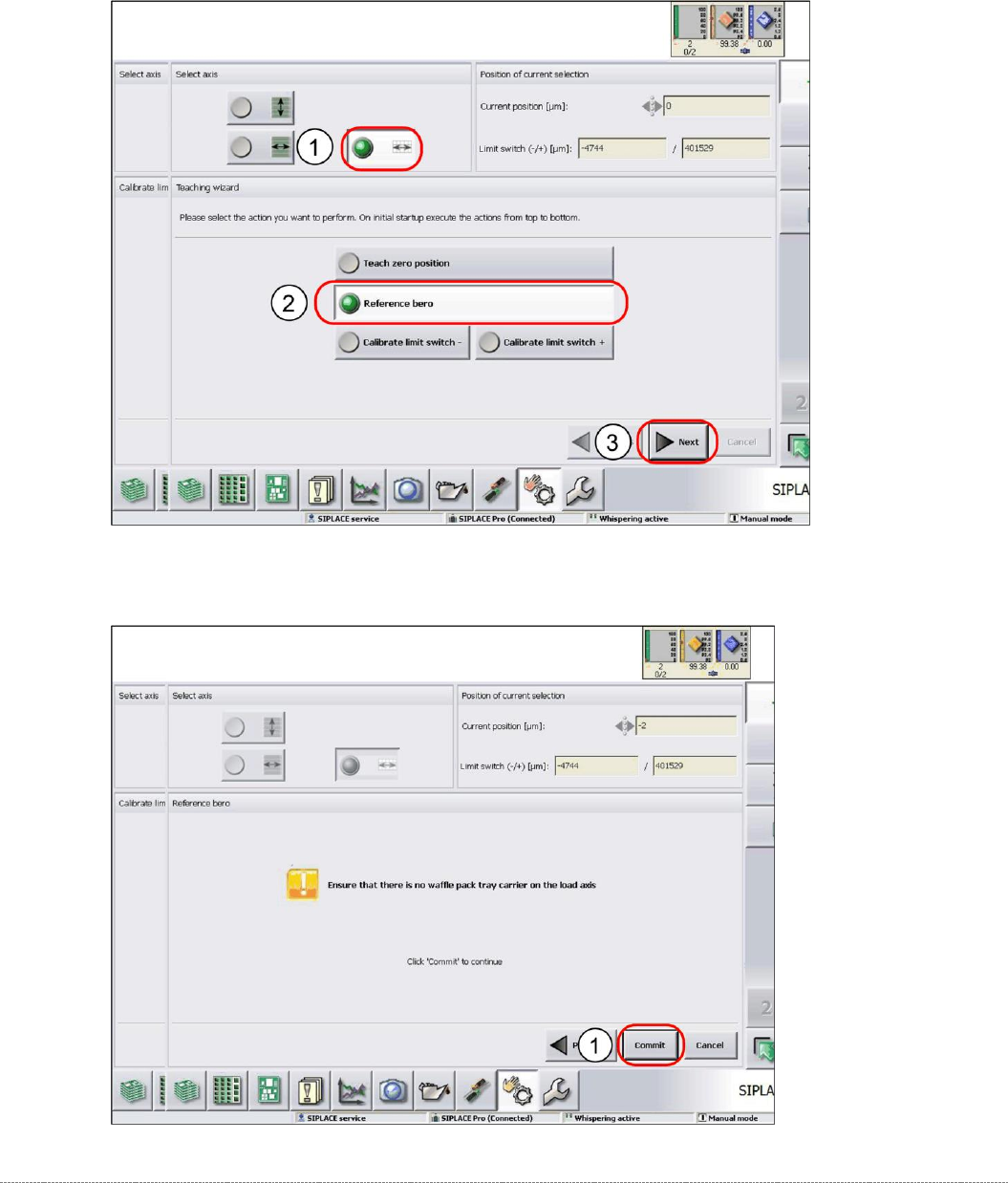

4.3.2 Reference Proximity Switch (Bero)
➢ Select the load axis (1).
➢ Select the function
Reference bero
(2).
➢ Select
Next
(3).
➢ Follow the instruction shown and continue with
Commit
(1).
