semi automatic
SAFETY FEATURES
HIGH VOLTAGE PROTECTION
2.6 Installation Manual Chapter Issue 1 Oct 02
semi automatic
SERVICES REQUIRED
MACHINE EXTERNAL SERVICES
Chapter Issue 1 Oct 02 Installation Manual 3.1
CHAPTER 3 SERVICES REQUIRED
MACHINE EXTERNAL SERVICES
In order for the machine to function correctly the following services must be
available. The services must be stable and clean.

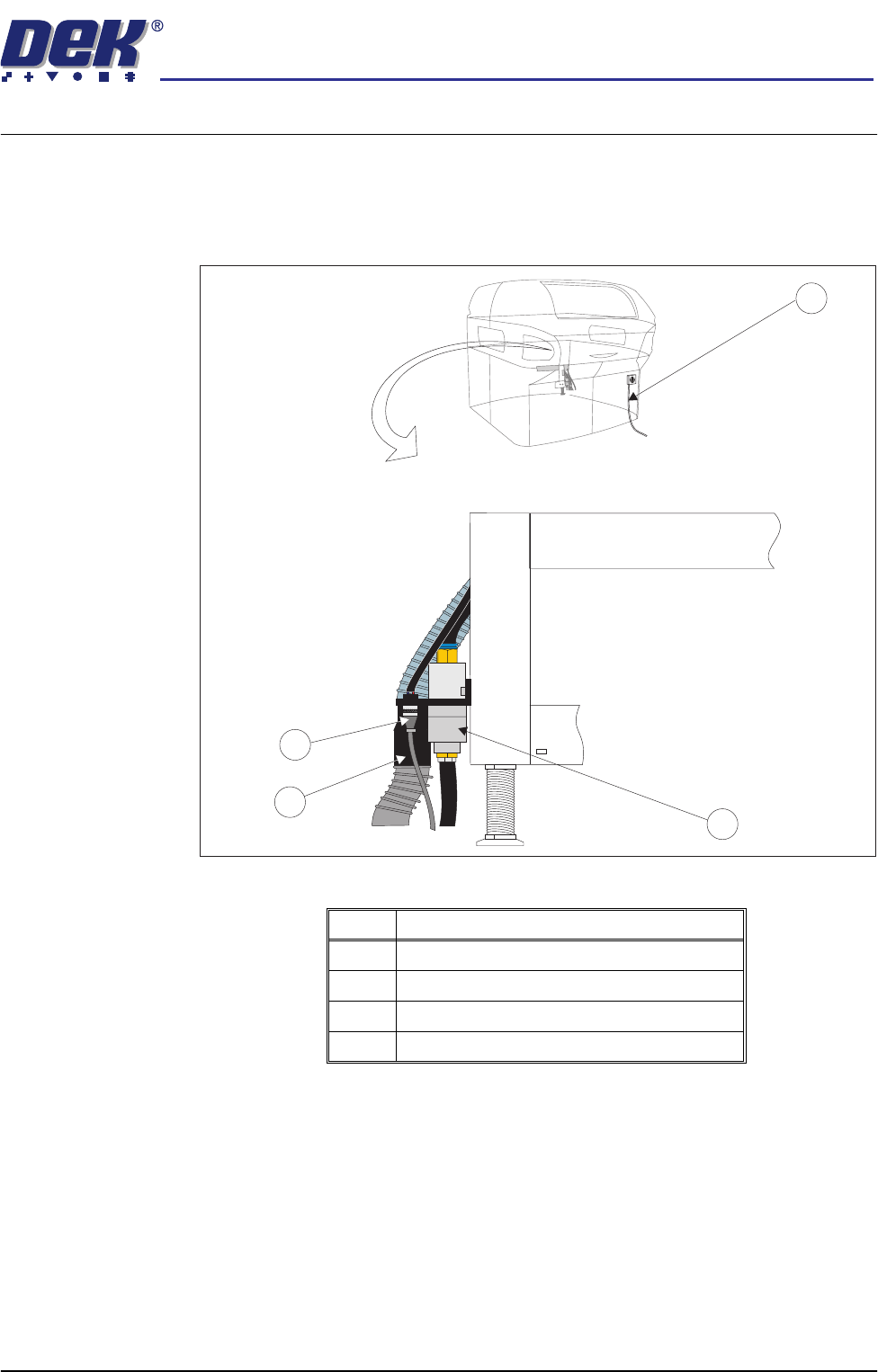

Figure 3-1 External Services
No Description
1 Mains Supply
2 Air Connection
3 Vacuum Connection
4 24V Vacuum Control
1
3
4
2
semi automatic
SERVICES REQUIRED
MACHINE EXTERNAL SERVICES
3.2 Installation Manual Chapter Issue 1 Oct 02
Pneumatic Supply The machine requires a pneumatic supply of clean, non lubricated air which
should maintain a pressure of between 5 Bar - 8 Bar at 5 litres/minute.
The air should be to ISO 8573.1 standard, quality class 2.3.3, where :
• 2 dirt = 1 micron
• 3 water = -20°C pressure dewpoint
• 3 oil = 1mg/m3
Electrical Supply The average power consumption for a machine without any options fitted is
1.6KVA at 100V/240V ac 50/60 Hz.
DEK recommends a power supply capacity of 3KVA or greater to accommodate
extra machine options, surges on power-up and certain machine operations.
CAUTION
OVER CURRENT PROTECTION.
Magnetic/thermal over current protectors
protect the machines internal wiring and components from overheating/
fire during fault conditions. DEK require additional machine supply
protection with the fitment of a wall mounted circuit breaker rated to 16
Amps and conforming to national/federal regulations.
Circuit Breakers The dc circuit breaker panel is located on the front of the M24 dc Power Supply
Module located at the front of the machine and accessed through the front
access panel. The ac circuit breakers are located on the front of the M23 ac
Power Supply Module located at the rear of the machine and accessed through
the rear access panel.
Figure 3-2 Circuit Breaker Panels
M23 AC POWER MODULE 155938
AC Circuit Breaker Panel
DC Circuit Breaker Panel
CB13 CB14 CB15 CB16 CB17
M24 DC Power Module 155945
l
o
l
o
l
o
l
o
l
o
l
o
l
o
l
o
l
o
l
o
l
o
l
o
CB1
CB3 CB5 CB7 CB9 CB11
CB2 CB4 CB6 CB8 CB10 CB12
