semi automatic MACHI NE PREPARAT ION REMOVAL PR OCEDURES 5.8 Installatio n Manual Chapt er Issue 1 O ct 02 Print Car r iage S tops Figure 5-6 Lef t and Right Print Carriage S tops 1. Remove the M5 cap head screws and 2BA…
semi automatic
MACHINE PREPARATION
REMOVAL PROCEDURES
Chapter Issue 1 Oct 02 Installation Manual 5.7
Actuator Restrainer Brackets
CAUTION
INSTALLING/REMOVING SCREEN ACTUATOR BRACKETS.
Extreme care must
be taken when installing or removing the screen actuator clamps as the
chase is spring loaded against the screen actuator ends in the X Forward,
X Rear and Y Axis Positions. Impact force may damage the actuators.
Figure 5-5 Chase Restrainer Clamp
1. Slowly loosen the M8 nuts and bolts (Items 5 and 4) of the X forward, X rear
and Y axis chase restrainer clamps until each actuator is in full contact with
its relevant chase striker plate (Item 8).
2. On each of the three clamps, continue to unscrew the M8 nut (Item 5) until
sufficient play exists in the clamp to allow the block (Item 7) surrounding the
chase striker plate (Item 8) to be withdrawn and the clamp removed.
Item Description Item Description
1 Actuator Shaft 5 M8 Nut
2 Restrainer Collar 6 M8 Washer
3 Actuator 7 Block
4 M8 Bolt 8 Striker Plate
semi automatic
MACHINE PREPARATION
REMOVAL PROCEDURES
5.8 Installation Manual Chapter Issue 1 Oct 02
Print Carriage Stops

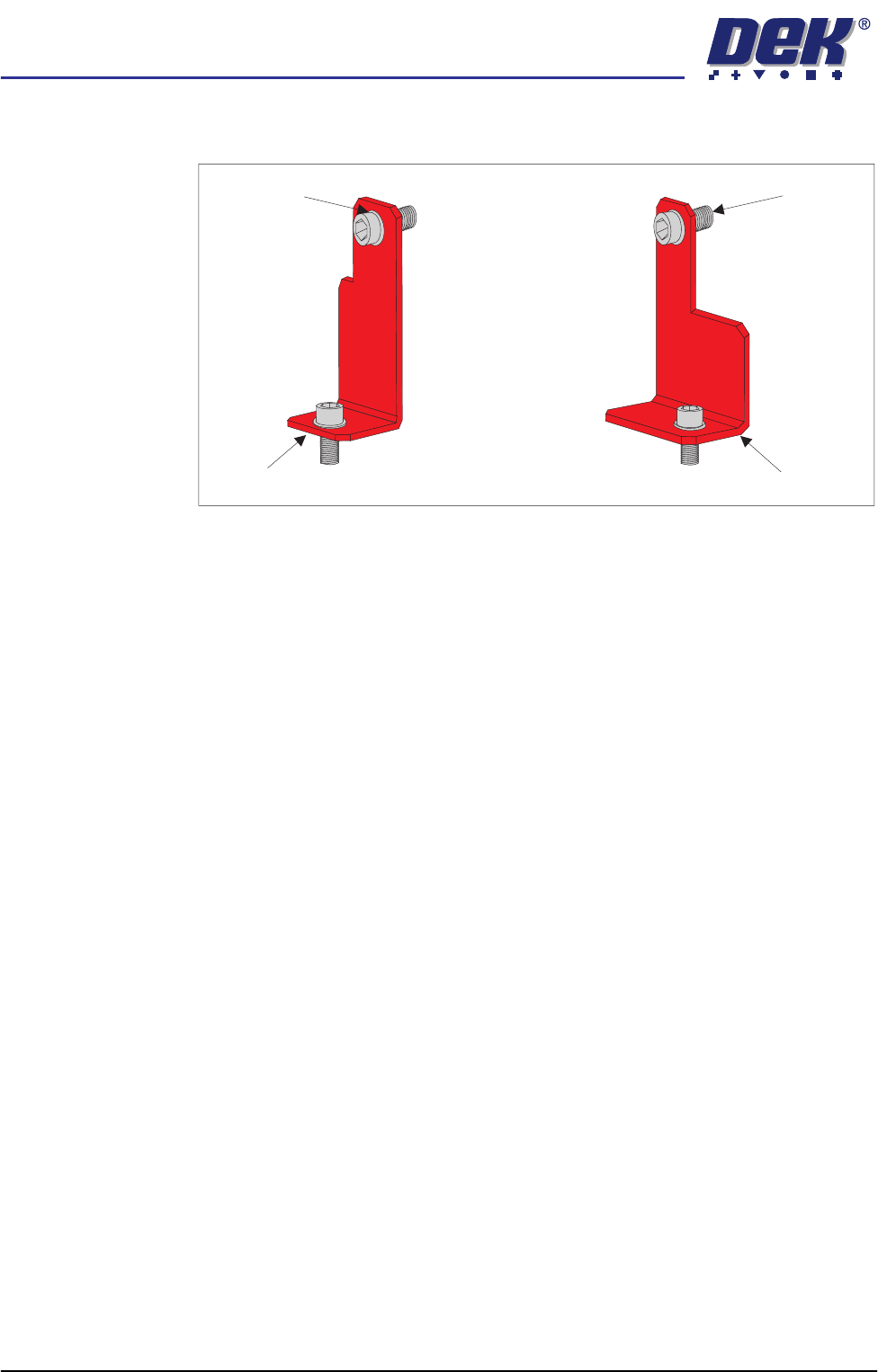

Figure 5-6 Left and Right Print Carriage Stops
1. Remove the M5 cap head screws and 2BA washers securing the left and
right print carriage stops to the print carriage.
2. Remove the M5 cap head screws and 2BA washers securing the left and
right print carriage stops to the printhead casting lugs. Remove the carriage
stops.
Left Carriage Stop Right Carriage Stop
M5 Screw2BA Washer
semi automatic
MACHINE PREPARATION
REMOVAL PROCEDURES
Chapter Issue 1 Oct 02 Installation Manual 5.9
Squeegee Transit Bracket

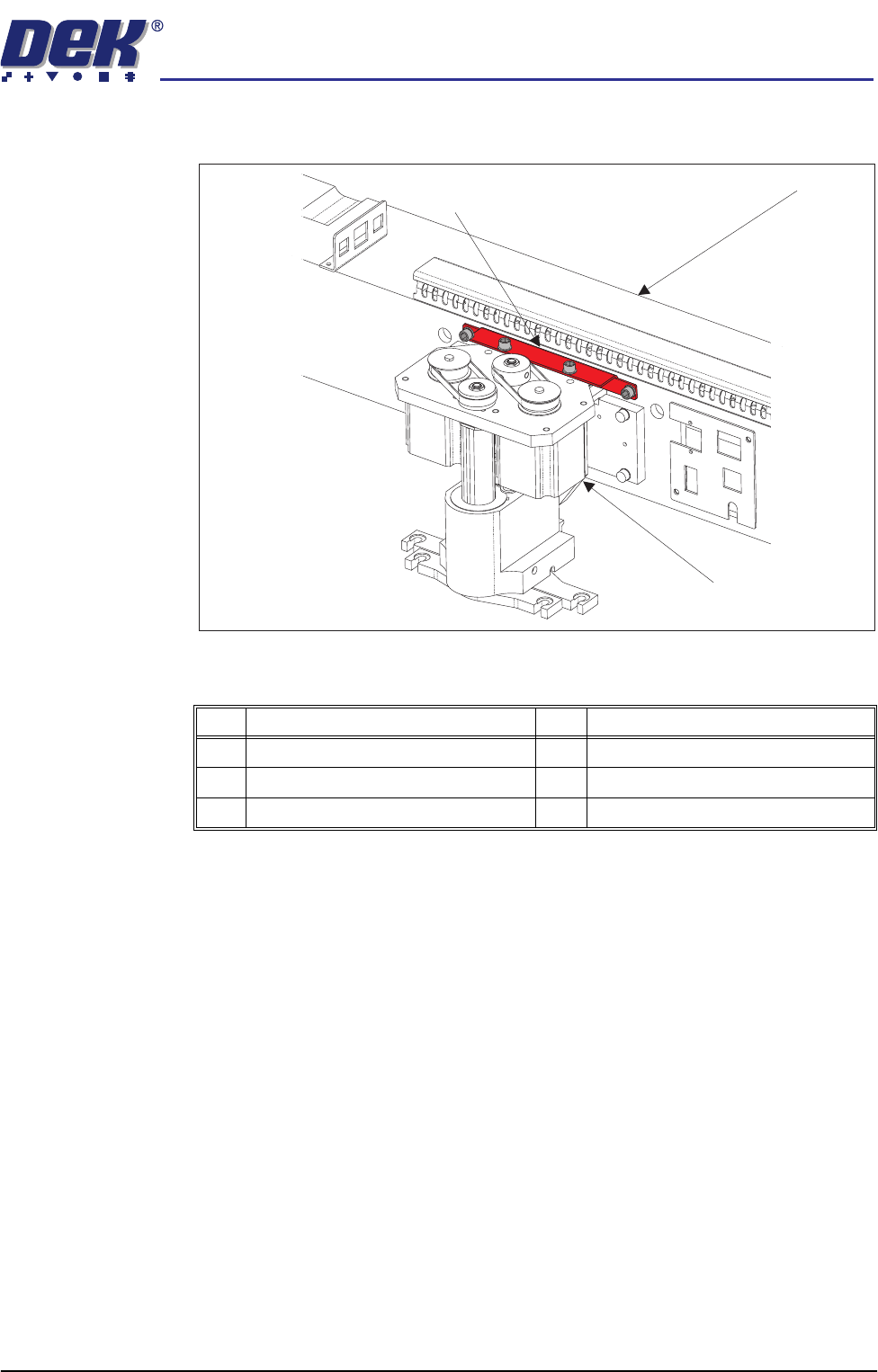

Figure 5-7 Squeegee Transit Bracket
1. Whilst supporting the squeegee mounting assembly (Item 5), remove the
two M5 cap head screws and M5 washers (Items 1 and 2) securing the
squeegee transit bracket (Item 3) to the squeegee mounting assembly (Item
5).
2. Remove the two M5 cap head screws and M5 washers (Items 1 and 2)
securing the squeegee transit bracket (Item 3) to the print carriage (Item 4).
3. Remove the squeegee transit bracket (Item 3).
Item Description Item Description
1 M5 Cap Head Screw 4 Print Carriage
2 M5 Washer 5 Squeegee Mounting Assembly
3 Squeegee Transit Bracket
Print Carriage
Squeegee
Mounting Assembly
Squeegee Transit
Bracket
