semi automatic
MACHINE PREPARATION
REMOVAL PROCEDURES
5.8 Installation Manual Chapter Issue 1 Oct 02
Print Carriage Stops
Figure 5-6 Left and Right Print Carriage Stops
1. Remove the M5 cap head screws and 2BA washers securing the left and
right print carriage stops to the print carriage.
2. Remove the M5 cap head screws and 2BA washers securing the left and
right print carriage stops to the printhead casting lugs. Remove the carriage
stops.
Left Carriage Stop Right Carriage Stop
M5 Screw2BA Washer
semi automatic
MACHINE PREPARATION
REMOVAL PROCEDURES
Chapter Issue 1 Oct 02 Installation Manual 5.9
Squeegee Transit Bracket
Figure 5-7 Squeegee Transit Bracket
1. Whilst supporting the squeegee mounting assembly (Item 5), remove the
two M5 cap head screws and M5 washers (Items 1 and 2) securing the
squeegee transit bracket (Item 3) to the squeegee mounting assembly (Item
5).
2. Remove the two M5 cap head screws and M5 washers (Items 1 and 2)
securing the squeegee transit bracket (Item 3) to the print carriage (Item 4).
3. Remove the squeegee transit bracket (Item 3).
Item Description Item Description
1 M5 Cap Head Screw 4 Print Carriage
2 M5 Washer 5 Squeegee Mounting Assembly
3 Squeegee Transit Bracket
Print Carriage
Squeegee
Mounting Assembly
Squeegee Transit
Bracket
semi automatic
MACHINE PREPARATION
REMOVAL PROCEDURES
5.10 Installation Manual Chapter Issue 1 Oct 02
ProFlow Transit Bracket (if fitted)

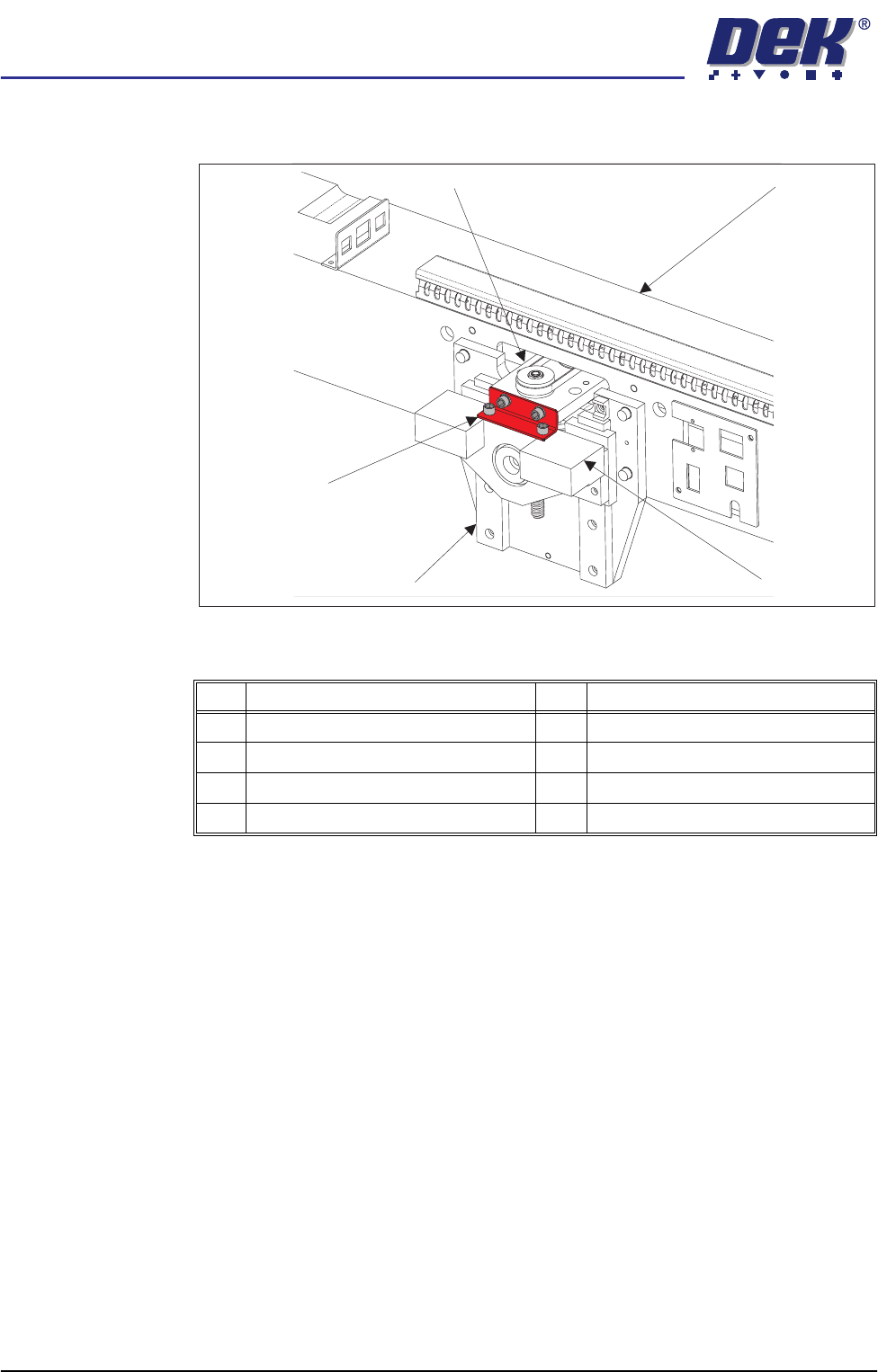

Figure 5-8 ProFlow Transit Bracket
1. Remove the two M5 cap head screws and M5 washers (Items 3 and 4)
securing the ProFlow transit bracket (Item 7) to the bearing block (Item 5).
2. Remove the two M5 cap head screws and M5 washers (Items 3 and 4)
securing the ProFlow transit bracket (Item 7) to the motor support plate
(Item 1).
3. Remove the ProFlow transit bracket (Item 7).
This concludes the transit bracket removal procedure. Transit brackets and
associated fasteners should be stored for future reuse.
Item Description Item Description
1 Motor Support Plate 5 Bearing Block
2 Print Carriage 6 ProFlow Mounting Assembly
3 M5 Cap Head Screw 7 ProFlow Transit Bracket
4 M5 Washer
Print Carriage
ProFlow Mounting Assembly
ProFlow Transit
Bracket
Motor Support Plate
Bearing Block
