semi automatic
MACHINE PREPARATION
MACHINE ASSEMBLY
Chapter Issue 1 Oct 02 Installation Manual 5.15
g. Carefully lock bolts A and B in position using the locknuts provided.
h. Tighten the three bolts on the front upright of the transport rail frame and
repeat the check.
i. If adjustment in the Y plane is required, carry out Steps 4j - 4l.
j. Loosen the bolt C on the outer face of the appropriate upright.
k. Adjust the height of the upright by loosening or tightening the height
adjustment grub screw fitted to the top of the upright.
l. Tighten bolt C loosened in Step 4j and repeat the check.

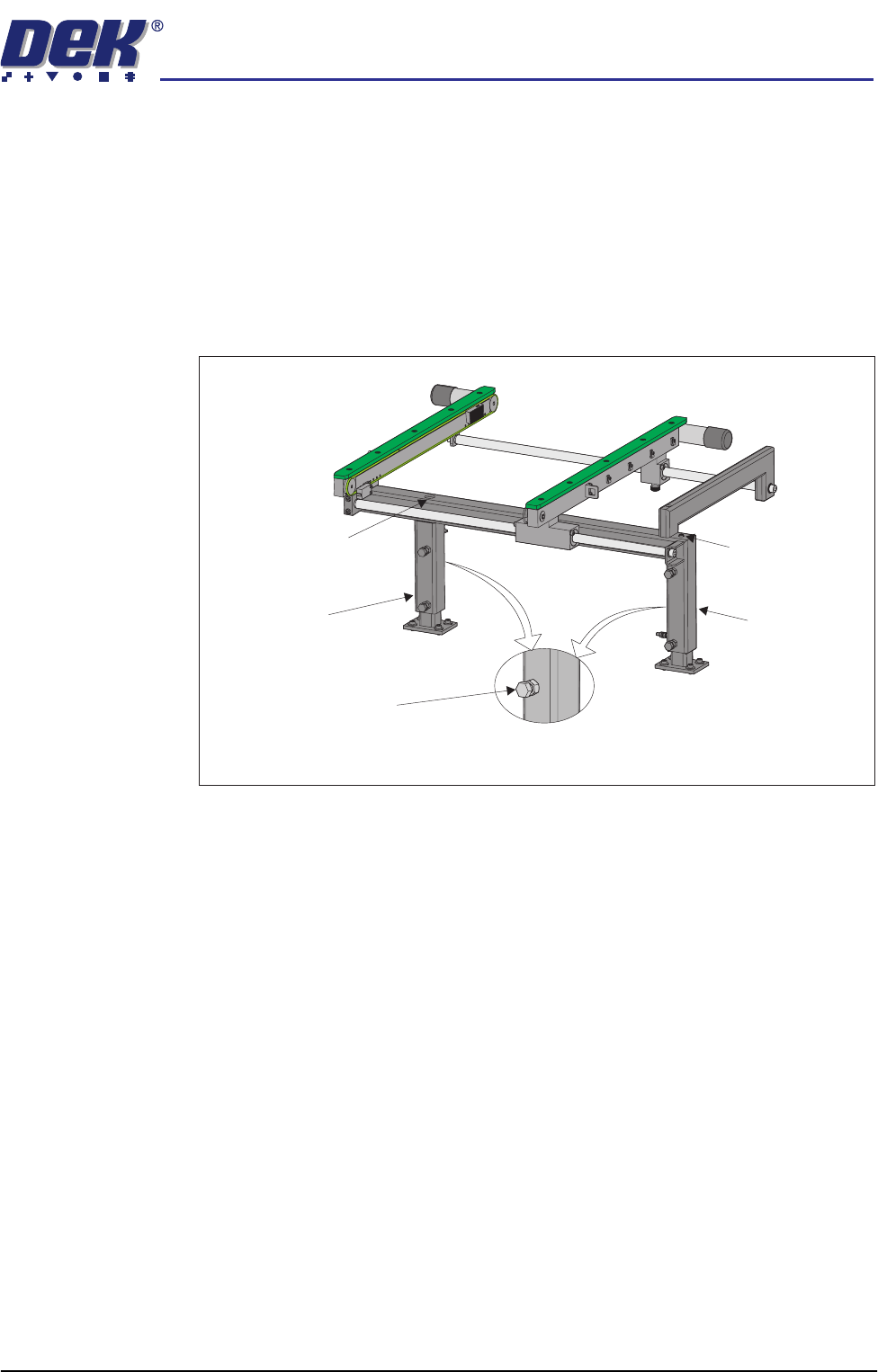

Rear Upright of
Transport Rail
Front Upright of
Transport Rail
Rear view of Transport Rail
Bolt C on Outer Face of
Upright of Transport Rail
Height Adjustment
Grub Screw
Height Adjustment
Grub Screw
semi automatic
MACHINE PREPARATION
MACHINE ASSEMBLY
5.16 Installation Manual Chapter Issue 1 Oct 02
5. Connect the following connectors associated with the transport rail assem-
bly:
• 8PL04 - Board at Left sensor
• 8PL41 - Transport rail front belt motor
• 8PL42 - Transport rail rear belt motor
6. Refit the left hand machine side panels removed in Step 1.
MMI Assembly NOTE
The transport rail assembly and front left side cover must be fitted before the
MMI assembly is fitted.
1. Remove the front panel of the machine.
2. Locate the ergo arm mount bracket at the front of the machine, above the
M24 crate.
K
E
YE
N
C
E
P
Z
-4
2
L

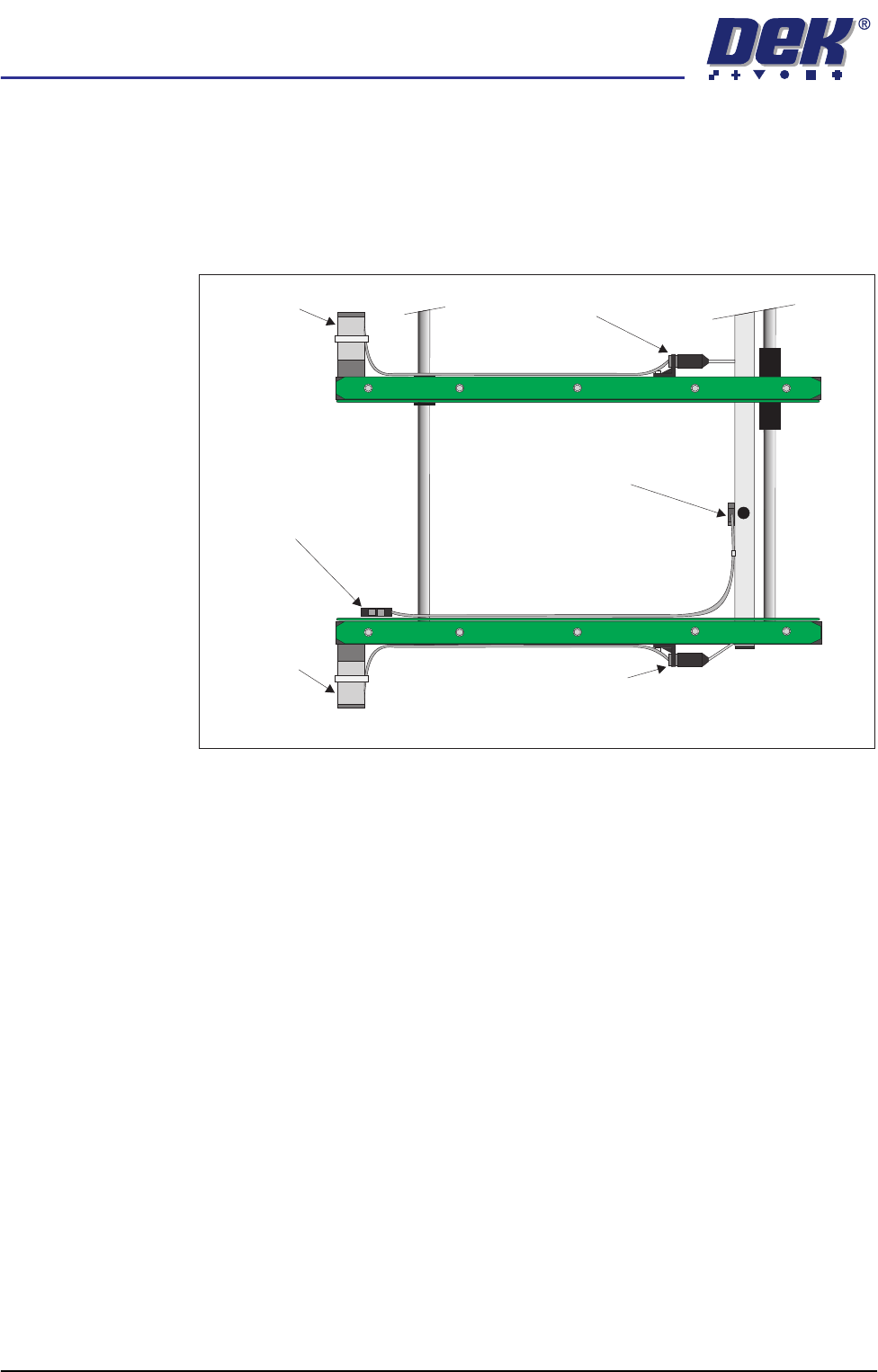

View on Top of Transport Rail Assembly
Board at
Left Sensor
Rear Belt
Motor
Front Belt
Motor
Connector 8PL04
Board at Left Sensor
Connector 8PL42
Rear Belt Motor
Connector 8PL41
Front Belt Motor
semi automatic
MACHINE PREPARATION
MACHINE ASSEMBLY
Chapter Issue 1 Oct 02 Installation Manual 5.17
3. Slide the ergo arm mount into the bracket until the ergo arm mount protrudes
out of the other end of the bracket. Push the ergo arm mount back until flush
with the end of the bracket and secure using the two locking bolts.
4. Fit the monitor stand to the ergo arm mount and secure using the central
bolt.
5. Place the monitor and the keyboard on to the monitor stand.
6. Locate cover connector plate bracket situated above the M24 dc Circuit
Breaker Panel at the front of the machine.
7. Connect the monitor and keyboard as follows:
a. Connect M16SK03 of the monitor power cable to the rear of the monitor.
b. Connect 14SK01 of the monitor power cable to 14PL01 on the cover
connector plate.
c. Connect 14SK04 of the VGA cable to 14PL04 on the cover connector
plate.
d. Connect the keyboard leads 14SK05 and 14SK06 to 14PL05 and 14PL06
respectively on the cover connector plate.

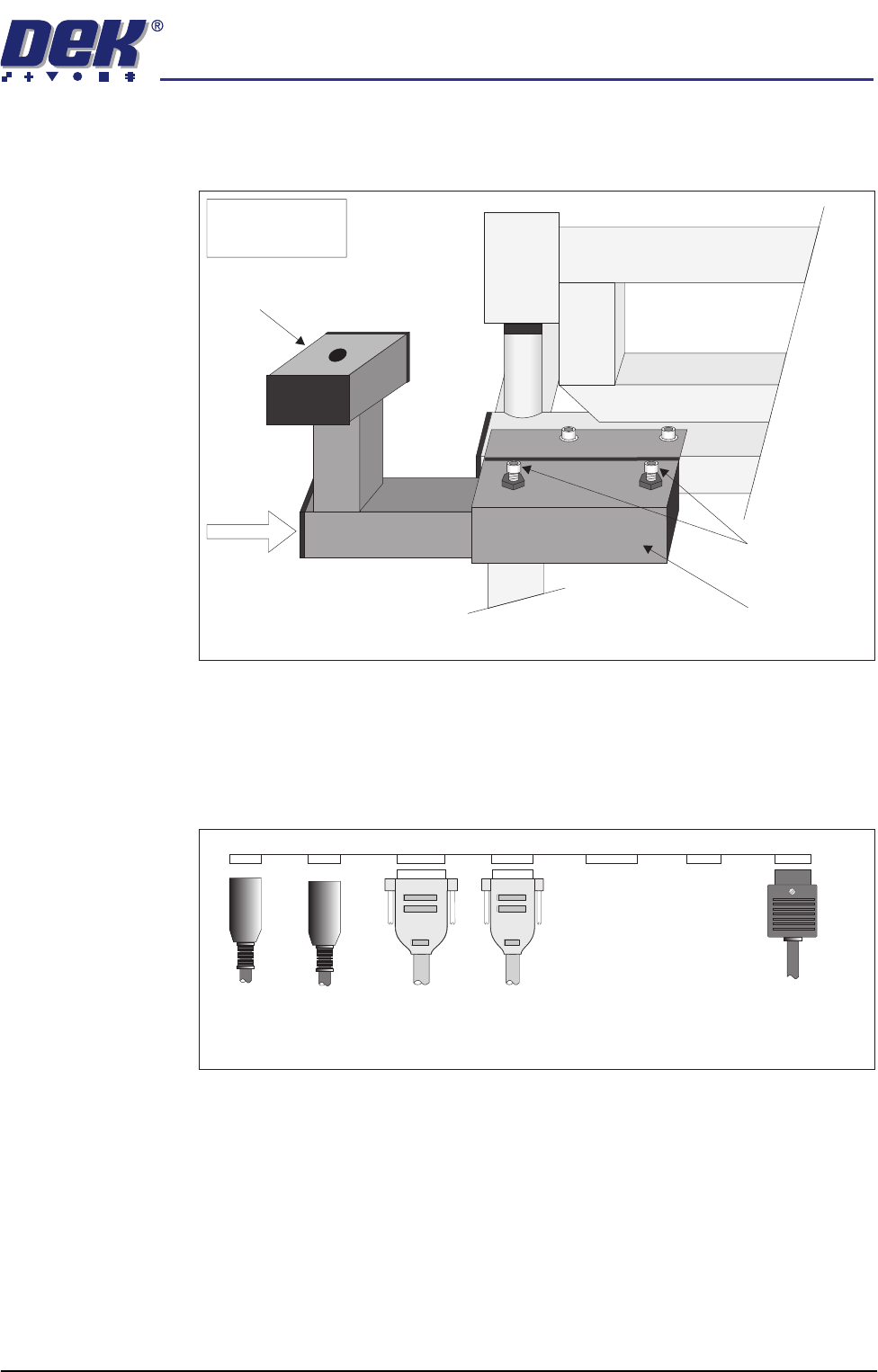

View on Front Left of Machine
Note:
Breakout Board C
not shown
Ergo Arm Mount
Locking Bolts
Ergo Arm Mount
Bracket
Ergo Arm
Mount
MMI Connector Plate Positions
14SK06
Mouse
14SK05
Keyboard
14SK08
System/Jog
Switch
14SK04
VGA
14PL0814PL06
14PL0114PL05 14PL04
14SK01
AC Mains
