semi automatic MACHI NE PREPARAT ION SHOCK WATCHES Chapter Issue 1 Oct 02 Instal lation Manual 5. 2 5 Chase Shock Wa t c h If the c hase shock watch has triggered, visual ly inspect the cha se is level to the tabl e. Cam…
semi automatic
MACHINE PREPARATION
SHOCK WATCHES
5.24 Installation Manual Chapter Issue 1 Oct 02
SHOCK WATCHES
A self adhesive shock watch (DEK Part No. 133517), is fitted in the vertical
plane on the machine in four places (Shock Watch Locations figure refers).
Check if the shock watches have been triggered, the indicator shows red, ('Drop
N Tell' Shockwatch figure overleaf refers).
NOTE
The machine should be fitted with four untriggered shock watches at all times.

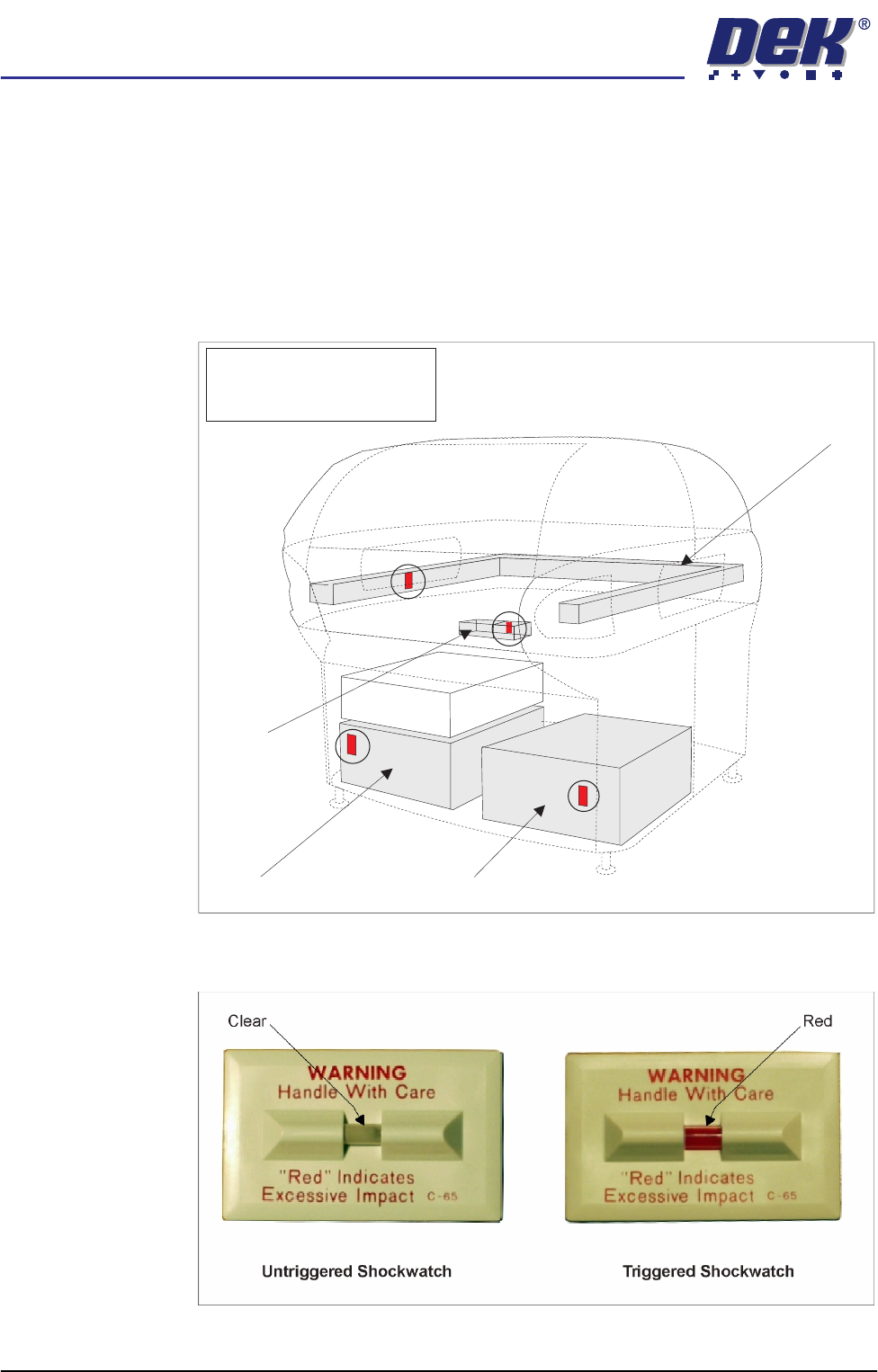

Figure 5-12 Shock Watch Locations
Figure 5-13 Drop N Tell Shockwatch
Machine PC Machine Controller
Camera
Chase
NOTE
Shock Watches (4 positions)
shown circled
semi automatic
MACHINE PREPARATION
SHOCK WATCHES
Chapter Issue 1 Oct 02 Installation Manual 5.25
Chase Shock
Watch
If the chase shock watch has triggered, visually inspect the chase is level to the
table.
Camera Shock
Watch
If the camera shock watch has triggered, ensure that the camera is secure and
level on the camera mount (refer to Technical Reference Manual).
Machine PC Shock
Watch
If the machine PC shock watch has triggered, visually inspect the inside of the
PC and ensure that the cards are seated correctly.
Machine Controller
Shock Watch
If the machine controller shock watch has triggered, visually inspect the
machine controller to ensure that the cards are seated correctly.
Shock Watch
Replacement
On completion of corrective action, replace any triggered shock watches.
NOTE
The machine should be fitted with four untriggered shock watches at all times.
semi automatic
MACHINE PREPARATION
SHOCK WATCHES
5.26 Installation Manual Chapter Issue 1 Oct 02
