semi automatic POWER UP SEQUENCE MACHI NE POWER UP SEQ UENC E Chapter Issue 1 Oct 02 Instal lation Manual 6.5 5. On completion of ‘auto login’, mini m ise the DEK program. Se t Ti m e a nd Ti m e Zone 6. In order for the…
semi automatic
POWER UP SEQUENCE
MACHINE POWER UP SEQUENCE
6.4 Installation Manual Chapter Issue 1 Oct 02

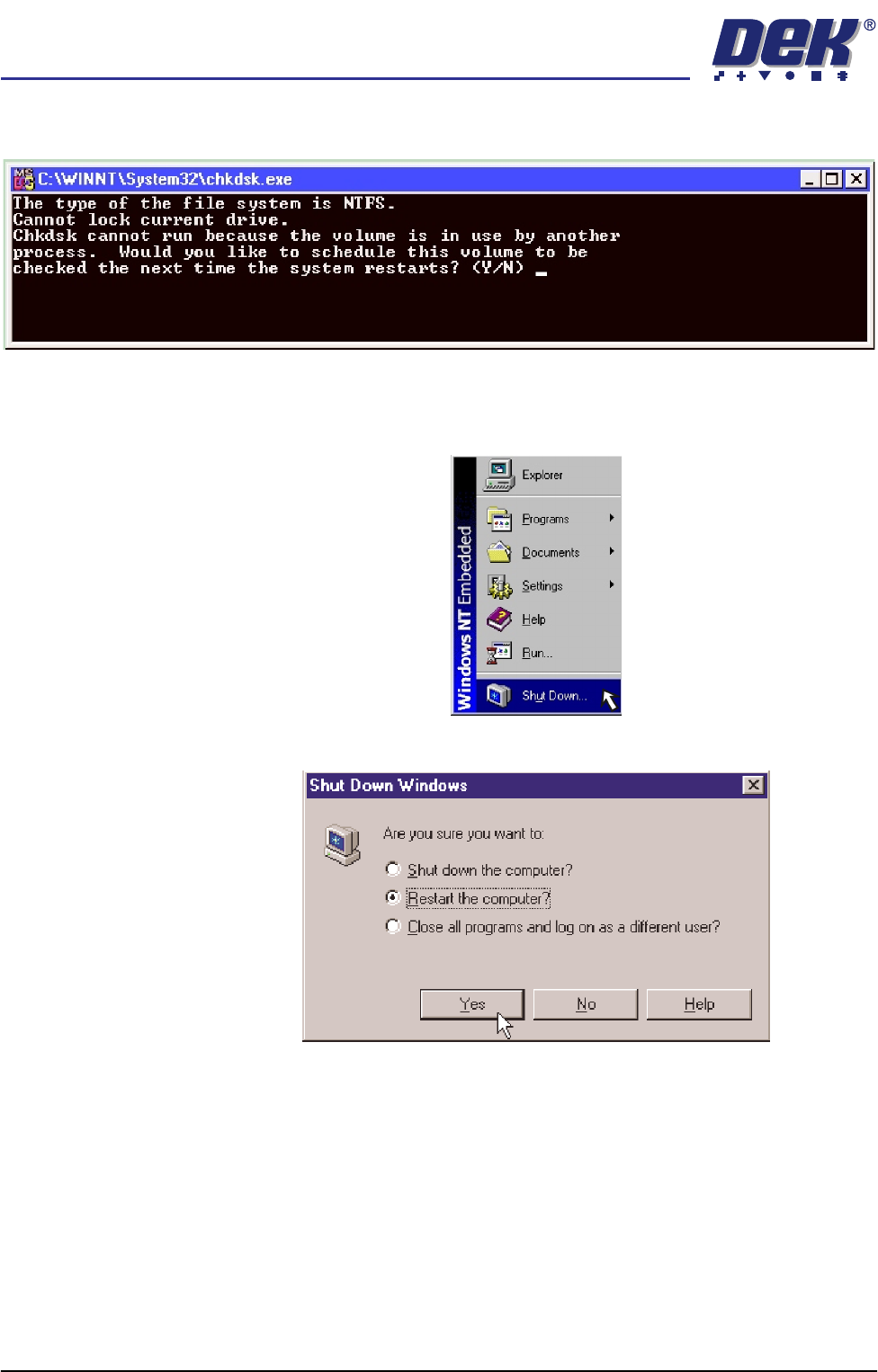

k. The Chkdsk program displays a DOS prompt.
l. Select Y, Enter.
m. When the DOS window closes, select Start on the taskbar, from the start
menu select Shutdown...
n. Click the radio button alongside ‘Restart the computer?’. Select Yes.
The system closes down and restarts. The Chkdsk program executes
and checks the hard disk for errors. On completion of Chkdsk, Windows
NT starts in the standard way.
semi automatic
POWER UP SEQUENCE
MACHINE POWER UP SEQUENCE
Chapter Issue 1 Oct 02 Installation Manual 6.5

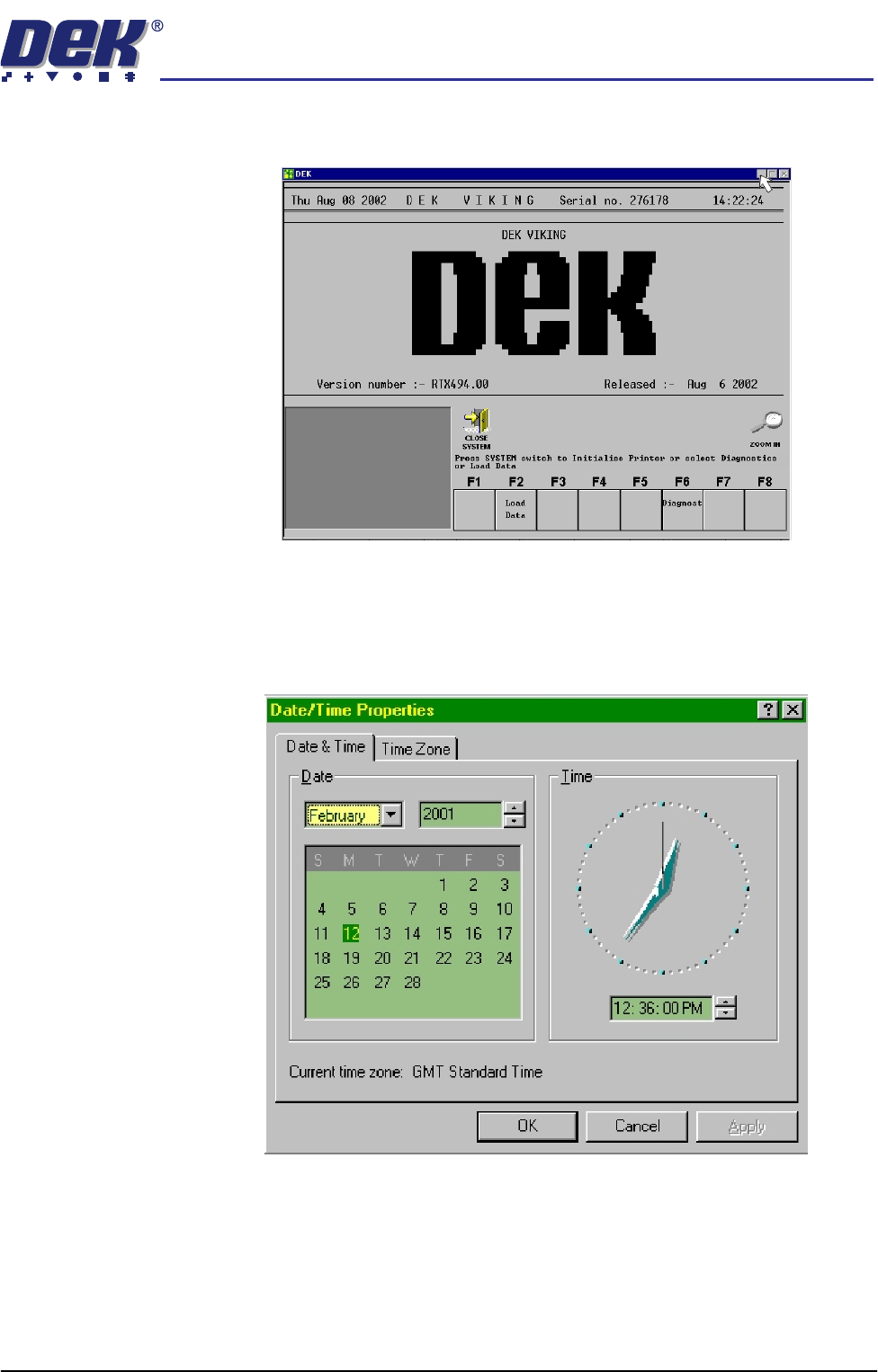

5. On completion of ‘auto login’, minimise the DEK program.
Set Time and Time
Zone
6. In order for the machine PC to log events correctly, the system time, date
and time zone must be set.
a. Using the mouse, double click on the time, displayed at the right hand side
of the Windows NT taskbar. The Date/Time Properties window is dis-
played.
semi automatic
POWER UP SEQUENCE
MACHINE POWER UP SEQUENCE
6.6 Installation Manual Chapter Issue 1 Oct 02

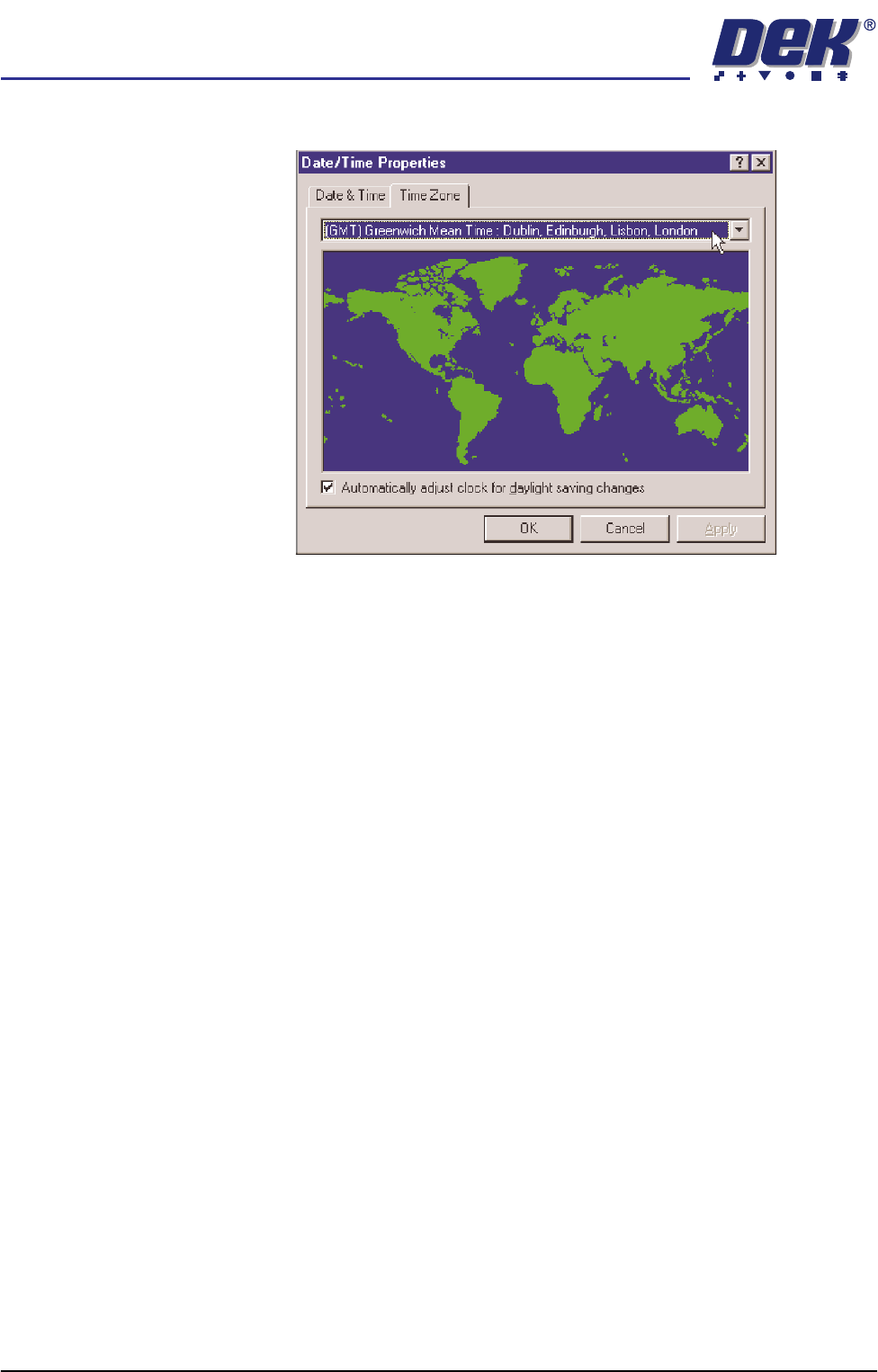

b. Click on the Time Zone tab.
c. Select the appropriate locale/time zone from the drop down menu box.
d. Click on Apply.
e. Click on the Date & Time tab. Adjust the local time and date.
f. Select OK.
g. Maximize the DEK monitor control display by clicking the DEK Software
icon on the task bar.
h. Press the System button.
NOTE
In some instances the DEK machine software may interpret any change
in date/time settings as an error, if so the following message, ‘Date and
Time Incorrect’, is displayed in the warning message window of the
monitor control display.
7. In the event of a date/time error message, carry out the following proce-
dures:
a. Power down the machine.
b. Power up the machine. Allow the system to start without any user
intervention. DEK machine software executes. When the message -
‘Press System Switch To Initialize Printer or select Diagnostics’ is
displayed in the Message Prompt Bar, the Diagnost function becomes
available in the menu bar.
c. Select Diagnost (F6).
d. The Module Diagnostics Page is displayed with the System Error mes-
sage, ‘System Power Down’ superimposed on top of it.
e. Press the System button to enable system power.
