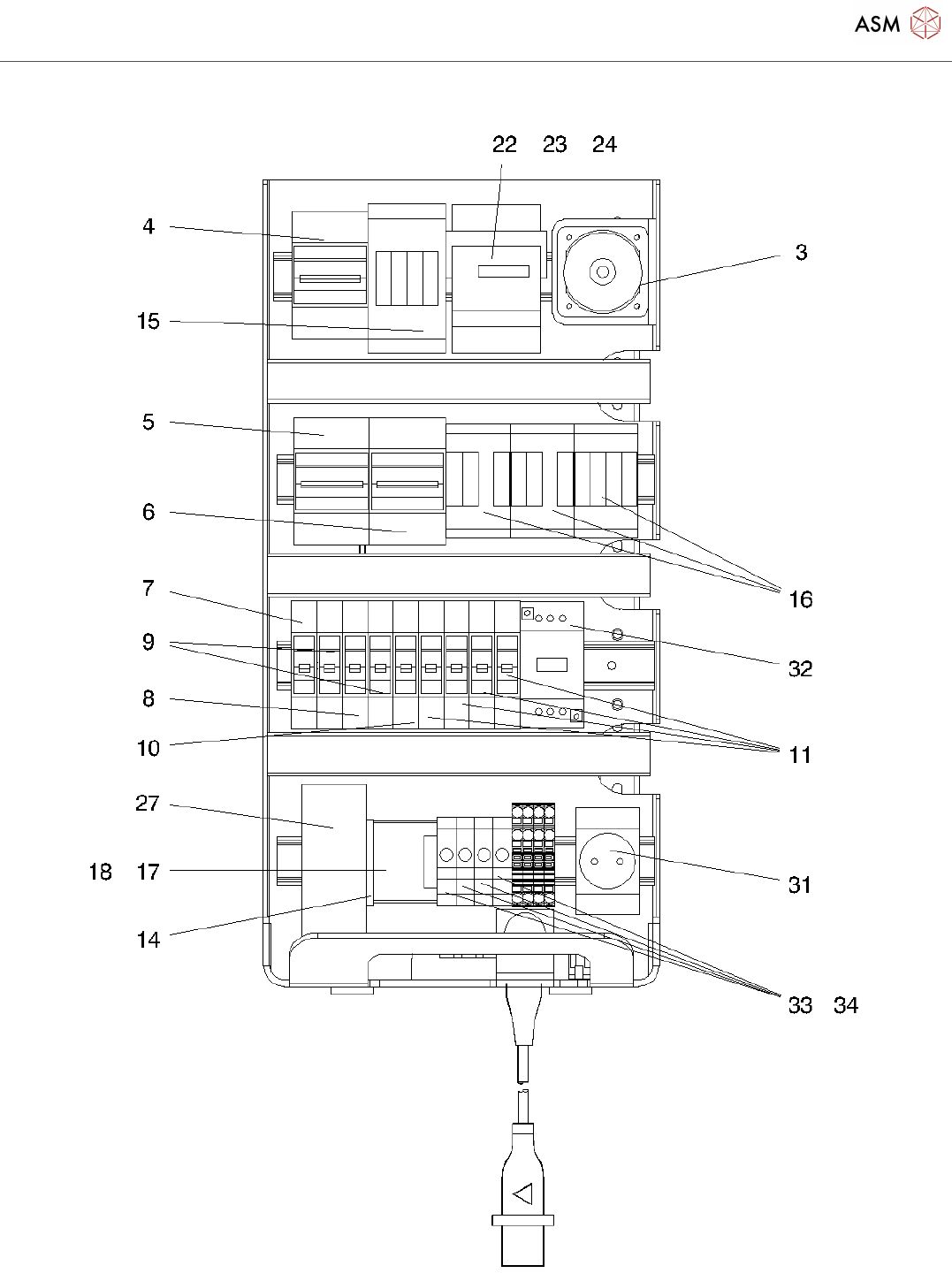

Pos. Item no. Description Part marking
03042079-01 POWER SUPPLY SYSTEM S/F-D
1 03039393-02 POWER SUPPLY D1/D2 *
2 03039612-01 TRANSFORMER D1/D2
3 03061069-01 MAIN SWITCH 3LD2 W/ SHAFT
LENGTH 65MM
SPARE PART
4 00356397-01 AUT. CIRCUIT BREAKER
5SX2/3-POLE/10A-AC
5 00302817S01 AUTOMATIC CIRCUIT BREAKER
5SX2/3P/4A-AC
Spare Part
6 03043671-01 AUTO CIRCUIT BREAKER
5SX2/3POL/20A-AC
SPARE PART
7 00362661-01 AUTOMATIC BREAKER 5SX5 / 1POL /
20A-ACDC
8 00341204S01 AUTOMATIC CIRCUITE BREAKER
5SX2
SPARE PART
9 00341205S01 AUTOMATIC CIRCUITE BREAKER
5SX2
Spare Part
10 03009740-01 AUTO CIRCUIT BREAKER 5SX2 /
1POL / 10A-AC
11 00348597-01 AUTO CIRCUIT BREAKER 5SX2 /
1POLE /6A-AC
Spare Part
12 03089018-01 AC-TO-DC CONVERTER 24V 20A SPARE PART
13 03058827-01 POWER SUPPLY 5V 5A SPARE PART
14 00364058-01 RELAY COUPLER 3TX7 24VDC 1 NO Spare Part
15 00341207-01 CONTACTOR 3RT10 / 24VDC / SIZE
S2
SPARE PART
16 00341208-01 CONTACTOR 3RT10 / 24VDC / SIZE
S0
SPARE PART
17 00341209-01 CONTACTOR 3RT23 / 24VDC /
2S-2OE
SPARE PART
18 00342396S01 INTERFER. SUPPR. DIODE
F.CONTACT.DC24-70
SPARE PART
00341210-01 AUXILIARY SWITCH BLOCK
3RH1/1POLE/1NC
SPARE PART
00341221-01 AUXILIARY SWITCH BLOCK
3RH1/1POLE/1NO
SPARE PART
22 00342494S01 PROTECTIVE MOTOR SWITCH
PKZ2/3POL/40A
SPARE PART
23 00342495S01 ENGINE PROTEC.- RELEA.BLOCK
ZM-16-PKZ2
Spare
24 00342496-01 MOTOR PROTECT. RELEASE BLOCK Spare Part
~ built in from SN C1171
Page 5 / 5 22.11.2021
Pos. Item no. Description Part marking
ZM-32-PKZ2
25 03058826S01 LINE FILTER 3PH 25A SPARE PART
26 03089024-01 RECTIFIER BRIDGE 800V 35A SPARE PART
27 00358268-01 PROTECT. CONTACTOR
COMBINATION 3TK28 25
SPARE PART
28 03008438-02 PCB POWER FAIL SPARE PART
29 00341831S03 INRUSH CURRENT LIMITER
BRW3TG31033-01
SPARE PART
30 00348352-01 ELECTROLYTIC CAPACITOR
33000UF/63V
SPARE PART
31 00375320-01 SOCKET RAIL MOUNTING SD-
D/SC/LA/GY
SPARE PART
32 00374128-02 DISCHARGE CHOKE COIL 230-600V
50-60HZ
SPARE PART
33 00372781-01 FUSE CLAMP-10A (6,3X32) 282-128 SPARE PART
34 00366964-01 FUSE 6X32 /T 6,3A WEAR PART
35 03089021-01 RECTIFIER BRIDGE 1200V 166A SPARE PART
36 03048868-01 RECTIFIER BRIDGE 800V / 25A SPARE PART
37 03050332-01 BASIC FRAME FOR POWER SUPPLY
UNIT D1/D2
