3-39 3 Periodic maintenance items 5.4 Base 5.4.1 Cleaning the air/mist filter and cup Air filters and oil mist filters are installed to this machine to prev ent oil, water , and impurities, etc., from being introduced in…

100%1 / 153
3-38
3
Periodic maintenance items
5
Apply grease.
1. Close the machine safety cover to
cancel the emergency stop.
2. Change the conveyor to the maximum
width with the procedure of Step 1.
e
3. Press the emergency stop button to open
the machine safety cover.
4. Use a grease gun (standard type) to
inject the prescribed grease (NSL) at the
2 W-axis guide's grease nipples.
53353-KMG-00
n
NOTE
Inject until the grease begins to seep out from the gap.
6
Spread the grease.
1. Close the machine safety cover to
cancel the emergency stop.
2. Change the conveyor width from
minimum to maximum several times with
the procedures of Step 3 and 1.
7
Wipe away excess grease.
e
1. Press the emergency stop button to open
the machine safety cover.
2. Wipe all excess grease from the guide
end face.

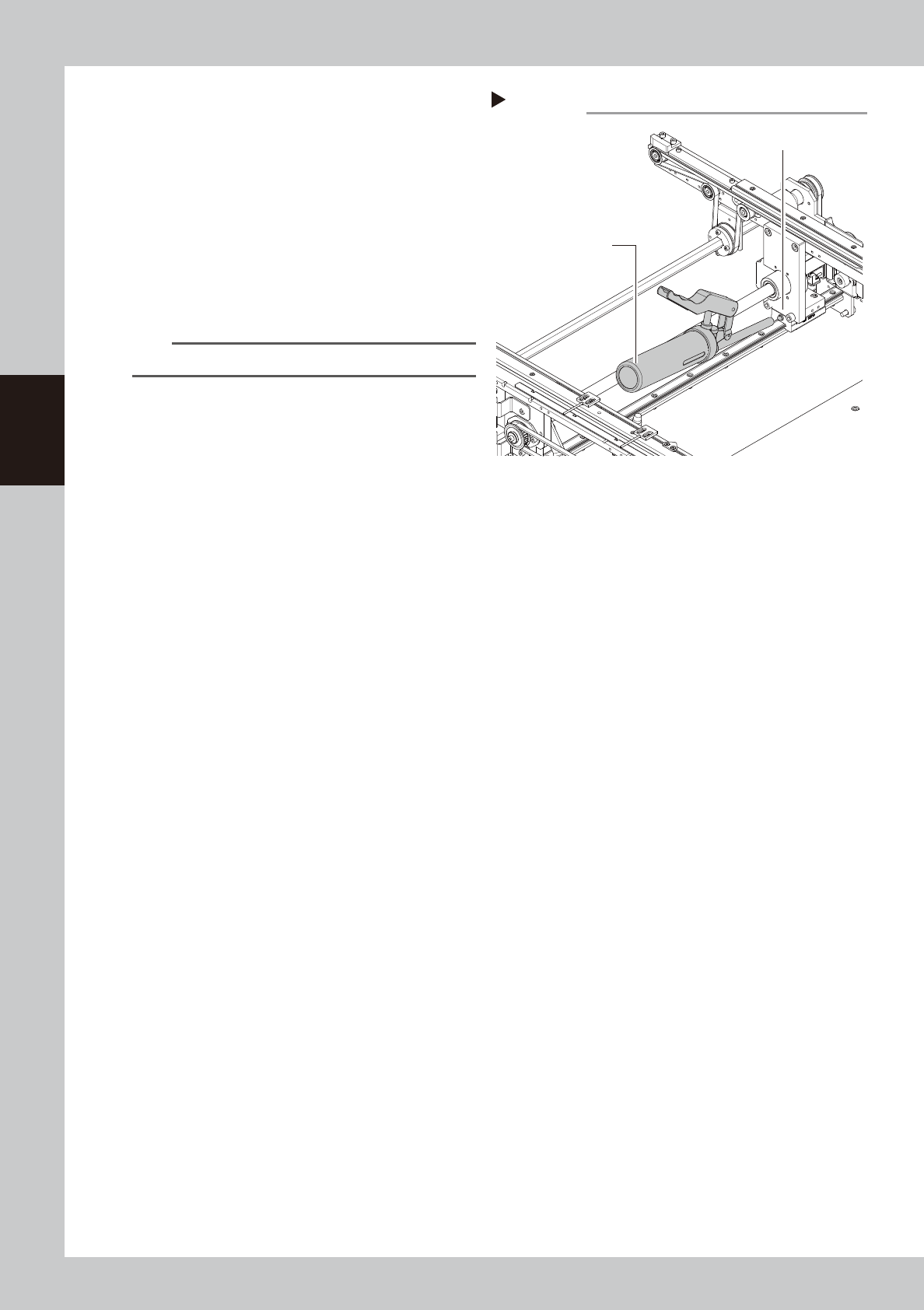

Step 5
Applying grease
Grease gun
(Standard type nozzle)
Grease nipple
3-39
3
Periodic maintenance items
5.4 Base
5.4.1 Cleaning the air/mist filter and cup
Air filters and oil mist filters are installed to this machine to prevent oil, water, and impurities, etc., from being
introduced into the machine from the air compressor. The following describes the procedures for inspecting,
cleaning, and replacing these filters. Make sure to detach the air coupler of the supply air connecting part for
safety work.
1
Disconnect the air coupler of the
supply air.
1. Turn the air supply/exhaust switch to the
"EXT" side.
2. Disconnect the air coupler of the supply
air.
c
CAUTION
Be aware that a loud air exhaust sound is heard when
disconnecting the air coupler. Use care to prevent oil,
water, and impurities, etc., from being sprayed out.
2
Check the inside of the filer cup.
Check for oil or water deposits in the filter
cup. If the cup is not clean, follow the steps
3 and 4 to clean it.
TIP
The drain cock at the bottom of the filter cup is an
auto-drain type. It automatically drains the oil or water
when deposited in the cup. It is recommended to
connect a hose to this drain cock.
3
Detach the filter cup.
Turn the cup to the left and pull the cup
downward while pushing the button.
Regarding the air filter, the cup and the
media are detached simultaneously.
53359-KMG-00
4
Clean the inside of the filter cup.
1. Lightly clean the filter cup with water.
2. Pour water-diluted neutral detergent into
the filter cup and clean the inside while
shaking it.
3. Air blow the filter cup and wipe away
any moisture with clean cloth or paper.

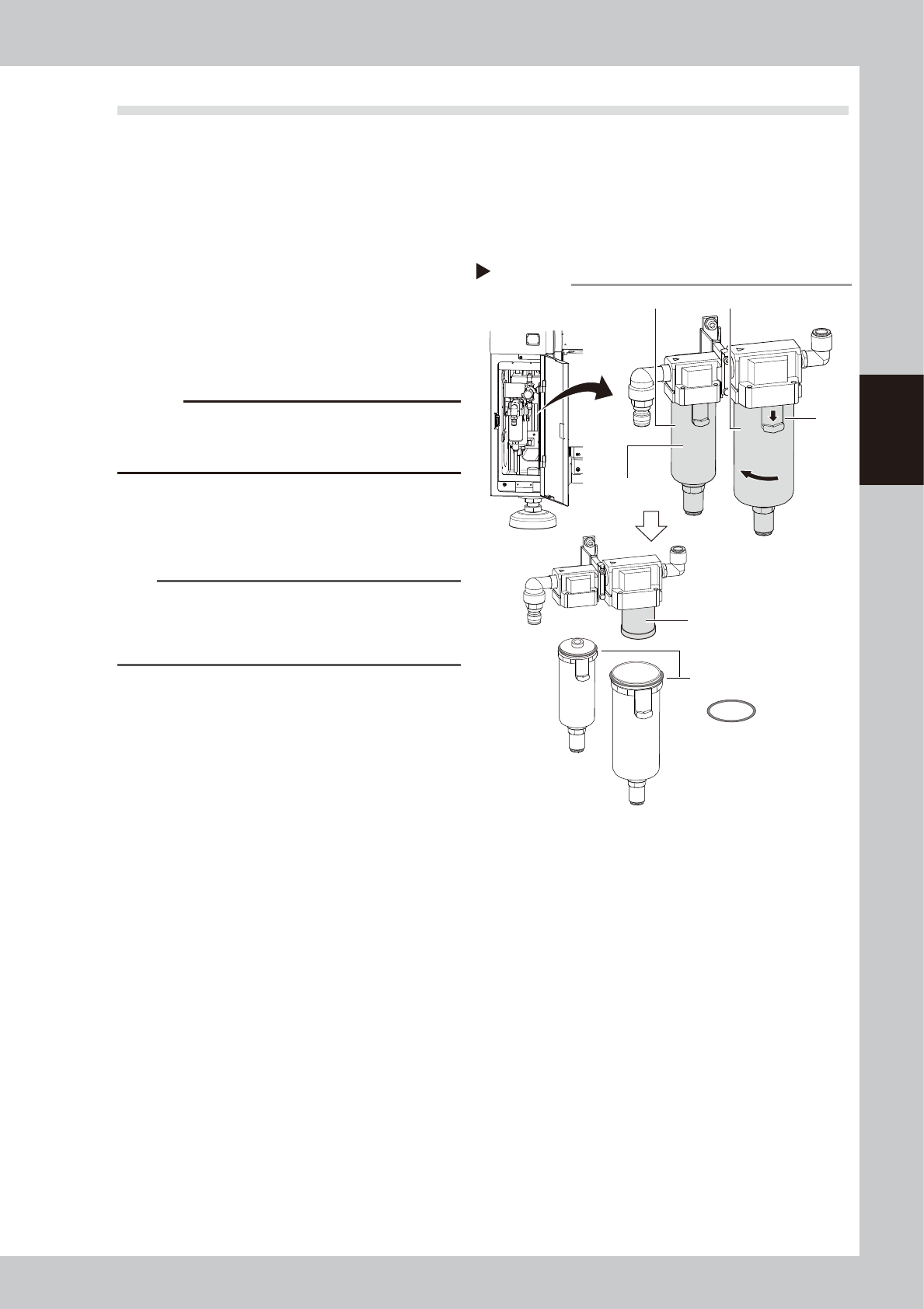

Step 3
O-ring for cup
Removing the cup
Filter cup
Air filter Oil mist filter
Button
Media
(MIST FILTER ELEMENT)
3-40
3
Periodic maintenance items
5
Check the filter media status.
Rotate the media to remove it, and check it
for soiling and clogging. If soiled, replace it
with a new media indicated in the
Consumable Parts List.
53360-KMG-00
6
Attach the media and cup.
Attach the media and cup by reversing the
removal procedure previously described.
c
CAUTION
Make sure not to drop the O-ring for cup when
attaching the media and cup.
7
Reconnect he air coupler.
1. After reconnecting the air hose, check
that no air is leaking.
2. Turn the air supply/exhaust switch to the
"Supply" side.
Step 5
Attach with screw.
Oil mist filter

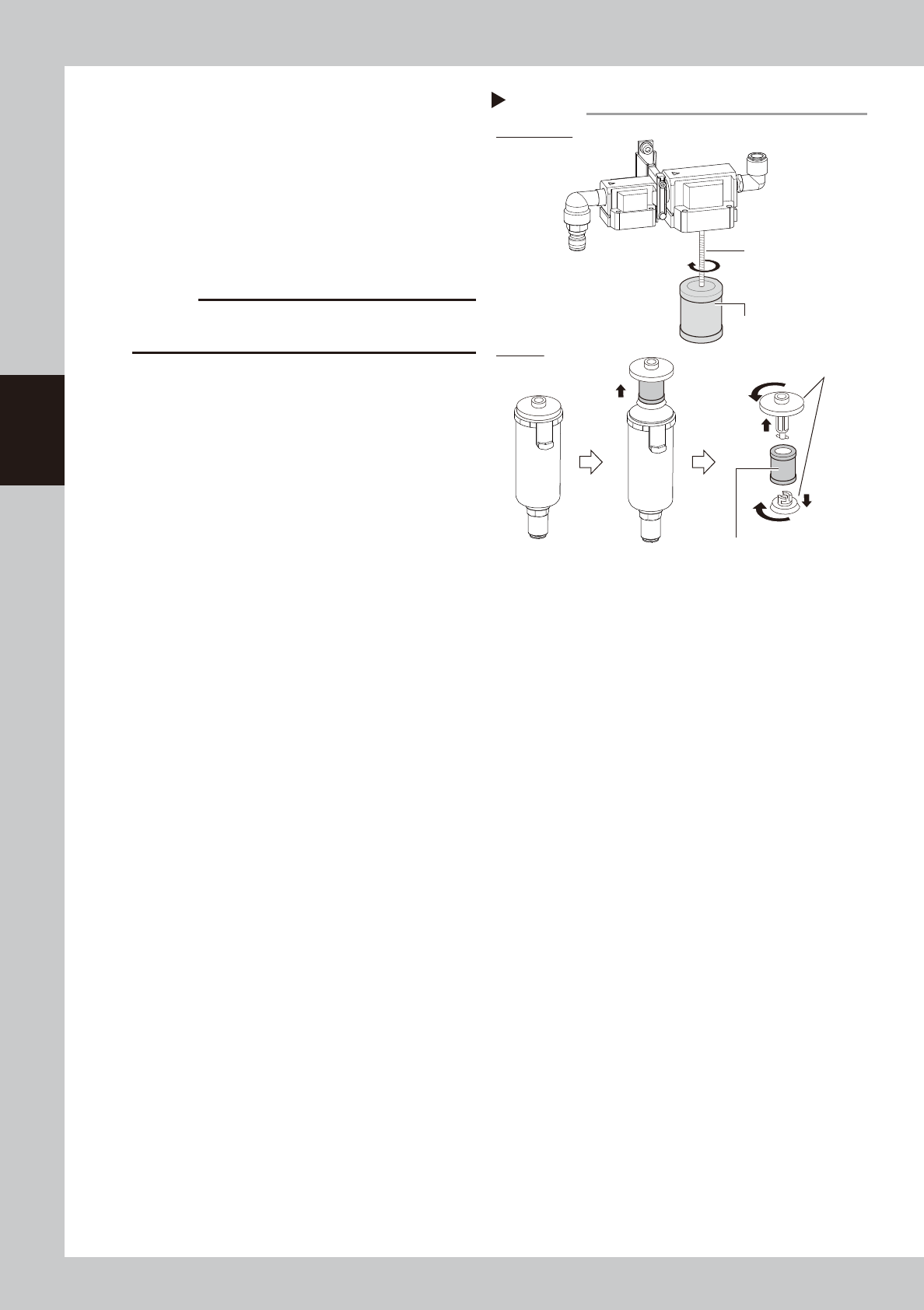

Detaching and checking filter media
Air filter
Media
(ELEMENT ASSEMBLY)
Adapter
Media
(FILTER ELEMENT)
