5-5 5 Lubrication points and schedule 2.4 PU-axis PU-axis ball screw PU-axis ball screw PU-axis ball guide PU-axis ball guide PU-axis lubrication points Grease gun: Manual lubrication: 53504-KMG-00 Lubrication section Gr…
5-4
5
Lubrication points and schedule
2.3 W-axis
W-axis lubrication points
W-axis guide
W-axis guide
Hexagon spline
W-axis ball screw
W-axis ball screw
Grease gun:
Manual lubrication:
53503-KMG-00
Lubrication section Grease Lubrication point Interval Procedure
Guide NSL 2 Yearly Grease gun: Standard nozzle
Ball screw NSL 2 Yearly Manual lubrication
Hexagon splines NSL 1 Yearly Manual lubrication
5-5
5
Lubrication points and schedule

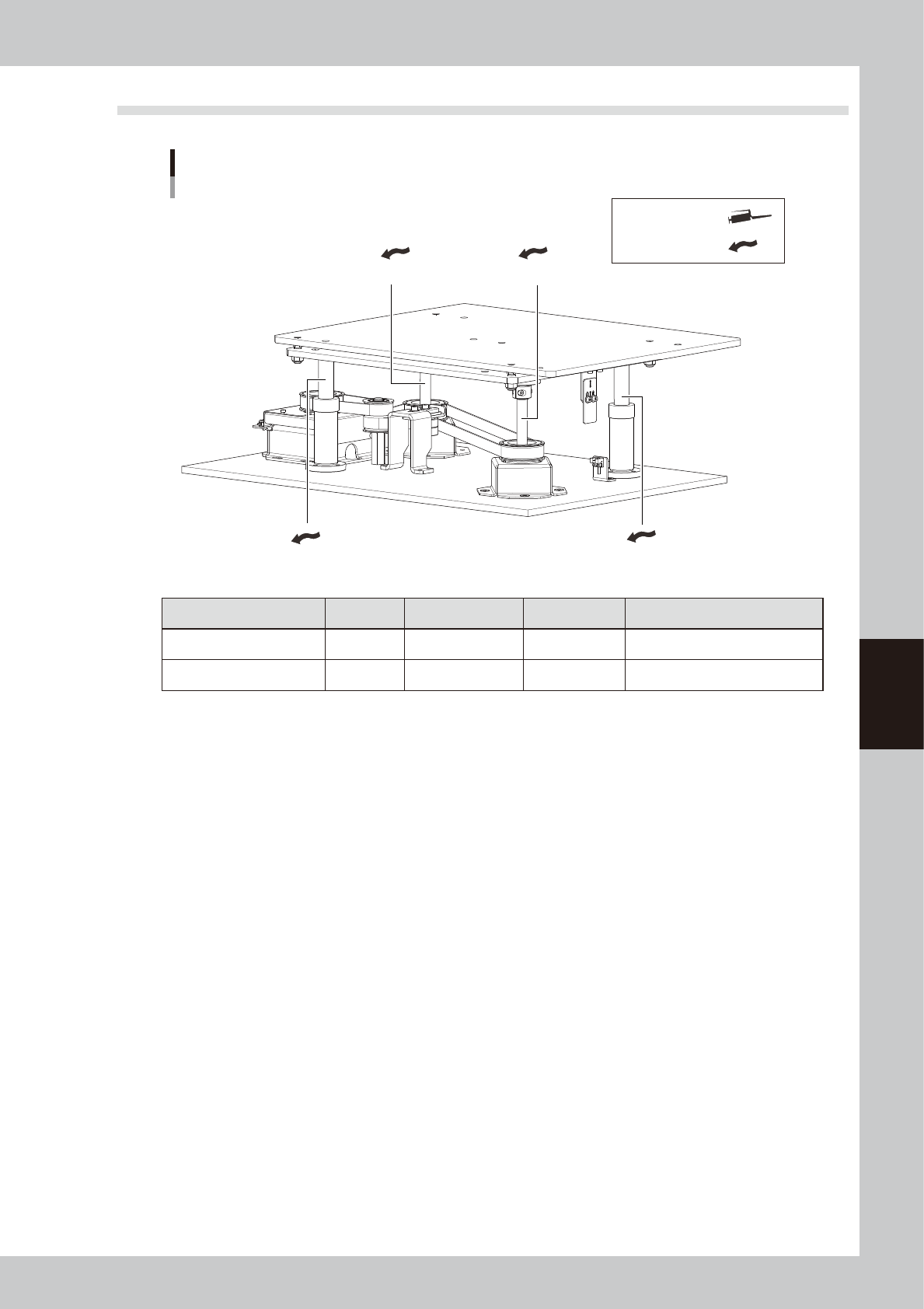

2.4 PU-axis
PU-axis ball screwPU-axis ball screw
PU-axis ball guide
PU-axis ball guide
PU-axis lubrication points
Grease gun:
Manual lubrication:
53504-KMG-00
Lubrication section Grease Lubrication point Interval Procedure
Ball screw NSL 2 Every 3 months Manual lubrication
Ball guide NSL 2 Every 3 months Manual lubrication
5-6
5
Lubrication points and schedule
3. Lubrication points and schedule (sATS15)
3.1 AZ-axis
AZ-axis lubrication points
Figure without machine inner cover
AZ-axis ball screw
AZ-axis ball screw
AZ-axis guide
Grease gun:
Manual lubrication:
53505-KMG-00
Lubrication section Grease Lubrication point Interval Procedure
Ball screw NSL 1 Monthly Manual lubrication
Ball guide NSL 2 Monthly Manual lubrication
