Appendix
1. Specifications
1.1 Air regulator unit

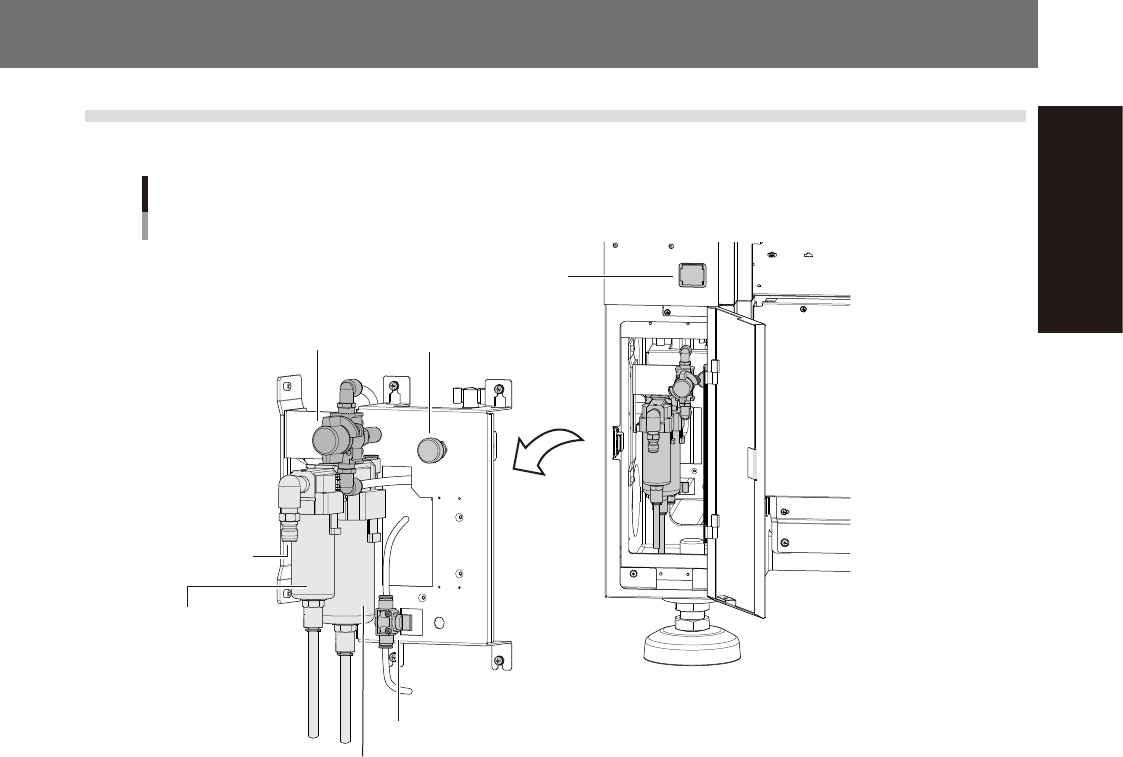

The air regulator unit of this machine is in the inside of the panel on the lower left of the front of the machine.
Supply air
connecting parti
Air valve for tape cutter
Air pressure regulator and pressure gauge
Air supply/exhaust switch
Air filter
Oil mist filter
Air pressure regulator
Digital pressure gauge
53A01-KMG-00
n
Supply air pressure
This is the pressure of the source air supplied to the machine. Before setting the air pressure with the air regulator, make
sure that this supply air pressure is in the following optimal range.
YSM10 : 0.45MPa to 0.70MPa
n
Digital pressure gauge
When within the normal range, the air pressure displays in green. When the air pressure is beyond the upper/lower limit
values, the air pressure displays in red and an error occurs.
n
Set pressure and air-down detection pressure
Set the following air pressures with the air pressure regulator on this machine.
Air pressure setting for machine : 0.40MPa (+/-0.01MPa)
Interlock set pressure : Lower limit 0.33MPa, Upper limit 0.45MPa
n
Air supply/shutoff switch (valve)
Turning this switch to the right (EXH) shuts off air supply and exhausts air that remains inside the machine.
n
Source air connector
Connect the supply air to the entrance of the air filter. Prepare an air hose with an inner diameter of at least 8mm having
a 40SH socket (Nitto Koki, or equivalent), and connect it to this connector. Use dry, clean air passed through an air filter.
A-2
Appendix
1.2 Power connection terminals

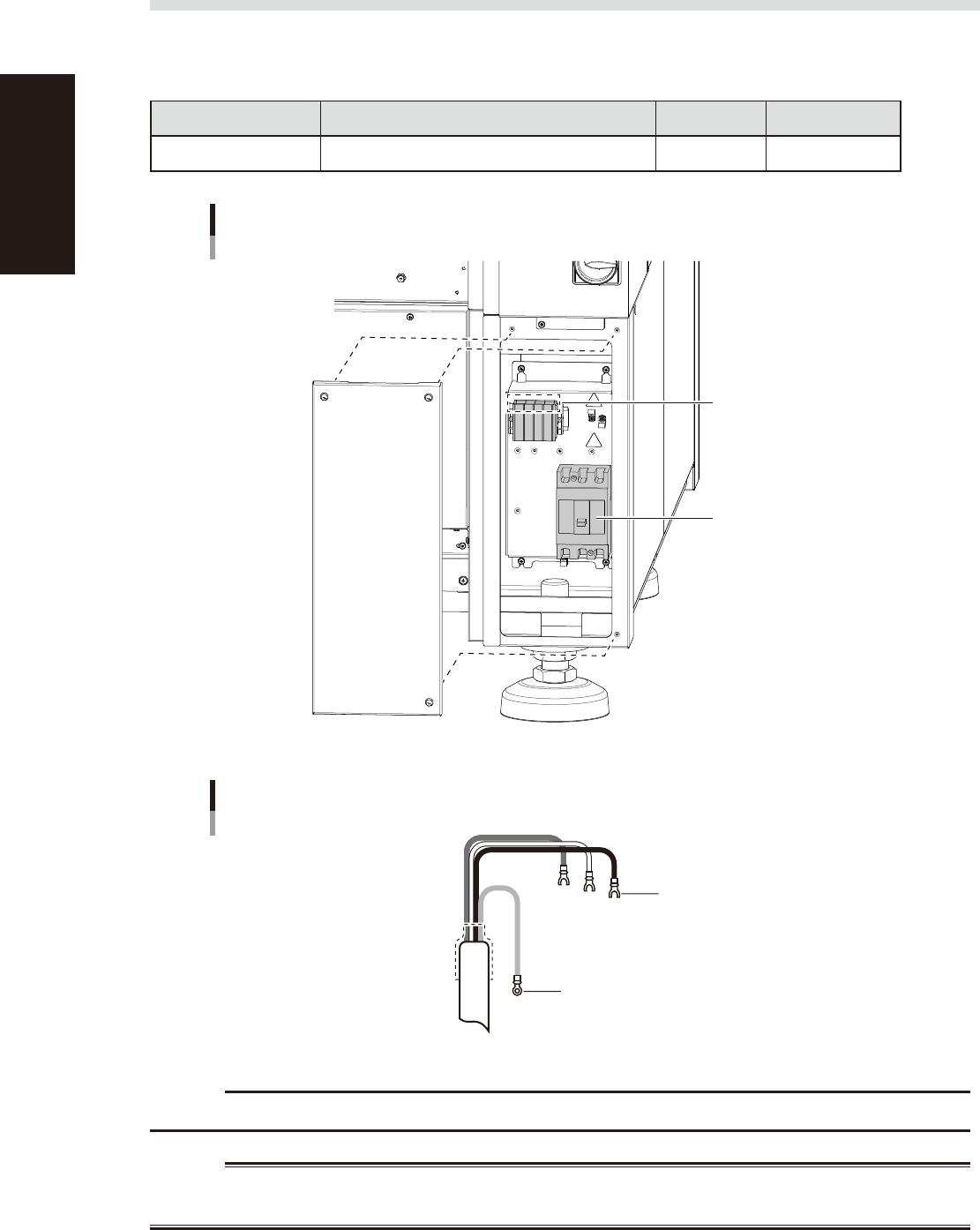

When opening the front lower right panel, you can find the power connection terminals. Connect the power
cable leads as shown below to the L1, L2, L3 and ground terminal (PE) on the power terminal block.
n
Power supply specifications
Model name Power Frequency Power capacity
YSM10
3-phase AC 200/208/220/240/380/400/416V (+/-10%)
50/60Hz 7.0kVA
Power input terminals (L1, L2, L3)
Ground terminal (PE)
Main breaker
Power input terminals
53A02-KMG-00
Ring-tongue crimp terminal
Insulated crimp terminal
Power cable
L2
L1
L3
L=100
PE
53A03-KMG-00
c
CAUTION
Use a power cable whose conductor cross-section area is greater than 4mm
2
.
w
WARNING
TO AVOID THE RISK OF ELECTRICAL SHOCK, MAKE SURE THAT THE POWER SOURCE IS OFF BEFORE CONNECTING THE
POWER CABLE. ALSO MAKE SURE THAT THE GROUND CABLE IS SECURELY CONNECTED TO THE MACHINE.
