xxxi Safety instructions n Label position ■ Upper side of control box W arning/caution labels Control box 93203-KMG-00 n Label positions W arning/caution labels sA TS15 ■ Rack ■ Side of cover ■ Front of cover 93204-KMG-0…
xxx
Safety instructions
n
Label positions

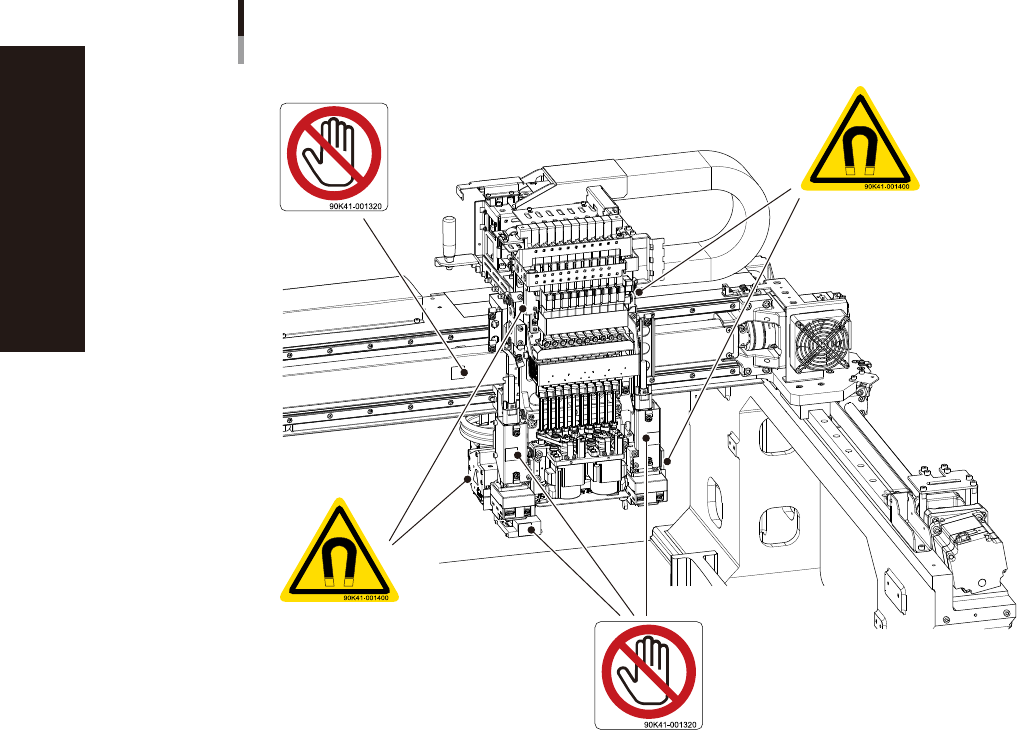

Warning/caution labels
Inside of machine
■ Linear motor
■ Linear motor
93202-KMG-00
xxxi
Safety instructions
n

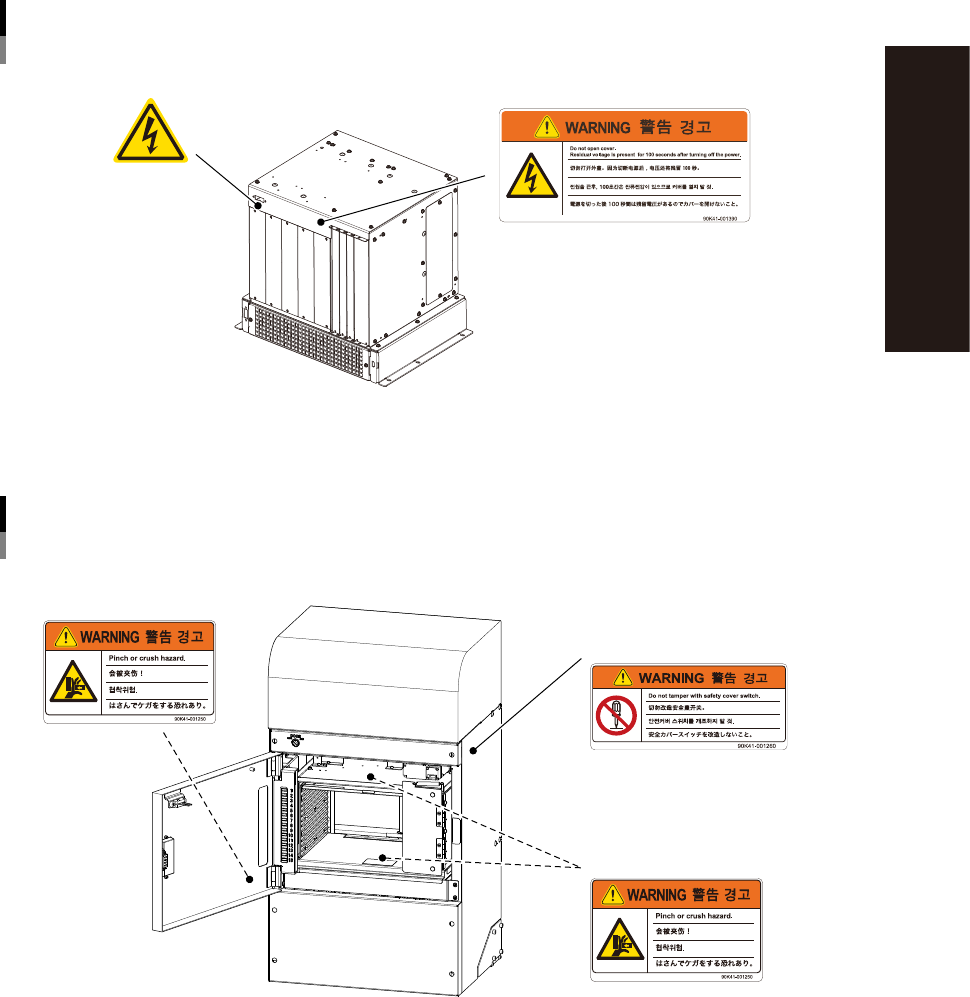

Label position
■ Upper side of control box
Warning/caution labels
Control box
93203-KMG-00
n
Label positions
Warning/caution labels
sATS15
■ Rack
■ Side of cover
■ Front of cover
93204-KMG-00
General Contents
Introduction
1. Contents of each chapter i
2. Maintenance list ii
Chapter 1 Maintenance
1. Maintaining machine performance 1-1
1.1 Essential conditions and working environment 1-1
1.2 Importance of periodic inspections and cleaning 1-2
1.3 Importance of appropriate humidity management 1-2
2. Preparing for maintenance tasks 1-3
2.1 Consumable parts 1-3
2.1.1 Head unit 1-3
2.1.2 Nozzles 1-5
2.1.3 Main unit / base 1-7
2.2 Replaceable parts 1-9
2.2.1 Head unit 1-9
2.3 Maintenance tools 1-10
2.3.1 Cleaning tools 1-10
2.3.2 Lubricating tools and grease 1-12
2.3.3 Special tools 1-14
2.4 Required tools 1-15
Chapter 2 Daily maintenance items
Before beginning work 2-1
1. Checking the nozzle 2-2
1.1 Checking with software 2-2
1.1.1 Vacuum level when nozzle is open 2-4
1.2 Checking the nozzles visually 2-5
2. Cleaning the feeder plate 2-6
Chapter 3 Periodic maintenance items
1. Weekly inspection 3-1
1.1 Nozzle inspection 3-1
1.1.1 Nozzle buffing area inspection 3-1
1.1.2 Checking the nozzle leaf spring 3-2
EMKMG-209-0110
