1-8 1 Maintenance Consumable parts (main unit/base) Optional purchase parts Conveyor belt Air filter Oil mist filter Element assembly Filter element Air/mist filter Conveyor belt Air intake filter * 2 each for front Air …
1-7
1
Maintenance
2.1.3 Main unit / base
n
Main unit/base consumable parts (Optional purchase parts)
Name Part name Part No. Note
Conveyor belt (Standard type) BELT, CONV. (2670) KMG-M91A3-00X Length: 2670 mm
Conveyor belt
(Extention conveyor belt type)
BELT, CONV. (3090) KMG-M91A4-00X Length: 3090 mm
Filter element FILTER ELEMENT KLF-M8502-50X Air filter (Media)
Element assembly MIST FILTER ELEMENT KLF-M8502-70X Mist filter (Media)
Air intake filter (Machine front side) FILTER, FAN KMG-M13NC-00X Air intake filter for machine front side
Air intake filter (Machine rear side) FILTER REAR FAN KLW-M13NB-00X Air intake filter for machine rear side
Air intake filter (Control box) FILTER KLV-M4136-00X Air intake filter for control box
c
CAUTION
The parts (parts Nos.) in this manual are at the time of issuing this manual. The parts Nos. may be changed without
prior notice. Make sure to verify the latest parts Nos. before ordering parts.
1-8
1
Maintenance

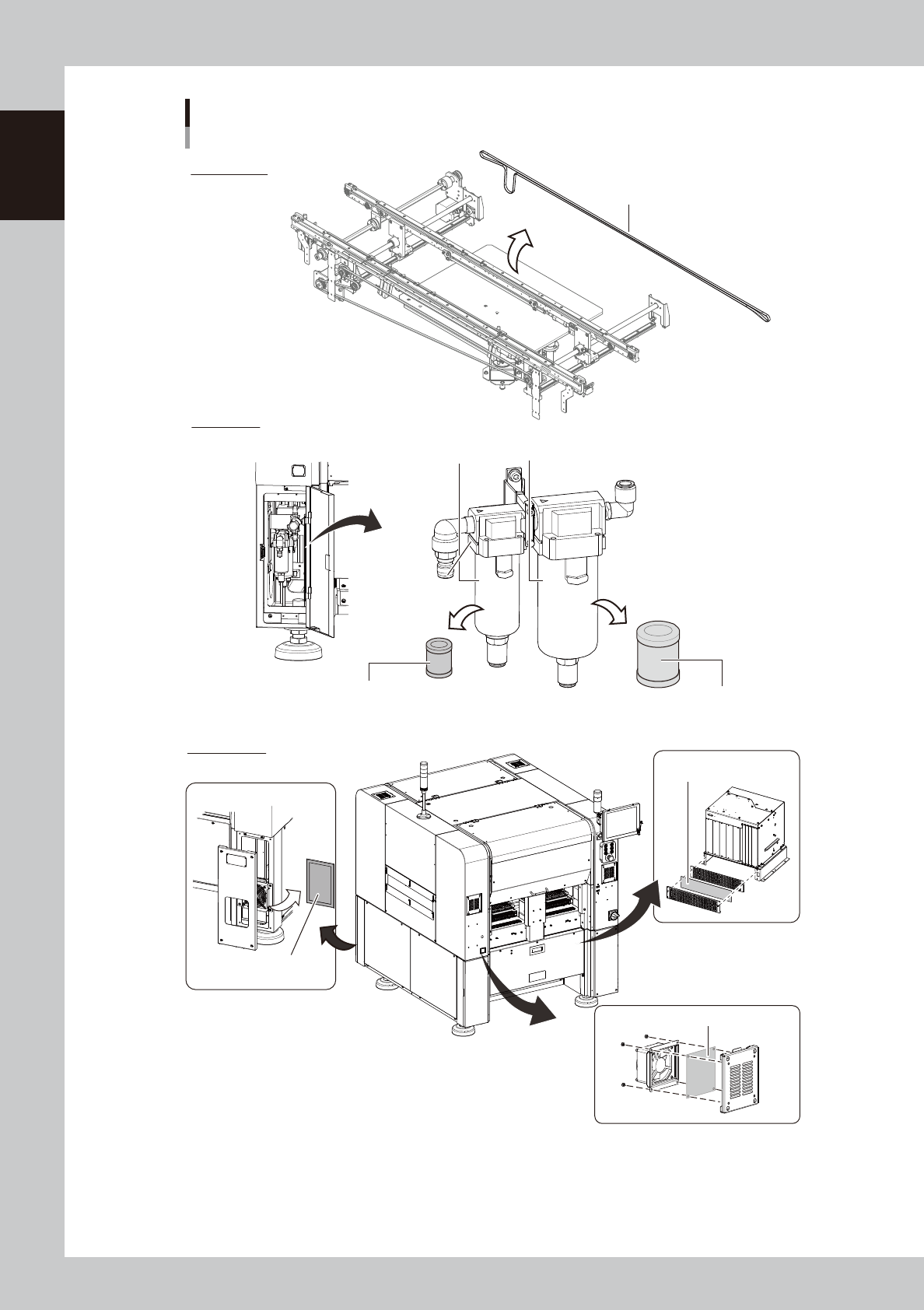

Consumable parts (main unit/base)
Optional purchase parts
Conveyor belt
Air filter Oil mist filter
Element assembly
Filter element
Air/mist filter
Conveyor belt
Air intake filter
* 2 each for front
Air intake filter (Machine front side)
Air intake filter
(Machine rear side)
Air intake filter (Control box)
53102-KMG-00
1-9
1
Maintenance
2.2 Replaceable parts
The replacement parts shown in this manual are for parts which could cause machine stops due to the
breakdown or the life expiration. No machine adjustments are required after replacing these parts.
2.2.1 Head unit
Replaceable parts
HM head (figure shows the cover, connector, and air hose detached)
Bit cap
Muffler
Filter cap
Ejector set (spare)
Shaft blow valve
Blow valve
Operation valve
53103-KMG-00
Name Part name Part No. Note
Blow valve VALVE KLF-M7152-00X For ejector blow
Operation valve VALVE KLF-M7153-00X For ejector vacuum generation
Bit cap BIT CAP KLW-M7156-00X
Muffler MUFFLER KLW-M715A-00X Muffler inside the bit cap
Shaft blow valve VALVE KLW-M7158-00X
Filter cap FILTER CAP KLW-M7155-00X
Spare ejector EJECTOR KLW-M7157-10X Valve and ejector unit for one head
n
NOTE
The figure above shows the example of HM head. However, HM5 head also uses the same replaceable parts.
c
CAUTION
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before
ordering parts.
