1-9
1
Maintenance
2.2 Replaceable parts
The replacement parts shown in this manual are for parts which could cause machine stops due to the
breakdown or the life expiration. No machine adjustments are required after replacing these parts.

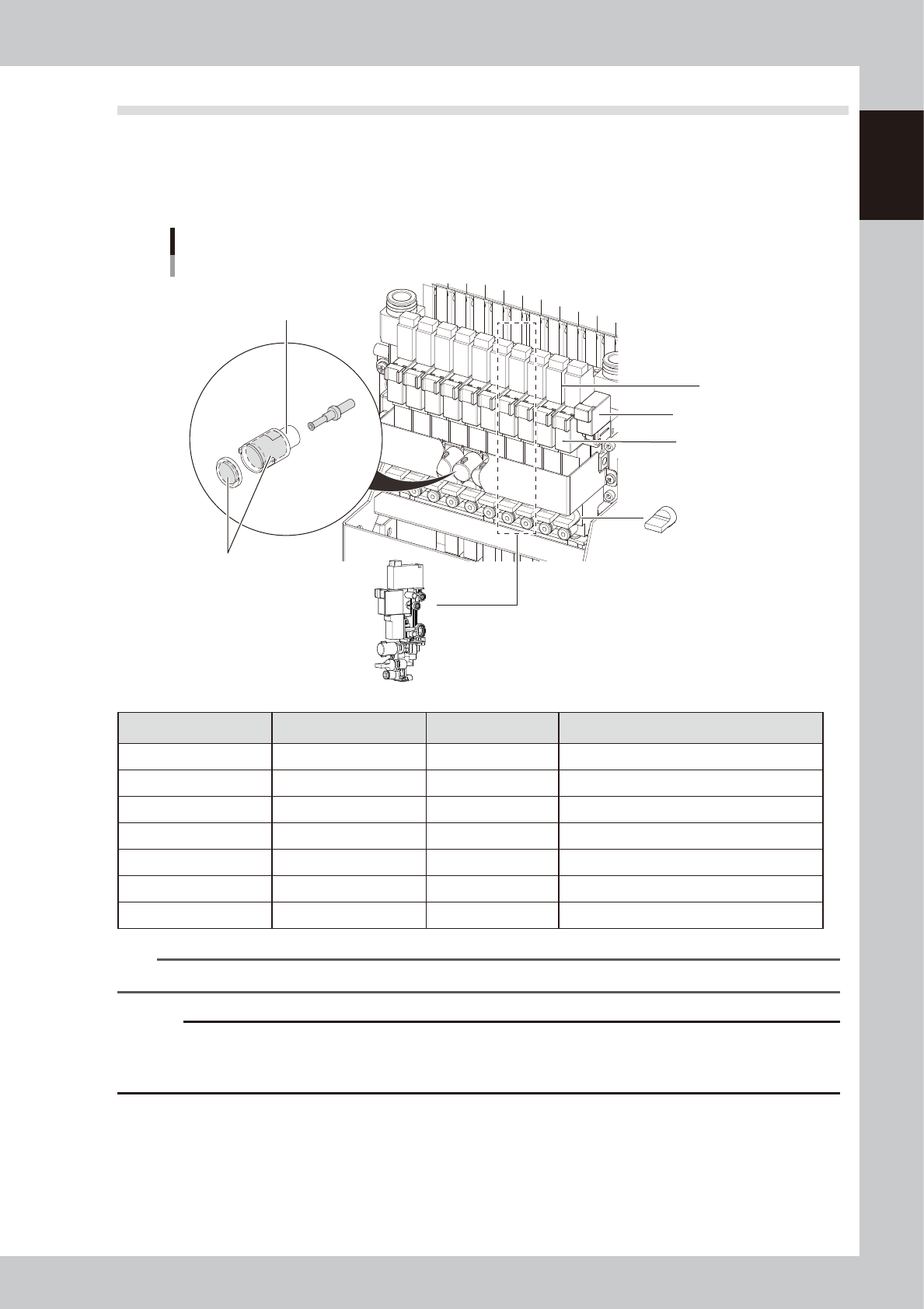

2.2.1 Head unit
Replaceable parts
HM head (figure shows the cover, connector, and air hose detached)
Bit cap
Muffler
Filter cap
Ejector set (spare)
Shaft blow valve
Blow valve
Operation valve
53103-KMG-00
Name Part name Part No. Note
Blow valve VALVE KLF-M7152-00X For ejector blow
Operation valve VALVE KLF-M7153-00X For ejector vacuum generation
Bit cap BIT CAP KLW-M7156-00X
Muffler MUFFLER KLW-M715A-00X Muffler inside the bit cap
Shaft blow valve VALVE KLW-M7158-00X
Filter cap FILTER CAP KLW-M7155-00X
Spare ejector EJECTOR KLW-M7157-10X Valve and ejector unit for one head
n
NOTE
The figure above shows the example of HM head. However, HM5 head also uses the same replaceable parts.
c
CAUTION
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before
ordering parts.
1-10
1
Maintenance

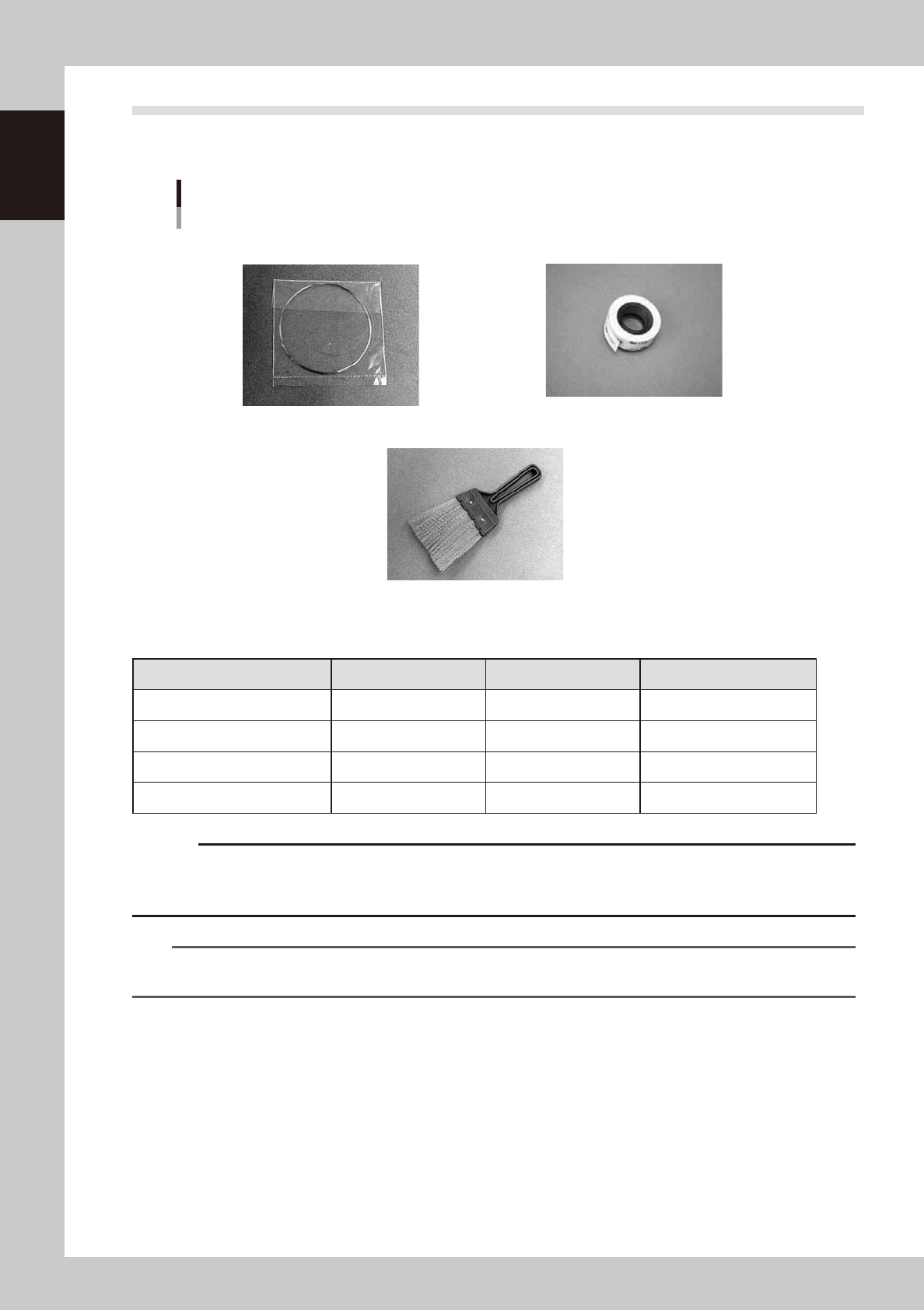

2.3 Maintenance tools
2.3.1 Cleaning tools
Cleaning tools
Parts supplied with machine
Nozzle cleaning wire
Feeder plate cleaning brush
Nozzle tip cleaning tape
53104-KMG-00
n
Cleaning tools
Parts supplied with machine
Name Part name Part No. Note
Nozzle cleaning wire NEEDLE ASSY KV8-M8883-A0X
Nozzle tip cleaning tape TAPE, CLEANER KGT-M8895-00X Double-sided tape
Feeder plate cleaning brush BRUSH, FEEDER KV7-M8820-20X
Hook for cleaning brush HOOK KGA-M13B9-00X
c
CAUTION
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before
ordering parts.
n
NOTE
Nozzle tip cleaning tape (double-sided tape) is used for nozzle tip cleaning. Clean the nozzles with an ultrasonic
cleaner (option) or absolute ethanol and then clean them with the tape.
1-11
1
Maintenance

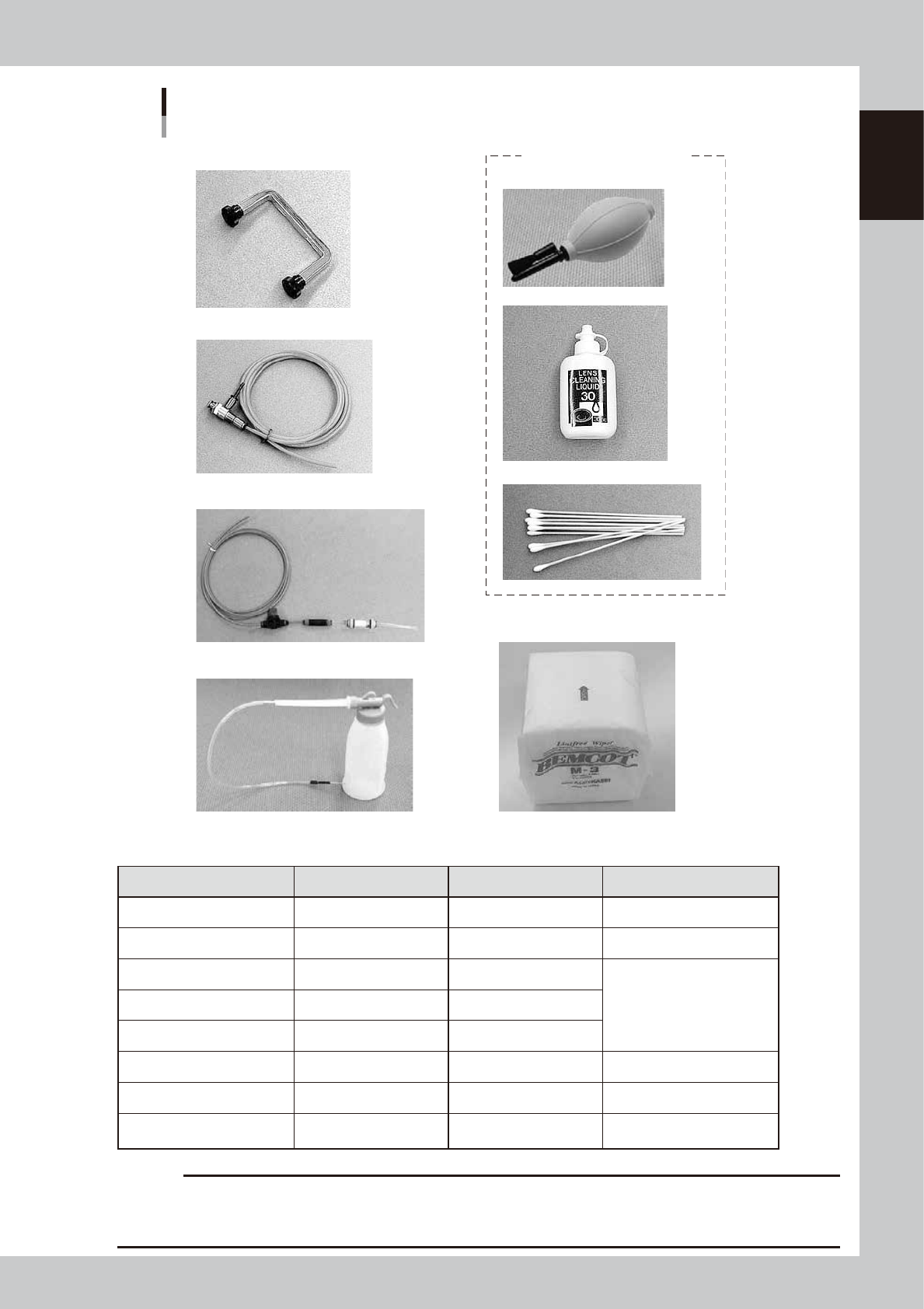

Cleaning tools
Optional purchase parts
Nozzle cleaning wire handle
Air blow tool
Cotton swab sticks (15 cm)
Blower brush
Lens cleaner
Spline shaft cleaning kit
Cleaning wiper
Vacuum assembly
CLEANER, VISION SET
53105-KMG-00
n
Cleaning tools (Optional purchase parts)
Name Part name Part No. Note
Nozzle cleaning wire handle NEEDLE CLEANER ASSY KV8-M8881-A0X Special Tool
Air blow tool AIR BLOW TOOL KU4-M8590-00X
φ
4 mm air hose
Cotton swab sticks (15cm) SWAB KGA-M3802-00X
CLEANER, VISION SET
(KHW-M3801-A0X)
Blower brush BLOWER KGA-M3803-00X
Lens cleaner CLEANER, LENS KGA-M3801-00X
Spline shaft cleaning kit CLEANING KIT KHN-M8860-00X
Cleaning wiper WIPER KGS-M3840-00X
Vacuum assembly VACUUM ASSY KHY-M88V0-A0X
For cleaning (vacuum)
φ
4 mm air hose
c
CAUTION
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before
ordering parts.
