1-10
1
Maintenance
2.3 Maintenance tools
2.3.1 Cleaning tools
Cleaning tools
Parts supplied with machine
Nozzle cleaning wire
Feeder plate cleaning brush
Nozzle tip cleaning tape
53104-KMG-00
n
Cleaning tools
Parts supplied with machine
Name Part name Part No. Note
Nozzle cleaning wire NEEDLE ASSY KV8-M8883-A0X
Nozzle tip cleaning tape TAPE, CLEANER KGT-M8895-00X Double-sided tape
Feeder plate cleaning brush BRUSH, FEEDER KV7-M8820-20X
Hook for cleaning brush HOOK KGA-M13B9-00X
c
CAUTION
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before
ordering parts.
n
NOTE
Nozzle tip cleaning tape (double-sided tape) is used for nozzle tip cleaning. Clean the nozzles with an ultrasonic
cleaner (option) or absolute ethanol and then clean them with the tape.
1-11
1
Maintenance
Cleaning tools
Optional purchase parts
Nozzle cleaning wire handle
Air blow tool
Cotton swab sticks (15 cm)
Blower brush
Lens cleaner
Spline shaft cleaning kit
Cleaning wiper
Vacuum assembly
CLEANER, VISION SET
53105-KMG-00
n
Cleaning tools (Optional purchase parts)
Name Part name Part No. Note
Nozzle cleaning wire handle NEEDLE CLEANER ASSY KV8-M8881-A0X Special Tool
Air blow tool AIR BLOW TOOL KU4-M8590-00X
φ
4 mm air hose
Cotton swab sticks (15cm) SWAB KGA-M3802-00X
CLEANER, VISION SET
(KHW-M3801-A0X)
Blower brush BLOWER KGA-M3803-00X
Lens cleaner CLEANER, LENS KGA-M3801-00X
Spline shaft cleaning kit CLEANING KIT KHN-M8860-00X
Cleaning wiper WIPER KGS-M3840-00X
Vacuum assembly VACUUM ASSY KHY-M88V0-A0X
For cleaning (vacuum)
φ
4 mm air hose
c
CAUTION
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before
ordering parts.
1-12
1
Maintenance

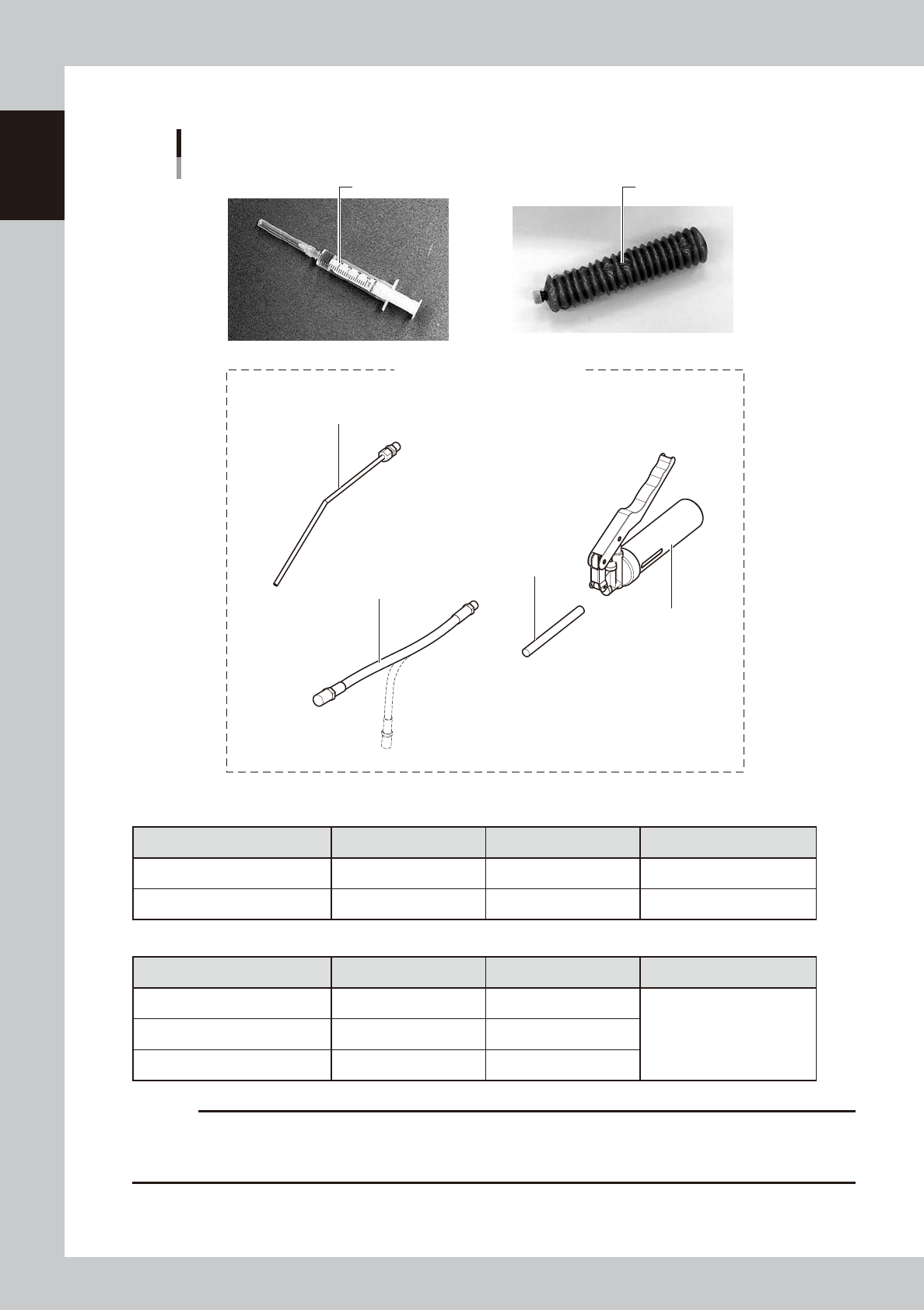

2.3.2 Lubricating tools and grease
Lubricating and greasing tools
Parts supplied with machine / Optional Parts
Lithium-based grease NSL
Nozzle buffing lube supply syringe
Grease gun
Standard nozzle
Flexible type nozzle
Bent type nozzle
GREASE GUN SET
53106-KMG-00
n
Lubricating and greasing tools (Parts supplied with machine)
Name Part name Part No. Note
Nozzle buffing lube supply syringe SYRINGE, OIL KV8-M8870-00X Turbine oil VG32
Lithium-based grease GREASE PACK K48-M3856-00X NSL 80g
n
Lubricating and greasing tools (Optional parts)
Name Part name Part No. Note
Grease gun (with standard nozzle) GREASE GUN K48-M3852-00X
GREASE GUN SET
KHW-M3852-A0X
Nozzle (flexible type) GREASE NOZZLE K48-M3857-00X
Nozzle (bent type) GREASE NOZZLE K48-M3854-00X
c
CAUTION
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before
ordering parts.
