1-15 1 Maintenance 2.4 Required tools Prepare the following tools and items necessary for maintenance. n T ool list : Supplied with machine, : Options Name Description Remarks Phillips screwdriver Large, small D-2 Slotte…
1-14
1
Maintenance

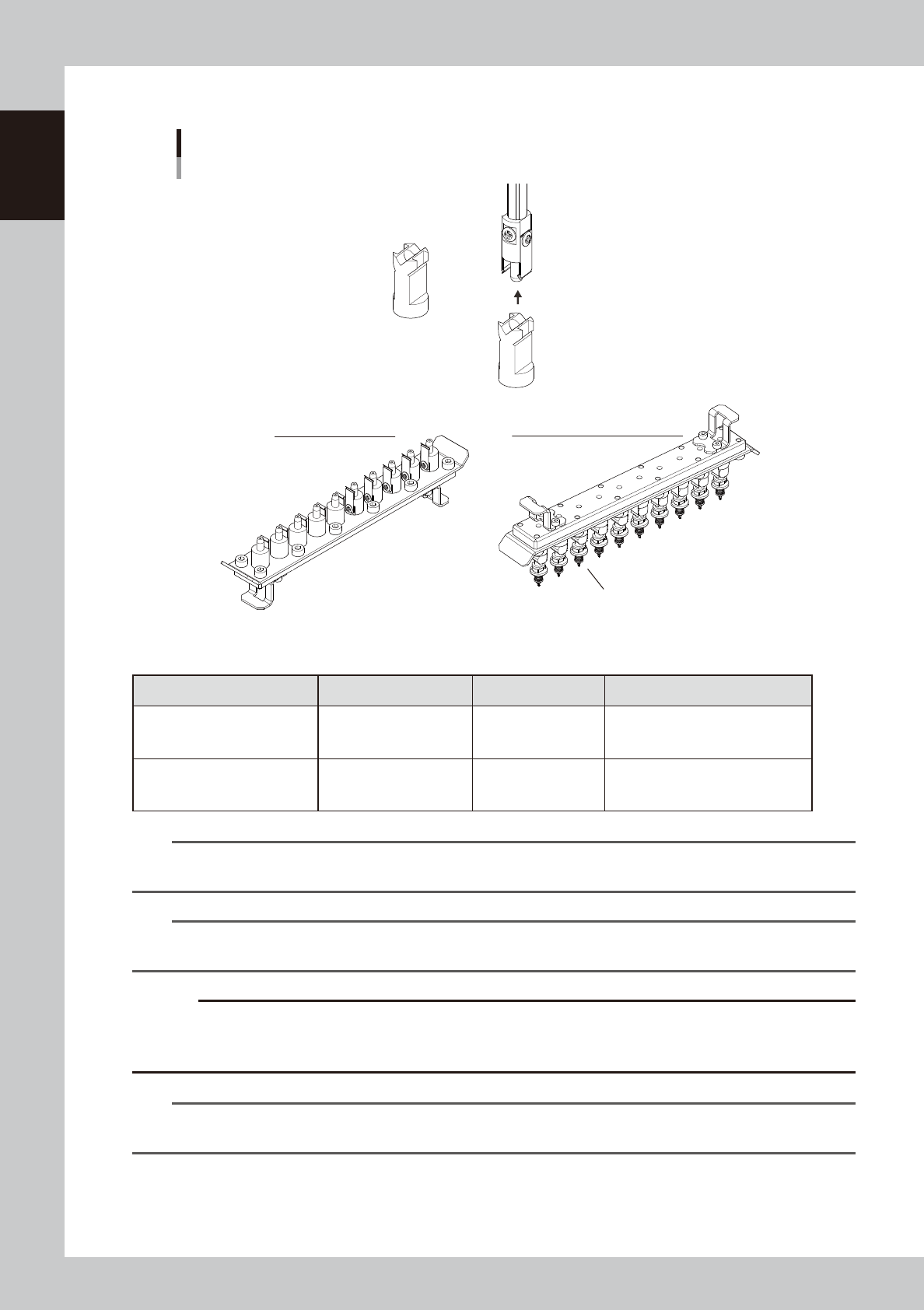

2.3.3 Special tools
Special tools
Optional purchase parts
Leaf spring installation tool
ANC nozzle attaching / detaching tool
Nozzles are not attached
Nozzles are attached (facing down)
30x, 31x series nozzles
53107-KMG-00
n
Special tools (Optional purchase parts)
Name Part name Part No. Note
Leaf spring installation tool TOOL, LEAF SPRING KGS-M8810-00X
For details about how to use the
tool, see "2.1 Replacing nozzle leaf
springs" in Chapter 6.
ANC nozzle attaching / detaching
tool
NOZZLE TOOL ANC KLW-M88M0-00X
For details about how to use the tool,
see "1.2 Nozzle cleaning" in Chapter
3.
n
NOTE
Use of the leaf spring installation tool makes it possible to install the leaf springs more uniformly. When you have this
tool, install the leaf springs with this tool.
n
NOTE
ANC nozzle attaching / detaching tool can attach / detach up to 10 nozzles at the nozzle station (option) at once.
30x series and 31x series nozzles are available.
c
CAUTION
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before
ordering parts.
n
NOTE
The leaf spring installation tool is also available for other YAMAHA machines such as Z:LEX (YSM20/YSM20W: HM head
type) and YS series (excluding YS88).
1-15
1
Maintenance
2.4 Required tools
Prepare the following tools and items necessary for maintenance.
n
Tool list
: Supplied with machine, : Options
Name Description Remarks
Phillips screwdriver Large, small D-2
Slotted (flat-blade) screwdriver Large, small
Phillips precision screwdriver
#0, #1 (Used to replace nozzle leaf springs and
air valves.)
Hex wrench set 1 set HEX, WRENCH SET
Grease gun Used to supply grease
Air blow tool Used for cleaning
Ultrasonic cleaner Used to clean nozzles.
Nozzle buffing lube supply syringe Used to supply turbine oil (VG32).
Nozzle cleaning wire Used to clean nozzle holes and spline holes.
Vacuum assembly Used to clean feeder plate surface, etc.
n
Other tool list
: Supplied with machine, : Options
Name Description
Grease (lithium-based grease: NSL) Used to lubricate X, Y and W axes.
Turbine oil (VG32) Used as the nozzle buffing lubricant.
Cleaning paper Use lint-free cleaning paper or cloth that does not leave dust or residue.
Square bandage Used to prevent parts from being lost or contaminated. (2 sheets)
Cleaning alcohol Use absolute ethanol.
Paper cup or tray Used for cleaning spline shaft.
Cotton swab stick (15cm) Used to clean camera lens, half mirror and lighting unit.
Lens cleaner Used to clean camera lens and lighting unit.
Blower brush Used to clean camera lens and lighting unit.
Cleaning kit Used for cleaning spline shaft.
Leaf spring installation tool for HM head Used to install the leaf springs of the HM head.
ANC nozzle attaching and detaching tool
Up to 10 nozzles at the nozzle station can be attached / detached at once.
n
Safety goggles and mask
Name Description
Dust-proof goggles
Always wear these goggles and mask when using alcohol, such as
absolute ethanol or an air blow.
Dust-proof mask
