YSM10_Mainte_E - 第66页
Chapter 3 Periodic maintenance items Contents 1. W eekly inspection 3-1 1.1 Nozzle inspection 3-1 1.1.1 Nozzle buffing area inspection 3-1 1.1.2 Checking the nozzle leaf spring 3-2 1.2 Nozzle cleaning 3-3 1.2.1 Cleaning …
2-6
2
Daily maintenance items
2. Cleaning the feeder plate
If any chip or foreign object falls onto the feeder plate, it may be caught in when setting the feeder, causing
the pickup position to deviate. Therefore it is recommended to inspect and clean portions around the feeder
plate periodically.
n
Cleaning with vacuum cleaner
Suck up fine particle dust with a household vacuum cleaner.
n
Cleaning with vacuum assembly
1. Connect the hose of the optional vacuum assembly (KHY-M88V0-A0X) and the air connectors on the left and right of
the feeder bank.
2. Suck up fine particle dust with the vacuum assembly.
n
Cleaning with feeder plate cleaning brush

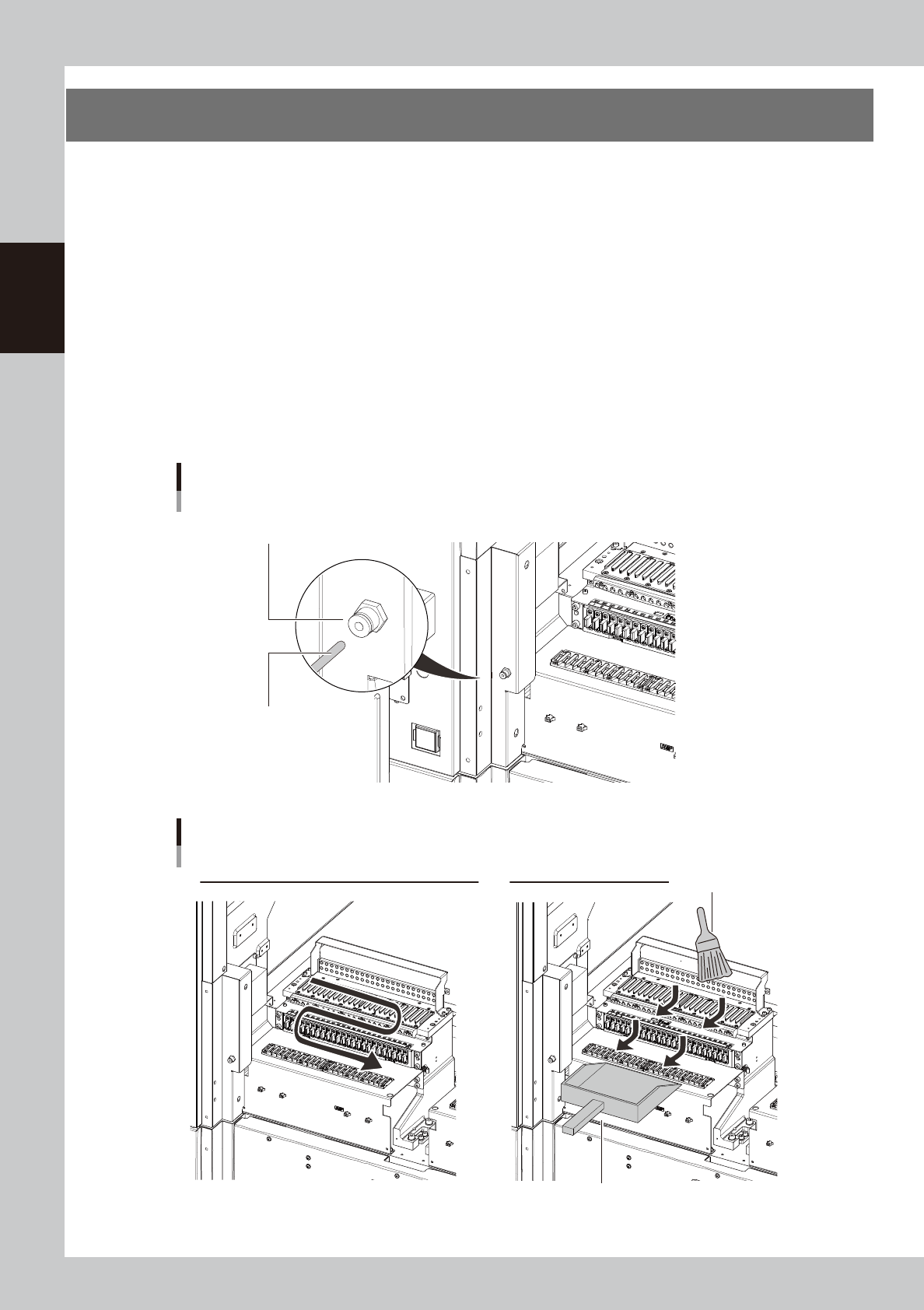

Sweep out the dust with the feeder plate cleaning brush supplied with the machine in the arrow directions shown in the
figure below. Sweep the dust into a dustpan etc and dispose of it.
Connecting the vacuum assembly
Hose of vacuum assembly
Air connector
53201-KMG-00
Cleaning the feeder plate
Cleaning with vacuum cleaner (Vacuum assembly) Cleaning with cleaning brush
Sweep the dust into a dustpan etc.
Cleaning brush
53202-KMG-00
