3-23 3 Periodic maintenance items 3.3.2 Cleaning the Machine rear side filter T he air intake filter for protecting the control unit is installed on the right of machine rear side. 1 Open the co ver . Use a Phillips scre…
3-22
3
Periodic maintenance items
n

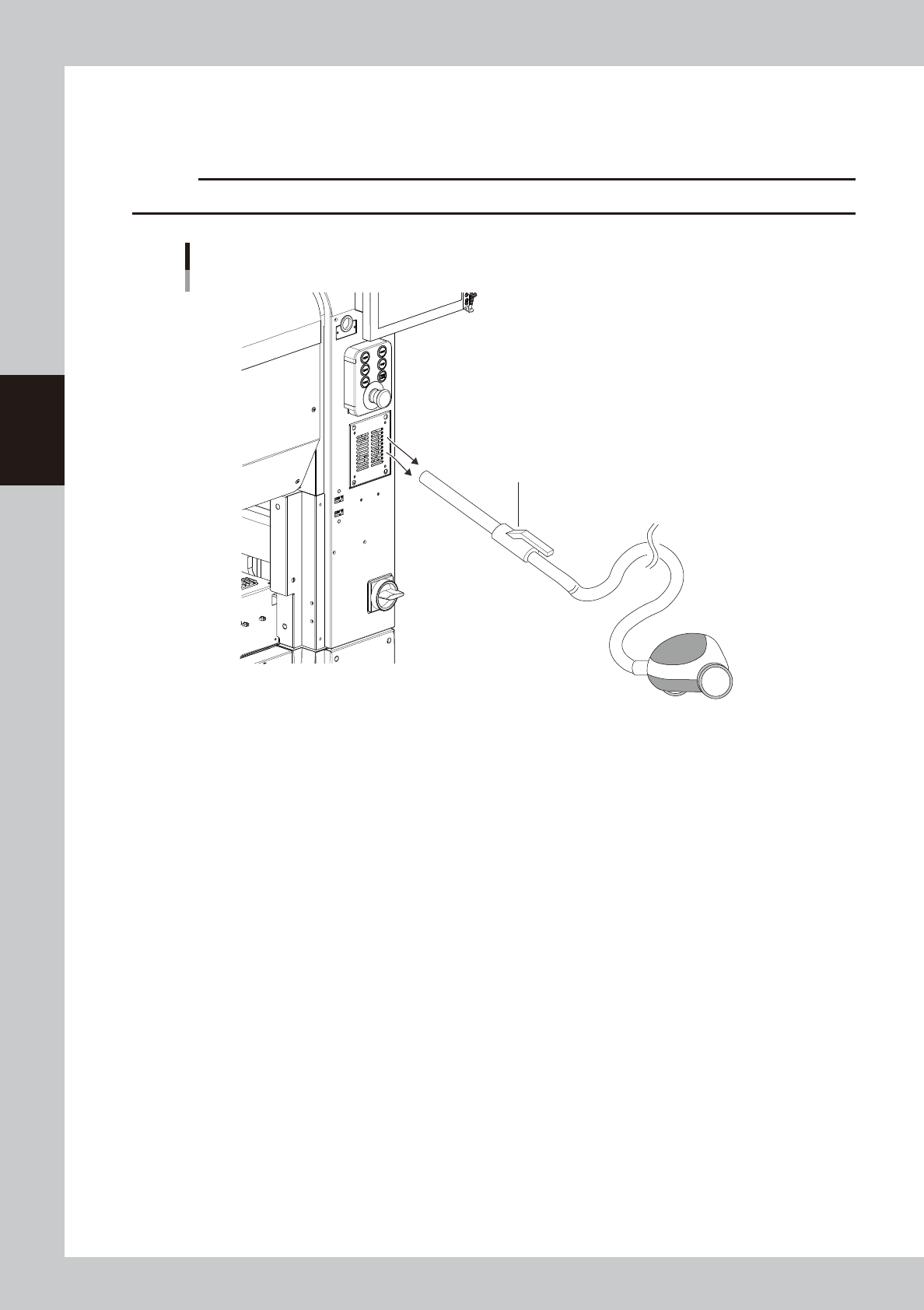

Simple cleaning of air intake filter
The periodic filter cleaning procedure is described on the previous pages. The simple cleaning of air intake filter is also
available with a household vacuum cleaner. Remove dust over the filter cover.
c
CAUTION
Do not clean the air intake filter during the automatic operation.
Simple cleaning of air intake filter
Household vacuum cleaner
53363-KMG-00
3-23
3
Periodic maintenance items
3.3.2 Cleaning the Machine rear side filter
The air intake filter for protecting the control unit is installed on the right of machine rear side.
1
Open the cover.
Use a Phillips screwdriver to remove the 4
screws that mount the cover. It is not
necessary to remove screws.
53354-KMG-00
c
CAUTION
The ground wire is connected to the cover.
2
Detach the filter.
Push up the filter as shown in the figure on
the right and pull it out forward. When there
is no adjacent machine, the filter can be
detached by sliding it horizontally and
pulling it out.
53355-KMG-00
3
Clean the filter.
Use a vacuum cleaner or vacuum tool to
remove the dust sticking to the filter.
n
NOTE
If contaminants cannot be removed completely or if
the filter itself deteriorates, it is necessary to replace the
filter with a new one.
4
Return the filter to the original
position.
Reattach the filter by reversing its removal
procedure.
5
Return the covers to the original
positions.
c
CAUTION
Make sure not to catch cables when attaching covers.
Step 1
Opening the cover
Cover
(Lower right on the
rear of the machine)
Phillips screwdriver
Step 2
Detaching the filter
Filter
3-24
3
Periodic maintenance items
4. Six-month inspection
This section describes the maintenance work performed once every 6 months.
4.1 Recognition unit
The lighting unit may become dirty with dust due to the long-term use of the machine. Periodic cleaning is
recommended.
c
CAUTION
If trouble occurs with the lighting unit that was not improved by cleaning, contact YAMAHA or YAMAHA sales
representatives. Disassembly and cleaning of the lighting unit by the user will be excluded from the warranty.
4.1.1 Cleaning the fiducial camera
The fiducial camera is mounted on the head unit. The cleaning procedure for the camera's lighting unit is given
below.
c
CAUTION
Do not apply strong force or shock to the camera unit and lighting unit during cleaning. Optical axis adjustment might
become unreliable.
1
Move the head unit.
1. Press the emergency stop button to open
the machine safety cover.
2. Move the head unit forward.
2
Clan the lighting unit.
Use a blower brush to remove the dust from
the lighting unit.
53332-KMG-00
3
Clean the reflector plate.
Use a cotton swab slightly dampened with
lens cleaner to clean the reflector plate side
as shown in the figure at right.
53333-KMG-00
TIP
The blower brush and lens cleaner are optional
purchase items.
Step 2
Fiducial camera lighting unit
Using a blower brush to remove dust
Blower brush
Step 3
Cotton swab dampened
with lens cleaner
Cleaning the reflector plate
Reflector plate
