2 Functions for the Adjustment of the Machine User’s Manual Test Program SITEST
2.1 Axis Functions Software Version 403.xx Edition 12/97
2 - 10
●
Change the value as required and confirm your entry by clicking on
Accept
.
The continuous run is started and a dialog box displaying the start time opens.
●
Click on the
Cancel
button in the dialog box to terminate the continuous run.
The completion time of the continuous run is displayed in the dialog box. The label of the "Cancel"
button changes to "OK".
●
Close the dialog box by clicking on
OK
.
●
If the calibration tool position is to be approached, click on the
Calibration tool pos.
button.
●
To index the star, continue to click on the
Step star axis
button until the number of the desired
(center) sleeve is displayed in the bottom position (see Fig. 2.1.2).
User’s Manual Test Program SITEST 2 Functions for the Adjustment of the Machine
Software Version 403.xx Edition 12/97 2.1 Axis Functions
2 - 11
2.1.3 IC Head Axis Functions
●
In the "IC head" display (see Fig. 0.3.6) click on the icon to switch to the "IC head, axis
functions" display.

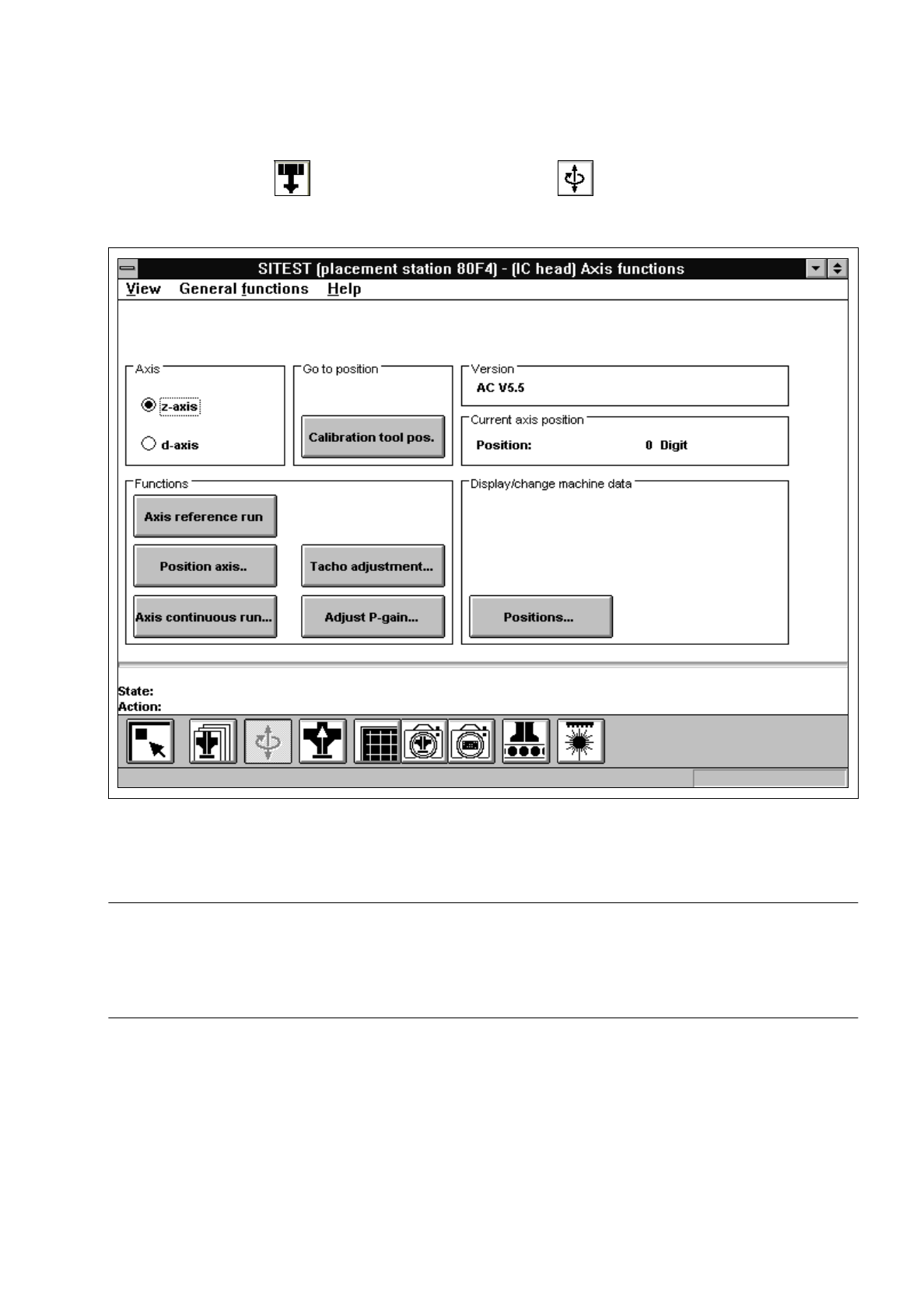

Fig. 2.1.3 "IC head, axis functions" Display
To perform the individual functions, proceed as follows:
NOTE
Since the layout of some of the setting boxes is identical or similar to that for the gantry axis functions and RV
head axis functions (see section 2.1.1 and section 2.1.2), these boxes will not be described and displayed
again in this section.
●
In the "Axis" field activate the radio button for the axis to be adjusted ("z-axis" or "d-axis").
●
Select the
Axis reference run
function if the axis has not been referenced yet.
●
To move the axis to a given position in one operation, click on the
Position axis..
button. The setting
box for the "Target position" and "Positioning type" opens.
●
All further steps are the same as described in section 2.1.1, page 2 - 4.
2 Functions for the Adjustment of the Machine User’s Manual Test Program SITEST
2.1 Axis Functions Software Version 403.xx Edition 12/97
2 - 12
NOTE

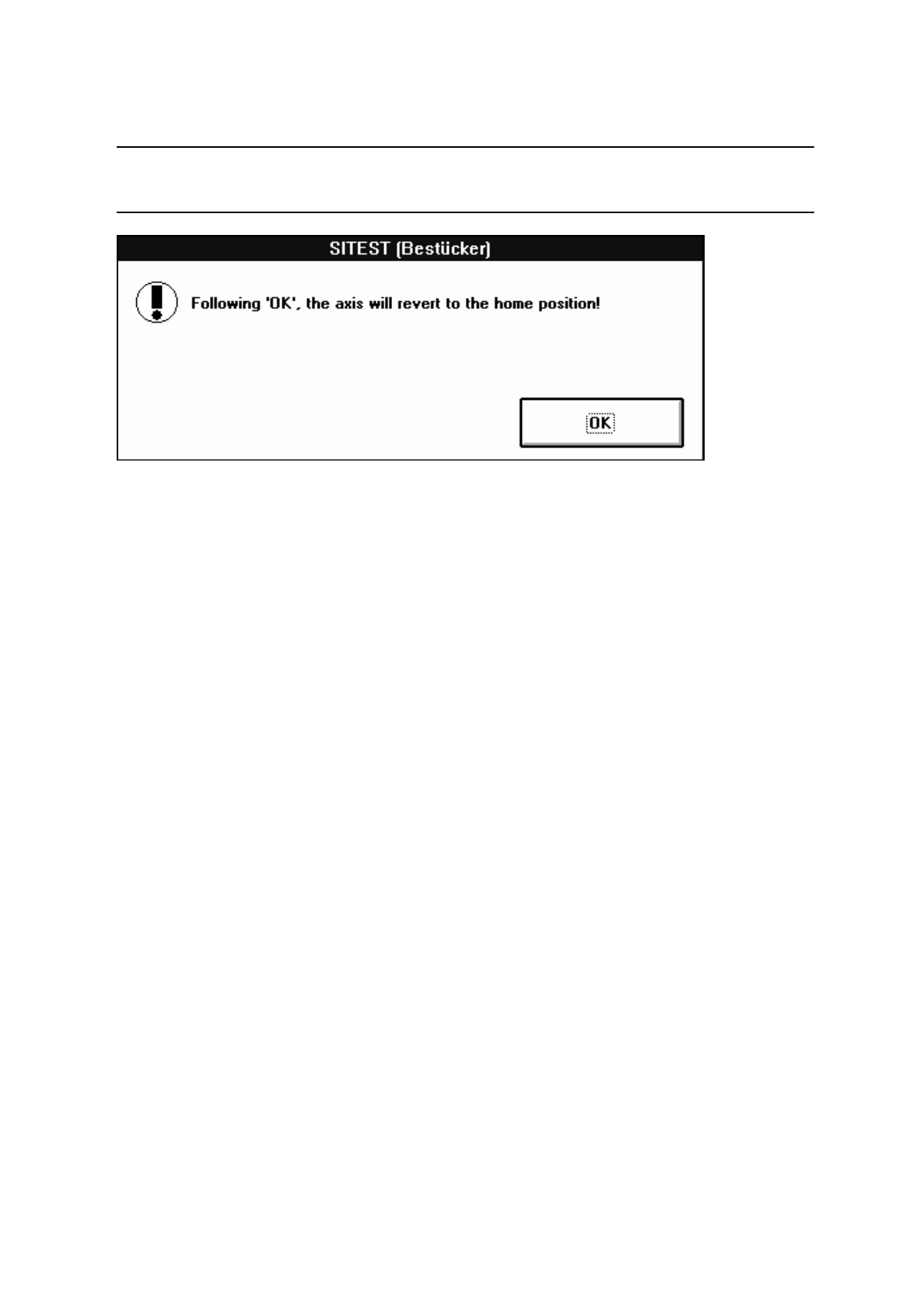

If the positioning operation for the z-axis has been started, the following information box opens.
●
Click on
OK
to move the z-axis to the normal position following the positioning procedure.
●
If you wish to change the values for the machine parameters "Zero point cor.value", "Maximum
position" and "Minimum position", click on the
Positions...
button.
A setting box opens.
●
All further steps are the same as described in section 2.1.1, page 2 - 5.
●
Select the
Axis reference run
function to perform a reference run of the active axis when the changes
have been completed.
●
If the selected axis is to be positioned in the continuous run mode, click on the
Axis continuous run
button. The setting box for the positioning data opens.
●
All further steps are the same as described in section 2.1.1, page 2 - 5.
●
If the tacho is to be adjusted to the final speed, click on the
Tacho adjustment...
button. The continu-
ous run for the adjustment of the tacho is started.
●
All further steps are the same as described in section 2.1.1, page 2 - 6.
