24 全体カバー(背 面機):SP V W hole Cover(Sub M achine):SPV パーツレイアウト Kit No . キット品番 Kit Name キット名称 MTKA000240AA セクションNo. PARTS LAYOUT Section No. - - S231 ( KMTKA000240AA-07 -2 )

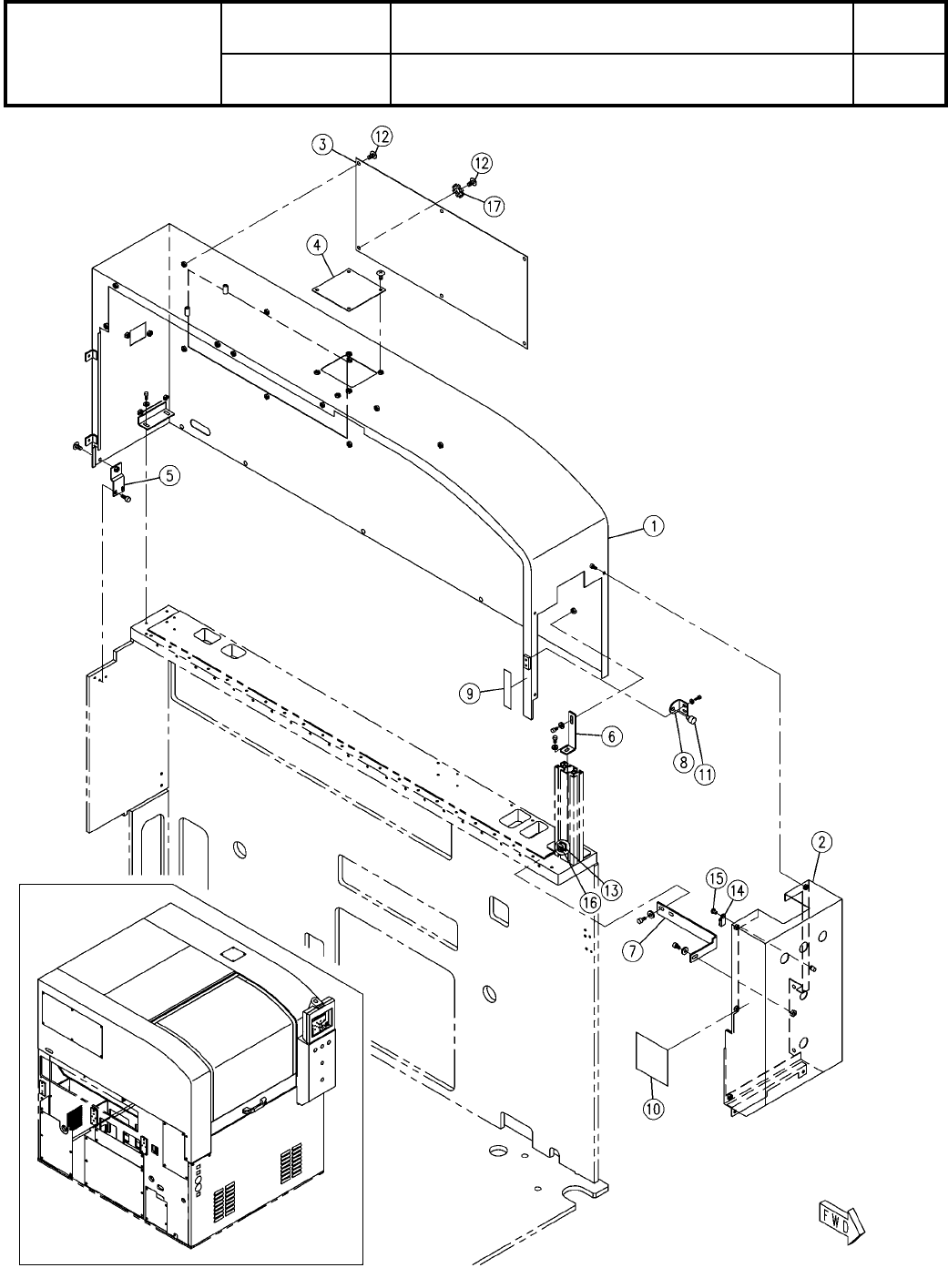

Ref
No.
Remarks R
1
Q'ty
24
全体カバー(背面機):SPV
Whole Cover(Sub Machine):SPV
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
MTKA000240AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
COVER
1
1 MTKP002060AC
COVER
1
2 MTKP000802AB
COVER
1
3 MTKP002128AA
COVER
1
4 MTKP000973AD
COVER
1
5 MTKP001754AB
COVER
1
6 MTKP001755AB
BRACKET
1
7 MTKP000820AA
BRACKET
1
8 MTPB001401AA
TAPE
1
9 MTKP000821AB
RUBBER-CUSHION
1
10 N510057447AA C-30-CS-2-EP-UL
RUBBER-CUSHION
2
11 N510043348AB C-30-CS-9-EP-UL
RUBBER-LEG
5
12 KXF01E6AA00 C-30-RK-12
SCREW
18
13 N510018284AA
Cross recessed Truss head machine screw M5X10-4.8 A2J (Trivalent)
CABLE-SUPPORT
2
14 N510048517AA FT4
BRACKET
1
15 N210027081AA
S230
-
-
( KMTKA000240AA-07-1 )
24
全体カバー(背面機):SPV
Whole Cover(Sub Machine):SPV
パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
MTKA000240AA
セクションNo.
PARTS LAYOUT
Section No.
-
-
S231
( KMTKA000240AA-07-2 )
Ref
No.
Remarks R
1
Q'ty
24
全体カバー(背面機):SPV
Whole Cover(Sub Machine):SPV
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
MTKA000240AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
COVER
1
1 MTKP002062AB
COVER
1
2 MTKP000971AC
COVER
1
3 MTKP001755AB
COVER
1
4 MTKP000975AB
BRACKET
1
5 MTKP000820AA
BRACKET
1
6 N210027081AA
BRACKET
1
7 MTPB001397AB
BRACKET
1
8 MTPB001401AA
TAPE
1
9 MTKP000821AB
TAPE
1
10 MTKP000822AB
RUBBER-CUSHION
1
11 N510057447AA C-30-CS-2-EP-UL
SCREW
16
12 N510018284AA
Cross recessed Truss head machine screw M5X10-4.8 A2J (Trivalent)
CAP
2
13 KXF0ATFAA00 SFA-906
CABLE-SUPPORT
1
14 N348TA1S8 TA1S8
BOLT
1
15 N510017534AA
SSS 003 Hexagon socket button head screw M4X6-10.9 A2J (Trivalent)
NUT
2
16 KXF0ATHAA00 SFB-001
WASHER
1
17 N510018765AA
Toothed lock washer 5 External toothed Steel Unichrome white (Trivalent)
S232
-
-
( KMTKA000240AA-07-2 )
