P AGE 36 Condential & Proprietary YSM20R(SV)-2 YSM20R(SV)-2 Air circuit Non stop feeder (R1)5 3(R2) 1 (P) 2(B) (A)4 (R1)5 3(R2) 1 (P) 2(B) (A)4 (R1)5 3(R2) 1 (P) 2(B) (A)4 (R1)5 3(R2) 1 (P) 2(B) (A)4 CLAMP UNIT R2 M…
PAGE
35
Condential & Proprietary
YSM20R(SV)-2YSM20R(SV)-2

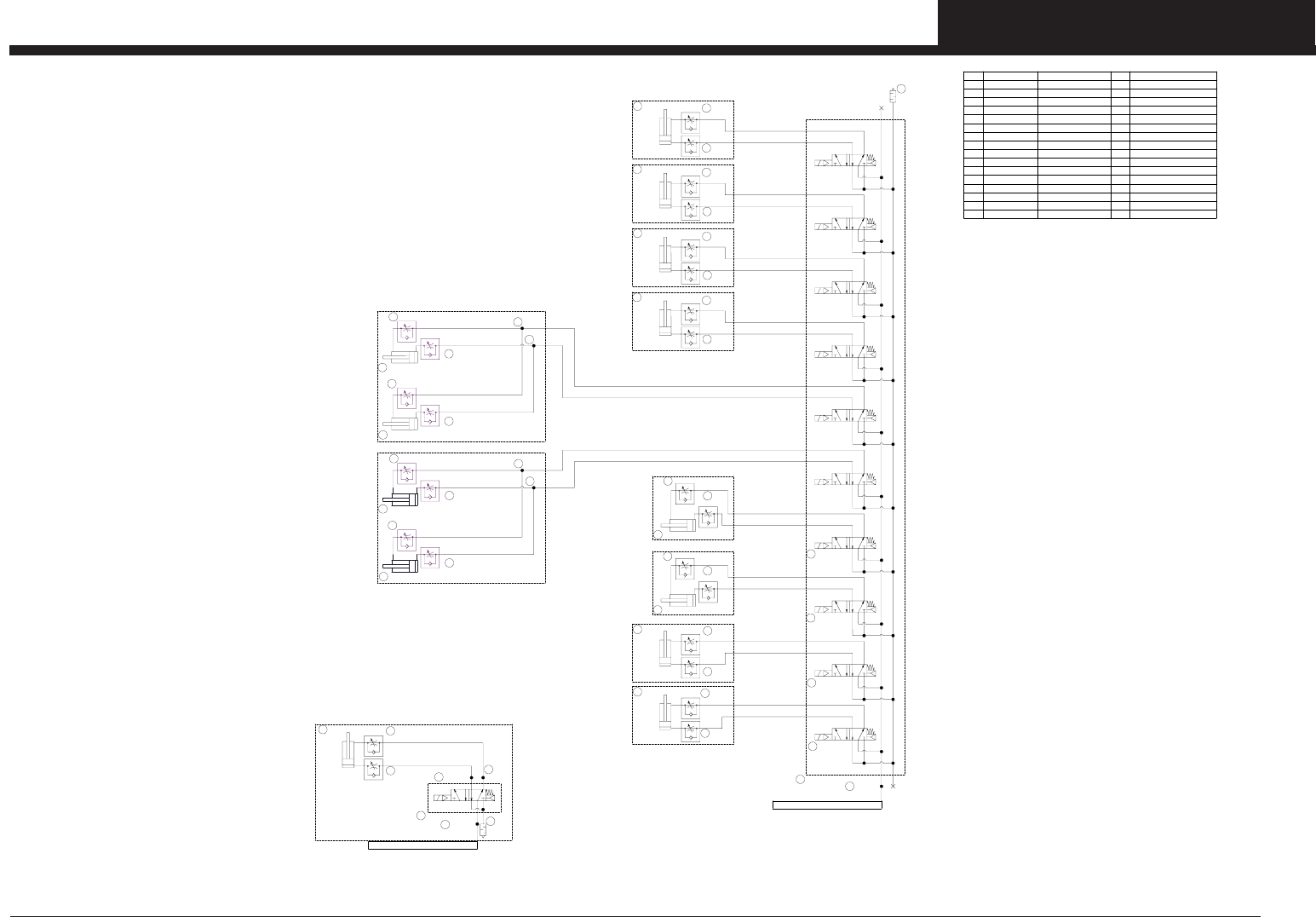

Air circuit L510SL conveyor ( left ow)
H025060
(R1)5 3(R2)
1
(P)
2(B)(A)4
(R1)5 3(R2)
1
(P)
2(B)(A)4
(R1)5 3(R2)
1
(P)
2(B)(A)4
(R1)5 3(R2)
1
(P)
2(B)(A)4
(R1)5 3(R2)
1
(P)
2(B)(A)4
(R1)5 3(R2)
1
(P)
2(B)(A)4
(R1)5 3(R2)
1
(P)
2(B)(A)4
(R1)5 3(R2)
1
(P)
2(B)(A)4
(R1)5 3(R2)
1
(P)
2(B)(A)4
(R1)5 3(R2)
1
(P)
2(B)(A)4
(R1)5 3(R2)
1
(P)
2(B)(A)4
S0715-5M
OPTION時追加
2
S0715-5M
OPTION時追加
2
2
S0715-5M
OPTION時追加
φ4 BLACK
φ4 ORANGE
φ4 BLACK
φ4 ORANGE
φ4 ORANGE
φ4 BLACK
φ4 BLACK
φ4 ORANGE
φ4 BLACK
φ4 ORANGE
1
SS0755-AWS09
BASE CONVEYOR R(KMK-M8500-A00,-B00)
14
ATSH6-01 プラグ1/8
φ4 BLACK
φ4 ORANGE
φ4 BLACK
φ4 ORANGE
11
UY4
CLAMP BOARD L
CJ2YE16-10-DCS8866S
5
SC3W-M5-4-O
9
9
SC3W-M5-4-O
φ4 ORANGE
φ4 BLACK
UY4
11
SC3W-M5-4-O
9
SC3W-M5-4-O
9
SUB STOPPER 1-1
8
8
4
SSD-KL-16-40-T2H3-R
SC3W-M5-4
SC3W-M5-4
SC3W-M5-4
SC3W-M5-4
SSD-KL-16-40-T2H3-R
4
8
8
SUB STOPPER 1-2
NOTE
1.本図は YSM20R L510SL左流れコンベアの空気圧回路図である。
2.本図接続先のBASE部の空気圧回路図は、KMK-M8500-A00又は-B00に示す。
SC3W-M5-4
SC3W-M5-4
SSD-KL-16-40-T2H3-R
4
8
8
MAIN STOPPER 1-1
ANC F
(OPTION)
SC4-M5A
10
10
SC4-M5A
6
PBDAS10x10-A-ZC230A2
PBDAS10x10-A-ZC230A2
6
SC4-M5A
10
10
SC4-M5A
ANC R
(OPTION)
PIN STATION R1
(OPTION)
8
8
7
CDJ2B16-70Z-M9BM-B
SC3W-M5-4
SC3W-M5-4
SC3W-M5-4
SC3W-M5-4
CDJ2B16-70Z-M9BM-B
7
8
8
PIN STATION R2
(OPTION)
φ4 BLACK
φ4 ORANGE
TSH4-M5M TSH4-M5M
TSH6-M5M
S0715-5M-M5
12
12
13
3
BASE CONVEYOR L(KMK-M8500-A00,-B00)
5
CJ2YE16-10-DCS8866S
プラグ1/8
15
KM-11
φ4 BLACK
φ4 ORANGE
EXIT STOPPER
8
8
4
SSD-KL-16-40-T2H3-R
SC3W-M5-4
SC3W-M5-4
φ4 ORANGE
φ4 BLACK
CJ2YE16-10-DCS8866S
5
9
SC3W-M5-4-O
9
SC3W-M5-4-O
11
UY4
φ4 BLACK
φ4 ORANGE
SC3W-M5-4-O
9
9
SC3W-M5-4-O
5
CJ2YE16-10-DCS8866S
CLAMP BOARD R
UY4
11
φ4 ORANGE
φ4 BLACK
MAIN STOPPER 1-2
(OPTION)
8
8
4
SSD-KL-16-40-T2H3-R
SC3W-M5-4
SC3W-M5-4
2
S0715-5M
OPTION時追加
φ4 BLACK
φ4 ORANGE
φ4 BLACK
φ4 ORANGE
KM-05
16
NO. PARTS NO. PARTS NAME QTY. DESCRIPTION
1 KLW-M91VC-000 VALVE ASSY. 1 SS0755-AWS09
2 KLW-M91V1-000 VALVE 4 S0715-5M
3 KLX-M1832-000 VALVE 1 S0715-5M-M5
4 KMG-M9166-000 CYLINDER 5 SSD-KL-16-40-T2H3-R
5 KLT-M9263-001 CYLINDER 4 CJ2YE16-10-DCS8866S
6 KHY-M9605-100 CYLINDER 2 PBDAS10x10-A-ZC230A2
7 KMK-M9849-000 CYLINDER 2 CDJ2B16-70Z-M9BM-B
8 KHW-M916L-000 SPEED CONTROLLER 14 SC3W-M5-4
9 KHW-M9285-000 SPEED CONTROLLER 8 SC3W-M5-4-O
10 $SC4-M5A SPEED CONTROLLER 4 SC4-M5A
11 $UY4 JOINT 4 UY4
12 $TSH4-M5M JOINT 2 JOINT
13 $TSH6-M5M JOINT 1 TSH6-M5M
14 $ATSH6-01 JOINT 1 ATSH6-01
15 $KM-11 MUFFLER 1 KM-11
16 $KM-05 MUFFLER 1 KM-05
PAGE
36
Condential & Proprietary
YSM20R(SV)-2YSM20R(SV)-2

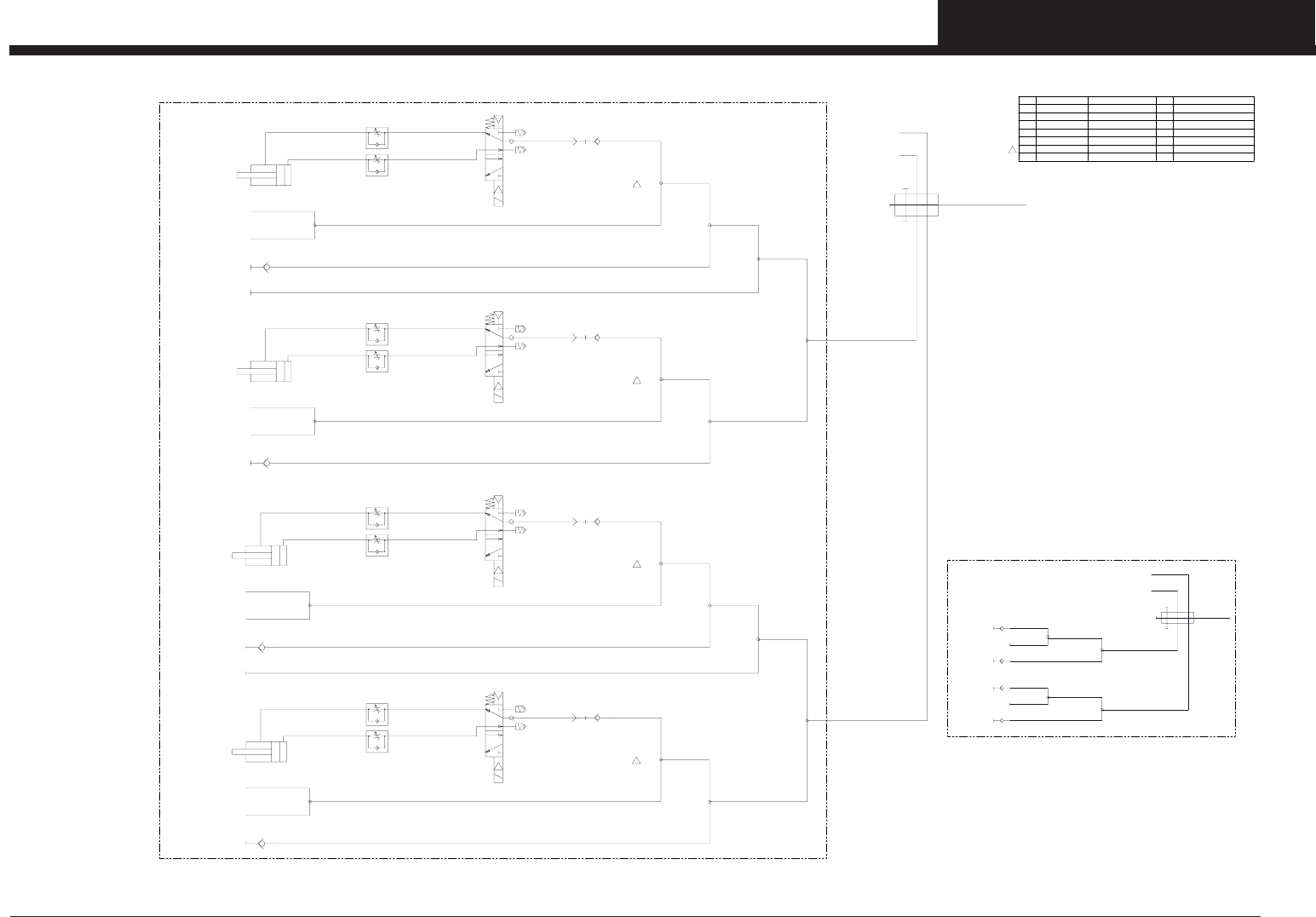

Air circuit Non stop feeder
(R1)5 3(R2)
1
(P)
2(B)(A)4
(R1)5 3(R2)
1
(P)
2(B)(A)4
(R1)5 3(R2)
1
(P)
2(B)(A)4
(R1)5 3(R2)
1
(P)
2(B)(A)4
CLAMP UNIT R2
MULTI CAMERA
UP8
UP8
UP10
UEDW10-8
φ8 ORANGE
φ8 ORANGE
UYD8-6
UYD8-6
UY6
UY6
φ6 ORANGE
φ6 ORANGE
φ6 ORANGE
φ6 ORANGE
φ6 ORANGE
φ6 ORANGE
UC6
UC6
KK3S-06E
KK3S-06E
KK3S-06E
KK3S-06E
COVER 1
COVER 2
COVER 3
COVER 4
ATS
ATS
φ8 ORANGE
BLOW ST.
NOTE
1.本図はYSM20R(KMK)とYSM20WR(KMM)の ノンストップフィーダー一括交換システムの
空気圧回路図である。
2.型式が()で記載されている部品は、標準仕様と共通部品である。
φ10 ORANGE
φ6 ORANGE
φ6 ORANGE
(φ6 ORANGE)
φ6 ORANGE
SHUTTER F2
CLAMP UNIT F2
(KK3S-06E)
②AS1201F-M5-04A
φ6 ORANGE
②AS1201F-M5-04A
③CDU10-50D
①S0716S-5M-C4
φ6 ORANGE
UY6
COVER 1
(φ6 ORANGE)
φ6 ORANGE
UY6
UYD6-4
φ4 ORANGE
φ4 ORANGE
φ4 ORANGE
φ4 BLACK
④KK3P-04H ⑤KK3S-06E
(UC6)
⑤KK3S-06E④KK3P-04H
φ4 BLACK
φ4 ORANGE
φ4 ORANGE
φ4 ORANGE
UYD6-4
UY6
φ6 ORANGE
φ6 ORANGE
COVER 2
UY6
(φ6 ORANGE)
(UY6)
ATS
①S0716S-5M-C4
③CDU10-50D
②AS1201F-M5-04A
φ6 ORANGE
②AS1201F-M5-04A
(KK3S-06E)
(UYD8-6)
CLAMP UNIT F1
SHUTTER F1
φ4 ORANGE
φ4 ORANGE
φ4 ORANGE
φ4 ORANGE
SHUTTER R1
CLAMP UNIT R1
(UYD8-6)
φ6 ORANGE
ATS
(UY6)
UY6
COVER 4
φ6 ORANGE
φ6 ORANGE
UY6
UYD6-4
φ4 ORANGE
φ4 ORANGE
φ4 ORANGE
φ4 BLACK
φ4 BLACK
φ4 ORANGE
φ4 ORANGE
φ4 ORANGE
UYD6-4
UY6
φ6 ORANGE
COVER 3
UY6
φ6 ORANGE
φ6 ORANGE
CLAMP UNIT R2
SHUTTER R2
φ6 ORANGE
(UP8)
(UP8)
(UP10)
(φ10 ORANGE)
(UEDW10-8)
(φ6 ORANGE)
(φ6 ORANGE)
(φ6 ORANGE)
(φ6 ORANGE)
(φ6 ORANGE)
(φ6 ORANGE)
(φ6 ORANGE)(KK3S-06E)
(UC6)
(KK3S-06E)
③CDU10-50D
②AS1201F-M5-04A
②AS1201F-M5-04A
①S0716S-5M-C4
④KK3P-04H ⑤KK3S-06E
⑤KK3S-06E④KK3P-04H
③CDU10-50D
②AS1201F-M5-04A
②AS1201F-M5-04A
①S0716S-5M-C4
φ8 ORANGE
(参考)32連台車標準仕様の空気圧回路図
MULTI CAMERA
CLAMP UNIT R2
BLOW ST.
1
1
1
1
1
NO. PARTS NO. PARTS NAME QTY. DESCRIPTION
1 KMK-M3JS4-000 VALVE 4 S0716S-5M-C4
2 LC0-M91AL-100 CTRL.SPEED 8 AS1201F-M5-04A
3 KMK-M3JS9-000 CYLINDER 4 CDU10-50D
4 KLW-M8803-000 COUPLER,PLUG D4 4 KK3P-04H
5 KLW-M3T0H-000 COUPLER,SOCKET 4 KK3S-06E
6 $UY6 JOINT 8 UY6
7 $UYD6-4 JOINT 4 UYD6-4
MSX0067
Wiring parts list
KMK2004
PAGE
37
Condential & Proprietary
No Part No. Part Name Q'ty Remarks No Part No. Part Name Q'ty Remarks
