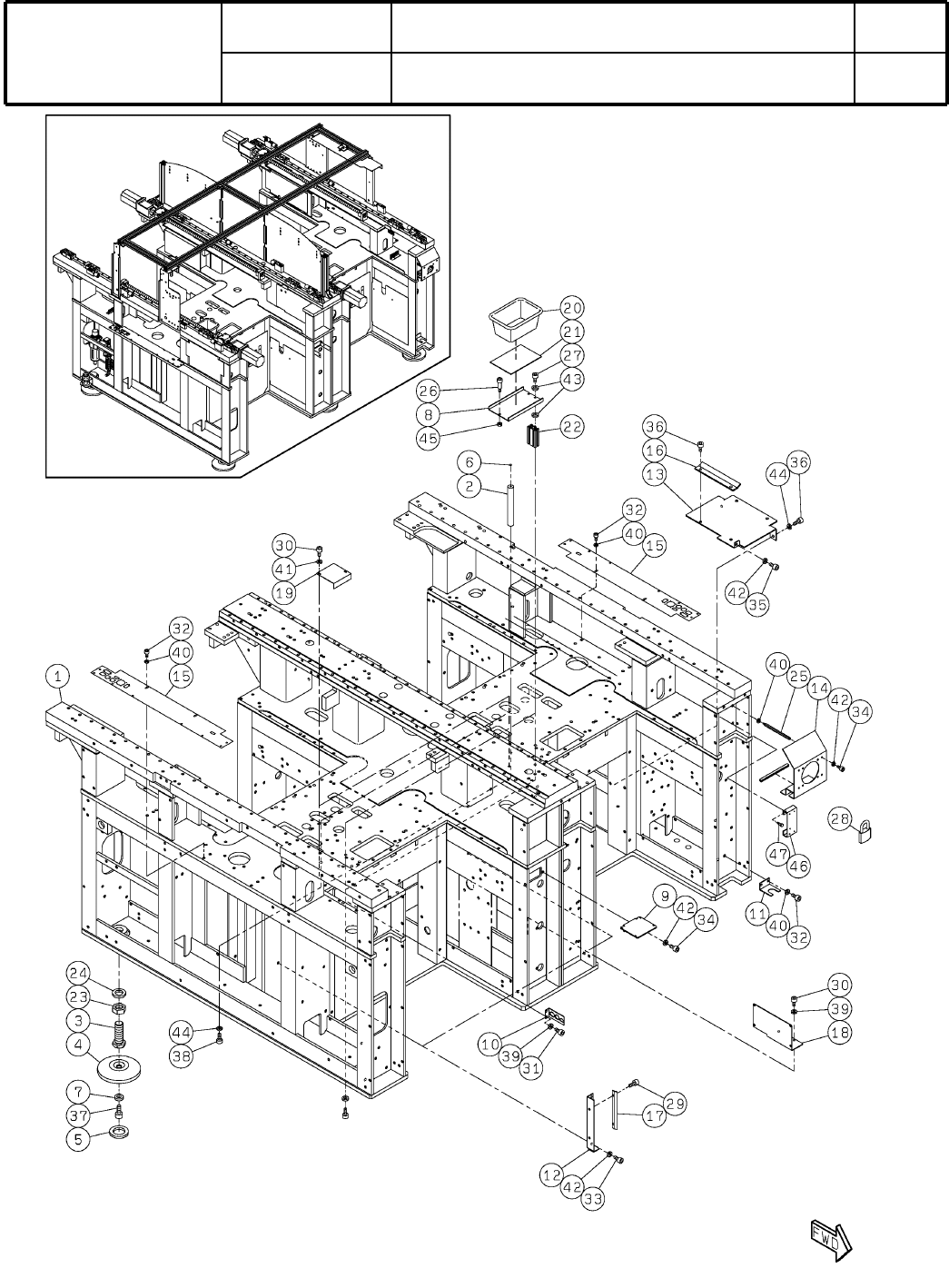

1-A 本体部 Mai n B od y パーツレイアウト Kit No. キット品 番 Kit N a me キット名称 N610090756AA ｾｸｼｮﾝN o. PARTS LAYOUT Section No. - - M1 ( KN610090756AA-11-1 )
Kit Name
RankQ'ty
番号
Part No.
キット名
品番 数量 ﾗﾝｸ
頁
PageNo.
2
CM232-M : モジュラーマウンタ
CM232-M:Modular Placement Machine
キットリスト
Model No.
製品品番
Model Name
製品名称
NM-EJM9C
KIT LIST
1
5
N610116670AA
Board Conveyor L:CM232-M_3 divided
基板コンベアL:CM232-M_3分割対応
M43
1
6
N610116671AA
Board Conveyor R:CM232-M_3 divided
基板コンベアR:CM232-M_3分割対応
M49
2
7
N610027373AA
Board Holder Unit
基板ホルダユニット
M55
2
8
N610097201AA
Conveyor Width Adjustment Section
コンベア幅寄せ部
M59
4
9
N610002014AA
100MHzLineCamera Lens
100MHzラインカメラレンズ
M65
1
10
KXFX04ATA00
Attachment
付属品
M67
U4
--
( KEJM9CM-02-2 )
1-A
本体部
Main Body
パーツレイアウト
Kit No.
キット品
番
Kit Name
キット名称
N610090756AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
M1
( KN610090756AA-11-1 )
Ref
No.
Remarks
R
1
Q'ty
1-A
本体部
Main Body
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610090756AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
FRAME
1
1 N210035553AN
SHAFT
2
2 KXFB02GCB01
BOLT
6
3 KXFB05CGA01
PLATE
6
4 N210009258AA
PAD
4
5 KXFB00PCA00
TARGET
2
6 KXFB03KAA01
COLLAR
6
7 KXFB05CKA01
BRACKET
2
8 N210021375AA
BRACKET
1
9 N210065682AA
BRACKET
2
10 KXFB03RQA00
BRACKET
1
11 N210021388AA
BRACKET
2
12 N210022761AB
BRACKET
1
13 N210022762AB
PLATE
1
14 N210149462AA
COVER
2
15 N210022769AD
BRACKET
1
16 N210034504AA
BRACKET
2
17 N210034508AA
BRACKET
1
18 N210034507AB
COVER
2
19 N210035323AA
TRAY
2
20 KXF0CGAAA00 195391A-62
SHEET
2
21 KXF0DKNAA00 Hanenite sponge sheet(DA 0DKNA)
FRAME
2
22 N510001361AA SFF-244 L=77
NUT
6
23 N510017920AA
Hexagon nut Type-3 Best class M30-6H-4T A2J (Trivalent)
WASHER
6
24 N510018511AA
Round finish plain washer 30 10H A2J (Trivalent)
SPACER
4
25 N510058374AA BSB-5130E
BOLT
2
26 N510020814AA MMSB6.5-15
BOLT
4
27 N510017461AA
Hexagon socket head cap screw M6X95-10.9 A2J (Trivalent)
LOCK
1
28 KXF09H6AA00 C-555-50
BOLT
4
29 N510017376AA
Hexagon socket head cap screw M4X6-10.9 A2J(Trivalent)
BOLT
6
30 N510017381AA
Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent)
BOLT
4
31 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
6
32 N510017419AA
Hexagon socket head cap screw M5X8-10.9 A2J (Trivalent)
BOLT
4
33 N510017386AA
Hexagon socket head cap screw M5X10-10.9 A2J (Trivalent)
BOLT
18
34 N510017390AA
Hexagon socket head cap screw M5X12-10.9 A2J (Trivalent)
BOLT
1
35 N510017395AA
Hexagon socket head cap screw M5X16-10.9 A2J (Trivalent)
BOLT
4
36 N510017470AA
Hexagon socket head cap screw M8X16-10.9 A2J (Trivalent)
BOLT
6
37 N510017472AA
Hexagon socket head cap screw M8X20-10.9 A2J (Trivalent)
BOLT
2
38 N510017473AA
Hexagon socket head cap screw M8X25-10.9 A2J (Trivalent)
WASHER
6
39 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
26
40 N510018499AA
Round finish plain washer 5 10H A2J (Trivalent)
WASHER
4
41 N510020099AA Thick washer for M4
WASHER
11
42 N510020100AA Thick washer for M5
WASHER
8
43 N510020101AA Thick washer for M6
WASHER
4
44 N510020102AA Thick washer for M8
NUT
2
45 N510017862AA
Hexagon nut Type-1 Best class M5-6H-4T A2J (Trivalent)
BRACKET
1
46 N210154048AA
BOLT
2
47 N510019224AA LH0412(Trivalent)
M2
--
