CM232-M - 第27页
Ref No. Remark s R 1 Q'ty 1-G 本体部 Mai n B od y ｲﾗｽﾄ No. Part No. 品 名 品番 数量 R 2 パーツリスト Kit N o . キット 品 番 Kit Name キット名称 N610090756AA Part Nam e 備 考 ｾｸｼｮﾝN o. PARTS LIST Section No. R 3 BRACKET 3 1 N210043257AA COVER …

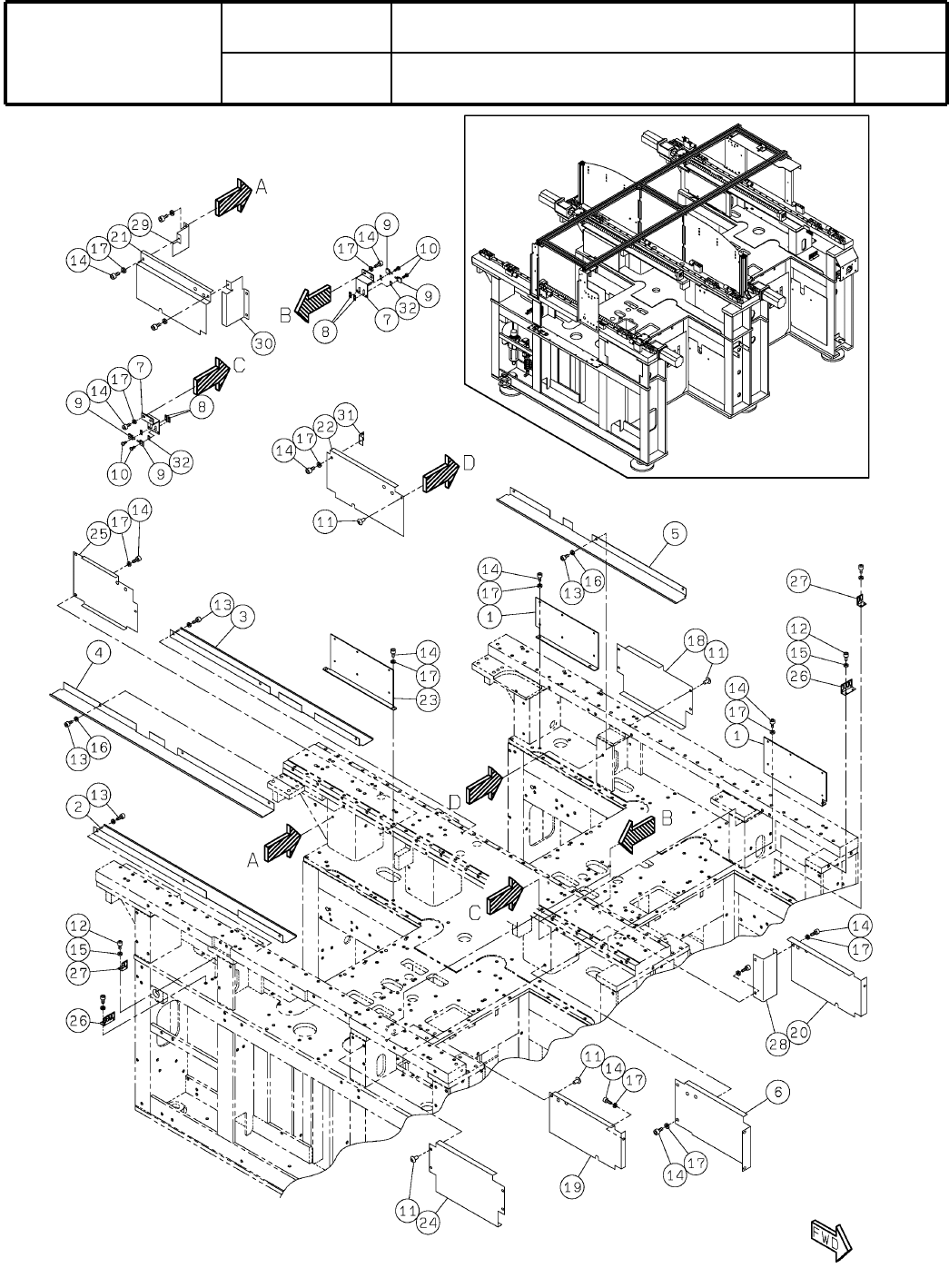

1-G
本体部
Main Body
パーツレイアウト
Kit No.
キット品
番
Kit Name
キット名称
N610090756AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
M13
( KN610090756AA-11-7 )
Ref
No.
Remarks
R
1
Q'ty
1-G
本体部
Main Body
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610090756AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
BRACKET
3
1 N210043257AA
COVER
1
2 N210071161AA
COVER
1
3 N210071162AA
COVER
1
4 N210071163AA
COVER
1
5 N210071164AA
COVER
1
6 N210043249AC
BRACKET
4
7 N210043259AA
PW106A1
8
8 KXFB02RKA00
SENSOR
4
9 KXF0DKWAA00
S
EX-21A(DA 0DKWA)
SCREW
16
10 N510018036AA
Cross recessed Pan head machine screw M3X10-4.8 A2J (Trivalent)
SCREW
10
11 N510018303AA
Cross recessed Truss head machine screw M5X8-4.8 A2S(Trivalent)
BOLT
8
12 N510017381AA
Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent)
BOLT
12
13 N510017419AA
Hexagon socket head cap screw M5X8-10.9 A2J (Trivalent)
BOLT
37
14 N510017390AA
Hexagon socket head cap screw M5X12-10.9 A2J (Trivalent)
WASHER
8
15 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
12
16 N510018499AA
Round finish plain washer 5 10H A2J (Trivalent)
WASHER
37
17 N510020100AA Thick washer for M5
COVER
1
18 N210043247AC
COVER
1
19 N210069405AA
COVER
1
20 N210071178AA
COVER
1
21 N210086826AA
COVER
1
22 N210069412AA
BRACKET
1
23 N210043266AA
COVER
1
24 N210045241AB
COVER
1
25 N210043252AC
BRACKET
2
26 KXFB02RPA00
BRACKET
2
27 KXFB09X3A00
BRACKET
1
28 N210071175AA
BRACKET
1
29 N210071176AC
BRACKET
1
30 N210071177AB
BRACKET
1
31 N210049689AC
SPACER
8
32 N210053167AB
M14
--
( KN610090756AA-11-7 )

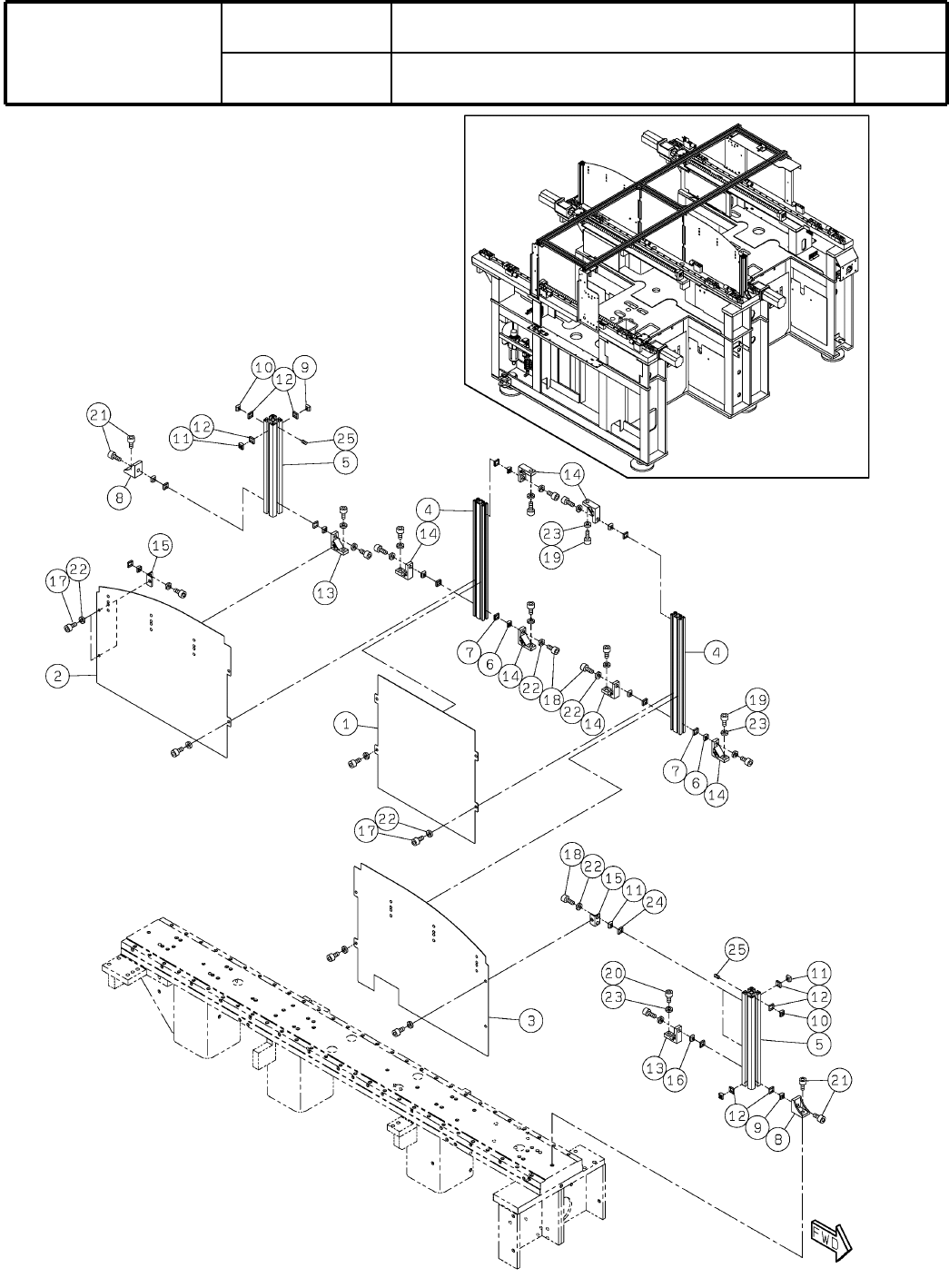

1-H
本体部
Main Body
パーツレイアウト
Kit No.
キット品
番
Kit Name
キット名称
N610090756AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
M15
( KN610090756AA-11-8 )
