6-C 基 板 コンベアR:CM232-M _ 3分割対応 Board Conveyor R :CM232-M _3 divided パーツレイアウト Ki t N o . キット 品番 Kit N a me キット名称 N610116671AA ｾｸｼｮﾝNo. PARTS LAYOUT Section No. - - M53 ( KN610116671AA-01-3 )

100%1 / 368
Ref
No.
Remarks
R
1
Q'ty
6-B
基
板
コンベアR:CM232-M
_
3分割対応
Board Conveyor R:CM232-M_3 divided
ｲﾗｽﾄ
No.
Part No.
品　　名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610116671AA
Part Name
備　　　考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
SENSOR
1
11 N610012890AA
SENSOR
2
16 N610012891AA
STOPPER
1
32 KXFB02N4A03
PLATE
1
33 N210022326AA
PLATE
1
34 N210022327AA
D-PIN
1
36 KXFB02NAA00
BLOCK
2
38 N210127276AB
BRACKET
3
41 N210129274AA
BRACKET
1
48 KXFB0A4FA00
BRACKET
2
49 N210121573AA
BRACKET
1
51 KXFB0A4GB00
BRACKET
2
52 N210127277AA
BOLT
1
61 KXF0ASEAA00 CBSS4-6
SPRING
1
62 KXF0CWKAA00 HP063-027-0.6
CYLINDER
1
63 KXF0DZBAA00
CJPB15-DCG8017G-15(Delivery drawing available)
SPEED-CONTROLLER
1
64 KXF00YSAA00 AS1211F-M5-04
WASHER
1
65 N510010165AA WASM12-6-1
PIN
1
66 KXF02Y8AA00 MS4-20
PIN
1
67 KXF0303AA00 MSTH6-30
WASHER
1
68 KXF0E0UXA00 FWSSS-D9.0-V6.0-T2.6
JOINT
8
71 N510064400AA M-3AU-4-X83
BOLT
2
72 N986ACB340 ACB3-40
BOLT
16
73 N510017341AA
Hexagon socket head cap screw M3X8-10.9 A2J (Trivalent)
BOLT
10
75 N510017308AA
Hexagon socket head cap screw M3X12-10.9 A2J (Trivalent)
BOLT
2
79 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
6
80 N510017346AA
Hexagon socket head cap screw M4X12-10.9 A2J (Trivalent)
BOLT
2
81 N510017351AA
Hexagon socket head cap screw M4X16-10.9 A2J (Trivalent)
BOLT
2
82 N510017359AA
Hexagon socket head cap screw M4X25-10.9 A2J (Trivalent)
BOLT
2
88 N510017354AA
Hexagon socket head cap screw M4X20-10.9 A2J (Trivalent)
WASHER
8
89 N510018494AA
Round finish plain washer 3 10H A2J (Trivalent)
WASHER
10
90 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
1
91 N510018499AA
Round finish plain washer 5 10H A2J (Trivalent)
WASHER
14
93 N510020098AA Thick washer M3
WASHER
4
94 N510020099AA Thick washer M4
WASHER
6
95 N510018330AA Spring lock washer No.2 4 S A2J (Trivalent)
NUT
10
97 N510017855AA
Hexagon nut Type-1 Best class M4-6H-4T A2J (Trivalent)
NUT
2
98 N510017849AA
Hexagon nut Type-1 Best class M3-6H-4T A2J (Trivalent)
NUT
1
106 N210020696AA
STOPPER
1
107 N210020697AA
BRACKET
1
108 KXFB02KWB00
NUT-PLATE
1
109 KXFB01JGA00
CYLINDER
1
115 KXF0DWWEA00 CJ2B16-35S
JOINT
1
116 KXF02BTAA00 KQL04-M5
M52
--
( KN610116671AA-01-2 )

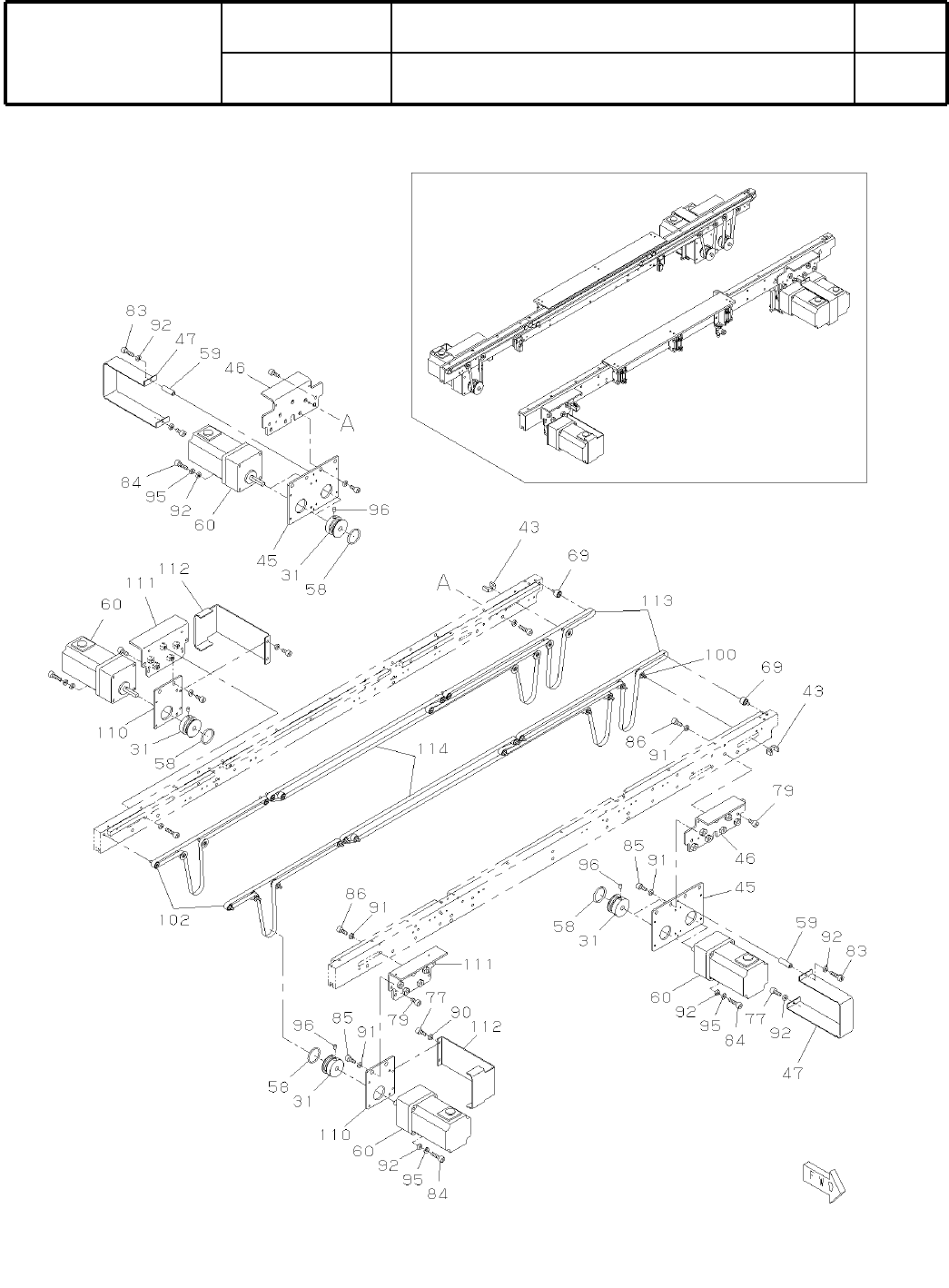

6-C
基
板
コンベアR:CM232-M
_
3分割対応
Board Conveyor R:CM232-M_3 divided
パーツレイアウト
Ki
t
N
o
.
キット
品番
Kit Name
キット名称
N610116671AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
M53
( KN610116671AA-01-3 )
Ref
No.
Remarks
R
1
Q'ty
6-C
基
板
コンベアR:CM232-M
_
3分割対応
Board Conveyor R:CM232-M_3 divided
ｲﾗｽﾄ
No.
Part No.
品　　名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610116671AA
Part Name
備　　　考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
PULLEY
6
31 KXFB02QLB00
NUT
6
43 KXFB02U4A00
PLATE
2
45 N210006519AA
BRACKET
2
46 N210121572AA
BRACKET
2
47 KXFB0EMSA00
RING
6
58 N210088855AA
SPACER
2
59 N510017101AA CB-425E
MOTOR
6
60 KXF0DWW9A00
S
K0354-F2M -2(Delivery drawing available)
PULLEY
16
69 N610116865AA
BOLT
6
77 N510017376AA
Hexagon socket head cap screw M4X6-10.9 A2J(Trivalent)
BOLT
4
79 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
2
83 N510017364AA
Hexagon socket head cap screw M4X35-10.9 A2J (Trivalent)
BOLT
24
84 N510017368AA
Hexagon socket head cap screw M4X45-10.9 A2J (Trivalent)
BOLT
12
85 N510017390AA
Hexagon socket head cap screw M5X12-10.9 A2J (Trivalent)
BOLT
12
86 N510017399AA
Hexagon socket head cap screw M5X25-10.9 A2J (Trivalent)
WASHER
4
90 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
24
91 N510018499AA
Round finish plain washer 5 10H A2J (Trivalent)
WASHER
28
92 N510018479AA
Small round-plain washer 4 10H A2J (Trivalent)
WASHER
24
95 N510018330AA Spring lock washer No.2 4 S A2J (Trivalent)
SCREW
6
96 XXE5D6FT
Hexagon socket set screw Cup point M5X6-45H SOB
PULLEY
12
100 N610116866AA
BELT
2
102 N510050557AA
A
XVT-952 8.5X760E
PLATE
2
110 N210010735AA
BRACKET
2
111 N210121577AB
BRACKET
2
112 KXFB0A49B00
BELT
2
113 N510050555AA
A
XVT-952 8.5X926E
BELT
2
114 N510050556AA
A
XVT-952 8.5X1570E
M54
--
