Part names and functions

2. Operation panel and data input unit

Standard machines are equipped with an operation display, operation panel buttons, a keyboard and a

mouse on the front and rear (option) of the machine, to operate the machine and make data settings. The

functions of these units are explained below.

Mouse

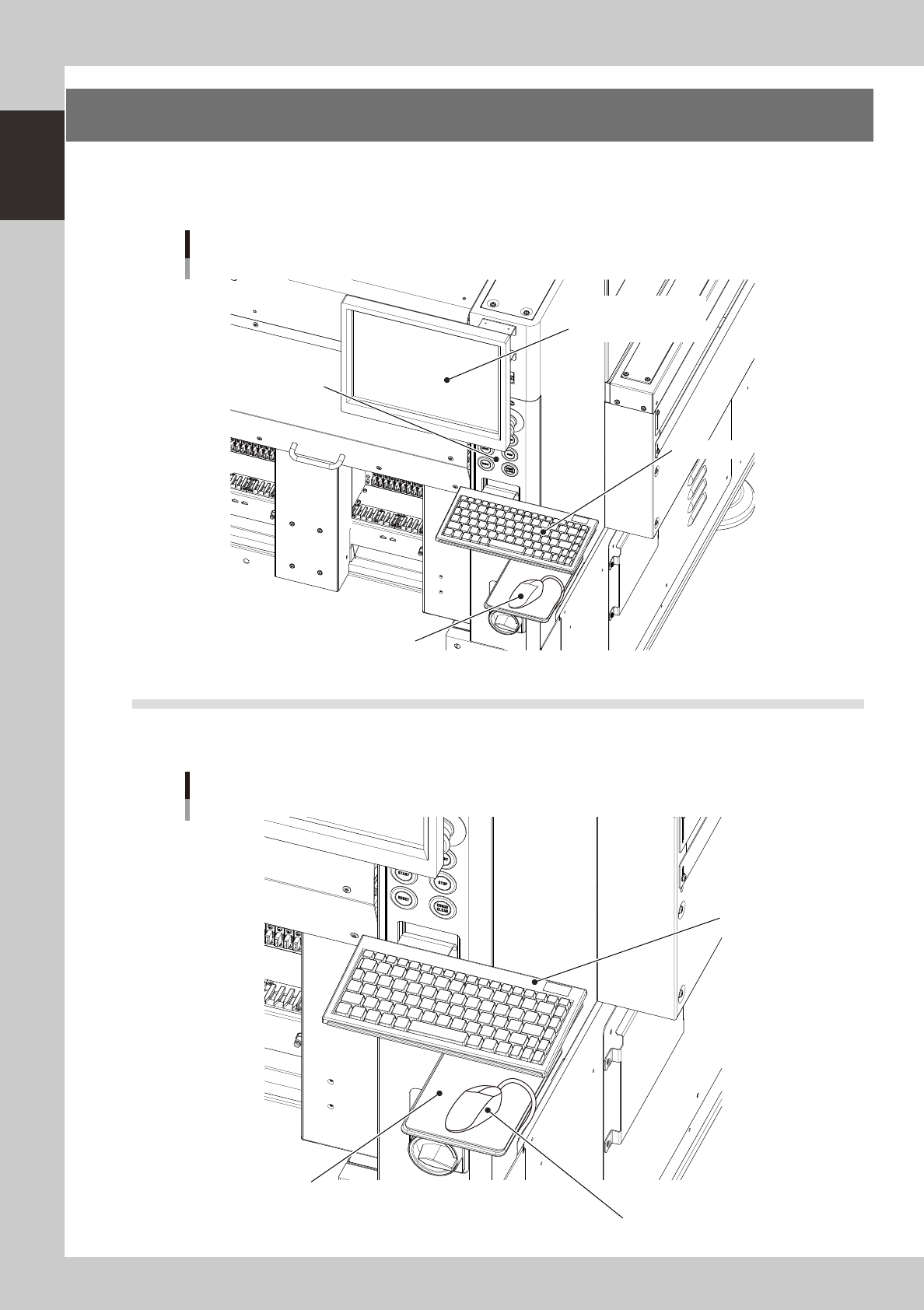

Operation panel and data input unit

Operation display

(touch screen is optional)

Operation panel button

Keyboard

23102-N8-00

2.1 Keyboard and mouse

This machine is equipped with a keyboard and mouse as standard features to operate the machine or edit data

settings. To select a menu button or parameter item on the operation screen, click it with the left mouse button.

Keyboard and mouse

Mouse

Mouse pad

Keyboard

23103-N8-00

1-5

Part names and functions

2.2 Operation panel buttons

The operation panel buttons are provided on the front and rear (option) of the machine to run major commands

frequently used to operate the machine. Each button is lit while turned on.

Operation panel buttons

23104-N8-00

Operation panel button functions

Button name Use the button to: OFF ON

ACTIVE

(when equipped with

ATS15)

Enable other keys. (The front and rear

[ACTIVE] keys cannot be turned on

simultaneously.)

• After machine has started.

• The other table has access

rights to operate machine.

• Has access rights to

operate machine.

READY

Release emergency stop and turn the

servo on.

• SERVO OFF

(Motor power OFF)

• SERVO ON

(Motor power ON)

RESET

Stop automatic operation and return to

standby for board production.

• Machine is in normal operation

or stopped.

• Machine has been reset.

START (green)

Perform component placement

according to board data.

• Machine is stopped.

• Machine is in normal

operation.

[Flash]

Pause or step operation

STOP (Red/White)

Interrupt automatic operation. (Press

START to resume operation.)

• Machine is in normal

operation.

• Error occurred.

ERROR CLEAR

(Yellow/Blue)

Stop buzzer sound and clear error

screen.

• Machine is in normal

operation.

• Error occurred.

EMERGENCY STOP

Trigger emergency stop. Turn to the

right to release it.

NOTE

The [ACTIVE] button is provided on both front and rear (option) panels, but cannot be turned on simultaneously. This

means that the [READY], [START], [ERROR CLEAR] and [RESET] buttons are enabled only when the [ACTIVE] key on the

same panel is turned on. (The [STOP] button can be used when the [ACTIVE] button is either on or off.)

The keyboard is enabled only when the [ACTIVE] key on the front panel is on.

1-6

Part names and functions

3. Head assembly

The head assembly is mounted on the XY arms and moves to pick up and place components. This section

describes the head assembly configurations and nozzle types.

3.1 Component pick-and-place head

There are two types of head assemblies for the YC8: one is the V1 head unit (single head type) and the other is

the V2 head unit (dual head type). Both head units have a fiducial camera in the center.

The figure below shows the V2 head unit. The right-hand head is Head 1 and the left-hand head is Head 2 as

viewed from the front of the machine. The spacing of the nozzles attached to each head is 105mm. (The V1

head unit does not have Head 2.)

Head assembly

V2 head unit

Fiducial camera & lighting unit

Handle for moving head assembly

Head 1

Head 2

23105-N8-00
