Starting and ending production
1. Starting production
This section describes how to select the board data which is already registered and perform component
mounting.
1
Select the board data.
1. When the board data is not yet selected, press the [Board] button on the Setup screen.
A list of registered board data appears.
2. Line up the cursor with the board data to use for production and press the [Select] button.
The machine loads the seleted board data.

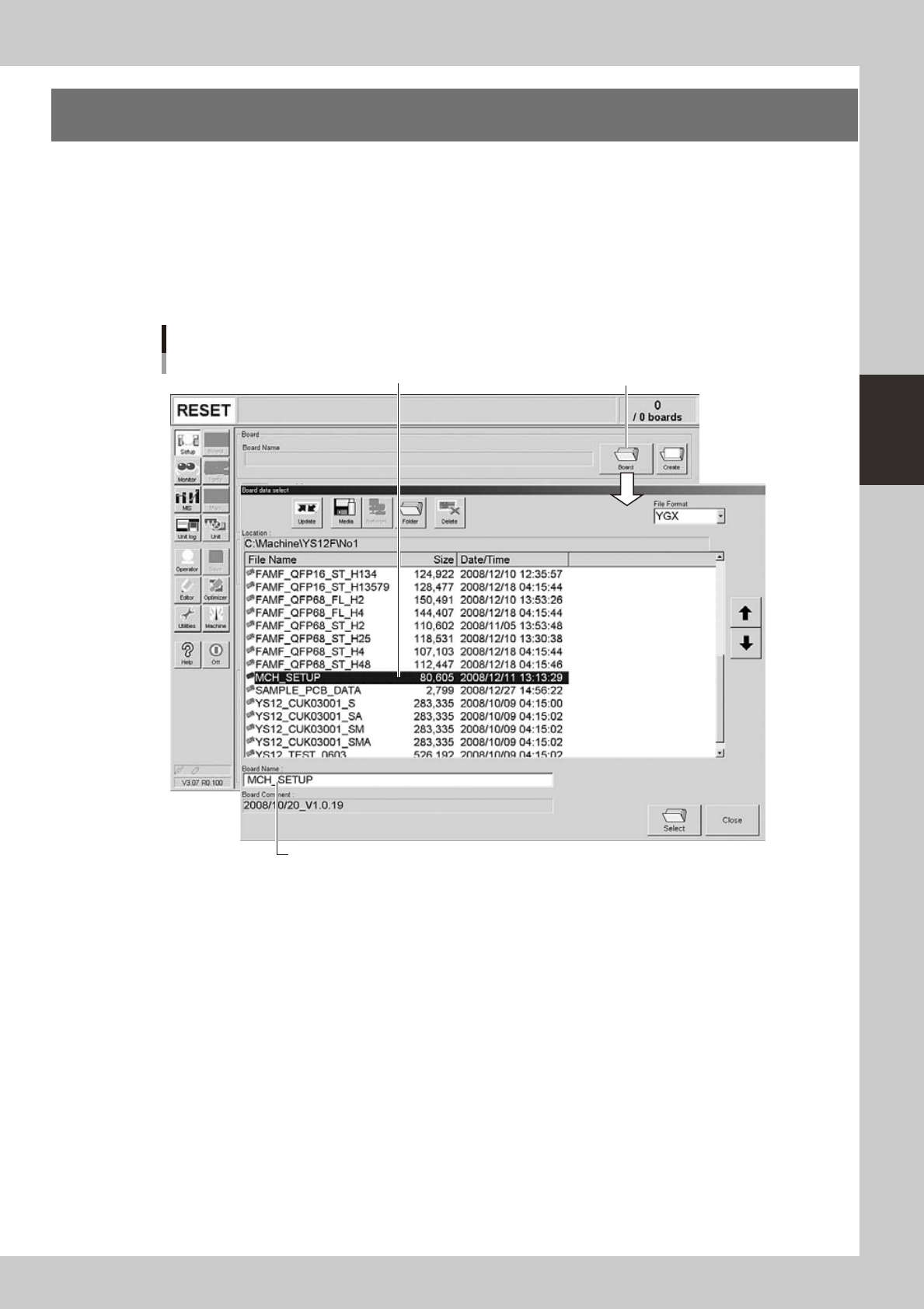

Selecting the board data
Select board data from list.
Press [Board] button.
Selected board name is displayed.
24300-N8-00
3-2
3
Starting and ending production
2
Set up the conveyor unit.
Open the [Unit] - [Conveyor] tab screen, and adjust the conveyor width and push-up pins according to
the board. For further details, refer to "3.4 Adjusting the convey unit setup" in Chapter 2.

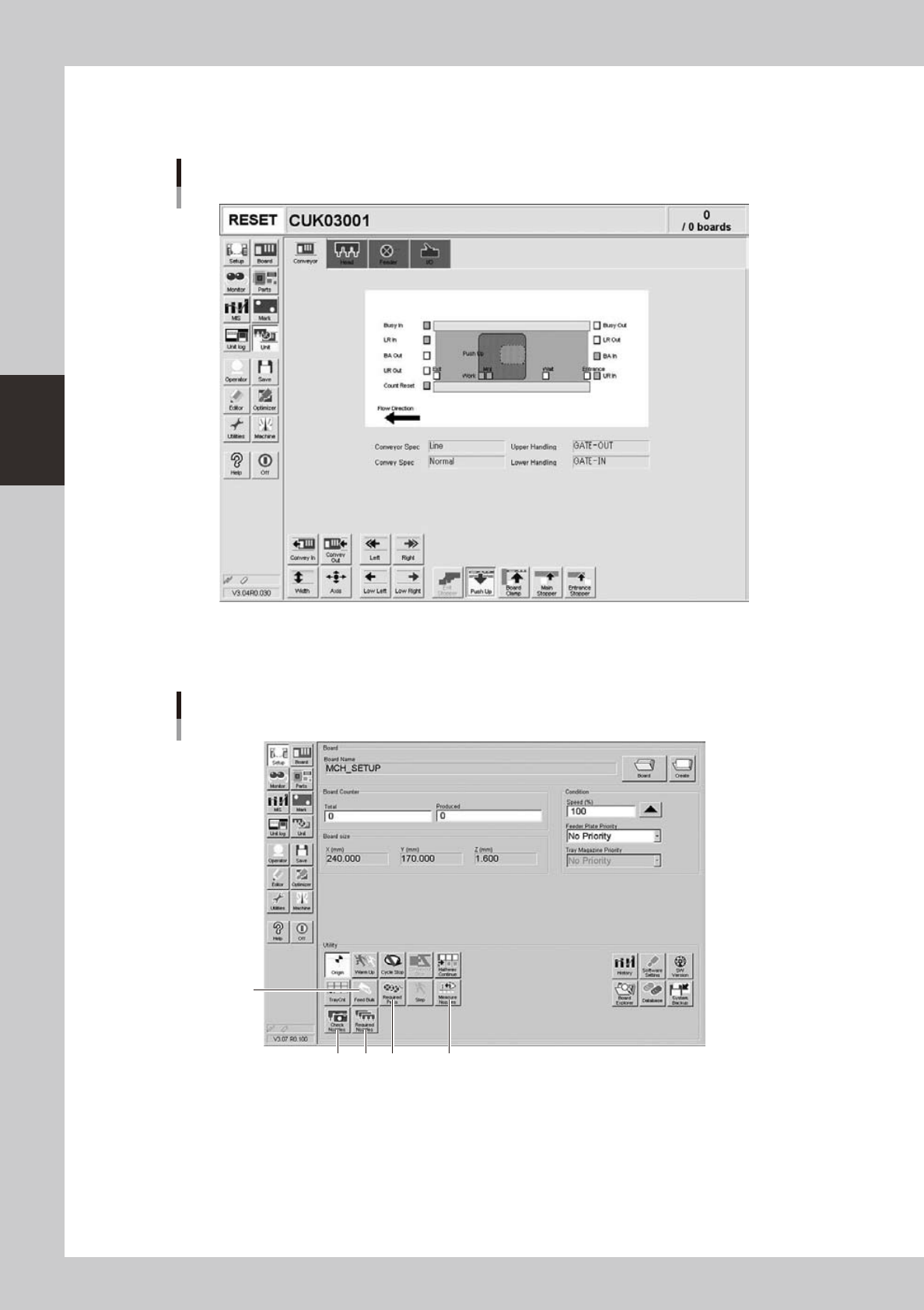

[Unit] − [Conveyor] screen
24301-N8-00
3
Check the other setup items.
Return to the [Setup] screen, and press the following buttons to check or change the setting data.
3
124
Setup screen
5
24302-N8-00
1. [Required Parts] button
Displays the designated feeder set positions and components to be mounted. Check whether the necessary feeders are
installed in the correct feeder set positions on the feeder plate.
