2 7 . 2 . カムボックス 3 C a m b o x 3 ( C S P A ) CP-643ME P ARTS LIST ver04 2 7 - 4 2 7 . 2 . カムボックス 3 ( C S P A ) 2 7 . 2 . C a m b o x 3 ( C S P A ) R e f . 3 3 - 7 R e f . 3 1 - 1 R e f . 3 1 - 1 R e f . 3 1 - 1 R e f . 3…
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
74WWZ0312 1 PLATE ﾌﾟﾚｰﾄ
75CSWZ0070 1 PLATE ﾌﾟﾚｰﾄ
76H1083T 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL SS22J-M5-D24UP-Z
77H5277A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X12L
78Y3049A 2 ELBOW ｴﾙﾎﾞ KQL06-M5
79K5075A 1 CONNECTOR ｺﾈｸﾀ KQU06-00
80Y3050A 1 ELBOW ｴﾙﾎﾞ KQL06-01S
88MPA3540 2 PLATE, RETAINER ﾌﾟﾚｰﾄ 押え
94AMPA8100 2 COVER, ACRYLIC ｶﾊﾞｰ ｱｸﾘﾙ
95S2010K 2 LAMP (Select parts) ﾗﾝﾌﾟ(選択部品) FT-11001 (60HZ)
96S2010F 2 LAMP (Select parts) ﾗﾝﾌﾟ(選択部品) FT-11001 (50HZ)
97CSWZ0080 3 BKT BKT
98CSWZ0090 3 BKT, RETAINER BKT 押え
99CSAC0016 1 ANGLE REST ｲｹｰﾙ
100K5042Z 1 CONNECTOR ｺﾈｸﾀ PC08-01
101K5048T 1 CONNECTOR ｺﾈｸﾀ PW8-6 ･
27.1.カムボックス 3 Cam box 3(CSPA)
CP-643ME PARTS LIST ver04
27-3
27.1.カムボックス 3(CSPA)
27.1.Cam box 3(CSPA)

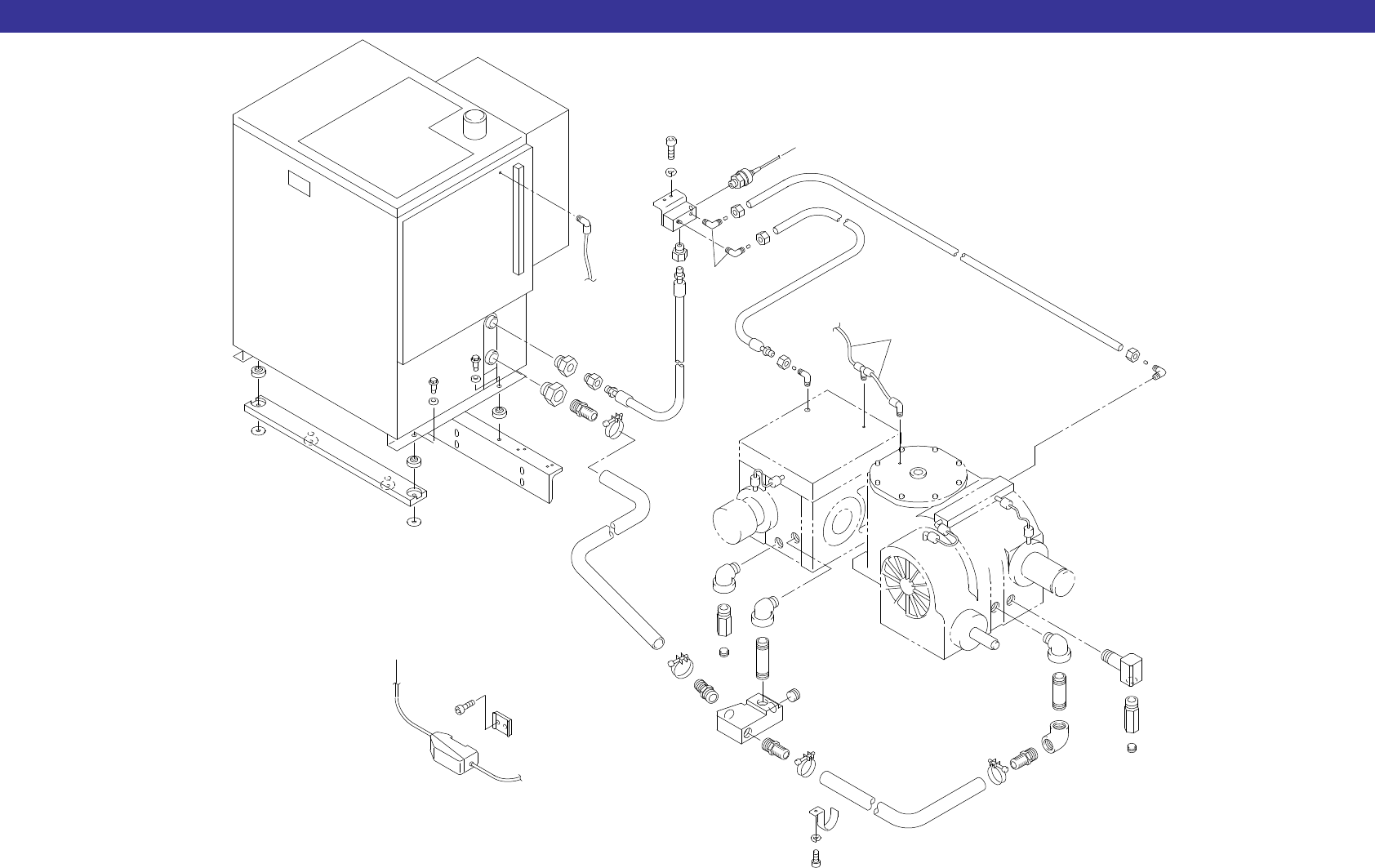

27.2.カムボックス 3 Cam box 3(CSPA)
CP-643ME PARTS LIST ver04
27-4
27.2.カムボックス 3(CSPA)
27.2.Cam box 3(CSPA)
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
89
14
13
90
90
89
89
89
87
87
90
87
88
10
10
90
10
86
82
91
84
16
59
63
1
26
24
15
82
83
24
9
11
27
23
70
69
69
70
71
72
73
71
73
71
17
49
19
7
22
12
11
27
4
19
21
8
27
11
11
27
18
5
20
22
6
3
12
53
62
2
A
A
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
x10
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1WPA0911 1 DISTRIBUTOR 分配器
2WPA0930 2 HOLDER 受け
3WPA1451 1 ELBOW ｴﾙﾎﾞ
4WPA1460 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口
5WPA1470 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口
6WPA1481 1 PIPE ﾊﾟｲﾌﾟ
7WPA1491 1 PIPE ﾊﾟｲﾌﾟ
8WPA1581 1 DISTRIBUTOR 分配器
9H3057T 1 BUSHING ﾌﾞｯｼｭ SBU06-02J
10N2003A 4 NIPPLE ﾆｯﾌﾟﾙ KLN06-0110E
11H1150N 4 BAND, HOSE ﾊﾞﾝﾄﾞ ﾎｰｽ HS16
12H5004T 1 HOSE ﾎｰｽ Mﾟ25Xﾟ30 1.5m
13H5038T 1 HOSE, HYDRAULIC ﾎｰｽ 油圧 716-M200
14H5041A 1 HOSE, HYDRAULIC ﾎｰｽ 油圧 716-M700
15H5044R 1 HOSE, HYDRAULIC ﾎｰｽ 油圧 718-720MK
16S4033T 1 SENSOR, PRESSURE ｾﾝｻ 圧力 AP-13
17A1038T 1 AMPLIFIER ｱﾝﾌﾟ AP-70
18A4024A 1 ELBOW ｴﾙﾎﾞ SLA06-000J
19A4084A 2 ELBOW, MALE AND FEMALE ｴﾙﾎﾞ ｵｽﾒｽ SLC06-000J
20A4085N 1 ELBOW ｴﾙﾎﾞ 3/4.
21A3035A 1 PLUG 埋栓 PS3/4
22A3032A 2 PLUG 埋栓 PT1/2
23H3060T 1 BUSHING ﾌﾞｯｼｭ SBU08-060J
24S2164T 2 JOINT, MALE AND FEMALE ｼﾞｮｲﾝﾄ ｵｽﾒｽ 408054KN
26A50034 1 OIL, COOLANT ｵｲﾙ ｸｰﾗﾝﾄ SCFB-01-CE-2
27WPA0942 4 NIPPLE ﾆｯﾌﾟﾙ
49H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L
53H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L
59H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
62W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
63W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
69WAC0151 4 BOLT ﾎﾞﾙﾄ
70WAC0210 4 SHEET, RUBBER ｼｰﾄ ｺﾞﾑ
71WAC0200 4 BUSHING ﾌﾞｯｼｭ
72WAC5030 1 PLATE ﾌﾟﾚｰﾄ
73WAC0190 2 COLLAR ｶﾗｰ
27.2.カムボックス 3 Cam box 3(CSPA)
CP-643ME PARTS LIST ver04
27-5
27.2.カムボックス 3(CSPA)
27.2.Cam box 3(CSPA)
