CP-643ME-04 - 第137页

番号 図番 & ｺ ｰ ﾄ ﾞ 番号 個数 品名 規格 備考 N o . D r g . N o . & C o d e N o . Q T Y D e s c r i p t i o n R a t i n g R e m a r k s 1 1 2 K 5 1 7 8 T S C R E W , C / R P A N 小ﾈ ｼ ﾞ 十穴鍋 M 3 X 1 2 L 1 1 3 H 5 2 8 7 A B O L T …

100%1 / 224
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
73H5326A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X25L
74H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
75H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
76WPA1182 2 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ
77WPA1230 1 JOINT ｼﾞｮｲﾝﾄ
78WPA1410 1
HOLDER, PIN(For Station 18)
ﾎﾙﾀﾞ ﾋﾟﾝ(18st用)
79WPA1514 1 BKT BKT
80WPA1601 4 PIN, LOCATING ﾋﾟﾝ 位置決め
81A4043A 4 ELBOW ｴﾙﾎﾞ PL6-01(1/8)
82H3181E 2 PLATE, END ﾌﾟﾚｰﾄ ｴﾝﾄﾞ MBWT5
84WPL0232 2 NUT ﾅｯﾄ
86W1036T 32 WASHER, THRUST ﾜｯｼｬ ｽﾗｽﾄ AS2542
87WPU0331 1 JOINT (For CUTTER) ｼﾞｮｲﾝﾄ (ｶｯﾀ用)
88WPM0310 1 JOINT (For Station 18) ｼﾞｮｲﾝﾄ (18st用)
89MPL0433 2 ROD, JOINT ﾛｯﾄﾞ ｼﾞｮｲﾝﾄ
91N1082A NUT, HEX ﾅｯﾄ 六角 M5 P=0.8
92A4042A 7 ELBOW ｴﾙﾎﾞ PL6-M5M
93WPQ0784 4 HOLDER ﾎﾙﾀﾞ
94W1008T 4 WASHER, TOOTHED CONICAL ﾜｯｼｬ ｷﾞｻﾞ付皿 WW-12
95H4118T 8 BEARING ﾍﾞｱﾘﾝｸﾞ SST-1810DSG
96WPQ0760 4 COLLAR ｶﾗｰ
97WPQ0771 4 NUT ﾅｯﾄ
98WPQ0791 4 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ
99H42726 4 BEARING, SPHERICAL ﾍﾞｱﾘﾝｸﾞ 球面 NB-5
100WPQ0850 4 PIN ﾋﾟﾝ
101WPQ0811 4 ROD, JOINT ﾛｯﾄﾞ ｼﾞｮｲﾝﾄ
102H2025A 4 PIN, SNAP ﾋﾟﾝ ｽﾅｯﾌﾟ SSP-5
103K5203A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M3X6L
104WPA1781 4 WASHER, THRUST ﾜｯｼｬ ｽﾗｽﾄ
105. SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M6X6L
106CSPA0011 2 DOG ﾄﾞｯｸﾞ
107CSPA0031 1 BKT, SENSOR BKT ｾﾝｻ
108CSPA0040 2 BKT, SENSOR BKT ｾﾝｻ
109CSPA0052 2 BKT BKT X151∼
110S4040X 2 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX306-W2A
111S4040W 1 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX305-W2A
26.カムボックス 2 Cam box 2(CSPA)
CP-643ME PARTS LIST ver04
26-4
26.カムボックス 2(CSPA)
26.Cam box 2(CSPA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
112K5178T SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X12L
113H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L
114. BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M10X15L
115W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
116W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
117W1026A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 10M/M
119W1047A WASHER, FLAT ﾜｯｼｬ 平 4W-10
120WPH1320 2 JOINT ｼﾞｮｲﾝﾄ
121AWPL8011 2 JOINT ｼﾞｮｲﾝﾄ
122H1156T 8 PACKING ﾊﾟｯｷﾝ MYP-25
123H2050A 3 PIN, SPRING ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ φ3X15L
124S2176B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TS6-01
125H1156Z 4 PACKING ﾊﾟｯｷﾝ MYR-10A ･
26.カムボックス 2 Cam box 2(CSPA)
CP-643ME PARTS LIST ver04
26-5
26.カムボックス 2(CSPA)
26.Cam box 2(CSPA)
27.1.カムボックス 3 Cam box 3(CSPA)
CP-643ME PARTS LIST ver04
27-1
27.1.カムボックス 3(CSPA)

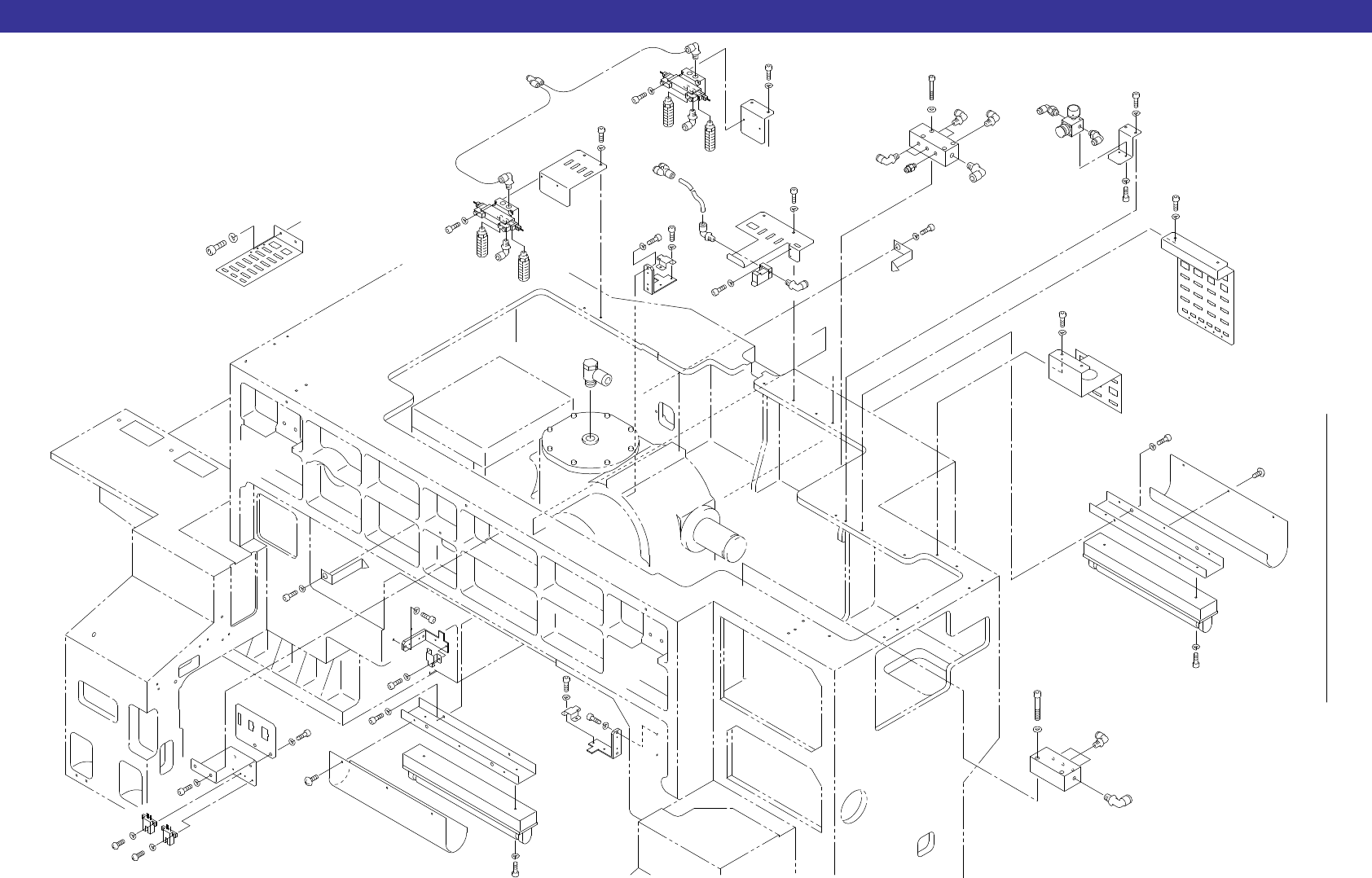

27.1.Cam box 3(CSPA)
