31.エアー機器 Air device(CSPI)
CP-643ME PARTS LIST ver04
31-1
31.エアー機器(CSPI)
31.Air device(CSPI)
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
17
2
16
6
15
5
1
5
14
14
10
23
26
20
18
22
19
11
13
9
12
15
7
30
29
21
22
19
13
27
28
3
B
A
139
26
x6
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1WAB3061 1 BKT BKT
2H3149A 1 PLUG, COUPLER ﾌﾟﾗｸﾞ ｶﾌﾟﾗ 20PM
3H1059T 1 VALVE, BALL ﾊﾞﾙﾌﾞ ﾎﾞｰﾙ RP-LL-3/8 Lock band
5A4053A 2 ELBOW ｴﾙﾎﾞ 1/4.
6A4081A 1 ELBOW, DIFFERENT DIAMETERSｴﾙﾎﾞ異径 3/8X1/4
7H3030A 1 FILTER REGULATOR ﾌｨﾙﾀﾚｷﾞｭﾚｰﾀ AW3000-02-BDG
9S2176B 4 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TS6-01
10S2172B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-02
11S2171B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-01
12S2173B 3 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL8-01
13S2174B 2 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL8-02
14H1215A 2 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 1/4X30
15H1220A 2 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 1/4X65
16H1282A 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 3/8X25
17H3075A 1 BUSHING ﾌﾞｯｼｭ 3/8X1/4
18H5295A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X35L
19H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
20W1011A WASHER, CONICAL ﾜｯｼｬ 皿 M-4-L
21W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
22W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
23WAB3050 1 TERMINAL, PIPING ﾀｰﾐﾅﾙ 配管
26S3157T 1 SW, PRESSURE SW ﾌﾟﾚｯｼｬ IS3000-02L5
27S4016R 1 SEPARATOR, MIST ｾﾊﾟﾚｰﾀ ﾐｽﾄ AFM3000-02-D
28S3059Y 1 SPACER ｽﾍﾟｰｻ Y30(29.5)
29H1234T 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 1/8X25L
30A4055A 1 ELBOW ｴﾙﾎﾞ 1/8 ･
31.エアー機器 Air device(CSPI)
CP-643ME PARTS LIST ver04
31-2
31.エア機器(CSPI)
31.Air device(CSPI)
32.1.インキャリア In carrier(CSQC)
CP-643ME PARTS LIST ver04
32-1
32.1.インキャリア(CSQC)

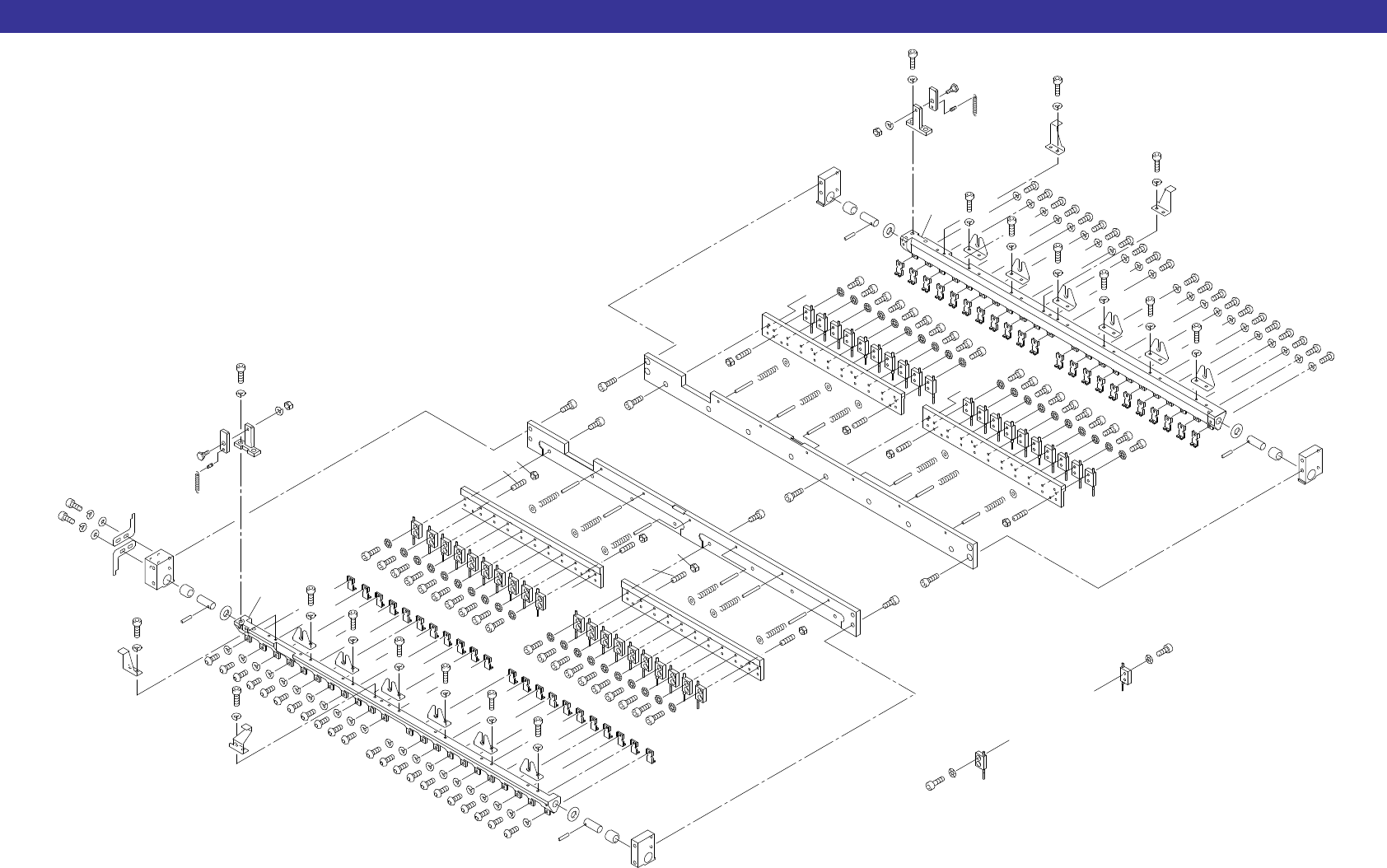

32.1.In carrier(CSQC)
